Percentage Complete Progress Bar (100% Completed) (ASP.NET)

, 8 Jul 2005 114.7K 10.5K 41
Rate this:
Please Sign up or sign in to vote.
A C# custom control which will create a progress bar showing how much percentage work is done. Also a horizontal color bordered bar which shows percentage of task completed out of 100%.

Introduction

The following C# custom control will create a percentage complete color bar with a custom text in the middle. You can compare this with those of Yahoo/Hotmail, when you log into them, it shows you the percentage of space that is occupied by you out of the space that is allocated to you.

If you provide Count as 40 and FillColor as red, the cell will be 40% filled with red color. Gradient effect has also been used in this so that you can combine more than one color.

Usage

PercentageComplete.Zip has PercentageComplete.cs file. You can include this control in your controls set and then use it in your web page. I recommend you to download the complete demo project to understand it better.

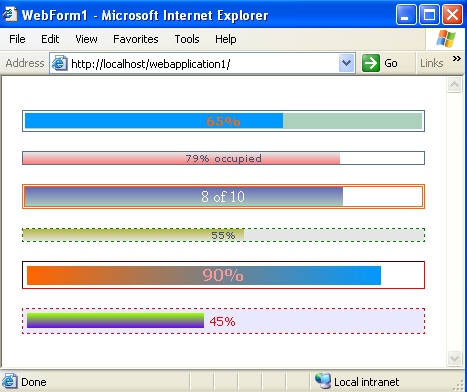

<%@ Page language="c#" Codebehind="WebForm1.aspx.cs"
    AutoEventWireup="false" Inherits="WebApplication1.WebForm1" %>

<Controls:PercentageComplete id="PercentageComplete2"
    runat="server" Count="65" FillColor="#0099FF" Gradient="false"
    cellspacing="2" TextFontColor="#FF6600" TextBold="true"
    TextFontSize="2" RemainingColor="#ABD0BC" />

<Controls:PercentageComplete id="PercentageComplete1"
    runat="server" Count="79" />

<Controls:PercentageComplete id="Percentagecomplete4"
    runat="server" Count="80" Text="8 of 10"
    StartColor="#6868B9" EndColor="#ABD0BC"
    BoxBorderColor="#FF6600" CellSpacing="0"
    TextFontFamily="Times New Roman"
    TextFontColor="White" TextFontSize="3"
    BorderType="double" BoxBorderWidth="3" />

<Controls:PercentageComplete id="Percentagecomplete3"
    runat="server" Count="55" StartColor="#B7B748"
    EndColor="#E5E5E5" BoxBorderColor="green"
    BgColor="#E5E5E5" BorderType="dotted" />

<Controls:PercentageComplete id="Percentagecomplete5"
    runat="server" Count="90" StartColor="#FF6600"
    EndColor="#0099FF" BoxBorderColor="Red"
    CellPadding="3" cellspacing="1" TextFontFamily="Verdana"
    TextBold="True" TextFontColor="#FF9999"
    TextFontSize="3" BorderType="inset"
    GradientVertical="True" BoxBorderWidth="1"  />

<Controls:PercentageComplete id="Percentagecomplete6"
    runat="server" Count="45" StartColor="#99FF00"
    EndColor="#6600FF" BoxBorderColor="Red"
    CellPadding="4" BgColor="#E8E8FF"
    BorderType="dashed" TextFontFamily="Tahoma"
    TextFontColor="red" TextFontSize="2" />

Note: Attribute "Count" is mandatory and it can only take numeric values.

It has lots of other attributes. If you download the sample project, you will see the various usages of these attributes.

Attributes

  • Count

    Integer or decimal value, mandatory, which tells you how much percentage is completed.

  • Text

    You can override the default percentage text with this.. e.g. if 19% is completed, then it will show "19%" text in the middle, but you can change the text to "2 of 10" something like this.

  • DisplayText

    By default it is true, if set to false no text will be displayed in the middle.

  • BgColor

    Background color, this can be overwritten by the RemainingColor.

  • ControlWidth

    Box width, default 100%.

  • Cellpadding

    Cellpadding of table, default is 0.

  • Cellspacing

    Cellspacing of table, default is 0.

  • ControlAlignment

    Box alignment in the container, by default center.

  • BoxBorderColor

    Box border color (E.g. red,#c0c0c0).

  • BorderType

    Box border type i.e. (solid, dashed, dotted, ridge, inset, outset).

  • BoxBorderWidth

    Box border width i.e. (0, 1, 2.. ).

  • FillColor

    Percentage completed color.

  • RemainingColor

    If percentage completed is 60%, then the remaining 40% will have this color in the background, no gradient supported for the remaining color.

  • Gradient

    By default the gradient effect is true, set this to false and the fill color will take preference over StartColor and EndColor.

  • StartColor

    By default gradient effect, and this is the start color of the gradient effect.

  • EndColor

    By default gradient effect, and this is the end color of the gradient effect.

  • GradientVertical

    By default gradient is true and set to horizontal, but you can set it to vertical instead of horizontal (default is false).

  • TextFontSize

    Font size of the text displayed in the middle.

  • TextFontFamily

    Font family/face of the text displayed in the middle.

  • TextFontColor

    Font color of the text displayed in the middle.

  • TextBold

    Whether the displayed text in the middle should be bold or not. (default false).

Output

Here I am providing you the HTML output of this, so that any non .NET programmer can extract this and use it in his web page. I searched a lot over the internet to get this:

<table cellspacing='2' cellpadding='0'
    style='border:1 solid #547095;background-color:white' width='95%'
    align='center' ID="Table1">
<tr>
 <td width='100%' style='background-color:#ABD0BC'>
  <div style='position:absolute;background-color:#0099FF;width:65%;'
                                                      align='center'>
      <font size='2'> </font></div>
  <div style='position:relative;width:100%' align='center'>
      <font style='font-weight:bold' size='2'
                color='#FF6600' face='verdana'>65%</font>
  </div>
 </td>
</tr>
</table>

Courtesy

Please feel free to change or use this control in any manner you want, but I will appreciate if you let the author email id TittleJoseph@yahoo.com remain in the control file.
