Download source files - 92 Kb

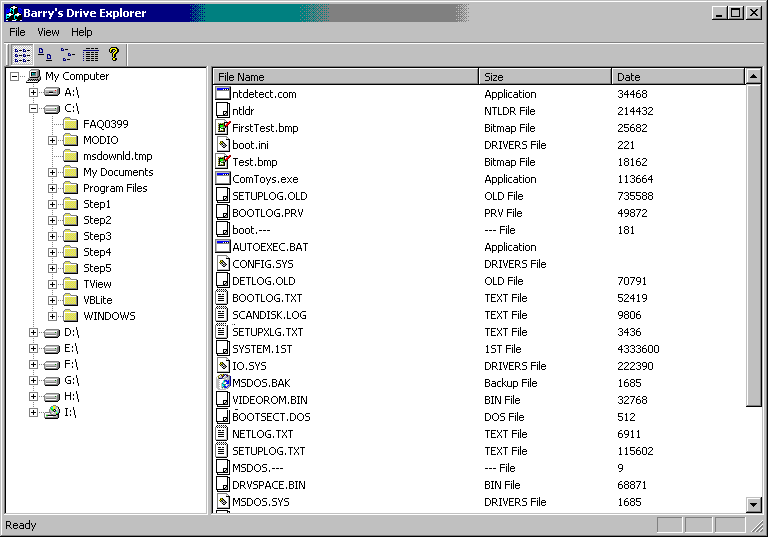

Sample Image - DriveExplorer.gif

What's New:

Introduction:

This project is look-alike of the Windows Explorer, The Icons and File Types unfortunately have been hardcoded in the project, unlike the ones available on the Windows Explorer, The Icons are a Part of the Project and not picked up from the Windows Operating System. This Uses a TreeView in ther left pane and ListView in the right pane To Display All the Drives (including CD Drive) on the Computer System

Fearture:

This project has the following features

Displays All Drives on the Computer System
Allows Sorting of Columns (by clicking on the Column Header)
At startup moves to the folder that was last selected at time of closedown of the previous session (*)
Starts the appropriate program when you double-click on a file (eg. Notepad for txt file) (*)
* Incorporated based on user suggestions on some other site

License

This article has no explicit license attached to it but may contain usage terms in the article text or the download files themselves. If in doubt please contact the author via the discussion board below.

A list of licenses authors might use can be found here

About the Author

Barretto VN

India

Member

Nothing to boast about

Article Top

Poor

Excellent

Add a reason or comment to your vote: x
Votes of 3 or less require a comment

Comments and Discussions

You must Sign In to use this message board. (secure sign-in)

Search this forum
	Profile popups Noise Layout Per page

Missing licence

Frederic Souchu

23:56 25 Oct '10

Hi, Would it be possible to precise the licence for this article? This is increasingly necessary if source code is to used in another product (commercial or not)! Regards Frederic
Sign In·View Thread·Permalink

How the right view refreshed

keroun

16:13 17 Jul '06

Click the left view's treeitem,right view refreshed, why? what message have sent?
Sign In·View Thread·Permalink

Re: How the right view refreshed

Barretto VN

0:39 21 Jul '06

In the source file LeftView.cpp you will find a declaration as follows

ON_NOTIFY_REFLECT(TVN_ITEMEXPANDING, OnItemexpanding)
ON_NOTIFY_REFLECT(TVN_SELCHANGING, OnSelchanging)

and at the bottom of the same file you find these functions

void CLeftView::OnItemexpanding(NMHDR* pNMHDR, LRESULT* pResult)
{

}

void CLeftView::OnSelchanging(NMHDR* pNMHDR, LRESULT* pResult)
{

}

these function are called by the framework when you either click on + sign of click on the label of the tree node

Re: How the right view refreshed

keroun

16:34 23 Jul '06

Thanks a lot! I already know the OnSelchanging function,and I often used UpdateAllViews to refresh other splitter views. But in this project, "pDoc->m_ExplorerView->AddToListView(&fd); " do the same work;
Sign In·View Thread·Permalink

I Need Help

helder228

14:19 11 Mar '06

Hello, iam a beginner in VC 6.0, i'm have already build a project like yours, my question is how can i split the right view with the purpose to have 2 rows there.
Im have already hadded code to the CMainFrame:



BOOL CMainFrame::OnCreateClient(LPCREATESTRUCT /*lpcs*/,

	CCreateContext* pContext)

{

	// create splitter window

	CRect pRect;

	GetClientRect(&pRect);



	if (!m_wndSplitter.CreateStatic(this, 1, 2))

		return FALSE;



	if ( !m_viewportSplitter.CreateStatic( &m_wndSplitter, 2, 1,WS_CHILD |

            WS_VISIBLE, m_wndSplitter.IdFromRowCol( 0, 1) ) )

	{



	MessageBox( "Error setting up splitter frames!", "Init Error!",

              MB_OK | MB_ICONERROR );

	return FALSE;

	}



	if (!m_wndSplitter.CreateView(0, 0, RUNTIME_CLASS(CLeftView), CSize(100, 100), pContext) ||

		!m_wndSplitter.CreateView(0, 1, RUNTIME_CLASS(CAllInOneViewerView), CSize(pRect.Width(),pRect.Height()), pContext)||

		!m_wndSplitter.CreateView(2, 1, RUNTIME_CLASS(CAllInOneViewerView), CSize(pRect.Width(),pRect.Height()/3), pContext))

	{

		m_wndSplitter.DestroyWindow();

		return FALSE;

	}

	return TRUE;

The code i haded is in bold+Italic, i supose that is the rigth code to add but it doesn't work D'Oh! | :doh:

can you please help me please!
Tanks for all your help
Best Regards H.Marques

Re: I Need Help

Barretto VN

3:59 12 Mar '06

try the following

// create splitter window
if (!m_wndSplitterMain.CreateStatic(this, 1, 2))
return FALSE;

if (!m_wndSplitterMain.CreateView(0, 0, RUNTIME_CLASS(CLeftView), CSize(100, 100), pContext))
{
m_wndSplitterMain.DestroyWindow();
return FALSE;
}

if (!m_wndSplitterChild.CreateStatic(
&m_wndSplitterMain, // our parent window is the first splitter
2, 1, // the new splitter is 2 rows, 1 column
WS_CHILD | WS_VISIBLE | WS_BORDER, // style, WS_BORDER is needed
m_wndSplitterMain.IdFromRowCol(0, 1)
// new splitter is in the first row, 2nd column of first splitter
))
{
m_wndSplitterMain.DestroyWindow();
return FALSE;
}

if (!m_wndSplitterChild.CreateView(0, 0,
RUNTIME_CLASS(CDataListView), CSize(100, 100), pContext))
{
m_wndSplitterMain.DestroyWindow();
m_wndSplitterChild.DestroyWindow();
return FALSE;
}

if (!m_wndSplitterChild.CreateView(1, 0,
RUNTIME_CLASS(CAllDataView), CSize(100, 100), pContext))
{
m_wndSplitterMain.DestroyWindow();
m_wndSplitterChild.DestroyWindow();
return FALSE;
}

need help

Anonymous

8:45 3 Mar '05

I am a newbie to VC++...and am still in the learning process...
I have made a Windows Explorer like application using MFC...and also an image viewer in MFC itself...now if i click on any image icon in the explorer i made it shud open the viewer so that the image is displayed in it....is it possible..
this cannot be done by changing in my OS's Folder options as it wud effect only my system...and i hav to change the options of other if i giv this to them....

Can u help me plzzzz....I wud be very gratefull...

Thank u...

Re: need help

Barretto VN

2:46 5 Mar '05

you can use the following function to do so

ShellExecute(NULL, "open", "C:\\Windows\\Notepad.exe",
                   NULL, NULL, SW_SHOWNORMAL);

ShellExecute(NULL, "open", "C:\\Windows\\Notepad.exe",
                   "C:\\FRUNLOG.txt", NULL, SW_SHOWNORMAL);

ShellExecute(NULL, "open", "C:\\Windows\\Notepad.exe",
                   "C:\\FRUNLOG.txt", "C:\\Windows", SW_SHOWNORMAL);

refer to the function

void CDrivesListControl::Dblclk(NMHDR* pNMHDR, LRESULT* pResult)

int the file DrivesListControl.cpp

can anyone provide me a solution

sridevi_min@yahoo.co.in

23:14 28 Feb '05

Good one..

My problem is

I want the same left and right panes...The data items in the tree control should be read from three input files say for ex a.txt,b.txt and c.txt.

b contains all the child items of all the items in a

similarly c contains all the child items to the items in b.

finally the tree has all the level 1 elements from file a. level 2 items from file b and level 3 from file c.

Sridevi

Re: can anyone provide me a solution

Barretto VN

2:49 5 Mar '05

if the data in files a.txt , b.txt & c.txt is not confidential , kindly post these files to me i will see what can be done
Sign In·View Thread·Permalink

Combining With a multiselect tree

Gargoyle_451

3:32 27 Jan '03

Hi,
Trying to expand this control to allow multi selection on the tree side and have encountered problems. Any help you can give would be appreciated. The problem is a stack over flow. In the base tree class no problems with multi select. So in the on update section of the list control i put a call to a function scan directories. This function loops through the tree control and locates the selected nodes, when found, it determins the directory and adds all items in that directory to a list control. It then moves on to the next selected directory.
in the tree views on sel changed function i call update all views.
I assume that on update in the list view is being called more often than i expected and the system is trying to make more coppies of the list control before the first is finished. (hence the stack overflow) I know that without the code it is not easy to debug code. I am looking for help to see if i am doing something fundamentally wrong (ie. STUPID) Unsure | :~

. If you would like to see code please e-mail direct and i can send. Smile | :)

Gargoyle

Selected item in tree view Highlight vanishes

Adam Rouse

23:41 12 Aug '02

I am currently working on an explorer type interface for a larger project
which has multiple views of a single document. In the Explorer type window group when you have the input focus set on the the list view part as needed by the toolbar display as list etc. options. The highlight vanishes in the tree view is there a way to keep the highlights in both views at the same
time? Confused | :confused:

The only way I can think of is, if there is not a built in for the controls, in the controls onSelChanging to set the back and forground colours of the
selected item of the tree control to the highlight colour (while also reverting back to the standard colours for the previously selected item.
This seems like an awful lot of work that I would hate to attempt if its not nessacary. If it is I can try it but I probablely have questions. Eek! | :eek:

Microsofts documentation is in a style I do not get on with and most book do not go into anywhere neer enough detail.
I have been a programmer in C and C++ for 10 years but this is my first venture in to the arcane relm of visual C++. Roll eyes | :rolleyes:

Great code By the way and thanks for any help in advance.
Big Grin | :-D

Re: Selected item in tree view Highlight vanishes

Jerry Jeremiah

22:59 19 Apr '06

What if you use the TVS_SHOWSELALWAYS This will keep the selection in the tree even when it doesn't have the keyboard focus. This is what I would do if it were me: BOOL CLeftView::PreCreateWindow(CREATESTRUCT& cs) { cs.style \|= TVS_LINESATROOT\|TVS_HASLINES\|TVS_HASBUTTONS\|TVS_SHOWSELALWAYS; return CTreeView::PreCreateWindow(cs); }
Sign In·View Thread·Permalink	2.00/5 (2 votes)
