Spell Check Enabled RichText Editor in WPF

, 13 Apr 2013
Rate this:
Please Sign up or sign in to vote.
Creating a spell check enabled RichText editor.

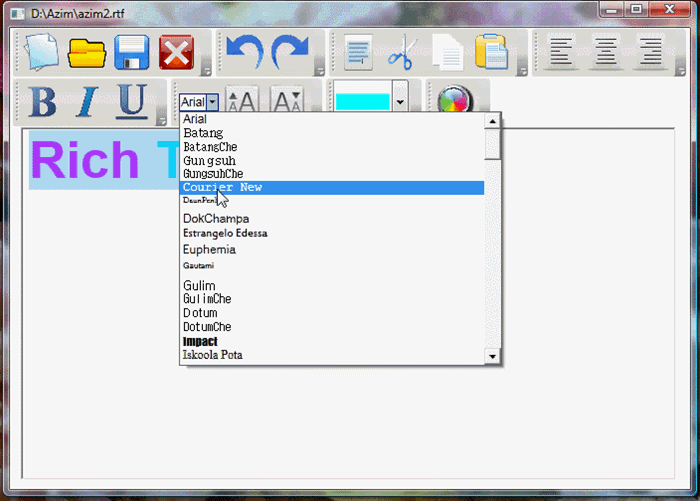

Font Selection

Formatting Text

Spell Checking

Introduction

In this article, I am describing how to create a spell check enabled Rich Text editor in WPF. My main aim is to develop a rich text editor in the fastest possible way using minimum steps without going into the extreme intricacies of WPF.

Background

The RichTextBox control can be used to create a Rich Text Editor. A RichTextBox control allows you to work with text, paragraphs, images, tables, and other such content. A Rich Text Box can be added by using the following code:

<RichTextBox Margin="11,100,14,9" Name="richTextBox1"/>
Adding the spell check feature is fairly simple. You just need to set the SpellCheck.IsEnabled dependency property to true as follows:
<RichTextBox Margin="11,100,14,9" Name="richTextBox1" SpellCheck.IsEnabled="True" />

The RichTextBox control allows you to manipulate its content using a Document object. The Document object can be retrieved using the Document property of the RichTextBox control.

Using the code

The following XAML code is used to create bitmap resources for the toolbar icons:

<Window.Resources>
    <BitmapImage x:Key="newicon" UriSource="new.png"/>
    <BitmapImage x:Key="openicon" UriSource="open.png"/>
    <BitmapImage x:Key="saveicon" UriSource="save.png"/>
    <BitmapImage x:Key="exiticon" UriSource="exit.png"/>
    <BitmapImage x:Key="undoicon" UriSource="undo.png"/>
    <BitmapImage x:Key="redoicon" UriSource="redo.png"/>
    <BitmapImage x:Key="selectallicon" UriSource="selectall.png"/>
    <BitmapImage x:Key="cuticon" UriSource="cut.png"/>
    <BitmapImage x:Key="copyicon" UriSource="copy.png"/>
    <BitmapImage x:Key="pasteicon" UriSource="paste.png"/>
    <BitmapImage x:Key="lefticon" UriSource="leftalign.png"/>
    <BitmapImage x:Key="centericon" UriSource="centeralign.png"/>
    <BitmapImage x:Key="righticon" UriSource="rightalign.png"/>
    <BitmapImage x:Key="boldicon" UriSource="bold.png"/>
    <BitmapImage x:Key="italicicon" UriSource="italic.png"/>
    <BitmapImage x:Key="underlineicon" UriSource="underline.png"/>
    <BitmapImage x:Key="increasefonticon" UriSource="increasefont.png"/>
    <BitmapImage x:Key="decreasefonticon" UriSource="decreasefont.png"/>
    <BitmapImage x:Key="abouticon" UriSource="about.png"/>
</Window.Resources>

The following code creates a Grid and adds CommandBindings to its CommandBindings collection:

<Grid>
    <Grid.CommandBindings>
        <CommandBinding x:Name="newbinding" Command="ApplicationCommands.New"
           CanExecute="newbinding_CanExecute" Executed="newbinding_Executed"/>
        <CommandBinding x:Name="openbinding" Command="ApplicationCommands.Open"
           CanExecute="openbinding_CanExecute" Executed="openbinding_Executed"/>
        <CommandBinding x:Name="savebinding" Command="ApplicationCommands.Save"
           CanExecute="savebinding_CanExecute" Executed="savebinding_Executed"/>
        <CommandBinding x:Name="exitbinding" Command="local:CustomCommands.Exit"
           CanExecute="exitbinding_CanExecute" Executed="exitbinding_Executed"/>

In the above code, the Command attribute of the CommandBinding specifies the commands as New, Open, Save, and Exit. The CanExecute event determines whether the command can be executed on the specified command target. The Executed event specifies the action that should occur when the command is executed.

A point worth noting here is that there is no Exit command in the ApplicationCommands class. As a workaround, we can create a custom Exit command as follows:

public static class CustomCommands
{
    static CustomCommands()
    {
        exitCommand = new RoutedCommand("Exit", typeof(CustomCommands));
    }
    public static RoutedCommand Exit
    {
        get
        {
            return (exitCommand);
        }
    }
    static RoutedCommand exitCommand;
}

To use our custom exit command, we add the following reference in the window:

xmlns:local="clr-namespace:RichTextPad"

Following is the code for our commands:

private void newbinding_CanExecute(object sender, CanExecuteRoutedEventArgs e)
{
    e.CanExecute = true; // Allow the command to execute.
}

private void newbinding_Executed(object sender, ExecutedRoutedEventArgs e)
{
    TextRange range = new TextRange(richTextBox1.Document.ContentStart,
        richTextBox1.Document.ContentEnd); // Get RichTextBox content.
    range.Text = "";    // Clear RichTextBox content.
    this.Title = "Untitled";
}

private void openbinding_CanExecute(object sender, CanExecuteRoutedEventArgs e)
{
    e.CanExecute = true;
}

private void openbinding_Executed(object sender, ExecutedRoutedEventArgs e)
// Code to open existing RTF file.
{
    try
    {
        FileDialog dialog = new OpenFileDialog();
        dialog.Filter = "RTF Files (*.rtf)|*.rtf|All Files(*.*)|*.*";
        dialog.FilterIndex = 1;
        if (dialog.ShowDialog() == true)
        {
            TextRange range = new TextRange(richTextBox1.Document.ContentStart,
                                  richTextBox1.Document.ContentEnd);
            FileStream stream = new FileStream(dialog.FileName, FileMode.Open,
                                    FileAccess.Read, FileShare.None);
            range.Load(stream, DataFormats.Rtf);
            stream.Close();
            this.Title = dialog.FileName;
        }
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message, "Error", MessageBoxButton.OK, MessageBoxImage.Error);
    }
}

private void savebinding_CanExecute(object sender, CanExecuteRoutedEventArgs e)
{
    e.CanExecute = true;
}

private void savebinding_Executed(object sender, ExecutedRoutedEventArgs e)
// Code to save the current file.
{
    try
    {
        FileDialog dialog = new SaveFileDialog();
        dialog.Filter = "RTF Files (*.rtf)|*.rtf|All Files(*.*)|*.*";
        dialog.FilterIndex = 1;
        if (dialog.ShowDialog() == true)
        {
            TextRange range = new TextRange(richTextBox1.Document.ContentStart,
                                            richTextBox1.Document.ContentEnd);
            FileStream stream = new FileStream(dialog.FileName, FileMode.Create,
                                               FileAccess.Write, FileShare.None);
            range.Save(stream, DataFormats.Rtf);
            stream.Close();
            this.Title = dialog.FileName;
        }
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message, "Error", MessageBoxButton.OK, MessageBoxImage.Error);
    }
}

private void exitbinding_CanExecute(object sender, CanExecuteRoutedEventArgs e)
{
    e.CanExecute = true;
}

private void exitbinding_Executed(object sender, ExecutedRoutedEventArgs e)
// Code to exit from the application
{
    Application.Current.Shutdown();
}

In the above functions, I am using the TextRange class to get the RichTextBox content and stream input-output to open/save file.

The following predefined commands can be used to implement the various text editing operations on the RichTextBox control.

<CommandBinding x:Name="undobinding" Command="ApplicationCommands.Undo"/>
<CommandBinding x:Name="redobinding" Command="ApplicationCommands.Redo"/>
<CommandBinding x:Name="selectallbinding" Command="ApplicationCommands.SelectAll"/>
<CommandBinding x:Name="cutbinding" Command="ApplicationCommands.Cut"/>
<CommandBinding x:Name="copybinding" Command="ApplicationCommands.Copy"/>
<CommandBinding x:Name="pastebinding" Command="ApplicationCommands.Paste"/>
<CommandBinding x:Name="leftalignbinding" Command="EditingCommands.AlignLeft"/>
<CommandBinding x:Name="centeralignbinding" Command="EditingCommands.AlignCenter"/>
<CommandBinding x:Name="rightalignbinding" Command="EditingCommands.AlignRight"/>
<CommandBinding x:Name="boldbinding" Command="EditingCommands.ToggleBold"/>
<CommandBinding x:Name="italicbinding" Command="EditingCommands.ToggleItalic"/>
<CommandBinding x:Name="underlinebinding" Command="EditingCommands.ToggleUnderline"/>
<CommandBinding x:Name="increasefontbinding" Command="EditingCommands.IncreaseFontSize"/>
<CommandBinding x:Name="decreasefontbinding" Command="EditingCommands.DecreaseFontSize"/>

The following code creates the toolbar buttons to execute the commands:

<ToolBarTray Background="White">
    <ToolBar Band="1" BandIndex="1" Height="50">
        <Button CommandTarget="{Binding richTextBox1}" Command="ApplicationCommands.New" ToolTip="New">
            <Image Source="{StaticResource newicon}"/>
        </Button>
        <Button CommandTarget="{Binding richTextBox1}" Command="ApplicationCommands.Open" ToolTip="Open">
            <Image Source="{StaticResource openicon}"/>
        </Button>
        <Button CommandTarget="{Binding richTextBox1}" Command="ApplicationCommands.Save" ToolTip="Save">
            <Image Source="{StaticResource saveicon}"/>
        </Button>
        <Button CommandTarget="{Binding richTextBox1}" Command="local:CustomCommands.Exit" ToolTip="Exit">
            <Image Source="{StaticResource exiticon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="1" BandIndex="2" Height="50">
        <Button Command="ApplicationCommands.Undo" ToolTip="Undo">
            <Image Source="{StaticResource undoicon}"/>
        </Button>
        <Button Command="ApplicationCommands.Redo" ToolTip="Redo">
            <Image Source="{StaticResource redoicon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="1" BandIndex="3" Height="50">
        <Button Command="ApplicationCommands.SelectAll" ToolTip="Select All">
            <Image Source="{StaticResource selectallicon}"/>
        </Button>
        <Button Command="ApplicationCommands.Cut" ToolTip="Cut">
            <Image Source="{StaticResource cuticon}"/>
        </Button>
        <Button Command="ApplicationCommands.Copy" ToolTip="Copy">
            <Image Source="{StaticResource copyicon}"/>
        </Button>
        <Button Command="ApplicationCommands.Paste" ToolTip="Paste">
            <Image Source="{StaticResource pasteicon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="1" BandIndex="4" Height="50">
        <Button Command="EditingCommands.AlignLeft" ToolTip="Align Left">
            <Image Source="{StaticResource lefticon}"/>
        </Button>
        <Button Command="EditingCommands.AlignCenter" ToolTip="Align Center">
            <Image Source="{StaticResource centericon}"/>
        </Button>
        <Button Command="EditingCommands.AlignRight" ToolTip="Align Right">
            <Image Source="{StaticResource righticon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="2" BandIndex="1" Height="50">
        <Button Command="EditingCommands.ToggleBold" ToolTip="Bold">
            <Image Source="{StaticResource boldicon}"/>
        </Button>
        <Button Command="EditingCommands.ToggleItalic" ToolTip="Italic">
            <Image Source="{StaticResource italicicon}"/>
        </Button>
        <Button Command="EditingCommands.ToggleUnderline" ToolTip="Underline">
            <Image Source="{StaticResource underlineicon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="2" BandIndex="2" Height="50">
        <ComboBox Name="cbFonts" ItemsSource="{x:Static Fonts.SystemFontFamilies}"
                   SelectedIndex="0" ToolTip="Font">
            <ComboBox.ItemTemplate>
                <DataTemplate>
                    <TextBlock Text="{Binding}" FontFamily="{Binding}"/>
                </DataTemplate>
            </ComboBox.ItemTemplate>
        </ComboBox>
        <Button Command="EditingCommands.IncreaseFontSize" ToolTip="Increase Font Size">
            <Image Source="{StaticResource increasefonticon}"/>
        </Button>
        <Button Command="EditingCommands.DecreaseFontSize" ToolTip="Decrease Font Size">
            <Image Source="{StaticResource decreasefonticon}"/>
        </Button>
    </ToolBar>
    <ToolBar Band="2" BandIndex="3" Height="50">
        <ext:ColorPicker Name="colorChooser"
           SelectedColorChanged="colorChooser_SelectedColorChanged" ToolTip="Text Color"/>
    </ToolBar>
    <ToolBar Band="2" BandIndex="4" Height="50">
        <Button Name="btnAbout" ToolTip="About RichTextPad" Click="btnAbout_Click">
            <Image Source="{StaticResource abouticon}"/>
        </Button>
    </ToolBar>
</ToolBarTray>

The following code is used to set the font on the selected text:

void cbFonts_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
    TextRange range = new TextRange(richTextBox1.Selection.Start,
        richTextBox1.Selection.End);    // Get RichTextBox content.
    range.ApplyPropertyValue(RichTextBox.FontFamilyProperty,
        cbFonts.SelectedValue);    // Set the font selected from ComboBox on the RichTextBox
}

Since there is no color selection dialog box in WPF, I have used the one from the Extended WPF Toolkit. A reference to the Extended WPF Toolkit library is added to the project and the following namespace added:

xmlns:ext="http://schemas.microsoft.com/winfx/2006/xaml/presentation/toolkit/extended"

The color picker control is added as follows:

<ext:ColorPicker Name="colorChooser"
   SelectedColorChanged="colorChooser_SelectedColorChanged" ToolTip="Text Color"/>

The following code is used to set color on the selected text:

private void colorChooser_SelectedColorChanged(object sender, RoutedPropertyChangedEventArgs<color> e)
{
    // Get RichTextBox content.
    TextRange range = new TextRange(richTextBox1.Selection.Start, richTextBox1.Selection.End);
    range.ApplyPropertyValue(RichTextBox.ForegroundProperty,
          new SolidColorBrush(colorChooser.SelectedColor));
          // Apply the selected color.
}</color>

Points of interest

WPF provides a rich programming model for manipulating the RichTextBox. Once I started working on this project, I realized the many capabilities of the WPF RichTextBox control. I hope that my article will help readers in understanding these concepts in a short time span.

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

About the Author

Azim Zahir
Instructor / Trainer NIIT, India
India India
I am a trainer by profession. Currently I am working with NIIT (Mumbai, India) as a Senior Faculty. I enjoy programming as a hobby. My favorite technologies are Flash, Flex and Silverlight.

Of late I have developed keen interest in WPF and Windows Mobile programming.

Apart from computers, my favorite pastime is bicycling.

Comments and Discussions


QuestionWinforms version Pinmemberndennisv16-Jun-13 23:23
AnswerRe: Winforms version PinmemberAzim Zahir17-Jun-13 16:21
QuestionBackgroundProperty SolidColorBrush(Colors.White) PinmemberMember 848494116-Jul-12 4:12
AnswerRe: BackgroundProperty SolidColorBrush(Colors.White) PinmemberAzim Zahir17-Jul-12 4:31
GeneralMy vote of 5 Pinmemberdilukawittachchi19-Jun-12 5:33
GeneralRe: My vote of 5 PinmemberAzim Zahir19-Jun-12 20:42
QuestionExcelent Pinmemberhackerspk2-Jun-12 0:02
AnswerRe: Excelent PinmemberAzim Zahir3-Jun-12 5:32
GeneralRe: Excelent Pinmemberhackerspk4-Jun-12 3:25
GeneralRe: Excelent PinmemberAzim Zahir4-Jun-12 3:49
GeneralRe: Excelent Pinmemberhackerspk4-Jun-12 3:57
GeneralRe: Excelent PinmemberAzim Zahir4-Jun-12 5:28
GeneralRe: Excelent Pinmemberhackerspk4-Jun-12 5:54

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

| Advertise | Privacy | Mobile
Web04 | 2.8.140721.1 | Last Updated 13 Apr 2013
Article Copyright 2012 by Azim Zahir
Everything else Copyright © CodeProject, 1999-2014
Terms of Service
Layout: fixed | fluid
