WPF : RatingsControl That Supports Fractions

, 27 Nov 2009
Rate this:
Please Sign up or sign in to vote.
I was at work the other day and one of my work collegues asked me how to create a Rating control (you know the ones with the stars). I talked him through how to do it, but whilst doing so I thought I might have a go at that if I get a spare hour [...]

I was at work the other day and one of my work collegues asked me how to create a Rating control (you know the ones with the stars). I talked him through how to do it, but whilst doing so I thought I might have a go at that if I get a spare hour or 2. I found some time to give it a go, and have come up with what I think is a pretty flexable RatingControl for WPF.

You are able to alter the following attributes

  • Overall background color
  • Star foreground color
  • Star outline color
  • Number of stars
  • Current value

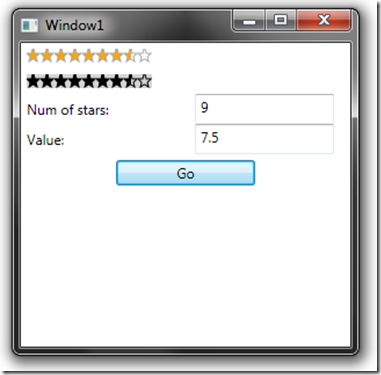

All of these properties are DependencyProperty values, so they are fully bindable. This is all wrapped up in a very simple and easy to use UserControl called RatingsControl, Here is what the resulting RatingsControl looks like in a demo window.


The RatingsControl also contains n many StarControls that each renders its own value portion. You may be asking yourself how the control can render partial stars, well this figure may explain that


Here is the code from the StarControl Value DP, which moves a masking Rectangle the correct distance to give the illusion of a fraction rendering of the Star. The masking Rectangle is clipped by using a standard Rectangle Clip value for the StarControl.

/// <span class="code-SummaryComment"><summary>
</span>/// Handles changes to the Value property.
/// <span class="code-SummaryComment"></summary>
</span>private static void OnValueChanged(DependencyObject d,
    DependencyPropertyChangedEventArgs e)
{
    d.CoerceValue(MinimumProperty);
    d.CoerceValue(MaximumProperty);
    StarControl starControl = (StarControl)d;
    if (starControl.Value == 0.0m)
    {
        starControl.starForeground.Fill = Brushes.Gray;
    }
    else
    {
        starControl.starForeground.Fill = starControl.StarForegroundColor;
    }

    Int32 marginLeftOffset = (Int32)(starControl.Value * (Decimal)STAR_SIZE);
    starControl.mask.Margin = new Thickness(marginLeftOffset, 0, 0, 0);
    starControl.InvalidateArrange();
    starControl.InvalidateMeasure();
    starControl.InvalidateVisual();

}

If you want to know more and get the download code you can do so using the article link which is :

http://www.codeproject.com/KB/WPF/WPFStarRating.aspx

Enjoy
