Creating a Simple Windows 8 Game Series:
This is the second in a series of posts that
will show you to create a (very) simple Windows 8 game. We’ll be using HTML5,
along the way.
The game is based on the XNA sample game "Catapult Wars Lab. We’ll reuse the assets
from that game as we develop a new version for Windows 8 that’s based on web
The first post was a quick
introduction to the moving parts in a basic Windows 8 Metro style app. In
this post, we’ll start creating a game in earnest. If you’re new to game
development, take a moment to read Ed Donahue’s Game Dev 101 posts.
What Are We Building?
Here’s what the game looked like in the
original XNA version:
We won’t go through adding all of these
features, but we’ll get close!
Adding the Assets
Unless you’re creating the next great text-based adventure, you’ll
probably need some images and sounds. In our case, we’re using ones
already created in the "Catapult Wars Lab" 2D sample game. This
graphics and sounds and get coding!
- Launch Visual Studio 2012 and create a project named "CatapultWars",
- Download and extract the "Catapult Wars Lab" sample (CatapultWars_4_0.zip)
- From a Windows Explorer view of the folder,
select and drag all four folders from the /Assets/Media/Textures folder
and in Visual Studio, place them under the images folder. (This will
copy and add them to the project.)
- Create a new folder called "sounds" in the
root of the project.
- Copy the files from /Assets/Media/Sounds to
the new "sounds" folder.
Your project should look like
Now that we have some assets, let’s put them
The Splash Screen & Logos
Notice that when you run the game, you first
see an "X" in a square? That’s the splash screen, by default showing the
/images/splashscreen.png image, but we can do better. To adjust the
splash screen, double-click the
The file /images/Backgrounds/gameplay_screen.png
is what we want to use, but the image must be 620x300 pixels. So, open
the image in your favorite editor, resize and save as
"title_screen_620x300.png". Add that new file into the project.
Now we can set the "Splash screen" field to
images\Backgrounds\title_screen_620x300.png. While we’re here, pick
whatever background color you’d like to complement the image (e.g.
"darkGray"). Now when run, the game greets us with a new splash screen:
We can also adjust the app’s tile, which by
default looks like this:
Also in the app manifest, we see a number of
places for logos. We can add 150x150, 310x150, and 30x30 logos for use in
Now we have square and wide format custom
Looks good! Now if only we had a game to
Adding the HTML5 Canvas
First, we’re going to need something to
display the game. The HTML5 canvas element is essentially a
sandbox of pixels that you can draw to dynamically. We’re going to use a
canvas to render the game, so we need to add it to our HTML page. Open default.html
and replace Line 17 (the "Content goes here" line) with a canvas tag, so it
looks like this:
Normally, you’d specify width & height and
add fallback content in case canvas isn’t supported, but we’ll set width/height
later and we know canvas will be supported. However, this is just one of
the many times you should consider coding practices in case you want to reuse
some of your app code as a traditional web application – but that’s a story for
another series of posts...
Making Things Easier with CreateJS
So how do we add things like our background
and catapults? Unlike HTML content, canvas content is entirely created via
Of course, we could use canvas methods
help, including ones well-suited to game development. CreateJS
and copy in the scripts (from the "lib" folders) as follows:
isn’t enough to use them, so reference them from default.html:
Tip: You can add script references by
dragging the script from Solution Explorer onto the page. (Extra Tip: in
We’ll use PreloadJS to help load assets before
to use in the game and EaselJS to make it easier to manage the game loop and
the drawing of image assets.
Starting the Game
To start the game, we need to know when the page
is ready to run. For that, we use the
DOMContentLoaded event to
tell us when the page structure has been loaded and scripts are ready to
run. This is different from the onload event, which waits for all
referenced content to be downloaded.
In default.js, add an
function and have it called by
DOMContentLoaded. While we’re at it, let’s
add the basis of the game loop as well:
app.oncheckpoint function is
collapsed to make things easier to read.
To work with the canvas, store images, and
create bitmaps, we’re going to need a bunch of variables. Also, because
the original game assumed a 800x480 screen, we need to scale the images we draw
to the actual screen size.
Add the following variables to default.js:
Initializing Canvas and Using PreloadJS
Earlier, I’d mentioned canvas is only updated
element, then retrieve it’s 2D context. That context exposes the drawing
functions. We’ll also scale the canvas to match our full screen size.
initialize() as follows:
Now we need to load our images so we can draw
them to the canvas. There are many ways to do this, but PreloadJS is
helpful because we can list what we’ll use and it ensures they are loaded
before we reference them. If we don’t do this, we may not reliably get
details like image sizes at runtime, creating bugs.
PreloadJS works by reading an array of
resources, then calling a function when complete. We’ll specify all of
the images we’ll be using.
initialize() function as
When PreloadJS has readied our assets, the
method will be called.
Using EaselJS to Create and Draw Images
Now we need to get those images to the screen
(via the canvas). Fortunately, EaselJS has a number of features we’ll
- A Stage class that manages the canvas
and the scene we’re drawing
- Bitmap, Text, and SpriteSheet
classes, useful for representing items to draw
- Point class to help position items on the canvas
- A Ticker class to help manage the game loop
(think of it as the heartbeat of the game)
We’ll get to the Ticker a bit later, but now
let’s add the Stage so we can start populating it with content. In default.js,
add the following to the
This creates the stage and connects it to our
game’s canvas element. Now we can add items (called children) to the
Right below the
prepareGame() function. (Remember we told PreloadJS to call
when it’s done loading assets). For now, let’s just add one item –
What’s going on here?
- Line 62 -
preload.getResult() is asking
PreloadJS for the image it has already loaded for us
- Line 63 – Create an EaselJS Bitmap instance,
using the image as it’s source
- Lines 64 & 65 – Scale the Bitmap to
the resolution of our screen (relative to 800x480 of the original assets)
- Line 66 – Add the Bitmap to the Stage
as a child
- Line 68 – Ask the Stage to tell the
canvas about everything it knows
Let’s run the game. After the splash
screen, we now see:
A Quick Change with CSS
As you can see, the background image we added
is transparent, so our background color is showing through. The black
background is spooky, but quite not what we’re looking for.
One thing we can do is to change which WinJS
CSS base we’re using. By default, we use ui-dark.css, but a quick
change in default.html to point to ui-light.css, and things
automatically pick up new styles:
A quick run now shows:
However, let’s try for a more sky-like color…
say, "azure". We can override the WinJS background color by setting our
own via CSS. Open /css/default.css and change the body style as

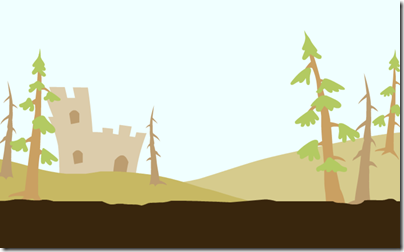

A beautiful sky, ready for war!
Adding the Remaining Assets
Now that you’ve seen how to add the
background. It’s mostly a matter of repetition to include the others
(with a bit more math thrown in.) Head back to default.js and
include the following in
A few notes on this:
- The catapults appear at "ground level" which we need to scale along
with the overall size of the images
- Drawing player 2’s catapult is tricky because we need it to face the
other direction. Using regX to set a transform point and setting a
negative scale gets the job done.
- We create and add the ammo (boulder) image, but hide it until it’s
Adding Some Text
To wrap things up for this post, let’s use
Text class to add a game title along with indicators for each
player’s remaining catapults. First, we’ll need a few variables near the
top of default.js:
Then, add the following to
To the Stage, Text instances are
children just like the Bitmaps we added earlier.
What does the game look like now?
Things are looking pretty good, but
unfortunately that’s about it – nothing’s moving. In the next post, we’ll dive in to the game’s mechanics, fleshing out the game loop by
adding motion, collision detection, scorekeeping, and the endgame.
