A Quick Start Lesson to the ASP.NET ImageMap Control

, 8 Dec 2009
Rate this:
Please Sign up or sign in to vote.
This article introduces how to use ImageMap Control in ASP.NET

Introduction

The article illustrates how to use ImageMap to create an introduction of the planets in Solar System via VB.NET language. When the planet in the image is clicked, the brief information of this planet will be displayed under the image and the iframe will navigate to the corresponding page in WikiPedia.

This sample project is uploaded into CodeProject site and you can also download it from All-In-One Code Framework site.

Microsoft All-In-One Code Framework delineates the framework and skeleton of Microsoft development techniques through typical sample codes in three popular programming languages (Visual C#, VB.NET, Visual C++). Each sample is elaborately selected, composed, and documented to demonstrate one frequently-asked, tested or used coding scenario.

Background

The ImageMap control in ASP.NET 2.0 and onward versions can be used to create an image that contains defined hot spot regions. When a user clicks a hot spot region, the control can either generate a post back to the server or navigate to a specified URL.

For example, you can use this control to display a map of a geographical region. When a user clicks a specific region on the map, the control navigates to a URL that provides additional data about the selected region. Or, you can use an ImageMap control to capture user responses such as votes. When a user clicks the hot spot region defined for Yes votes, code is called to record a Yes response in a database.

Mixing these two scenarios within a single ImageMap control is also supported. For example, you can specify one hot spot region to navigate to a URL and another hot spot region to post back to the server.

There are three kinds of hot spot regions defined in ImageMap control. They are as follows:

  • RectangleHotSpot
  • CircleHotSpot
  • PolygonHotSpot

As the name implies, the RectangleHotSpot defines rectangular hot spot regions. The CircleHotSpot defines circle-shaped ones and the PolygonHotSpot is used for irregularly shaped hot spot area.

To define the region of the RectangleHotSpot object, use the Left, Top, Right and Bottom property to represent the coordinate of the region itself. For the CircleHotSpot object, set the X and the Y property to the coordinate of the centre of the circle. Then set the Radius property to the distance from the center to the edge. To define the region of a PolygonHotSpot, set the Coordinates property to a string that specifies the coordinates of each vertex of the PolygonHotSpot object. A polygon vertex is a point at which two polygon edges meet.

Using the Code

Let’s take a simple demo that is supposed to create an introduction page to the Solar System to get started with using this control.

Firstly we may find an image containing all the stars in the Solar System.

Then we will set a corresponding hot spot region to each star in the image so that when a user clicks a specific region, we can do something to make a response. Here I would like to take the Planet Jupiter as an example to show how a CircleHotSpot works as it is large enough for the following demonstration.

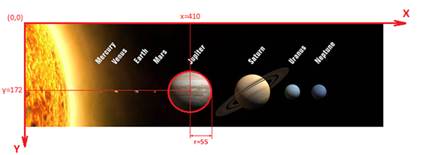

As the up-left corner of the image is the origin point of the coordinate system with the X-axis extending to the right and the Y-axis extending downwards, we can get the coordinate of the center of the Planet Jupiter is (410, 172) based on the pix computation. Also, we can obtain the radius of the planet in the image which equals to 55pix.

As a conclusion, we can create a CircleHotSpot within the ImageMap control with the code like this:

<asp:CircleHotSpot PostBackValue="Jupiter"
                   AlternateText="Jupiter"
                   X="410" Y="172" Radius="55"
                   HotSpotMode="PostBack" />

Same things can be done to the other six planets: Mercury, Venus, Earth, Mars, Uranus and Neptune as they all cover circle regions in the image. When it comes to Saturn, the situation will be more complicated.

Since Saturn has the ring, it covers an irregularly shaped hot spot region in the image. So we need to use the PolygonHotSpot.

And to define a polygon region, we need to use the Coordinates property to specify the coordinates of the vertexes of the region. A polygon vertex is a point at which two polygon edges meet. The string that you specify must be formatted with each coordinate separated by a comma. Each vertex that you specify must have both an x-coordinate and a y-coordinate. For example, the string "128,185,335,157,510,224,510,383,228,383" defines a polygon hot spot with five vertexes.

  • (128, 185)
  • (335, 157)
  • (510, 224)
  • (510, 383)
  • (228, 383)

Now, let’s take a look at Saturn here. In order to achieve that wherever a user clicks on the planet itself or the ring around the planet, the handler function can be executed, we place 12 points over the irregularly shaped region as the vertexes of Saturn.

Please pay attention that the up-left corner is no longer (0, 0) for that the screen shut above is snipped from the original image. As the same things we did before, we get these vertexes’ coordinates by (X-coordinate, Y-coordinate) and set their values to the Coordinates property of the PolygonHotSpot. Therefore, the code will look like this:

<asp:PolygonHotSpot PostBackValue="Saturn"
                AlternateText="Saturn"
                Coordinates="492,235,
                             471,228,
                             522,179,
                             540,133,
                             581,126,
                             593,134,
                             657,110,
                             660,126,
                             615,167,
                             608,203,
                             563,219,
                             542,214"
                HotSpotMode="PostBack" />

As we can shape all the planets’ regions in the image now, the thing we need to do next is to handle the click event of the ImageMap control to response for such a behavior from the user.

As we need to raise a postback when a user clicks the ImageMap control, we need to set either the ImageMap.HotSpotMode property or the HotSpot.HotSpotMode property to HotSpotMode.Postback. Also, we need to use the PostBackValue property to specify a name for the hot spot region. This name will be passed in the ImageMapEventArgs event data when a postback event occurs. When a postback HotSpot is clicked, the Click event is raised. To programmatically control the actions performed when a postback HotSpot is clicked, provide an event handler for the Click event.

Let’s have a look at the ImageMap.Click event handler function in the Code-Behind page here.

Protected Sub imgMapSolarSystem_Click(ByVal sender As Object,
                                      ByVal e As System.Web.UI.WebControls.
				  ImageMapEventArgs)
                                      Handles imgMapSolarSystem.Click
    'Code
End End Sub

In the event handler function, we can use e, the ImageMapEventArgs event data to obtain the information about which region in the ImageMap is clicked. For example, if a user clicks Earth, we can get this information from the PostBackValue property of e as we have already set the PostBackValue of the CircleHotSpot that covers the Earth to “Earth”.

'If a user clicks on the Earth, the regionName will be equal to Earth
Dim regionName As String = e.PostBackValue

After knowing this, we can finally write the event handler function by using Select Case statement and e.PostBackValue property as follows:

Protected Sub imgMapSolarSystem_Click(ByVal sender As Object,
                                      ByVal e As System.Web.
				  UI.WebControls.ImageMapEventArgs)
                                      Handles imgMapSolarSystem.Click
    Select Case e.PostBackValue
        Case "Mercury"
            'When user clicks on the Mercury region
            'Code
        Case "Venus"
            'When user clicks on the Venus region
            'Code
        Case "Earth"
        Case "Mars"
        Case "Jupiter"
        Case "Saturn"
        Case "Uranus"
        Case "Neptune"
        Case Else
            'When user doesn't click on any planet in the image
    End Select
End End Sub

Walkthrough

In this section, I will walkthrough the creation of the demo project step by step.

Step 1. Create a Visual Basic ASP.NET Web Application in Visual Studio 2008 / Visual Web Developer and name it as VBASPNETImageMap.

Step 2. Add an ImageMap control into the page and change its ID property to imgMapSolarSystem.

[NOTE] ImageMap can contain defined hotspot regions. When a user clicks a hot spot region, the control can either generate a post back to the server or navigate to a specified URL. This demo is made to generate a post back to the server and run specific code based on the hot spot region that was clicked from the ImageMap control. For an example illustrating navigating to different URLs, please refer to the following code and pay attention to the NavigateUrl property in the RectangleHotSpot tag:

<asp:ImageMap ID="ImageMap4Navigate" runat="Server"
    ImageUrl="image.jpg"><asp:RectangleHotSpot AlternateText="Button 1"
        Bottom="100" HotSpotMode="Navigate" Left="200" NavigateUrl="navigate1.htm"
        Right="300" Top="20" /></asp:ImageMap>

Step 3: Follow the demo to create the RectangleHotSpots, CircleHotSpots and PolygonHotSpot within the ImageMap tag.

[NOTE] There are three kinds of hot spots in the ImageMap control. They are RectangleHotSpot, CircleHotSpot and PolygonHotSpot. As the name implies, the RectangleHotSpot defines rectangular hot spot regions. The CircleHotSpots defines circle-shaped ones and the PolygonHotSpot is used for irregularly shaped hot spot area.

To define the region of the RectangleHotSpot object, use the Left, Top, Right and Bottom property to represent the coordinate of the region itself. For the CircleHotSpot object, set the X and the Y property to the coordinate of the centre of the circle. Then set the Radius property to the distance from the center to the edge. To define the region of a PolygonHotSpot, set the Coordinates property to a string that specifies the coordinates of each vertex of the PolygonHotSpot object. A polygon vertex is a point at which two polygon edges meet.

For more information about these three hot spots, please refer to the links in References part.

Step 4: Double-click the ImageMap control in page's Designer View to open the Code-Behind page in Visual Basic .NET language.

Step 5: Locate the code into the imgMapSolarSystem_Click event handler and use Select Case to create different behaviors according to the PostBackValue.

[NOTE] To make the hot spot generate postback to the server, set the HotSpotMode property to Postback and use the PostBackValue property to specify a name for the region. This name will be passed in the ImageMapEventArgs event data when postback occurs.

Points of Interest

Till now, we can almost create an introduction page to the Solar System by using the ImageMap control. If you want a complete demo of this sample, you can refer to the project named VBASPNETImageMap from All-In-One Code Framework at http://cfx.codeplex.com/. If there is any problem, you can have a look at the ReadMe.txt file in the sample project, which contains a step by step tutorial of how to build such a project.

Before this Quick Start Lesson comes to the end, I would like to suggest you refer to the links for the ImageMap class and the three HotSpot classes on the MSDN as well. Definitely they will give you more information and good sample code on how to use the ImageMap control in ASP.NET.

History

  • 6th December, 2009: Initial post
  • 8th December, 2009: Corrected article format
