Music videos are evolving. What used to be the
paradigm of music videos on channels like MTV and VH1, are now being eclipsed
by the sheer volume of music videos being released and featured on the web.
Unlike traditional media – such as television – where one music video is played
after another, music videos on the web compete with one another for attention.
So how do artists cut through the noise and get noticed, especially if you’re
an up and coming star like Jasmine Villegas?
This is the challenge Jasmine and the team at
Internet Explorer sought to solve. Her vision was to create an interactive
experience to accomplish two things, 1) engage her existing fan base, and 2)
help her reach new fans. To get this done right, Microsoft called in HTML5
experts at creative agencies Digital Kitchen and Bradley and Montgomery to create justafriend.ie The result is an experience that not only
meets Jasmine’s objectives, but also showcases the power of HTML5 on the web.
Layered throughout the entire music video are
crazy amounts of technical sparklers working to bring it life. Whether you’re
Jasmine Villegas’ BFF or just want to learn more about HTML5, we want to
provide you with more info on how we brought Just A Friend to life online.
Setting-up the site with HTML5 standards
We started the project by making sure modern browsers will recognize and use HTML5
video instead of plug-ins. This was easy:
<!DOCTYPE html>
Connect Facebook data to your web app
Facebook Connect is an integral component of
JustaFriend.ie as it really helps to draw the user into the experience. When
you first start the video, users are asked to connect to their Facebook
account. This allows us to pull images from their FB account and project them
directly into the video and also gives us the ability to display their name
contextually throughout the experience. As a result, fans of Jasmine can feel
part of the video, alongside their favorite singer.
Project images on an HTML5 canvas and video
Image projection in HTML5 is not a new
concept. In fact, much of the early work on the project was based on what Steven
Wittens provided at http://acko.net/files/projective-canvas/index.html. But canvas projection in IE9 performed much better in tests than
other modern browsers, so the code had to be altered to work cross-platform.

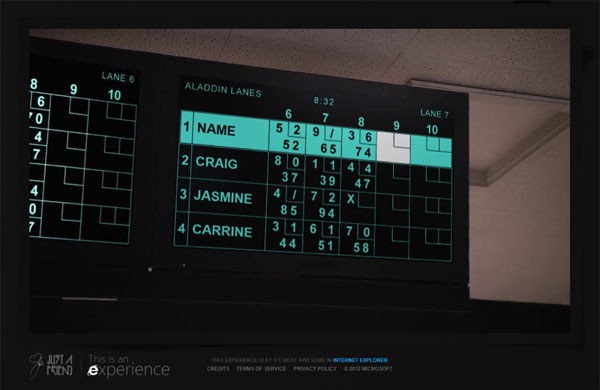

A good example are the steps taken to get the
scoreboard to display the user’s name pulled from Facebook Connect. To achieve
this, the projection code was updated to work with a canvas buffer instead of
an image. This allowed various elements to be composited to the buffer before
it was projected. Starting with a blank PNG of the scoreboard, the names were
drawn using the canvas drawing API. Another PNG was laid over the top to
provide a slight glare. The whole piece was taken a step forward by having this
projection matched to frames of video instead of just a motionless, flat
surface.
Layering of PNGs was also used in projecting
the user’s Facebook photos onto Jasmine’s bedroom wall at the beginning of the
video. PNGs provided shadow effects to make the photos blend seamlessly with
the existing photos on the wall. This technique was again used on the photo on
Jasmine’s desk at the end of the video. Here’s the final experience and the
code that powered it.
Before:
After:
function scoreboardProjection(frame_offset) {
if (frame_offset == null) frame_offset = 0;
var canvas, proj;
var score_img_1,
score_img_2,
overlay,
board_canvas,
score_canvas_1,
score_canvas_2;
var self = view.extend({
template:'<div class="scene HD" id="scoreboard_projection"></div>&',
name:'scoreboardProjection',
pageName: 'Bowling Scoreboard',
onInit:onInit
});
return self;
function onInit() {
score_img_1 = media.getImage('img/bowlingscore1.png');
score_img_2 = media.getImage('img/bowlingscore2.png');
overlay = media.getImage('img/bowlingscore_overlay.png');
var scale_down_to_blur = .75;
board_canvas = canvasUtil.create(Math.floor(800 * scale_down_to_blur), Math.floor(450 * scale_down_to_blur));
score_canvas_1 = canvasUtil.create(800, 450);
score_canvas_2 = canvasUtil.create(800, 450);
canvas = canvasUtil.create(10, 10);
proj = projection(board_canvas, canvas, null, {
wireframe:false,
subdivisionLimit:3,
patchSize:32
});
}
}
view raw scoreboardProjection.example.js This Gist brought to you by GitHub.
Using this code source with the techniques
described above will produce image projections that blend seamlessly into your
project.
Source code for the Scoreboard scene is here: http://www.justafriend.ie/cdn/js/jv/scenes/scoreboardProjection.js
To learn more about developing with HTML5
canvas, try these links:
Pull video frames with pixels
HTML5 video is still an evolving technology.
Although a lot of work has been done to ensure frame accuracy, it is still not perfect. So we had to hack it
together with some help:
The HTML5 MediaElement API provides a getter
for ‘currentTime’ that is supposedly accurate to a fraction of a second, but
this does not always match the current frame being rendered to the screen. This
is especially a problem when doing computationally expensive processing while
the video is being rendered.
To get around this issue, the frame number was
pulled out of the image using the black and white pixels that have been burned
into the video and placed just off screen. This is not the standard NTSC scan
display you see in videos. Instead, it is an original bit of binary data
created and burned into the video manually to keep everything correctly synced.
While seemingly simplistic in nature it is an incredibly useful technique that
is used during the interactive moments in the video. Without it, the videos
would not be properly synced which would cause the overlays to not match their
corresponding frames.
function getCurrentFrameFromTimecode() {
frame_canvas_ctx.drawImage(video, 961, 0, 1, 16, 0, 0, 1, 16);
var timeBitmap = frame_canvas_ctx.getImageData(0, 0, 1, 16);
var timeData = timeBitmap.data;
var frame = 0;
var value;
for (var i = timeData.length - 1; i >= 0; i -= 4) {
value = (timeData[i - 3] + timeData[i - 2]
+ timeData[i - 1]) > 125 ? 1 : 0;
if (Math.floor(i / 4) == 15) {
frame = value << Math.floor(i / 4);
} else {
frame |= value << Math.floor(i / 4);
}
}
current_frame_text = "Frame: "+frame;
return frame;
}
view raw currentFrameFromTimecode.example.js This Gist brought to you by GitHub.
Use this code source to help keep video and
interactive elements in sync. You can get the source for the "frame code
reader"module here:
http://www.justafriend.ie/cdn/js/jv/frameCodeReader.js
Blowing up PNGs for the good of performance
During the dance game, the graphic elements
needed to match the beat pattern and explode once they hit the paddle for a
cool effect. For the explosions, the PNG sprites were converted to canvas image
data, and then a particle system was created where each particle represented a
single pixel in the image. The particle system is pretty basic and was
developed using the 2D Vector class found in the Javascript port of toxiclibs.
Get the code sample here: http://haptic-data.com/toxiclibsjs/
In early testing, performance was an issue
when too many particles were rendered at once. The simplest solution was to
create sprites with lots of transparency within Photoshop. Then, when the particle
system is created, only particles are created for those pixels that exceed a
certain opacity threshold. By fading out and destroying the particles quickly,
better performance was obtained.
An early prototype can be seen here: http://www.justafriend.ie/cdn/dev/proto13b.html
Sequence and media loading
Throughout the experience, there are different
outcomes based on user interaction. Because of these different outcomes, a lot
of different videos had to be created. So, the media loader needed to work in a
way that made the transitions look seamless.
Initially Popcorn.js and the Popcorn.sequence
module that was used in the other IE9 project for Cut The Rope was used. However, it was quickly
discovered that this framework was overkill for this project and did not give
the precision needed for sequencing. For starters, the sequence breaks when
using non-integer in and out points, and the timed callbacks are not really in
sync.
In the end, a system of scenes that had
frame-specific in and out points were created. On each frame, all scenes are
rendered that should be visible on that frame. Each scene can be thought of as
an overlay, as the HTML5 video is rendered in the background.
Each scene uses the custom media loader to
preload the required assets at startup. There are various media loaders for
HTML5, but one couldn’t be found that met the project’s specific needs. So, a
custom media loader was created that works with RequireJS and supports images,
video, and audio. The loader includes support for onComplete and onError
callbacks as well as application-level status notifications. All requests are
queued and limited to a certain number of simultaneous “threads” to avoid many
of the most common HTTP pipeline issues in some browsers, fortunately, not an
issue for modern browsers like Internet Explorer 9.
One issue was that HTML5 video clips would not
fully preload due to the way modern browsers naturally load segments of video
in a progressive manner. To ensure that videos are cached, they are loaded via
Ajax-style XHR. The main video is the only one that is allowed to stream in the
traditional sense. The main video is the one element that doesn’t change
depending on the user’s interactions. If it was preloaded, the initial load
time at the start of the experience would be incredibly long. Using this
combination of preloaded and progressively loading video elements, traditional
buffer times are eliminated.
Adapt this code source to load your assets so
that they transition seamlessly.
Source code for the media loader is here: http://www.justafriend.ie/cdn/js/jv/media.js
Dial Your Digits
One of the hidden elements within the
experience is the use of the Tropo API that allows you to type in your phone
number on a phone lying on the table at the end of the video. By doing so,
Jasmine calls the number you dialed and leaves one of 6 random voice messages.
The API is easy to implement, and adds a nice layer of surprise and delight to
the individual going through the experience.
Wrapping it up
Thanks for reading the Behind the Scenes
developer tear down on Jasmine Villegas’ Just A Friend.
To learn more about developing cross-browser
code for modern browsers, start with MSDN: http://msdn.microsoft.com/ie
