How to make ActiveX work with IE Protected Mode?

, 26 Apr 2013 CPOL
This article talks about how to use Dynamic Web TWAIN ActiveX control with Internet Explorer Protected Mode.

Editorial Note

This article is in the Product Showcase section for our sponsors at CodeProject. These reviews are intended to provide you with information on products and services that we consider useful and of value to developers.

Introduction

This article talks about how to use Dynamic Web TWAIN ActiveX control with Internet Explorer Protected Mode.

Background

Since Internet Explorer 7 on Windows Vista was released, Protected Mode has been introduced as a new security feature. It is based on Windows Vista’s new access control security mechanism. When running in Protected Mode, Internet Explorer is a low integrity process and has limited permissions to access the user system.

While Protected Mode better protects the system from the Internet, it causes problems when ActiveX needs to talk with high integrity objects.

Dynamsoft’s Dynamic Web TWAIN is a document scanning SDK for web applications. You can embed Dynamic Web TWAIN in your website to enable users scan documents online. It includes an ActiveX edition which allows users to acquire images from TWAIN compatible scanners within IE (x86/x64). When running Dynamic Web TWAIN on Windows Vista and above, IE Protected Mode is on by default so users consistently get issues like the following:

  • ActiveX failed to access the scanners connected to the user machine
  • IE crashed when ActiveX tries to acquire images from scanner due to insufficient permissions

One possible solution is to have the end users manually turn off Protected Mode themselves in order to make ActiveX control work properly, but this is inconvenient and not user friendly.

Working with Protected Mode

To solve the issues caused by Protected Mode, Dynamsoft has introduced a new approach. Instead of running the ActiveX under the browser process, which has low level access, Dynamic Web TWAIN uses an independent broker process to communicate with the scanners for better compatibility and robustness. The broker process has medium level permission so it can access medium integrity objects. It has the following benefits:

  • Avoid browser crashes caused by scanner driver problems, thus improving the robustness of the web application. The independent process will not affect the browser process.
  • The independent process used for scanning has a higher permission level than the browser process. This can solve the scanning issues, such as browsers not accessing the scanner source successfully, caused by the increased security features of Windows/IE.

Using the Code

You can simply set the BrokerProcessType Property to 1 to enable separate broker process for scanning. Below is a simple sample of doing ADF scanning, with resolution 100 and using gray color in browser using Dynamic Web TWAIN.

window.onload = DW_Pageonload;
function DW_PageonloadInner() {//Detect Environment
    // Get User Agent Value
    ua = (navigator.userAgent.toLowerCase());

    // Set the Explorer Type
    if (ua.indexOf("msie") != -1)
        DW_InIE = true;
    else
        DW_InIE = false;

    // Set the Operating System Type
    if (ua.indexOf("macintosh") != -1)
        DW_InWindows = false;
    else
        DW_InWindows = true;

    // Set the x86 and x64 type
    if (ua.indexOf("win64") != -1 && ua.indexOf("x64") != -1)
        DW_InWindowsX86 = false;
    else
        DW_InWindowsX86 = true;
}

function DW_CreateControl() {
    var objString = "";
    var DWTContainer;


    // For IE, render the ActiveX Object
    if (DW_InIE) {
        /*Only useful in version 8.* or earlier
        ///////////////////////////////////////
        objString = "<object classid='clsid:" + DW_PROCLASSID + "' style='display:none;'><param name='LPKPath' value='" + DW_LPKPath + "'/></object>";
        ///////////////////////////////////////
        */
        objString += "<object id='" + DW_ObjectName + "' style='width:" + DW_Width + "px;height:" + DW_Height + "px'";

        if (DW_InWindowsX86)
            objString += "codebase='" + DW_CABX86Path + "#version=" + DW_VersionCode + "' ";
        else
            objString += "codebase='" + DW_CABX64Path + "#version=" + DW_VersionCode + "' ";

        var temp = DW_IsTrial ? DW_TRAILCLASSID : DW_FULLCLASSID;
        objString += " classid='clsid:" + temp + "' viewastext>";
        objString += " <param name='Manufacturer' value='DynamSoft Corporation' />";
        objString += " <param name='ProductFamily' value='" + DW_ProductName + "' />";
        objString += " <param name='ProductName' value='" + DW_ProductName + "' />";
        //objString += " <param name='wmode' value='transparent'/>  ";
        objString += " </object>";
    }
    // For non-IE, render the embed object
    else {
        objString = " <embed id='" + DW_ObjectName + "'style='display: inline; width:" + DW_Width + "px;height:" + DW_Height + "px' id='" + DW_ObjectName + "' type='" + DW_MIMETYPE + "'";
        objString += " OnPostTransfer='Dynamsoft_OnPostTransfer' OnPostAllTransfers='Dynamsoft_OnPostAllTransfers'";
        objString += " OnMouseClick='Dynamsoft_OnMouseClick'  OnPostLoad='Dynamsoft_OnPostLoadfunction'";
        objString += " OnImageAreaSelected = 'Dynamsoft_OnImageAreaSelected'";
        objString += " OnImageAreaDeSelected = 'Dynamsoft_OnImageAreaDeselected'";
        objString += " OnMouseDoubleClick = 'Dynamsoft_OnMouseDoubleClick'";
        objString += " OnMouseRightClick = 'Dynamsoft_OnMouseRightClick'";
        objString += " OnTopImageInTheViewChanged = 'Dynamsoft_OnTopImageInTheViewChanged'";
        objString += " OnGetFilePath='Dynamsoft_OnGetFilePath'";
        if (DW_InWindows)
            objString += " pluginspage='" + DW_MSIPath + "'></embed>";
        else
            objString += " pluginspage='" + DW_PKGPath + "'></embed>";
    }

    DWTContainer = document.getElementById(DW_DWTContainerID);
    DWTContainer.innerHTML = objString;
    DWObject = document.getElementById(DW_ObjectName);
}

function DW_Pageonload() {
    DW_PageonloadInner();  //Detect environment
    InitInfo();            //Add guide info
    DW_CreateControl(); //Create an instance of the component in the DIV assigned by DW_DWTContainerID

    vShowNoControl = false; //By default, we assume the control is not loaded
    //Set interval to check if the control is fully loaded.
    DW_Seed = setInterval(DW_ControlDetect, 500);
}

// Check if the control is fully loaded.

function DW_ControlDetect() {
    // If the ErrorCode is 0, it means everything is fine for the control. It is fully loaded.
    if (DWObject.ErrorCode == 0) {
        /*Only useful in version 9.0 or later*/
        /////////////////////////////////////// Please put your product key below
        DWObject.ProductKey = "391243D92C15C4BE5C77E6EC25D16FC6D9754433530E517A67371A97AD158D173373ABC58E8272C940F1ACE1E97C953920000000";
        ///////////////////////////////////////
        DWObject.BrokerProcessType = 1; //scan in a separate brokerprocess
        DW_Pause();
        // For IE, attach events
        if (DW_InIE) {
            DWObject.attachEvent('OnPostTransfer', Dynamsoft_OnPostTransfer);
            DWObject.attachEvent('OnPostAllTransfers', Dynamsoft_OnPostAllTransfers);
            DWObject.attachEvent('OnMouseClick', Dynamsoft_OnMouseClick);
            DWObject.attachEvent('OnPostLoad', Dynamsoft_OnPostLoadfunction);
            DWObject.attachEvent('OnImageAreaSelected', Dynamsoft_OnImageAreaSelected);
            DWObject.attachEvent('OnMouseDoubleClick', Dynamsoft_OnMouseDoubleClick);
            DWObject.attachEvent('OnMouseRightClick', Dynamsoft_OnMouseRightClick);
            DWObject.attachEvent('OnTopImageInTheViewChanged', Dynamsoft_OnTopImageInTheViewChanged);
            DWObject.attachEvent('OnImageAreaDeSelected', Dynamsoft_OnImageAreaDeselected);
            DWObject.attachEvent('OnGetFilePath', Dynamsoft_OnGetFilePath);
        }
    }
    else {
        if (vShowNoControl == false) {
            DW_NoControl();
            vShowNoControl = true;
        }
    }
    DW_Timeout = setTimeout(function () { }, 10);
}
function DW_Pause() {
    clearInterval(DW_Seed);
}

function DW_NoControl() {
    // Display the message and hide the main control
    DW_CreateNonInstallDivPlugin();
    document.getElementById(DW_DWTNonInstallContainerID).style.display = "inline";
    document.getElementById(DW_DWTContainerID).style.display = "none";
}
function DW_CreateNonInstallDivPlugin() {

    var varHref = "";
    if (DW_InIE) {
        var ObjString = "<div style='display: block; border:solid black 1px; text-align:center; width:" + DW_Width + "px;height:" + DW_Height + "px'>";
        ObjString += "<ul style='padding-top:100px;'>";
        ObjString += "<li>The Component is not installed</li>";
        ObjString += "<li>You need to download and install the ActiveX to use this sample.</li>";
        ObjString += "<li>Please follow the instructions in the information bar.</li>";
        ObjString += "</ul></div>";
    }
    else {
        if (DW_InWindows) {
            if (location.hostname != "")
                varHref = "http://" + location.host + location.pathname.substring(0, location.pathname.lastIndexOf('/')) + "/" + DW_MSIPath;
            else
                varHref = DW_MSIPath;
        }
        else {
            if (location.hostname != "")
                varHref = "http://" + location.host + location.pathname.substring(0, location.pathname.lastIndexOf('/')) + "/" + DW_PKGPath;
            else
                varHref = DW_PKGPath;
        }
        var ObjString = "<div style='display: block; border:solid black 1px; text-align:center; width:" + DW_Width + "px;height:" + DW_Height + "px'>";
        ObjString += "<ul style='padding-top:100px;'>";
        ObjString += "<li>The Component is not installed</li>";
        ObjString += "<li>You need to download and install the plug-in to use this sample.</li>";
        ObjString += "<li>Please click the below link to download it.</li>";
        ObjString += "<li>After the installation, please RESTART your browser.</li>";
        ObjString += "<li><a href='" + varHref + "'>Download</a></li>";
        ObjString += "</ul></div>";
    }
    document.getElementById(DW_DWTNonInstallContainerID).innerHTML = ObjString;
}
function DW_AcquireImage() {
    DWObject.SelectSource(); //show the available devices
    DWObject.OpenSource();
    DWObject.IfShowUI = false; //hide the user interface of the TWAIN source
    DWObject.PixelType = 1; //scan images in gray
    DWObject.Resolution = 100; //set resolution to 100
    DWObject.IfFeederEnabled = true;
    DWObject.XferCount = -1;
    DWObject.IfAutoFeed = true;    //auto feed
    DWObject.IfDisableSourceAfterAcquire = true;
    DWObject.AcquireImage();
}

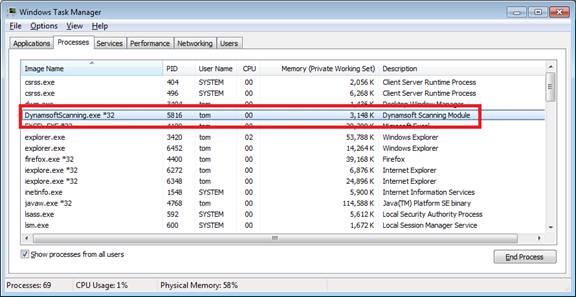

When you run the web application embedding Dynamic Web TWAIN, you will see the broker process for scanning in Task Manager:

Conclusion

By using an independent broker process for scanning in Dynamic Web TWAIN 9.0, it greatly improves the security and robustness of the web scanning application. And users will find it easier and smoother to activate and use the ActiveX control for web scanning on higher versions of IE on Windows.

For more information about Dynamic Web TWAIN, visit the Dynamsoft website.

Resources

Dynamic Web TWAIN is a client-side web scanning control which you can embed into your web application. It allows users to scan documents from TWAIN compatible scanners or acquiring images from digital cameras.

Dynamic Web TWAIN supports all the mainstream browsers on Windows and Mac.

ActiveX Edition – work with x84/x64 IE
Plugin Edition – work with Chrome, Firefox, Safari, Opera on Windows
Mac Edition - work with Chrome, Firefox, Safari, Opera on Mac
