Implementing a Leave Application Workflow System using BizTalk Server 2006 and Sharepoint Server 2003

, 19 Nov 2013 CPOL
Rate this:
Please Sign up or sign in to vote.
This article describes how to design and develop simple workflow systems using BizTalk Server and Sharepoint Server. InfoPath is also used for editing XML documents.

Introduction

This article describes how to design and develop simple workflow systems using BizTalk Server and Sharepoint Server. InfoPath is also used for editing XML documents.

Human Workflow – what does it mean?

A Workflow is a movement of a document or a task across several people. In a Human workflow several humans communicate using a business process. This business process is implemented as a workflow. For example, an article (document) could be routed to several people for a review in a publishing company. In this article we shall consider a "Leave Approval Workflow". This leave application raised by the employee is routed to the manager and his boss for their inputs or approvals.

Role of BizTalk, Sharepoint and InfoPath

BizTalk Server 2006 – BizTalk is used to compose the workflows and determine the routing of the documents. It is also used to make database related changes pertaining to the workflow.

Sharepoint Server 2003 – Sharepoint is used as a repository for the leave application documents. It also consists of several views for BizTalk to pickup the right kind of documents.

InfoPath 2003 – InfoPath 2003 is used for editing XML instance documents from the XML schemas.

Target Audience

This article uses BizTalk 2006, SQL Server 2005, Visual Studio 2005, Sharepoint Server 2003 and InfoPath 2003. It is expected that readers of this article have considerable working experience in these products.

Leave Workflow System

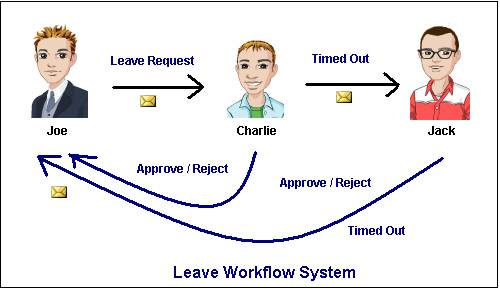

Figure 1

In this article, we shall be considering a workflow system for Leave Approval process. An Employee raises a leave request by placing a document in a folder. This document is then picked up by the system and routed to the manager of the employee. The manager can either "Approve" or "Reject" the leave request. In the case, when the manager is on leave or not available, the leave request would then get routed to the manager’s boss for his approval. The leave request would get "TimedOut" and is sent back to the employee, in the case when the manager and his boss fail to respond to the leave application. Refer to the Figure 1.

Database Design

The database consists of two tables, the "Employee" table and the "EmployeeLeaveHistory" table.

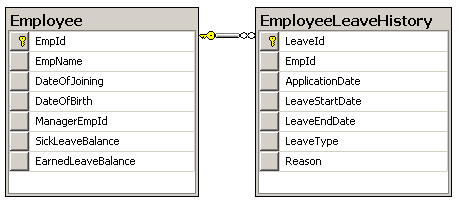

The column names and the primary keys are shown in the Figure 2.

Figure 2

Points to note:

  • When an employees leave request gets APPROVED, the number of leaves requested gets deducted from the SickLeaveBalance or the EarnedLeaveBalance, based on the LeaveType.
  • If the number of leaves requested is greater than the available leaves, the leave request is automatically REJECTED, before being routed to the manager of the employee.
  • The Employee Leave History table maintains the record of the leaves taken by the employee. A row is inserted into this table, when a leave request is APPROVED.

Stored Procedures

Several stored procedures have been written for the common tasks of querying and inserting records into the tables shown in Figure 2. The stored procedures list is shown in Figure 3.

Figure 3

Database Library

A Database library is used to interact with the SQL Server database. This DB library is referenced by the BizTalk project and is called directly by the Orchestration to perform database related operations. This database library must be present in the Global Assembly Cache (GAC), since all assemblies referenced by BizTalk must be placed in GAC. The class diagram for the DB Library is shown in Figure 4.

Figure 4

BizTalk Artifacts

A BizTalk solution generally consists of the following

  • A Schema – LeaveApp.xsd
  • A Property Schema (For exposing the schema properties into an orchestration and ports)
  • An Orchestration – RouteLeaveApplications.odx & ProcessLeaveApplications.odx
  • An Pipeline (optional)

Schema

The Leave Application Schema encapsulates all the relevant information required for leave processing. Designing a schema is first step in any BizTalk project. Refer to the leave application schema in Figure 5. The elements of the schema are self explanatory.

Figure 5

Orchestrations

An Orchestration is essentially a Business Process. In this example the Orchestration Workflow has been split into two parts. The first part routes the Leave Application submitted by the employee to the manager. The second part is responsible for picking up the APPROVED/REJECTED/TIMEDOUT leave requests and takes appropriate actions.

A message in an Orchestration binds to a schema, in this case the "LeaveApp" schema shown in the Figure 5. There are two messages in the orchestration, one is incoming message and another is the outgoing message.

The "RouteLeaveApplications" Orchestration performs the following ...

  • The Orchestration picks up the Leave Request message from the Sharepoint folder.
  • The message is validated against the number of leaves available from the Employee table. In the case where no leaves are available an exception is raised by the stored procedure. This exception is caught by the Orchestration and the message is sent back to the requested employees folder. Refer to the Figure 6.

Figure 6

The "ProcessLeaveApplications" Orchestration performs the following.

  • The BizTalk engine monitors the managers folder in Sharepoint and checks to if the following conditions have occurred, and picks up the message.
    • Leave Application message Status field set to either "APPROVED" or "REJECTED".
    • Leave Application message Status field set to default value "REQUEST", is unchanged after the elapsed timeout.
  • The message picked up in the previous step is routed to the manager’s boss, in this case to Jack for Approval. In case Jack does not approve it and the elapsed timeout occurs, the message is again picked up and its status is set to "TIMEOUT" and routed back to the employee who has raised this request and in this case it is "JOE". Refer to Figure 7.

Dynamic Ports

The BizTalk ports which are used to interact with Sharepoint are Dynamic ports. BizTalk can determine the destination folder, only when it receives the Leave request message and retrieves the manager name of the Employee.

Code Listing for a TIMEDOUT message processing

LeaveAppOut = LeaveAppIn;

LeaveAppOut(LeaveWorkflowSystem.Status) = "TIMEDOUT";
LeaveAppOut(LeaveWorkflowSystem.Comments) = "Leave request timed out even after escalation.";

destinationFolder = LeaveAppIn(LeaveWorkflowSystem.EmpName);

SendLeaveAppPort(Microsoft.XLANGs.BaseTypes.Address) =
"wss://win2k-2005-pc:80/sites/BizTalkDemos/" + destinationFolder + "";

NOTE: The last line in the code, specifies the destination of the message by the setting the value in the Dynamic port. Don’t worry about the Sharepoint path hard coding, this can be moved into an environment variable.

Figure 7

Integration with Sharepoint

The BizTalk integration with Sharepoint is the most important section of this article. The Windows Sharepoint Services adapter integrates a Document Library with the BizTalk System.

Document Libraries

A Document Library is just a repository for a file. It also provides additional features like Check-in, Check-out and version control.

Figure 8

The Figure 8 shows the various document libraries created for the employees in the Organization. IMPORTANT NOTE: When the document library is created ensure that its schema template is that of the leave application schema, otherwise the leave application properties cannot be processed by Sharepoint.

Views

Figure 9

There are two views shown in the Figure 9.

  • TimedOutForms – This view shows only the leave applications which are "TIMEDOUT". This is done by setting the filter properties on the view to display the leave applications which have been pending since 1 day. This means that previous days pending leave applications shall be "TIMEDOUT" today.
  • ApprovedRejectedDocs – This view shows only the leave applications which are either "APPROVED" or "REJECTED".

Note: The views are used by BizTalk to pickup the leave application messages. Those messages which do not come into the view are ignored by BizTalk.



The Figure 10 shows a TIMEDOUT message in Joe’s folder.

Figure 10

InfoPath – Editing an XML document with InfoPath

The Figure 11 shows the filling up of the "JoeLeaveApplication" XML document using InfoPath.

Figure 11

Event Viewer – Can be used to monitor the Workflow.

Notice the messages in Figure 12, logged in the Event Viewer for the Joe Leave Application which been TIMEDOUT all through.

Figure 12

About the downloadable code…

  • Unzip and Restore the database backup file EmployeeDB.zip into the SQL Database Server on your box. This has been created on a SQL Server 2005 box.
  • Unzip the BizTalk project zip file with the folder names in the C:\ drive. Using the Bindings file to setup the ports. Edit the BizTalk project in Visual Studio 2005 and update the Sharepoint connection strings.
  • Add the User Environment variable "DBLIB.EMPLOYEEUTIL" with the value as the Database Connection String.
  • Place the LeaveRequestMessage in the LeaveApplication Document Library folder and check the Event Viewer.
