Android Dev Environment for mutiple OS

, 3 Aug 2014 CPOL
Rate this:
Please Sign up or sign in to vote.
Article #2 for the challenge

Introduction

This article will provide a walkthrough on setting up different Android Development environments of different Operating Systems. It will enable beginners to get a grip on how different environment are in different Operating Systems yet producing the same output as a result.

Background

I have made this article for different versions of  android development environment  setups in multiple VM images. This article will help you setup Android environment in Linux,MAC OS and Windows. As I had little knowledge about MAC OS I will also show the steps I took while setting up the environment as well as common errors faced creating the Android Developpment environment.

Comparison between Android Studio and Eclipse Android SDK

This is a detailed comparison of Android Studio and Eclipse

Android Studio

Android Studio is a new Android development platform developed by Google keeping future in mind. It's in Beta phase

Eclipse

Eclipse is the mother of all IDEs and it is well known development platform for android development. Google have developed the Android plugin for eclipse which is used predominantly.

Platform

References http://www.jetbrains.com/idea/

Android studio is based on IntelliJ IDEA which offers features and sets based on most modern technologies and frameworks for enterprise and web development.

Eclipse is based on Apache-ant which is one of the oldest software tool meant for Java development

Build System

For Android Studio it is Gradle

Gradle is build automation system evolved.Gradle combines the power and flexibilty of ANT with dependency management and conventions of MAVEN into a more effective way of build.

For Eclipse ADT the build system is ANT

Both Supports graphical layout

NDK support coming soon for Android Studio but it's there in Eclipse ADT

It means it is impossible to code in native languages such as C++ in Android Studio

Is there an alternate way?

here is the catch the issue is also resolved as per the latest finding as is well explained in IDZ video we can also code now in native language, there is an entire video showcasing how it can be done

  1. https://software.intel.com/en-us/videos/using-the-ndk-with-android-studio
  2. http://kvurd.github.io/blog/compiling-a-cpp-library-for-android-with-android-studio/

What's more as Android Studio is still in Beta phase there will be lot of updates until it gains its full functionality whereas Android Eclipse SDK is already a fully developed IDE so it is more stable as of now.Google have decided to make Android Studio to be the best IDE with all available frameworks for Android.

Creating an Android Development environment for MAC OS

You need to download Java for the Mac OS

Where to get it?

first of all check that you have java installed on your machine or not

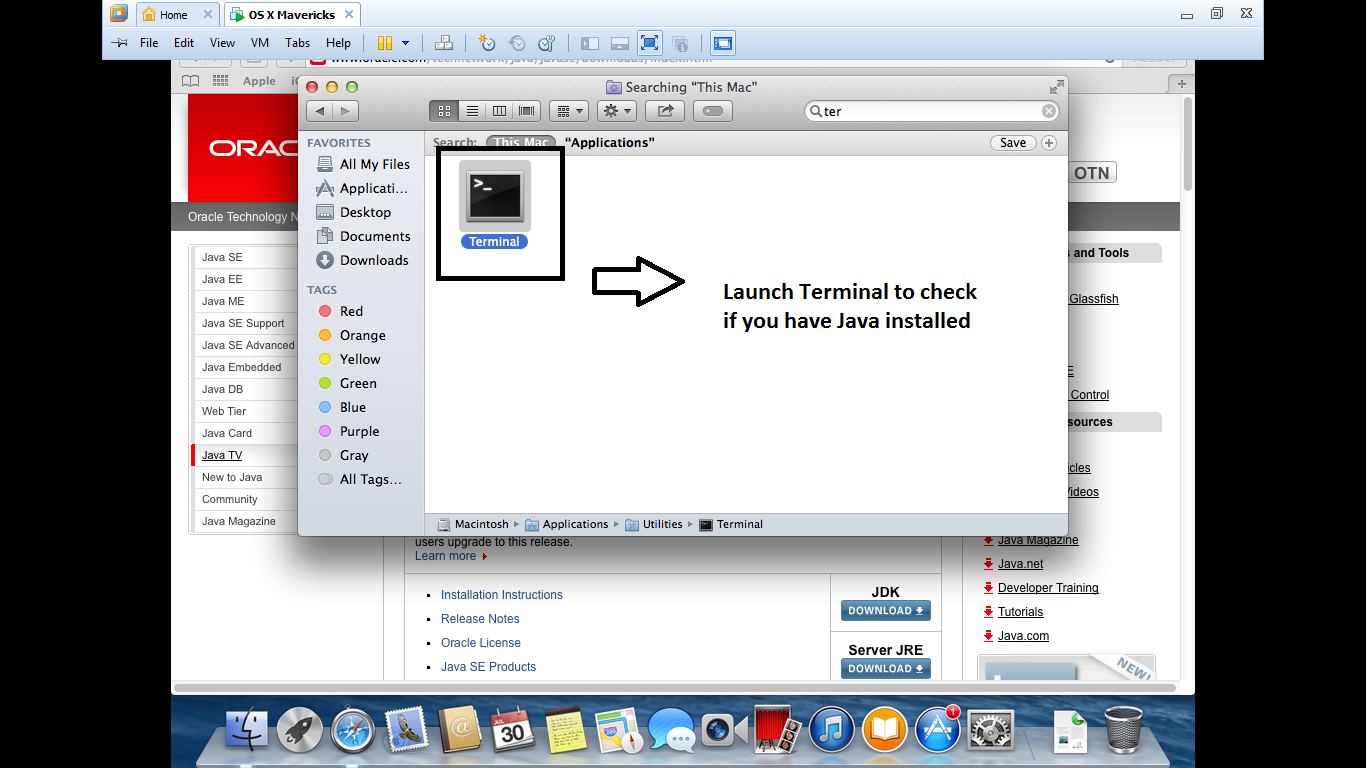

Go to the terminal

As you launch the terminal check that if you have any java version installed using this command in the terminal

java -version

and then hit enter, if it is present it will show the version or if not present it ask for new installation

Click on More Info and it will take you to download link

When the download is complete,open up the downloaded dmg file via finder and then double click on it to get the installation started.The package on a new window will open up, double click the pkg file to complete installation.

after the installation is complete recheck on terminal window, the version of Java

java -version and then hit  enter

it will show you the current installed version.

Installation of Android Studio

In google search type in Android Studio and it will take you to the download page, download the MAC version of Android Studio.

when the dmg file is downloaded. open it in finder

Double click on it for installation.

click on I don't have a previous version of Android Studio and hit ok.

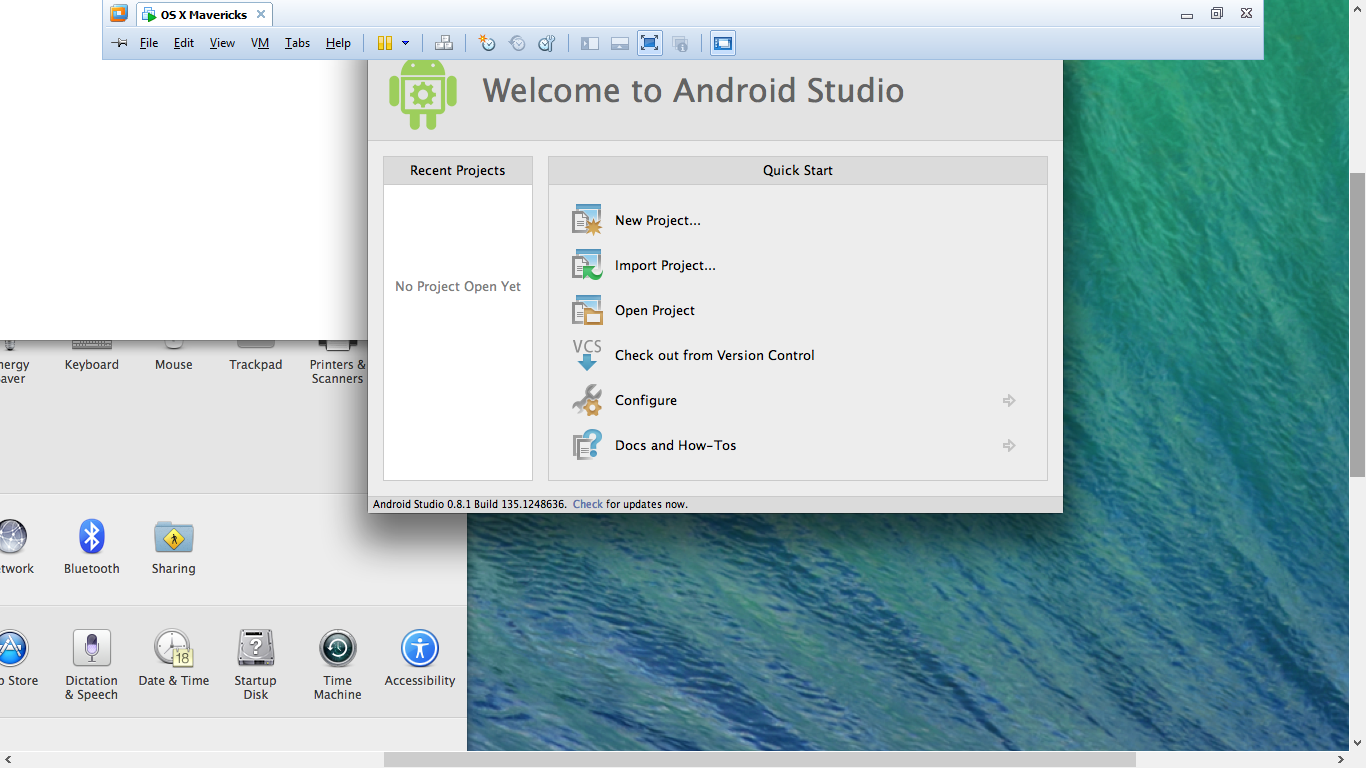

After the setup is complete you will see that the android studio have started.

Click on Configure to see that the android SDK manager is available or not at my end it was greyed out, so I had figure out an alternate way and then thought of installing the eclipse ADT for Android to get it going.

At google search type in Eclipse Android SDK and the download link will appear.Start the download.After downloading is completed open the file in finder.

Now as my SDK Manager was greyed out I had to show the path of Android SDK to my Android Studio IDE. I Opened Android Studio clicked on configure clicked again on project defaults and then went to project structure and included the Android SDK path

Afre that I click on OK closed Android Studio restarted the Android Studio and saw my SDK Manager and was good to start with.As I am using VM I updated a lower version of android update(2.3.3) to get the AVD up and running

Then start installing the packages and accept the license.

and after that you will be up and running with Android SDK and Android Studio setup.

Creating an AVD in Android Studio

As I pulled up the SDK Manager in there at top i didn't find any tools AVD Manager options so I went other way round by creating a project and then creating the AVD.

Accept the default and then click next

required SDK  to API 10 and then click next again

Check blank activity and click next.

As the project opens up click on AVD Manager

After that click on create

Put in AVD name, check the Device image you want to build the image for,target as API level 10 and select the skin and then click on ok.

Select the AVD and then Start it.

click on launch

The AVD will start.

Yahoo!! the AVD is up and running in Android Studio

Creating an AVD in Android Eclipse SDK

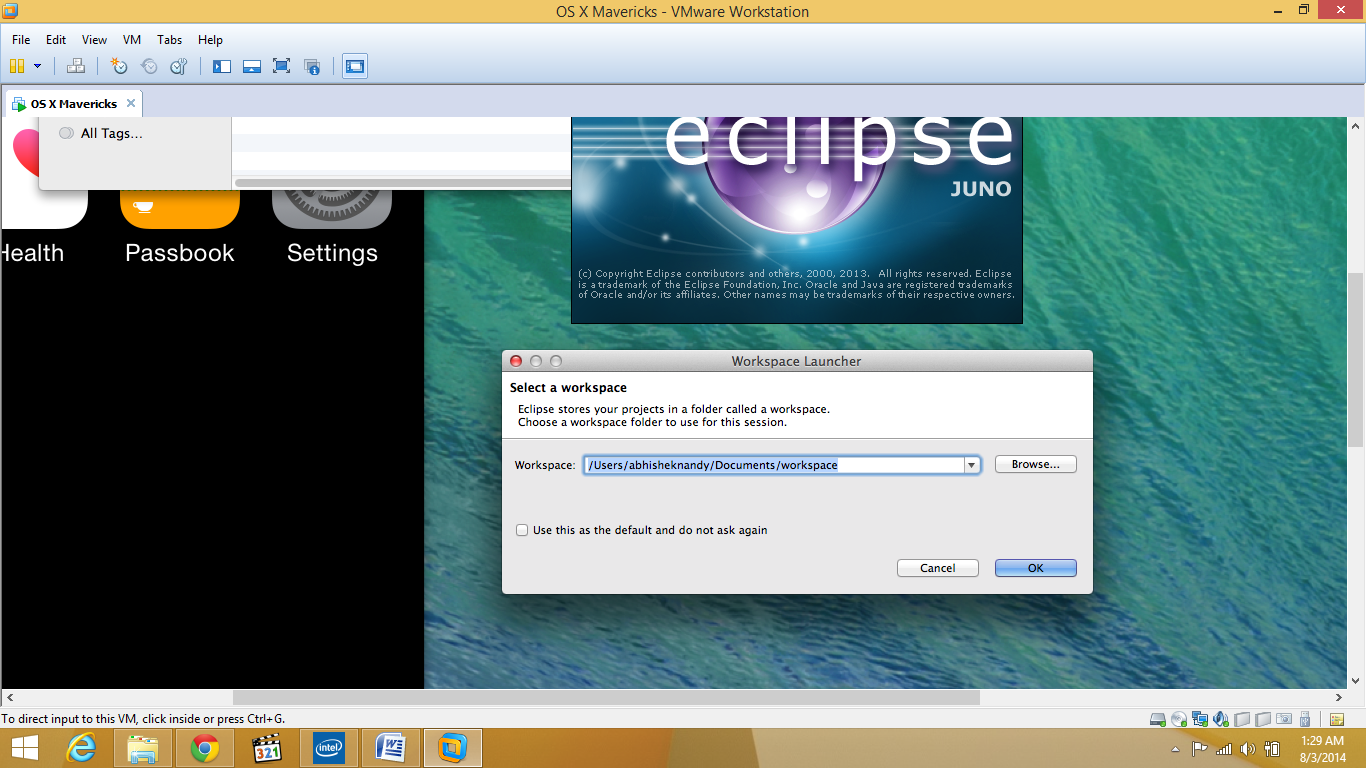

Open Eclipse from the folder and double click on the android eclipse icon

and it will ask you for workspace accept defaults

Create a new project

Accepted the api levels I made it 10 as I was using a VM

Then click on create an AVD icon to start the process

AVD creation done

Follow the same steps followed and you are up with the avd.

You are up and running with AVDs ..

Important Part setting JAVA_HOME

Issues that you could face while logging and working on terminal

Bash profile creation

Bash_profile is essential for working on command line in MAC OS.A normal install might not create a batch profile for you.I have had faced this issue and you will get something like this you need to checkthat you have Bash_profile or not.Put the following command on terminal to check it

open -a TextEdit ~/.bash_profile and hit enter if it is present it will show otherwise you will get this error.



In this case you will have to create a Bash_profile

the commands you need to put in terminal to create the Bash_profile

touch ~/.bash_profile and the hit enter



another command you need to put in the terminal

open -e ~/.bash_profile and then hit enter



It will open a bash_profile Window as shown below

In the bash_profile window  you need to write these details line by line and then save it.

export JAVA_HOME=$ (/usr/libexec/java_home)

export JDK_HOME=$ (/usr/libexec/java_home)

Hit Command + s to save and then close it.

On the terminal window put this command

source ~/.bash_profile and hit enter it will load the environment.

Creating an Android development environment in Linux

Installation of Java

open a terminal in Linux

type in the command java -version and then hit enter.

It will show which version is there.

Check for the updates using the command

sudo yum install java and then enter

After that I faced an weird issue which can occur to any user the problem was user is not in the

sudoers file.The incidence would be reported.

We had to add the user to Sudo profile.

Had to try different ways

Getting to the vi editor and appended the file mohit ALL=(ALL)ALL

and I was good to go.

here mohit is the username

my issue was resolved.

Starting the Java installation

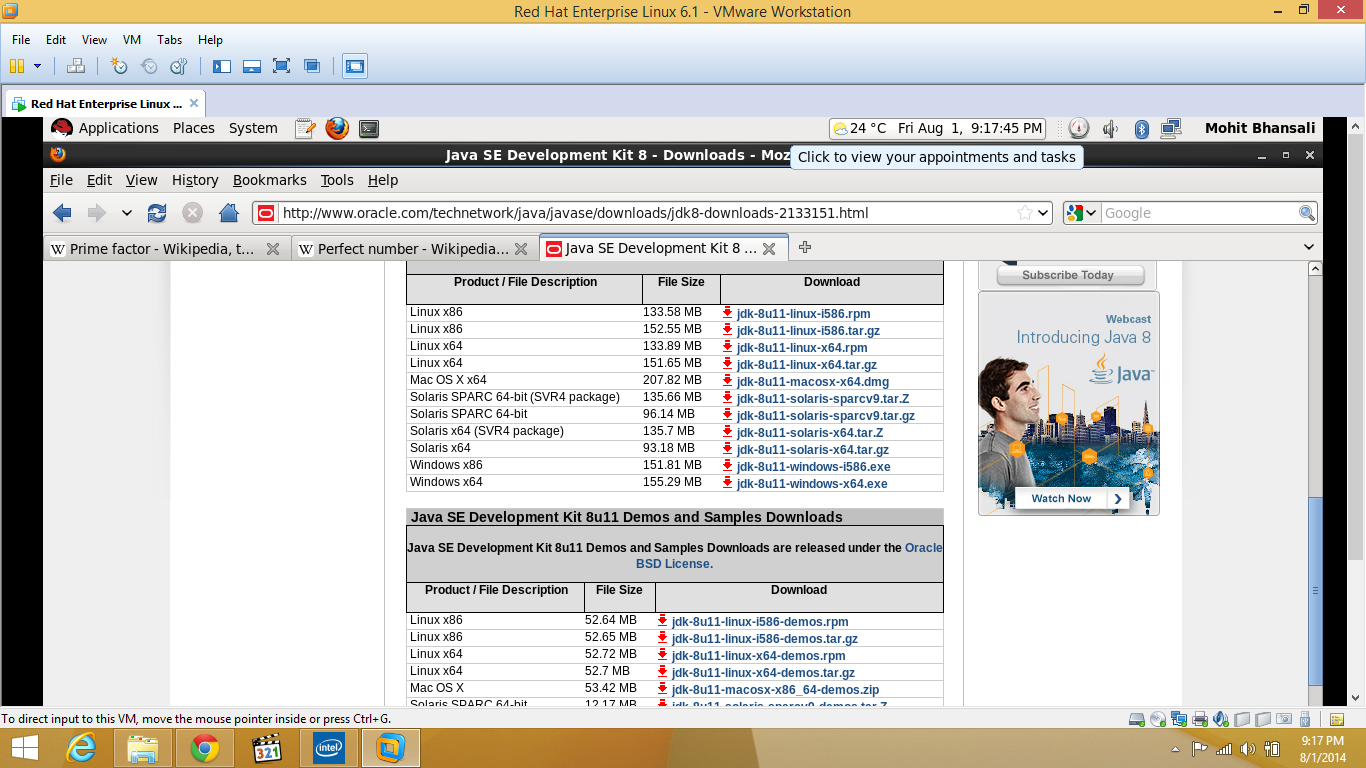

Get in to the JAVA Oracle website or type in Java install in Google to get the download link Download i586 32 bit rpm

Accept the terms and start downloading Save the file

Right click on downloads and open the containing folder

Now on the permissions tab you need to select the checkbox that says allow executing file as a program

Double click on the JDK version folder it will ask for install

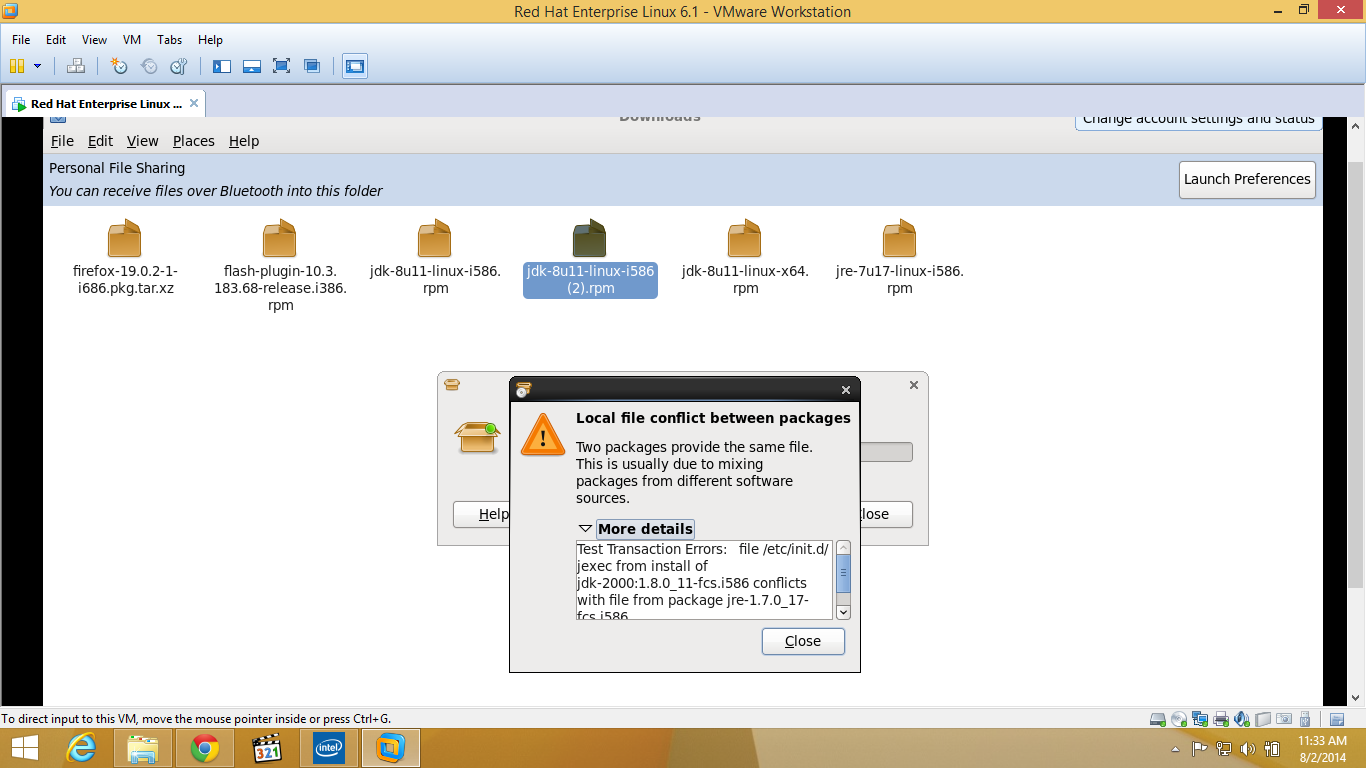

In general installation starts but in my case I had this conflict error

Local file conflict between packages:-Two packages provide the sam file.This is usually due to mixing packages from different sources

so went back and uninstalled the conflicting version as I already had JRE by default

I used this command

rpm -e --noscripts jre-1.7.0_17-fcs.i586

and then hit enter and it removed the older version of JRE that was present.

and after a restart I was able to install java and it went through without errors.

type in Android Studio in google and it will show you the download link

It will ask for accepting the license just click on it.

As you click on it will shows the file to save

As the download completes you need to extract the file so extract the file to tmp

extract to temp

extraction starts

Now go to the file system

go to the tmp folder where the android studio was extracted.

get into the bin folder

right click on studio.h file and open it

then click on run in terminal

then for the time importing your settings you need to click on previous version of Android Studio and click ok

Then you will get the main interface for Andoid-Studio

We need to click on SDK Manager

Click on tools

Click on Manage AVDs

Then click on create

updating the android api version I am putting it lower one as i will be creating the AVD in VM.

Accept the license and then click on Tools and then Manage AVDs and then click on create a new one

put in the details for creating the AVD

When the AVD is created click on ok

After creation of AVD click on Start

And you are good to go.

Creating an Android dev environment on Windows OS

Installing Java

In google search engine you need to type in Java download

download it from the oracle.com website Java link

http://www.oracle.com/technetwork/java/javase/downloads/index.html

Double clicking the installation file starts installing the Java files

http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html

download the windows x86 package

After installing we need to configure the environment specifically create JAVA_HOME

Right click  on My Computer(this pc) and then go to the properties option

Click on advanced system settings

Then go to environment variables

Set the path for JAVA_HOME give the entire path till bin

Installing Android Studio

At Google search type in Android Studio and it will take it to the download link

https://developer.android.com/sdk/installing/studio.html

Accept the license and start installation

Click on next as per the process installation happens and the IDE is installed.

After installation click on new project

and then click on configure

then click on sdk manager

update the android SDK Manager with API level 10(2.3.3)

Click on tools and then click on manage AVDS

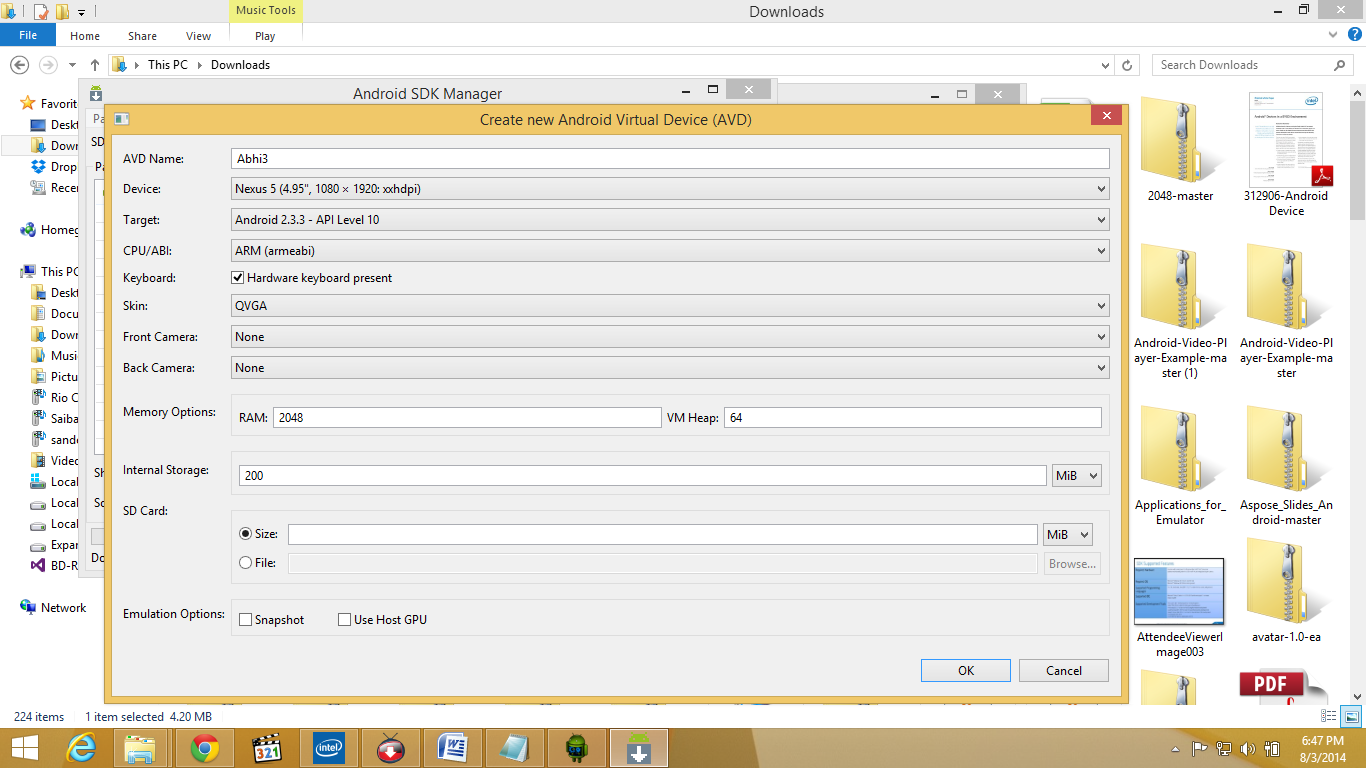

Click on create and then setup your AVD names etc

hit ok and then select the AVD and then click on start and hit launch

The AVD will be up and running

Creating an AVD in Eclipse

At google search we need to type in android sdk it will take you to the download page

http://developer.android.com/sdk/index.html

Accept the license terms and download the 32 bit version of Android ADT go to the folder where it is downloaded

Double click on SDK Manager and then update the API version needed to create the AVD and then click on tools and then manage AVDs same as before create a new one

AVD will be up and running

After all  our efforts we managed to create AVDs in three different OS(MAC,Linux and Windows) and it has helped us know more about how we go about creating the development environment in different Operatin Systems .We came across certain issues which were unknown and resolved it.

Tips and Best practices

Try to test as much as possible before taking the app live to store.Make sure you go through all the steps mentioned on creating the development environments as each platform has its own issues and ways of resolving them.Try developing more native apps in Android Studio. If you want your emulator to run faster try using geny motion(it is a third party emulator which is much faster than default emulator which that is present in Android studio).Download link :-https://cloud.genymotion.com/page/doc/#collapse4

If you want to accelerate the VM using native Android Studio you will require Intel HAXM package.

Intel has come up with new IDE which has all the capacities built together in a common platform where in you can bind different things together to the interface

It comprises of latest C++ compiler and different modules such as Threading,Media etc.

You can also customize the setup for different platforms as shown below

References

Points of Interest

It's been a great time setting up developer environment for different platforms as I came know how I would go about installing Android SDK on different platforms and what are th common issues one would face.

History

The first version of the article is ready

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
