JavaScript call from C++

• Download demo project - 33 Kb
• Download source - 3 Kb

Introduction

Sometimes when we are using the IE Browser Control inside of a C++ application you need to get access to the HTML elements. We can do it by using standard COM objects like IWebBrowser2, IHTMLDocument2, etc. By this method we can easy implement features like click button, click anchor, get input string, get HTML text, etc. Unfortunately, Microsoft did not provide similar objects for JavaScript. At any case to make a control for the JavaScript object inside of HTML page it is possible by using traditional COM approach. This article describes the class CWebPage which allows to do it and technique to call Java Script Function from C++ code.

How to do

As the result of using presented class it will be easy to call any JavaScript function from C++ code. For implement this feature we should to get pointer to the IHTMLDocument2 interface. If we are using CHtmlView class from MFC we can get one by using member function CHtmlView::GetHtmlDocument(). In case of using IWebBrowser or IWebBrowser2 components the function get_Document will bring us desired interface. Here is example:

CComPtr<IDispatch> spDisp = CHtmlView::GetHtmlDocument();
m_webPage.SetDocument(spDisp);

The rest of all things will be done by CWebPage class. Here is example of JavaScript call without parameters.

m_webPage.CallJScript("Welcome");

The example of the JavaScript call with 2 parameters will looks like here.

m_webPage.CallJScript("Miltiply","2.34","3.32");

The Class Implementation

class CWebPage
{
public:
  CWebPage();
  virtual ~CWebPage();

  bool SetDocument(IDispatch* pDisp);
  LPDISPATCH GetHtmlDocument() const;
  const CString GetLastError() const;
  bool GetJScript(CComPtr<IDispatch>& spDisp);
  bool GetJScripts(CComPtr<IHTMLElementCollection>& spColl);
  CString ScanJScript(CString& strAText,CStringArray& args);

  bool CallJScript(const CString strFunc);
  bool CallJScript(const CString strFunc,const CString strArg1);
  bool CallJScript(const CString strFunc,const CString strArg1,
                   const CString strArg2);
  bool CallJScript(const CString strFunc,const CString strArg1,
                   const CString strArg2,const CString strArg3);
  bool CallJScript(const CString strFunc,const CStringArray& paramArray);

protected:

  CComPtr<IHTMLDocument2> m_spDoc;

};

Calling Technique

The mentioned above technique splits on the following steps:

• Getting pointer to the IHTMLDocument2 interface.
• Getting IDispatch for JavaScript object in HTML document
• Getting DISPID for given name of JavaScript function
• Putting parameters to DISPPARAM structure
• Calling JavaScript function by using Invoke method of IDispatch interface

Here is example of getting IDispatch pointer to the Java Scripts objects

bool CWebPage::GetJScript(CComPtr<IDispatch>& spDisp)
{
  HRESULT hr = m_spDoc->get_Script(&spDisp);
  ATLASSERT(SUCCEEDED(hr));
  return SUCCEEDED(hr);
}

And here is final function to call Java Script

CComVariant CWebPage::CallJScript(const CString strFunc,
                                  const CStringArray& paramArray)
{
  //Getting IDispatch for Java Script objects

  CComPtr<IDispatch> spScript;
  if(!GetJScript(spScript))
  {
    ShowError("Cannot GetScript");
    return false;
  }
  //Find dispid for given function in the object

  CComBSTR bstrMember(strFunc);
  DISPID dispid = NULL;
  HRESULT hr = spScript->GetIDsOfNames(IID_NULL,&bstrMember,1,
                            LOCALE_SYSTEM_DEFAULT,&dispid);
  if(FAILED(hr))
  {
    ShowError(GetSystemErrorMessage(hr));
    return false;
  }

  const int arraySize = paramArray.GetSize();
  //Putting parameters

  DISPPARAMS dispparams;
  memset(&dispparams, 0, sizeof dispparams);
  dispparams.cArgs      = arraySize;
  dispparams.rgvarg     = new VARIANT[dispparams.cArgs];
  dispparams.cNamedArgs = 0;

  for( int i = 0; i < arraySize; i++)
  {
    CComBSTR bstr = paramArray.GetAt(arraySize - 1 - i); // back reading

    bstr.CopyTo(&dispparams.rgvarg[i].bstrVal);
    dispparams.rgvarg[i].vt = VT_BSTR;
  }
  EXCEPINFO excepInfo;
  memset(&excepInfo, 0, sizeof excepInfo);
  CComVariant vaResult;
  UINT nArgErr = (UINT)-1;  // initialize to invalid arg

  //Call JavaScript function

  hr = spScript->Invoke(dispid,IID_NULL,0,
                        DISPATCH_METHOD,&dispparams,
                        &vaResult,&excepInfo,&nArgErr);
  delete [] dispparams.rgvarg;
  if(FAILED(hr))
  {
    ShowError(GetSystemErrorMessage(hr));
    return false;
  }
  return vaResult;
}

Notes About the Demo

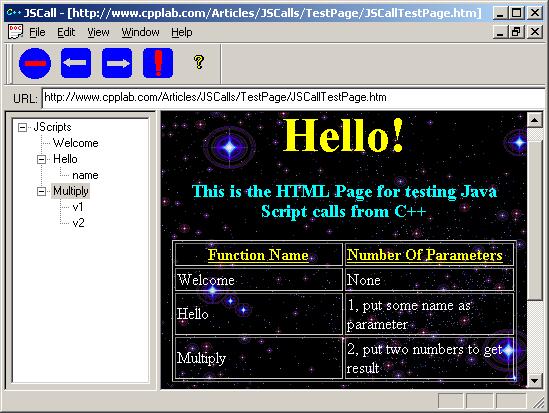

To call a JavaScript function from the demo you should select function in the tree in the left window. After this press the "!" button on the menu bar.
