Step by Step: Calling C++ DLLs from VC++ and VB - Part 2

• Download demo project - 37.4 Kb

Introduction

This series of articles discusses four common situations when working with DLLs:

Calling a DLL C++ function from a VB application

In Part 1, I talked about creating C++ DLLs and then using those DLLs in VC++ applications. Sometimes you would like to call a function in a C++ DLL from a VB application.

Step 1

Here is the code for DLL2, which is taken from Part 1's DLL1:

// DLL2.cpp : Defines the entry point for the DLL application.
//

#include "stdafx.h"
#define DLL2_EXPORTS
#include "DLL2.h"

BOOL APIENTRY DllMain( HANDLE /*hModule*/,
                       DWORD  ul_reason_for_call,
                       LPVOID /*lpReserved*/
                     )
{
    switch (ul_reason_for_call)
    {
        case DLL_PROCESS_ATTACH:
        case DLL_THREAD_ATTACH:
        case DLL_THREAD_DETACH:
        case DLL_PROCESS_DETACH:
            break;
    }
    return TRUE;
}


///////////////////////////////////////////////////////////////////////////////
// GetCycleCount - private function of DLL2.cpp.  The static keyword ensures
//                 that this function name is not visible outside DLL2.cpp.
static inline unsigned __int64 GetCycleCount()
{
    unsigned int timehi, timelo;

    // Use the assembly instruction rdtsc, which gets the current
    // cycle count (since the process started) and puts it in edx:eax.
    __asm
    {
        rdtsc
        mov timehi, edx;
        mov timelo, eax;
    }

    return ((unsigned __int64)timehi << 32) + (unsigned __int64)timelo;
}


///////////////////////////////////////////////////////////////////////////////
// Example of an exported function
///////////////////////////////////////////////////////////////////////////////
// GetCpuSpeed - returns CPU speed in MHz;  for example, ~2193 will be
//               returned for a 2.2 GHz CPU.
DLL2_API int __stdcall GetCpuSpeed()
{
    const unsigned __int64 ui64StartCycle = GetCycleCount();
    Sleep(1000);
    return static_cast((GetCycleCount() - ui64StartCycle) / 1000000);
}

DLL2.h looks like:

#ifndef DLL2_H
#define DLL2_H

// The following ifdef block is the standard way of creating macros which
// make exporting from a DLL simpler.  The DLL2.cpp file is compiled with
// the symbol DLL2_EXPORTS defined at the top of DLL2.cpp.  This symbol
// should *not* be defined in any project that uses DLL2.  This way any
// other project whose source files include DLL2.h will see DLL2_API defined
// as __declspec(dllimport), whereas within DLL2.cpp, DLL2_API is defined as
// __declspec(dllexport).

#ifdef DLL2_EXPORTS
    #define DLL2_API __declspec(dllexport)
#else
    #define DLL2_API __declspec(dllimport)
#endif

///////////////////////////////////////////////////////////////////////////////
// This function is exported from the DLL2.dll
DLL2_API int __stdcall GetCpuSpeed();

#endif //DLL2_H

One difference between the code for DLL2 and the code for DLL1 is that GetCpuSpeed() is declared using __stdcall. This is required for any C/C++ function that you want to use with VB. Here is what MSDN says about the __stdcall calling convention:

Step 2

To test DLL2.dll, I use this VB code:

Private Declare Function GetCpuSpeed Lib "DLL2.dll" () As Integer
Private Declare Sub InitCommonControls Lib "comctl32.dll" ()

Private Sub Form_Initialize()
    InitCommonControls
    ChDir App.Path

End Sub

Private Sub Command1_Click()

    Dim nSpeed As Integer
    Dim s As String

    Screen.MousePointer = vbHourglass
    nSpeed = GetCpuSpeed()
    Screen.MousePointer = 0

    s = nSpeed

    Form1.Text1.Text = "GetCpuSpeed() returned " + s

End Sub

Private Sub Form_Load()

    Form1.Text1.Text = ""

End Sub

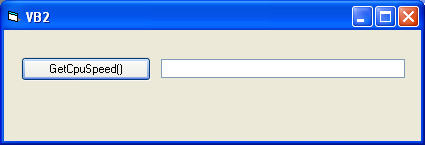

After copying DLL2.dll to the VB directory, I run VB2.exe and this is what I see:

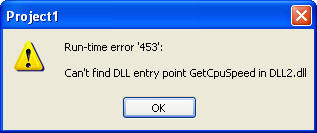

When I click the button, I get this:

So I know that VB can't find the function GetCpuSpeed() in the DLL. To look at what VB is seeing, I use dumpbin /exports dll2.dll from the command line:

Microsoft (R) COFF Binary File Dumper Version 6.00.8447
Copyright (C) Microsoft Corp 1992-1998. All rights reserved.

Dump of file dll2.dll

File Type: DLL

  Section contains the following exports for DLL2.dll

           0 characteristics
    403FE342 time date stamp Fri Feb 27 08:21:30 2004
        0.00 version
           1 ordinal base
           1 number of functions
           1 number of names

    ordinal hint RVA      name

          1    0 00001010 ?GetCpuSpeed@@YGHXZ

  Summary

        4000 .data
        1000 .rdata
        1000 .reloc
        4000 .text

This is what you would expect from VC++ - it has "decorated" the name GetCpuSpeed and exports the new mangled name ?GetCpuSpeed@@YGHXZ, which VB doesn't understand. What does this mean? Here is what MSDN says:

The Microsoft C++ compilers encode the names of symbols in C++ programs to include type information in the name. This is called "name decoration", or "name mangling". The purpose of this is to ensure type-safe linking. The C++ language allows function overloading where functions with the same name are only distinguished from one another by the data types of the arguments to the functions. Name decoration enables the linker to distinguish between different versions of overloaded functions because the names of the functions are encoded or decorated differently.

Step 3

To get back to the problem that VB is having, I need to tell VB that the name associated with export #1 is GetCpuSpeed, not the VC++ decorated name. There is a simple way to do this: create a DLL2.def file, which looks like this:

; DLL2.def - defines the exports for DLL2.dll

LIBRARY DLL2
DESCRIPTION 'A C++ dll that can be called from VB'

EXPORTS
    GetCpuSpeed

Now I recompile DLL2. To check what change has been made, I run dumpbin again:

Microsoft (R) COFF Binary File Dumper Version 6.00.8447
Copyright (C) Microsoft Corp 1992-1998. All rights reserved.

Dump of file dll2.dll

File Type: DLL

  Section contains the following exports for DLL2.dll

           0 characteristics
    403F2B8D time date stamp Fri Feb 27 08:35:41 2004
        0.00 version
           1 ordinal base
           1 number of functions
           1 number of names

    ordinal hint RVA      name

          1    0 00001010 GetCpuSpeed

  Summary

        4000 .data
        1000 .rdata
        1000 .reloc
        4000 .text

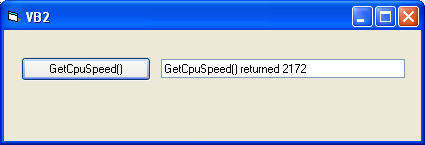

This shows that export #1 is now named GetCpuSpeed. So I copy the new Dll2.dll file to the VB directory, run the VB app, and click the button. This is what I get:

Success! I have a VB application calling a function that has been exported from a VC++ DLL. But what about VC++ applications? Can a VC++ application call the same DLL as a VB application?

Step 4

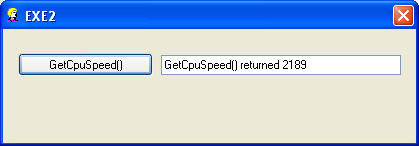

I copy the EXE code from Part 1, remove the code that tests the C++ class, compile it, and run it. Here is what I get when I press the button:

So I have one DLL that can be called by a VC++ application and a VB application. This was accomplished by use of a module definition (.DEF) file.

Step 5

Since the DLL now has a .DEF file, there is no need for the __declspec(dllexport) and __declspec(dllimport). I change DLL2.h to:

#ifndef DLL2_H
#define DLL2_H

///////////////////////////////////////////////////////////////////////////////
// This function is exported from the DLL2.dll
int __stdcall GetCpuSpeed();

#endif //DLL2_H

and also update DLL2.cpp.

Key Concepts

• To avoid name-mangling problems and having to Alias function names in VB, use module definition (.DEF) files.
• When using .DEF files, it is not necessary to use __declspec(dllexport) or __declspec(dllimport).
• Use __stdcall for functions that are called by VB.
• DLLs implemented with .DEF files can be called by both VC++ and VB programs (without needing to use Alias).

Demos

The EXE2.exe and VB2.exe demos test the GetCpuSpeed() function in DLL2.dll:

Revision History

Version 1.1 - 2009 October 3

• Added string example to Part 2.

Version 1.0 - 2004 February 29

• Initial public release
