Using Account Management API (IOlkAccountManger) to List Outlook Email Accounts

• Download demo project - 20.94 KB
• Download source - 31.15 KB

Introduction

This article shows how to use the Account Management APIs to get email accounts configured in Outlook.

Background

The reason for writing this article is that Microsoft didn't provide a header file for the interface used. Moreover, not all the properties of the account are documented by Microsoft.

Using the Code

If you want to skip the technical details and just want to use the feature, follow these steps:

• Add these files in your project:
  • AccountData.h - Contains class to hold the account data
  • AccountHelper.h - Contains declaration of class CAccountHelper
  • AccountHelper.cpp - Implementation of class CAccountHelper
  • AcctMgmt.h - Contains the CLSID/IID and the property tags declaration
  • AcctMgmt.cpp - Contains the code which actually extracts the account data
• Configure your project to link mapi32.lib
• Include the file AccountHelper.h in your *.h or *.cpp file
• Call GetAccounts passing it the Outlook profile name as shown below:

TCHAR szProfile[] = _T("ProfileName");    // Add your outlook profile name here
AccountData *pAccountData = NULL;    // This will contain the email account data
DWORD cAccountData = 0;    // This will contain the count of the email account

if(FAILED(GetAccounts(szProfile, &cAccountData, &pAccountData)))
{
    AfxMessageBox(_T("Failed to get account data"));
    return;
}
else
{
    for(DWORD i = 0 ; i <cAccountData; i++)
    {
        _tprintf(_T("Is Exchange account : %d"),pAccountData[i].lIsExchange);
        _tprintf(_T("Email ID is : %s"),pAccountData[i].szEmailID);
        _tprintf(_T("Incoming Server (POP/IMAP) is : %s"),
            pAccountData[i].szIncomingServer);
        _tprintf(_T("Outgoing Server is : %s"),pAccountData[i].szOutgoingServer);
        _tprintf(_T("Account Stamp : %s"),pAccountData[i].szAccountStamp);
        //similarly all other properties
    }
}

Inside the Hood

If you want to implement this yourself, you need to do these things:

1. First implement this interface IOlkAccountHelper. Let's assume that the class name is CAccountHelper
2. Login to MAPI, store the profile name in a variable. You will need it to pass back to MAPI in the class CAccountHelper
3. Create an instance of IID_IOlkAccountManager
4. Create an object of the class CAccountHelper
5. Call the IOlkAccountManager:Init passing the CAccountHelper object you created
6. Call IOlkAccountManager::EnumerateAccounts to get an interface to IOlkEnum
7. Call IOlkEnum::GetCount to get the accounts count
8. Call IOlkEnum::Reset
9. In a loop, call IOlkEnum::GetNext to retrieve all the accounts

The code for GetAccount which actually does these looks like this:

HRESULT GetAccounts(LPWSTR lpwszProfile, DWORD* pcAccounts, AccountData** ppAccounts)
{
    HRESULT hRes = S_OK;
    LPMAPISESSION lpSession;
    LPOLKACCOUNTMANAGER lpAcctMgr = NULL;

    hRes = MAPILogonEx(0,
        (LPTSTR)lpwszProfile,
        NULL,
        fMapiUnicode | MAPI_EXTENDED | MAPI_EXPLICIT_PROFILE |
        MAPI_NEW_SESSION | MAPI_NO_MAIL | MAPI_LOGON_UI,
        &lpSession);
    if(FAILED(hRes))
    {
        AfxMessageBox(L"Failed to login to the selected profile");
    }

    hRes = CoCreateInstance(CLSID_OlkAccountManager,
        NULL,
        CLSCTX_INPROC_SERVER,
        IID_IOlkAccountManager,
        (LPVOID*)&lpAcctMgr);
    if(SUCCEEDED(hRes) && lpAcctMgr)
    {
        CAccountHelper* pMyAcctHelper = new CAccountHelper(lpwszProfile, lpSession);
        if(pMyAcctHelper)
        {
            LPOLKACCOUNTHELPER lpAcctHelper = NULL;
            hRes = pMyAcctHelper->QueryInterface
                (IID_IOlkAccountHelper, (LPVOID*)&lpAcctHelper);
            if(SUCCEEDED(hRes) && lpAcctHelper)
            {
                hRes = lpAcctMgr->Init(lpAcctHelper, ACCT_INIT_NOSYNCH_MAPI_ACCTS);
                if(SUCCEEDED(hRes))
                {
                    LPOLKENUM lpAcctEnum = NULL;

                    hRes = lpAcctMgr->EnumerateAccounts(&CLSID_OlkMail,
                        NULL,
                        OLK_ACCOUNT_NO_FLAGS,
                        &lpAcctEnum);
                    if(SUCCEEDED(hRes) && lpAcctEnum)
                    {
                        DWORD cAccounts = 0;

                        hRes = lpAcctEnum->GetCount(&cAccounts);
                        if(SUCCEEDED(hRes) && cAccounts)
                        {
                            AccountData* pAccounts = new AccountData[cAccounts];

                            hRes = lpAcctEnum->Reset();
                            if(SUCCEEDED(hRes))
                            {
                                DWORD i = 0;
                                for (i = 0; i < cAccounts; i++)
                                {
                                    LPUNKNOWN lpUnk = NULL;

                                    hRes = lpAcctEnum->GetNext(&lpUnk);
                                    if(SUCCEEDED(hRes) && lpUnk)
                                    {
                                        LPOLKACCOUNT lpAccount = NULL;

                                        hRes = lpUnk->QueryInterface(IID_IOlkAccount,
                                               (LPVOID*)&lpAccount);
                                        if(SUCCEEDED(hRes) && lpAccount)
                                        {
                                            ACCT_VARIANT pProp = {0};
                                            //suppress the use of outer hRes
                                            HRESULT hRes = S_OK;
                                            //Account ID
                                            hRes = lpAccount->GetProp
                                                   (PROP_ACCT_ID, &pProp);
                                            if(SUCCEEDED(hRes) && pProp.Val.dw)
                                            {
                                                pAccounts[i].lAccountID = pProp.Val.dw;
                                            }
                                            //Account Name
                                            hRes = lpAccount->GetProp(PROP_ACCT_NAME,
                                                              &pProp);
                                            if(SUCCEEDED(hRes) && pProp.Val.pwsz)
                                            {
                                                pAccounts[i].szAccountName =
                                                                      pProp.Val.pwsz;
                                            }

                                            //Is Exchange account flag
                                            hRes = lpAccount->GetProp
                                                      (PROP_ACCT_IS_EXCH, &pProp);
                                            if(SUCCEEDED(hRes) && pProp.Val.dw)
                                            {
                                                pAccounts[i].lIsExchange = pProp.Val.dw;
                                            }
                                            else
                                            {
                                                pAccounts[i].lIsExchange = 0;
                                            }

                                            //Account Send Stamp
                                            hRes = lpAccount->GetProp
                                                     (PROP_ACCT_SEND_STAMP, &pProp);
                                            if(SUCCEEDED(hRes) && pProp.Val.pwsz)
                                            {
                                                pAccounts[i].szSendStamp = pProp.Val.pwsz;
                                                lpAccount->FreeMemory
                                                           ((LPBYTE)pProp.Val.pwsz);
                                            }
                                            //similarly retrieve all other properties.
                                            //the sample code has the complete code
                                            //it's been removed from here just for clarity
                                        }

                                        if(lpAccount)
                                            lpAccount->Release();
                                        lpAccount = NULL;
                                    }

                                    if(lpUnk)
                                        lpUnk->Release();
                                    lpUnk = NULL;
                                }

                                *pcAccounts = cAccounts;
                                *ppAccounts = pAccounts;
                            }
                        }
                    }

                    if(lpAcctEnum)
                        lpAcctEnum->Release();
                }
            }
            if(lpAcctHelper)
                lpAcctHelper->Release();
        }

        if(pMyAcctHelper)
            pMyAcctHelper->Release();
    }

    if(lpAcctMgr)
        lpAcctMgr->Release();
    lpSession->Logoff(0,0,0);
    lpSession->Release();
    return hRes;
}

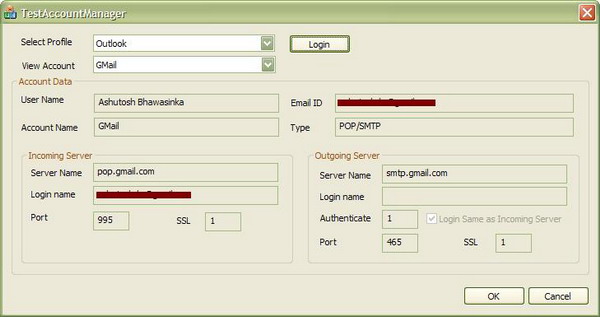

In the demo application, I have added two buttons "Show Account Dialog" & "Show Add Account Wizard".

The new method added to the interface has this signature:

HRESULT IOlkAccountManager::DisplayAccountList (
        HWND hwnd,
        DWORD dwFlags,
        LPCWSTR lpwszReserved,
        DWORD dwReserved,
        const CLSID * pclsidReserved1,
        const CLSID * pclsidReserved2
    );

To use this, I have added this code when the above mentioned buttons are clicked:

LPOLKACCOUNTMANAGER lpAcctMgr = NULL;

hRes = CoCreateInstance(CLSID_OlkAccountManager,
    NULL,
    CLSCTX_INPROC_SERVER,
    IID_IOlkAccountManager,
    (LPVOID*)&lpAcctMgr);
if(SUCCEEDED(hRes) && lpAcctMgr)
{
    CAccountHelper* pMyAcctHelper = new CAccountHelper(szProfileName, lpSession);
    if(pMyAcctHelper)
    {
        LPOLKACCOUNTHELPER lpAcctHelper = NULL;
        hRes = pMyAcctHelper->QueryInterface(IID_IOlkAccountHelper,
                (LPVOID*)&lpAcctHelper);
        if(SUCCEEDED(hRes) && lpAcctHelper)
        {
            hRes = lpAcctMgr->Init(lpAcctHelper, ACCT_INIT_NOSYNCH_MAPI_ACCTS);
            if(SUCCEEDED(hRes))
            {
                hRes = lpAcctMgr->DisplayAccountList(this->m_hWnd,dwFlags,0,0,0,0);
                if(hRes == MAPI_E_INVALID_PARAMETER)
                {
                    AfxMessageBox(L"dwReserved, pclsidReserved1 or
                        pclsidReserved2 were non-NULL.");
                }
                else if(hRes == E_ACCT_UI_BUSY)
                {
                    AfxMessageBox(L"The account dialog class could not be created.");
                }
                else if( hRes == MAPI_E_USER_CANCEL)
                {
                    AfxMessageBox(L"The Account Settings dialog box returned an error.");
                }
                else if(hRes == MAPI_E_CALL_FAILED)
                {
                    AfxMessageBox(L"The Add New E-Mail property sheet
                            returned an error.");
                }
            }
            else
            {
                AfxMessageBox(L"Failed to initialize IOlkAccountManager");
            }
            lpAcctHelper>Release();
        }
        else
        {
            AfxMessageBox(L"Failed to get Account Helper interface");
        }
        pMyAcctHelper->Release();
    }
    else
    {
        AfxMessageBox(L"Oops!!! Out of memory");
    }
    lpAcctMgr->Release();
}
else
{
    AfxMessageBox(L"Ohhhhhhh No!!! failed to get IOlkAccountManager interface");
}

Special Handling of Exchange Account

Exchange accounts don't have an incoming or outgoing server. Also the email ID for the exchange account is not in the normal form we see to like. To get mailbox server or email ID of the exchange account, you need to open the Global profile section of the profile.

The mailbox server name is stored in the property tag:

PR_INTERNET_CONTENT_ID            PROP_TAG(PT_UNICODE, 0x662A)

The email ID is in general stored in these property tags:

PROP_EXCHANGE_EMAILID            PROP_TAG(PT_UNICODE, 0x663D) //email ID

PROP_EXCHANGE_EMAILID2           PROP_TAG(PT_UNICODE, 0x6641) //email ID

In some exchange 2000 accounts, you won't find these properties. In that case, you have to get the IMailUse interface of the user, then query for PR_SMTP_ADDRESS property.

References

For further reading, you may refer to Account Management API Reference.

History

• 4^th July, 2008: Initial version
• 27^th August, 2008: Article updated
