Simple Reverse Proxy in C# 2.0 (description and deployment)By Denis VoituronThis article describes how to develop a reverse proxy in C# using the IIS HTTPHandlers. |
C# (C# 1.0, C# 2.0, C# 3.0, C#), .NET, IIS (IIS, IIS 5, IIS 5.1, IIS 6, IIS 7), ASP.NET, Dev Posted: 28 Nov 2008 Updated: 28 Nov 2008 Views: 4,184 Bookmarked: 35 times |
||
|
|
|||
Announcements
Chapters
Services
Feature Zones
|
Advanced Search Sitemap |
|
|
|
||||||||||||||||
Introduction
This article describes how to develop a Reverse Proxy in C# using the IIS HTTPHandlers, not manipulating incoming HTTP requests, but only by transferring all requests to the internal server (Remote Server).
Background
Wikipedia says, "A reverse proxy or surrogate is a proxy server that is installed within the neighborhood of one or more servers. Typically, reverse proxies are used in front of Web servers. All connections coming from the Internet addressed to one of the Web servers are routed through the proxy server, which may either deal with the request itself, or pass the request wholly or partially to the main web servers. A reverse proxy dispatches in-bound network traffic to a set of servers, presenting a single interface to the caller. (...)".
To write the code, I was inspired by articles of Vincent Brossier and Paramesh Gunasekaran here at CodeProject.
Using the Code
The code below is the core of the reverse proxy server.

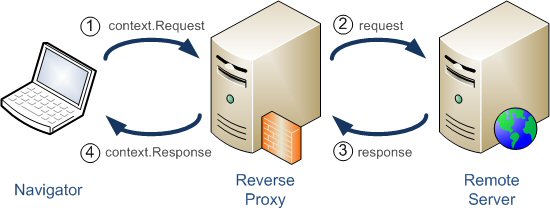

The class ReverseProxy is the core of the application managing the communication between the navigator and the proxy server... points [1] and [4] on the above picture. The class RemoteServer manages communication between the proxy server (front-end to Internet) and the remote server (internal server)... points [2] and [3] on the above picture.
The class ReverseProxy:
- Creates a connection to the remote server to redirect all requests.
- Creates a request with the same data in the navigator request.
- Sends the request to the remote server and returns the response.
- Sends the response to the client (and handles cookies, if available).
- Closes streams
namespace ReverseProxy
{
/// <summary>
/// Handler all Client's requests and deliver the web site
/// </summary>
public class ReverseProxy : IHttpHandler,
System.Web.SessionState.IRequiresSessionState
{
/// <summary>
/// Method calls when client request the server
/// </summary>
/// <param name="context">HTTP context for client</param>
public void ProcessRequest(HttpContext context)
{
// Create a connexion to the Remote Server to redirect all requests
RemoteServer server = new RemoteServer(context);
// Create a request with same data in navigator request
HttpWebRequest request = server.GetRequest();
// Send the request to the remote server and return the response
HttpWebResponse response = server.GetResponse(request);
byte[] responseData = server.GetResponseStreamBytes(response);
// Send the response to client
context.Response.ContentEncoding = Encoding.UTF8;
context.Response.ContentType = response.ContentType;
context.Response.OutputStream.Write(responseData, 0,
responseData.Length);
// Handle cookies to navigator
server.SetContextCookies(response);
// Close streams
response.Close();
context.Response.End();
}
public bool IsReusable
{
get { return true; }
}
}
}
The class RemoteServer contains many methods:
Constructorto initialize the communication with the remote server (defined by the URL).GetRequestcreates anHttpWebRequestobject connected to the remote server and sends all "parameters" (arguments, POST data, cookies, ...).GetResponseuses the previous object and gets the response from the remote server.GetResponseStreamBytesconverts theHttpWebResponse(returned by the previous method) to an array of bytes.SetContextCookiessends cookies to the navigator context.
namespace ReverseProxy
{
/// <summary>
/// Manage communication between the proxy server and the remote server
/// </summary>
internal class RemoteServer
{
string _remoteUrl;
HttpContext _context;
/// <summary>
/// Initialize the communication with the Remote Server
/// </summary>
/// <param name="context">Context </param>
public RemoteServer(HttpContext context)
{
_context = context;
// Convert the URL received from navigator to URL for server
string serverUrl = ConfigurationSettings.AppSettings["RemoteWebSite"];
_remoteUrl = context.Request.Url.AbsoluteUri.Replace("http://" +
context.Request.Url.Host +
context.Request.ApplicationPath, serverUrl);
}
/// <summary>
/// Return address to communicate to the remote server
/// </summary>
public string RemoteUrl
{
get
{
return _remoteUrl;
}
}
/// <summary>
/// Create a request the remote server
/// </summary>
/// <returns>Request to send to the server </returns>
public HttpWebRequest GetRequest()
{
CookieContainer cookieContainer = new CookieContainer();
// Create a request to the server
HttpWebRequest request = (HttpWebRequest)WebRequest.Create(_remoteUrl);
// Set some options
request.Method = _context.Request.HttpMethod;
request.UserAgent = _context.Request.UserAgent;
request.KeepAlive = true;
request.CookieContainer = cookieContainer;
// Send Cookie extracted from the incoming request
for (int i = 0; i < _context.Request.Cookies.Count; i++)
{
HttpCookie navigatorCookie = _context.Request.Cookies[i];
Cookie c = new Cookie(navigatorCookie.Name, navigatorCookie.Value);
c.Domain = new Uri(_remoteUrl).Host;
c.Expires = navigatorCookie.Expires;
c.HttpOnly = navigatorCookie.HttpOnly;
c.Path = navigatorCookie.Path;
c.Secure = navigatorCookie.Secure;
cookieContainer.Add(c);
}
// For POST, write the post data extracted from the incoming request
if (request.Method == "POST")
{
Stream clientStream = _context.Request.InputStream;
byte[] clientPostData = new byte[_context.Request.InputStream.Length];
clientStream.Read(clientPostData, 0,
(int)_context.Request.InputStream.Length);
request.ContentType = _context.Request.ContentType;
request.ContentLength = clientPostData.Length;
Stream stream = request.GetRequestStream();
stream.Write(clientPostData, 0, clientPostData.Length);
stream.Close();
}
return request;
}
/// <summary>
/// Send the request to the remote server and return the response
/// </summary>
/// <param name="request">Request to send to the server </param>
/// <returns>Response received from the remote server
/// or null if page not found </returns>
public HttpWebResponse GetResponse(HttpWebRequest request)
{
HttpWebResponse response;
try
{
response = (HttpWebResponse)request.GetResponse();
}
catch (System.Net.WebException)
{
// Send 404 to client
_context.Response.StatusCode = 404;
_context.Response.StatusDescription = "Page Not Found";
_context.Response.Write("Page not found");
_context.Response.End();
return null;
}
return response;
}
/// <summary>
/// Return the response in bytes array format
/// </summary>
/// <param name="response">Response received
/// from the remote server </param>
/// <returns>Response in bytes </returns>
public byte[] GetResponseStreamBytes(HttpWebResponse response)
{
int bufferSize = 256;
byte[] buffer = new byte[bufferSize];
Stream responseStream;
MemoryStream memoryStream = new MemoryStream();
int remoteResponseCount;
byte[] responseData;
responseStream = response.GetResponseStream();
remoteResponseCount = responseStream.Read(buffer, 0, bufferSize);
while (remoteResponseCount > 0)
{
memoryStream.Write(buffer, 0, remoteResponseCount);
remoteResponseCount = responseStream.Read(buffer, 0, bufferSize);
}
responseData = memoryStream.ToArray();
memoryStream.Close();
responseStream.Close();
memoryStream.Dispose();
responseStream.Dispose();
return responseData;
}
/// <summary>
/// Set cookies received from remote server to response of navigator
/// </summary>
/// <param name="response">Response received
/// from the remote server</param>
public void SetContextCookies(HttpWebResponse response)
{
_context.Response.Cookies.Clear();
foreach (Cookie receivedCookie in response.Cookies)
{
HttpCookie c = new HttpCookie(receivedCookie.Name,
receivedCookie.Value);
c.Domain = _context.Request.Url.Host;
c.Expires = receivedCookie.Expires;
c.HttpOnly = receivedCookie.HttpOnly;
c.Path = receivedCookie.Path;
c.Secure = receivedCookie.Secure;
_context.Response.Cookies.Add(c);
}
}
}
}
Sample "Web.Config" File
The config file sets where all the requests received by the reverse proxy server will be sent (for example: 192.168.1.90 on port 81).
<configuration>
<appSettings>
<add key="RemoteWebSite" value="http://192.168.1.90:81" />
</appSettings>
<system.web>
<httpHandlers>
<add verb="*" path="*"
type="ReverseProxy.ReverseProxy, ReverseProxy"/>
</httpHandlers>
</system.web>
</configuration>
Deployment
In order to setup the reverse proxy server in IIS, the following steps need to be performed:
- Compile the project to get the .NET assemblies, and create a web.config configuration file.
- Create a new virtual directory (or a new website) in IIS, and copy the .NET assemblies into the "bin" folder, and the web.config to the root folder.
- Right-click the virtual directory just created, and go to "Properties / Home Directory / Configuration > Mappings" (see picture below), and add "wildcard application maps" to "aspnet_isapi.dll" (uncheck Verify that file exists).
- Click "OK" until you close the "Properties" dialog box.
- Set the correct IP of the remote server in web.config.
Points of Interest
This article explains how HTTPHandler works and how to capture the flow received by the web server IIS and transfer it (unchanged) to another server.
History
- November 21, 2008 - Baseline (version 1.0).
