This article illustrates how a reverse proxy server can be developed in C# .NET v2.0 using HTTP Handler in IIS. The idea is to intercept and manipulate incoming HTTP requests to the IIS web server. I've developed a simple server with a basic, HTTP Reverse Proxy functionality, but there is still a lot more to add.

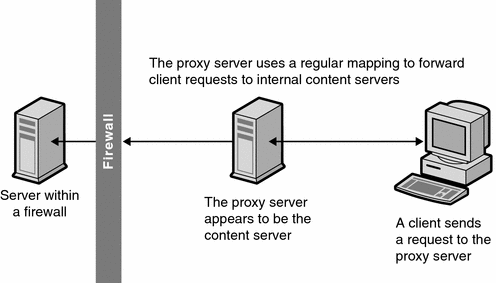

A reverse proxy differs from an ordinary forward proxy. A forward proxy is an intermediate server that accepts requests addressed to it. It then requests content from the origin server and returns it to the client. The client must be configured to use the forward proxy. The reverse proxy does not require any special configuration by the client. The client requests content from the reverse proxy. The reverse proxy then decides where to send those requests, and returns the content as if it was itself the origin. Reverse proxies can be used to bring several servers into the same URL space.
The below code is the core of the Reverse Proxy Server. I've used a HTML parser written by Jeff Heaton for rewriting the URLs in the HTML page rendered by the Reverse Proxy Server.
IHttpHandler, the abstract HTTP Handler base class of .NET must be inherited to define custom HTTP Handler.
IRequiresSessionState must be inherited if we are required to manipulate session variables.
IsReusable is a read-only property which can be used to define where the application instance can be pooled/reused.
/*
* REVERSE PROXY SERVER - IIS HTTP HANDLER - C# .NET v2.0
*
* FILE NAME : Program.cs
*
* DATE CREATED : March 26, 2007, 16:15:05
* CREATED BY : Gunasekaran Paramesh
*
* LAST UPDATED : April 16, 2007, 3:10:09 PM
* UPDATED BY : Gunasekaran Paramesh
*
* DESCRIPTION : Implementation of Reverse Proxy Server through IIS HTTP
handler in C# .NET v2.0
*/
using System;
using System.IO;
using System.Net;
using System.Web;
using System.Text;
using System.Web.Mail;
using System.Collections;
using System.Configuration;
using System.Web.SessionState;
using System.DirectoryServices;
namespace TryHTTPHandler
{
public class SyncHandler : IHttpHandler, IRequiresSessionState
{
public bool IsReusable { get { return true; } }
// Process incoming request
public void ProcessRequest(HttpContext Context)
{
string ServerURL = "";
try
{
// Parsing incoming URL and extracting original server URL
char[] URL_Separator = { '/' };
string[] URL_List = Context.Request.Url.AbsoluteUri.Remove(0,
7).Split(URL_Separator);
ServerURL = "http://" +
URL_List[2].Remove(URL_List[2].Length - 5, 5) + @"/";
string URLPrefix = @"/" + URL_List[1] + @"/" +
URL_List[2]; // Eg. "/handler/stg2web.sync";
for ( int i = 3; i < URL_List.Length; i++ )
ServerURL += URL_List[i] + @"/";
ServerURL = ServerURL.Remove(ServerURL.Length -1, 1);
WriteLog(ServerURL + " (" +
Context.Request.Url.ToString() + ")");
// Extracting POST data from incoming request
Stream RequestStream = Context.Request.InputStream;
byte[] PostData = new byte[Context.Request.InputStream.Length];
RequestStream.Read(PostData, 0,
(int) Context.Request.InputStream.Length);
// Creating proxy web request
HttpWebRequest ProxyRequest = (
HttpWebRequest) WebRequest.Create(ServerURL);
if ( ConfigurationManager.AppSettings["UpchainProxy"] ==
"true" )
ProxyRequest.Proxy = new WebProxy(
ConfigurationManager.AppSettings["Proxy"], true);
ProxyRequest.Method = Context.Request.HttpMethod;
ProxyRequest.UserAgent = Context.Request.UserAgent;
CookieContainer ProxyCookieContainer = new CookieContainer();
ProxyRequest.CookieContainer = new CookieContainer();
ProxyRequest.CookieContainer.Add(
ProxyCookieContainer.GetCookies(new Uri(ServerURL)));
ProxyRequest.KeepAlive = true;
//For POST, write the post data extracted from the incoming request
if ( ProxyRequest.Method == "POST" )
{
ProxyRequest.ContentType =
"application/x-www-form-urlencoded";
ProxyRequest.ContentLength = PostData.Length;
Stream ProxyRequestStream = ProxyRequest.GetRequestStream();
ProxyRequestStream.Write(PostData, 0, PostData.Length);
ProxyRequestStream.Close();
}
// Getting response from the proxy request
HttpWebResponse ProxyResponse = (
HttpWebResponse) ProxyRequest.GetResponse();
if (ProxyRequest.HaveResponse)
{
// Handle cookies
foreach(Cookie ReturnCookie in ProxyResponse.Cookies)
{
bool CookieFound = false;
foreach(Cookie OldCookie in
ProxyCookieContainer.GetCookies(new Uri(ServerURL)))
{
if (ReturnCookie.Name.Equals(OldCookie.Name))
{
OldCookie.Value = ReturnCookie.Value;
CookieFound = true;
}
}
if (!CookieFound)
ProxyCookieContainer.Add(ReturnCookie);
}
}
Stream StreamResponse = ProxyResponse.GetResponseStream();
int ResponseReadBufferSize = 256;
byte[] ResponseReadBuffer = new byte[ResponseReadBufferSize];
MemoryStream MemoryStreamResponse = new MemoryStream();
int ResponseCount = StreamResponse.Read(ResponseReadBuffer, 0,
ResponseReadBufferSize);
while ( ResponseCount > 0 )
{
MemoryStreamResponse.Write(ResponseReadBuffer, 0,
ResponseCount);
ResponseCount = StreamResponse.Read(ResponseReadBuffer, 0,
ResponseReadBufferSize);
}
byte[] ResponseData = MemoryStreamResponse.ToArray();
string ResponseDataString = Encoding.ASCII.GetString(ResponseData);
// While rendering HTML, parse and modify the URLs present
if ( ProxyResponse.ContentType.StartsWith("text/html") )
{
HTML.ParseHTML Parser = new HTML.ParseHTML();
Parser.Source = ResponseDataString;
while( !Parser.Eof() )
{
char ch = Parser.Parse();
if ( ch == 0 )
{
HTML.AttributeList Tag = Parser.GetTag();
if ( Tag["href"] != null )
{
if ( Tag["href"].Value.StartsWith(
@"/") )
{
WriteLog("URL " +
Tag["href"].Value +
" modified to " + URLPrefix +
Tag["href"].Value);
ResponseDataString =
ResponseDataString.Replace(
"\"" +
Tag["href"].Value +
"\"", "\"" +
URLPrefix + Tag["href"].Value +
"\"");
}
}
if ( Tag["src"] != null )
{
if ( Tag["src"].Value.StartsWith(
@"/") )
{
WriteLog("URL " +
Tag["src"].Value +
" modified to " +
URLPrefix + Tag["src"].Value);
ResponseDataString =
ResponseDataString.Replace(
"\"" +
Tag["src"].Value +
"\"", "\"" +
URLPrefix + Tag["src"].Value +
"\"");
}
}
}
}
Context.Response.Write(ResponseDataString);
}
else
Context.Response.OutputStream.Write(ResponseData, 0,
ResponseData.Length);
MemoryStreamResponse.Close();
StreamResponse.Close();
ProxyResponse.Close();
}
catch ( Exception Ex )
{
Context.Response.Write(Ex.Message.ToString());
WriteLog("An error has occurred while requesting the URL
" + ServerURL + "(" +
Context.Request.Url.ToString() + ")\n" +
Ex.ToString());
}
}
// Write debug log message
private void WriteLog(string Message)
{
FileStream FS = new FileStream(ConfigurationManager.AppSettings[
"Log"], FileMode.Append, FileAccess.Write);
string DateTimeString = DateTime.Now.ToString();
Message = "[" + DateTimeString + "] " + Message +
"\n";
byte[] FileBuffer = Encoding.ASCII.GetBytes(Message);
FS.Write(FileBuffer, 0, (int)FileBuffer.Length);
FS.Flush(); FS.Close();
}
}
}
<configuration>
<system.web>
<httpHandlers>
<add verb="*" path="*.sync" type="TryHTTPHandler.SyncHandler,
TryHTTPHandler" />
</httpHandlers>
<customErrors mode="Off" />
<appSettings>
<add key="UpchainProxy" value="true"/>
<add key="Proxy" value="proxy1:80"/>
<add key="Log" value="D:\\HTTPHandlerLog.rtf"/>
</appSettings>
</system.web>
</configuration>
In order to setup the Reverse Proxy Server in IIS, the following steps need to be performed.
If you navigate to say, http://localhost/handler/stg2web.sync/tso5/logon.cfm, you will get the response from the back-end server, http://stg2web/tso5/logon.cfm
Please note that these proxy features HTTP specifications and DO NOT support HTTPS. The following features are supported.
April 18, 2007 - Baseline (Version 1.0)
