The Ultimate Toolbox Graphics Classes

• Download the Ultimate Toolbox source code - 3 MB
• Download the Ultimate Toolbox sample projects - 5.4 MB
• Download the Ultimate Toolbox documentation in compiled HTML help (CHM) format - 4.9 MB

Visit the Ultimate Toolbox main page for an overview and configuration guide to the Ultimate Toolbox library.

Contents

• Introduction
• Device Independent Bitmaps
• Graphics
• Image Viewer
• Meta Files
• Shaped Splash Window
• History
• Comments

Introduction

The Ultimate Toolbox contains several classes that enable the integration of graphic-based routines in your MFC based application.

Device Independent Bitmaps

COXDIB is an MFC extension encapsulating DIB operations. It includes functionality for reading/writing BMP and JPG files, conversion, palette extraction, resizing, rotation (at 90°increments), dithering, and drawing. Many of the Ultimate Toolbox classes make use of this class for graphics file rendering.

As an example, consider the rendering of a large 24 bit per pixel bitmap in a small area on a 256 color display. The best approach is to resize, dither, then render the resulting dib:

...
m_DIB.Read("c:\some.bmp");
m_DIB.ResizeDIB(320, 200);
m_DIB.HalfToneDitherDIB();
...
m_PeriDIB.Paint(pDC, CRect(0, 0, 320, 200), CRect(0, 0, 320, 200));
...

Graphics

COXGraphics class was designed in order to provide advanced graphics routines for programmers. It is currently used internally in the COXRoundedButton class to render the button.

void COXRoundedButton::DrawButtonBackground(CDC* pDC, CRect buttonRect,
    UINT nState, CPalette* pPalette/*=NULL*/)
{
    // back color, may be used as transparent color

    COLORREF BackColor=m_clrBk;

    CSize szRadius=CalcSphereRadius();

    COXGraphics graphics;

    if (!(IsChecked() || (nState & ODS_SELECTED) == ODS_SELECTED))
    {
        graphics.DrawRoundedButton(pDC,buttonRect.left,buttonRect.top,
            buttonRect.Width(),buttonRect.Height(),
            szRadius.cx,szRadius.cy,pPalette,
            m_clrButton,m_clrLight,m_fThetta,
            m_fPhi,m_fLightIntensityCoef,
            m_nPhong,m_fMirror,m_fDiffuse,
            m_fAmbient,BackColor);
    }
    else
    {
        graphics.DrawRoundedButton(pDC,buttonRect.left,buttonRect.top,
            buttonRect.Width(),buttonRect.Height(),
            szRadius.cx,szRadius.cy+(szRadius.cx-szRadius.cy)/3,pPalette,
            m_clrButton,m_clrLight,m_fThetta,
            m_fPhi+180,m_fLightIntensityCoef,
            m_nPhong,0,m_fDiffuse,
            m_fAmbient,BackColor);
    }
}

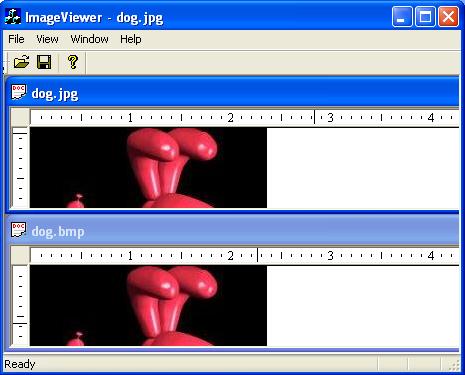

Image Viewer

The COXImageViewer class is a COXScrollWnd based class which is designed to display DIB (bitmap) and (optionally) JPEG images.

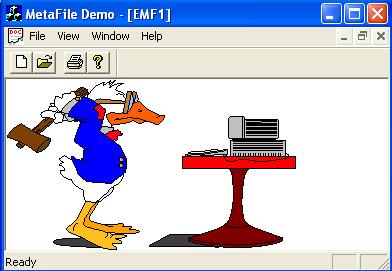

Meta Files

COXMetaFile supports Windows 3.x, Aldus header and enhanced metafiles (*.wmf and *.emf).

void CMetaFileView::OnDraw(CDC* pDC)
{
    CMetaFileDoc* pDoc = GetDocument();
    ASSERT_VALID(pDoc);

    // TODO: add draw code for native data here

    CRect rectClient;
    GetClientRect( &rectClient);
    if (m_bMaintainRatio)
    {
        if (! pDoc->m_MetaFile.PlayFile (pDC, &rectClient) )
            AfxMessageBox (_T("Error in COXMetaFile::PlayFile"));
    }
    else
    {
        if (! pDoc->m_MetaFile.PlayFile (pDC ) )
            AfxMessageBox (_T("Error in COXMetaFile::PlayFile"));
    }
    return ;
}

Shaped Splash Window

COXSplashWnd and COXSplashWndDIB allow for quick and easy implementation of customizable splash windows.

The LoadBitmap method of COXSplashWndDib can specify a border color (default is 0xFF000000) that will be made transparent, giving the appearance of a shaped window. Each outer pixel in this color will be made invisible.

COXSplashWnd can be seen in action in the samples\graphics\Splash example.

History

Initial CodeProject release August 2007.
