LINQ, group by and WPF Data Binding

• Download LinqGroupWpfSource - 1.62 KB

Introduction

LINQ introduced great things to the C# programming language, things that database developers have known for year. In some areas LINQ goes far beyond what has been known from SQL. One example is the group by clause. In SQL the result of a group operation returns a table - nothing else is possible since SQL does not know the notion of classes. In contrast LINQ's group by operation can create hierarchical result structures. This article shows how to write a LINQ query using group by and - even more important - demonstrates how you can consume the result in WPF using data binding.

The LINQ Query

In the sample we assume that we collect status events from programs running on a computer. For every event we could collect the process ID, a process description (e.g. the file name of the exe) and the event time. The following class acts as a container for events:

public class Event
{
  public int PID { get; set; }
  public string Desc { get; set; }
  public DateTime EventTime { get; set; }
}

The following line of code generates some demo data:

var data = new List<Event>()
{
  new Event() { PID = 1, Desc="Process A", EventTime = DateTime.Now.AddHours(-1) },
  new Event() { PID = 1, Desc="Process A", EventTime = DateTime.Now.AddHours(-2) },
  new Event() { PID = 2, Desc="Process B", EventTime = DateTime.Now.AddHours(-3) },
  new Event() { PID = 2, Desc="Process B", EventTime = DateTime.Now.AddHours(-4) },
  new Event() { PID = 3, Desc="Process C", EventTime = DateTime.Now.AddHours(-5) }
};

As you can see the master data about the processes is stored multiple times (i.e. data structure is not in normal form). Our LINQ query should return a hierarchical result in which every process is included only once. Additionally for every process we want to have a collection of the corresponding events. The LINQ query solving this problem looks like this:

var result =
  from d in data
  group d by new { d.PID, d.Desc } into pg
  select new { Process = pg.Key, Items = pg };

Note how the group by clause is written and how the result (anonymous type) is built. The query groups the result by process ID and process description. Both fields together make up the composite group expression (new { d.PID, d.Desc }). pg is of type IGrouping<TKey, TElement>. TKey represents the group expression mentioned before. IGrouping implementens IEnumerable. Therefore pg can be used in the select clause to embed the list of corresponding Event objects for each group.

Note that the anonymous type for the result contains names for each column (Process = pg.Key, Items = pg). This is important because without the names data binding in WPF is much harder (in fact I do not know whether it is possible without names at all).

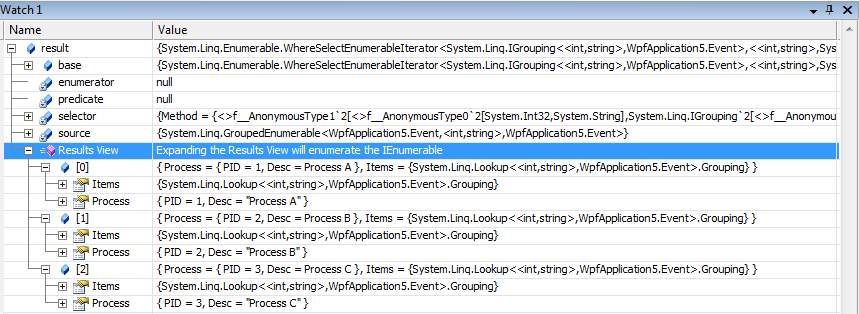

Here is how the result looks like in the Visual Studio debugger:

WPF Data Binding

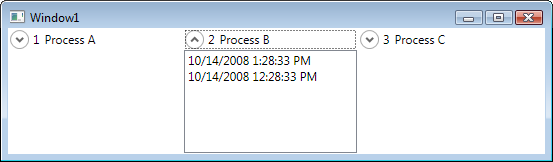

In my example I want to represent the hierarchical result structure in the user interface, too. Therefore the following sample should create an expander control for each key. Inside the expander it should display a listbox with the event details for the corresponding key. Here is a screen shot of the result I want to achieve:

Using data binding to create the expander controls is quite straight forward:

<Window x:Class="WpfApplication5.Window1"
 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation">http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">http://schemas.microsoft.com/winfx/2006/xaml"
 Title="Window1" Height="300" Width="550">
<Grid>
 <ItemsControl x:Name="TopLevelListBox" ItemsSource="{Binding}">
  <ItemsControl.ItemsPanel>
   <ItemsPanelTemplate>
    <StackPanel Orientation="Horizontal" />
   </ItemsPanelTemplate>
  </ItemsControl.ItemsPanel>
  <ItemsControl.ItemTemplate>
   <DataTemplate>
    <Expander ExpandDirection="Down" Width="175">
     <Expander.Header>
      <StackPanel Orientation="Horizontal">
       <TextBlock Text="{Binding Path=Process.PID}" Margin="0,0,5,0"/>
       <TextBlock Text="{Binding Path=Process.Desc}" />
      </StackPanel>
     </Expander.Header>
    </Expander>
   </DataTemplate>
  </ItemsControl.ItemTemplate>
 </ItemsControl>
</Grid>
</Window>

As you can see I use a custom ItemsPanel to display the expander controls horizontally. The data template converts each result object into the expander control. To make data binding work we must not forget to set the data context for the ItemsControl:

var result =
  from d in data
  group d by new { d.PID, d.Desc } into pg
  select new { Process = pg.Key, Items = pg };

TopLevelListBox.DataContext = result;

Based on that we can use the hierarchical result generated by the LINQ query to insert the list of events per expander control without writing a single line of extra C# code:

<Window x:Class="WpfApplication5.Window1"
 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation">http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">http://schemas.microsoft.com/winfx/2006/xaml"
 Title="Window1" Height="300" Width="550">
<Grid>
 <ItemsControl x:Name="TopLevelListBox" ItemsSource="{Binding}">
  <ItemsControl.ItemsPanel>
   <ItemsPanelTemplate>
    <StackPanel Orientation="Horizontal" />
   </ItemsPanelTemplate>
  </ItemsControl.ItemsPanel>
  <ItemsControl.ItemTemplate>
   <DataTemplate>
    <Expander ExpandDirection="Down" Width="175">
     <Expander.Header>
      <StackPanel Orientation="Horizontal">
       <TextBlock Text="{Binding Path=Process.PID}" Margin="0,0,5,0"/>
       <TextBlock Text="{Binding Path=Process.Desc}" />
      </StackPanel>
     </Expander.Header>
     <ListBox x:Name="SubListBox" ItemsSource="{Binding Path=Items}">
      <ListBox.ItemTemplate>
       <DataTemplate>
        <StackPanel Orientation="Horizontal">
         <TextBlock Text="{Binding Path=EventTime}" />
        </StackPanel>
       </DataTemplate>
      </ListBox.ItemTemplate>
     </ListBox>
    </Expander>
   </DataTemplate>
  </ItemsControl.ItemTemplate>
 </ItemsControl>
</Grid>
</Window>

Note that the listbox SubListBox is bould to Items. Items has been defined as a field in the result type of the LINQ query. It contains the list of events corresponding to each group key. By binding like this we can access the properties of Event inside the DataTemplate of the listbox.

Summary

In my opinion the important takeaways of this sample are:

1. LINQ is a powerful tool that is not only useful in combination with databases. It makes it easier to handle in-memory object structure, too.
2. LINQ query can create more complex result structures than SQL.
3. WPF data binding works great with LINQ results even with hierarchical result structures.
