Marsa : A 3D Approach to XML read data

• Download demo project - 104 Kb

Introduction

A while back one of my web buddies sent me a link to an excellent image and video addin for a web browser. It is called PicLens. And someone also left a note in the forum of one of my other articles saying how simliar it was. At the time I had not seen PicLens so didn't have a clue what the comment meant. But when I did install PicLens I was blown away.

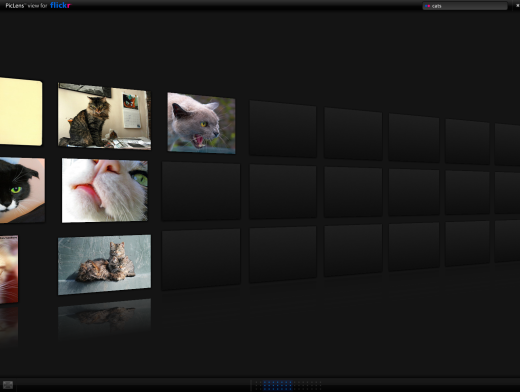

PicLens basically looks like this (and remember this is in a browser, very neat)



I was actually pretty envious of PicLens, so I decided to have a go at figuring out how to do something simliar in WPF. This article is the result of that. I have decided to call this article codename "MarsaX" for the following reason. My name is Sacha, and one of my WPF mates is called Marlon Grech, who helped me with a few Templates for controls and some general coding on this article, and is always (probably daily if I am honest about it) answering queries I have here and there. Basically Marlon liked what I was up to, so I included him, he is a very very smart kid, google him have a look at what he does, he has a very good blog at http://marlongrech.wordpress.com/ have a read. He a true master of WPF I would say.

So that's the Marsa part (Marlon and Sacha). As its a Explorer type app I appended an "X" on there, so it's MarsaX. Which I am sure you'll all agree sounds a lot better than Salon which it could have been using the 1st letters from my name and last letters from Marlons.

Table Of Contents

The rest of this article will cover the following areas

• What The Demo App Does/Doesn't Do
• The General Idea
• The Nitty Gritty

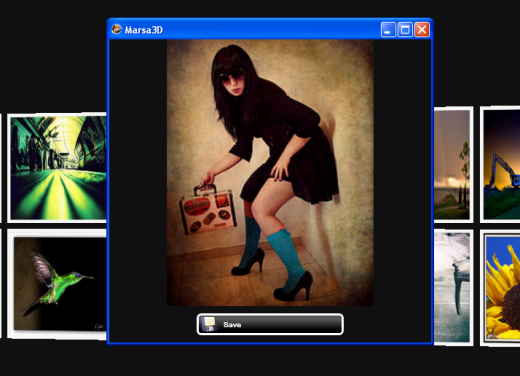

• Saving Photos You Like
• Configuration
• Areas For Improvement

I guess the best way is to just crack on. One note though before we start, I will be using C# and Visual Studio 2008

The General Idea

The general idea behind PicLens (which is what I am trying to imitate) is to offer the user the ability to search various online repositories for images/videos and then present these in a nice 3D plane. This is the basic idea. I feel that I have achieved all of these requirements within MarsaX, and it looks pretty cool to boot. Perhaps some screen shots would help show what the attached MarsaX code looks like when run

Allow User To Specify Search

This is avaible by using the +/- buttons in the top right hand side. When clicked on these buttons will show/hide the SearchArea element

Search Area

When clicked on, these buttons conduct their search. If a query is not in progress the users new query will be used. The current Search is given a white glow, whilst the item under the mouse gets a blue glow.

Search Results Being Loaded

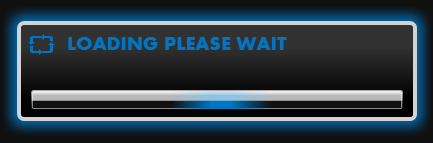

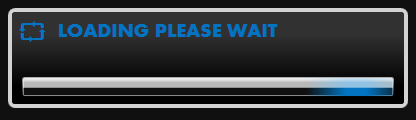

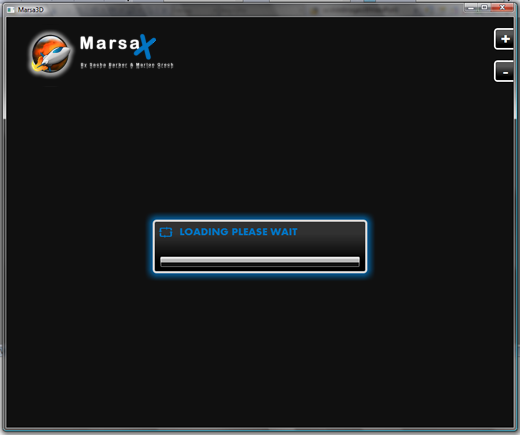

When a search is started a loading section is shown (remember these images are being read/downloaded from the web). This is shown below

Results Shown

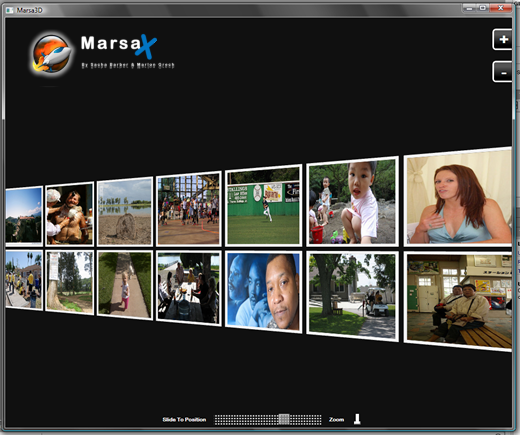

After the loading has completed (A load timer has timed out) the images are shown to the user, along with some controls at the bottom of the page to scroll through the images in 3D space, and also to zoom in/out. Shown below is what MarsaX looks like after it first runs

Then when the user uses the scroll area control the 3D objects will be panned left/right

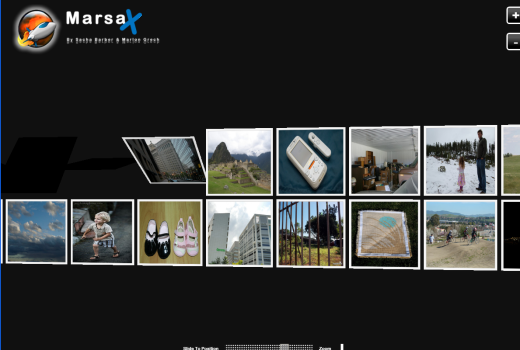

And they will rotate when the get the mouse over event (should you have this option turned on in the App.Config file)

User Controls

You can see from here the user is able to run their mouse over an individaul image within 3D space, causing it to rotate in 3D space. The user is also able to move the images in 3D space using the pan control at the bottom, and also affect the zoom using the zoom control. It should also be noted that clicking on one of the 3D hosted images will show it in a new popup window

I have to say I am pretty happy about how this turned out, as its only really taken about 7 hours of actual work I think. So yeah I am pretty happy about it. So I'm done showing screen shots, so what I want to do now is explain MarsaX works internally

The Nitty Gritty

Ok so now you have seen the screen shots, you probably want to know how it works. In order to exaplain this I think it is probably best to break it down into several areas, namely:

• SearchArea
• The Actual Search
• Organising The Search Results
• User Controls

This should cover most of it, so let us crack on shall we

SearchArea

The search area is probably one of the easiest parts as its really just a bunch of Templated Button controls. What happens is when the user clicks on the +./- buttons at the right hand side

The search area element within the ucslideImages3DViewPort class is animated in or out of the screen (depending on its current state). This is easily achieved by using the following code

/// <summary>
/// If the SearchArea is not currently shown, Animates the SearchArea
/// to be shown on screen
/// </summary>
private void btnPlus_Click(object sender, RoutedEventArgs e)
{
    if (!IsSearchAreaShown)
    {
        IsSearchAreaShown = true;
        Storyboard HideSearchArea =
            this.TryFindResource("OnShowSearchArea") as Storyboard;
        if (HideSearchArea != null)
            HideSearchArea.Begin(SearchArea);
    }
}

/// <summary>
/// If the SearchArea is currently shown, Animates the SearchArea
/// to be hidden off screen
/// </summary>
private void btnMinus_Click(object sender, RoutedEventArgs e)
{
    if (IsSearchAreaShown)
    {
        HideSearchArea();
    }
}

/// <summary>
/// Animates the SearchArea to be hidden off screen
/// </summary>
private void HideSearchArea()
{
    IsSearchAreaShown = false;
    Storyboard HideSearchArea =
        this.TryFindResource("OnHideSearchArea") as Storyboard;
    if (HideSearchArea != null)
        HideSearchArea.Begin(SearchArea);
}

And the StoryBoards themselves are declared within the XAML, as follows

<!-- Show Search Area Animation  -->
<Storyboard x:Key="OnShowSearchArea">
    <ThicknessAnimationUsingKeyFrames BeginTime="00:00:00"
                                      Storyboard.TargetName="SearchArea"
                                      Storyboard.TargetProperty="(FrameworkElement.Margin)">
        <SplineThicknessKeyFrame KeyTime="00:00:00" Value="0,9,-500,-9"/>
        <SplineThicknessKeyFrame KeyTime="00:00:00.5000000" Value="0,9,-10,-9"/>
        <SplineThicknessKeyFrame KeyTime="00:00:01" Value="0,9,0,-9"/>
    </ThicknessAnimationUsingKeyFrames>
</Storyboard>

<!-- Hide Search Area Animation  -->
<Storyboard x:Key="OnHideSearchArea">
    <ThicknessAnimationUsingKeyFrames BeginTime="00:00:00"
                                      Storyboard.TargetName="SearchArea"
                                      Storyboard.TargetProperty="(FrameworkElement.Margin)">
        <SplineThicknessKeyFrame KeyTime="00:00:00" Value="0,9,0,-9"/>
        <SplineThicknessKeyFrame KeyTime="00:00:00.5000000" Value="0,9,-490,-9"/>
        <SplineThicknessKeyFrame KeyTime="00:00:01" Value="0,9,-500,-9"/>
    </ThicknessAnimationUsingKeyFrames>
</Storyboard>

All thats really happening is that teh SearchArea element is starting off screen, by putting in a negative Left Margin setting, and the OnShowSearchArea StoryBoard simply alters the Margin over some time, such that the SearchArea element is brought into view. Hiding the SearchArea is the opposite

The Actual Search

As can be seen in the SearchArea element within the ucslideImages3DViewPort class, there are 3 buttons, which all carry out a different search. Depending on which search button was clicked a new search will be created. This results in a call to the ConductSearch() method

/// <summary>
/// Stores the newSearchType search request in an internal
/// field and proceeds to call the GetQueryResults on a background thread
/// </summary>
private void ConductSearch(string keyword, SearchTypes newSearchType)
{
    currentSearchtype = newSearchType;
    loadTimer.IsEnabled = true;
    controlsArea.Visibility = Visibility.Collapsed;
    ucLoader.Visibility = Visibility.Visible;
    IsAnimating = true;
    IsVisible = false;

    //Load the images async, but assume that the loadTimer time will
    //be enough to cover how long it will take to fetch and display
    //all the images
    ThreadPool.QueueUserWorkItem(x =>
    {
        var data = GetQueryResults(keyword);

        //Create 3D models for the images
        Dispatcher.BeginInvoke(DispatcherPriority.Normal,
            ((Action)delegate { CreateModelsForImages(data); }));
    });
}

/// <summary>
/// returns a List<see cref="PhotoInfo">PhotoInfo</see>
/// which match the current search query based on the value
/// of internal search request
/// </summary>
private List<PhotoInfo> GetQueryResults(string keyword)
{
    switch (currentSearchtype)
    {
        case SearchTypes.FlickrLatest:
            return FlickerProvider.LoadLatestPictures();
        case SearchTypes.FlickrInteresting:
            return FlickerProvider.LoadInterestingPictures();
        case SearchTypes.FlickrKey:
            return FlickerProvider.LoadPicturesKey(keyword);
        default:
            return FlickerProvider.LoadLatestPictures();
    }
}

What is actually happening here is that a new WaitCallBack is added to the ThreadPool so that the search is conducted in the background. Whilst the search is being performed the Loading screen is shown to show that the worker is busy fetching some images.

IMPORTANT NOTE : We had originally use a Glow BitmapEffect on this usercontrol, but this 1 BitmapEffect was enough to change how much CPU time was used from around 7% to 50-60%....Scary. There is a new Effects API within the .NET 3.5 SP1, but it doesn't include a Glow effect. Which is rather sad I think, considering how nice they look. The problem here was that the BitmapEffects are not hardware accelerated.

The UI thread is still responsive at this point, but this is little else the user can do but wait for the iamges. Never the less I consider it good practice to fetch the images in the background, leaving the UI responsive

So where exactly do these images come from, well they come from an RSS feed available at Flickr. There is a single class that exposes some static search methods for obtaining feed results. This class is called FlickerProvider. to get a good understanding about how these feeds and results work you could examine the following Flickr API docs

• http://www.flickr.com/services/api/misc.urls.html
• http://www.flickr.com/services/rest/?method=flickr.photos.getRecent&api_key=
• http://www.flickr.com/services/rest/?method=flickr.interestingness.getList&api_key=
• http://www.flickr.com/services/api/flickr.photos.search.html

Anyway the upshot of all this is, that we have a class with some static methods on it that allow us to carry out Flickr searches and return some results. Let see one of these search methods

    /// <summary>
    /// Returns a List<see cref="PhotoInfo">PhotoInfo</see> which represent
    /// the latest Flickr images
    /// </summary>
    public static List<PhotoInfo> LoadLatestPictures()
    {
        try
        {
            var xraw = XElement.Load(MOST_RECENT);
            var xroot = XElement.Parse(xraw.ToString());
            var photos = (from photo in xroot.Element("photos").
            Elements("photo")
                          select new PhotoInfo
                          {
                              ImageUrl =
                              string.Format("http://farm{0}.static.flickr.com/{1}/{2}_{3}_m.jpg",
                                            (string)photo.Attribute("farm"),
                                            (string)photo.Attribute("server"),
                                            (string)photo.Attribute("id"),
                                            (string)photo.Attribute("secret"))
                          }).Take(Constants.ROWS * Constants.COLUMNS);

            return photos.ToList<PhotoInfo>();
        }
        catch (Exception e)
        {
            Trace.WriteLine(e.Message, "ERROR");
        }
        return null;
    }

It can seen that we are using some XLINQ to query the RSS feed and select a List<PhotoInfo> as the results. A PhotoInfo class is a very simply data class which looks like the following

/// <summary>
/// A simple data class
/// </summary>
public class PhotoInfo
{
    #region Data
    //The url to the actual image
    public string ImageUrl { get; set; }
    #endregion
}

Where each PhotoInfo will be used within the ucslideImages3DViewPort class to add a new model per PhotoInfo to a ViewPort3D.

Organising The Search Results

Ok so we are now failr happy with what we have, we have a search area with some search buttons, that when clicked will load some image urls via querying some RSS feeds. Thats all well and good, but we need to do something with these returned List<PhotoInfo> to get them into the 3D world. So that is what I will explain now

Going back a step first, recall that part of the ConductSearch() used a ThreadPool to carry out some work. Lets just remind ourselves of that

//Load the images async, but assume that the loadTimer time will
//be enough to cover how long it will take to fetch and display
//all the images
ThreadPool.QueueUserWorkItem(x =>
{
    var data = GetQueryResults(keyword);

    //Create 3D models for the images
    Dispatcher.BeginInvoke(DispatcherPriority.Normal,
        ((Action)delegate { CreateModelsForImages(data); }));
});

It can be seen that this in turn calls the CreateModelsForImages() method. This is where the List<PhotoInfo> are used within a 3D environment. Before I show you the code, I just want to talk about it in plain old english, it works like this

• For each PhotoInfo.ImageUrl within the List<PhotoInfo> create a new ModelUIElement3D (which is a new .NET 3.5 3D element that is a full blown element with events and everything. You can read more about that at My other 3D article)
• For each ModelUIElement3D use the PhotoInfo.ImageUrl to create an Image which is then used as a VisualBrush for the ModelUIElement3D Material property
• For each ModelUIElement3D created ensure that the ModelUIElement3D is transalted to the correct 3D positions
• For each ModelUIElement3D hook up the MouseEnter and MouseDown events so that the ModelUIElement3D can A) be animated around it axis, and B) can raise another event to the outside world with the selected images url

In essence that is all that we are trying to achieve, so I guess it's time for some code. To ensure we create the ModelUIElement3D in a nice grid arrangement, there is a simple loop arrangement, like

/// <summary>
/// Creates a new ModelUIElement3D for each of the <See cref="PhotoInfo">PhotoInfo</See>
/// within the input List<See cref="PhotoInfo">PhotoInfo</See>.
/// </summary>
private void CreateModelsForImages(List<PhotoInfo> photos)
{
    int photoNum = 0;
    IsVisible = false;
    container.Children.Clear();
    modelToImageLookUp.Clear();

    for (int rows = 0; rows < Constants.ROWS; rows++)
    {
        for (int col = 0; col < Constants.COLUMNS; col++)
        {
            container.Children.Add(CreateModel(photos[photoNum].ImageUrl, rows, col));
            photoNum++;
        }
    }
}

This method in turn calls the CreateModel() method passing in the image url and a row and col which will be used to position the new ModelUIElement3D in 3D space. Lets see the CreateModel() method now.

/// <summary>
/// Creates a new ModelUIElement3D child which is added to the
/// ContainerUIElement3Ds Children. The row/col parameters are used to position the
/// ModelUIElement3D is 3D space, whilst the imageUri is used to create an Image
/// for the new ModelUIElement3D child
/// </summary>
private ModelUIElement3D CreateModel(string imageUri, int row, int col)
{
    //Get a VisualBrush for the Url
    VisualBrush vBrush = GetVisualBrush(imageUri);

    //Create the model
    ModelUIElement3D model3D = new ModelUIElement3D
    {
        Model = new GeometryModel3D
        {
            Geometry = new MeshGeometry3D
            {
                TriangleIndices = new Int32Collection(
                    new int[] { 0, 1, 2, 2, 3, 0 }),
                TextureCoordinates = new PointCollection(
                    new Point[]
                    {
                        new Point(0, 1),
                        new Point(1, 1),
                        new Point(1, 0),
                        new Point(0, 0)
                    }),
                Positions = new Point3DCollection(
                    new Point3D[]
                    {
                        new Point3D(-0.5, -0.5, 0),
                        new Point3D(0.5, -0.5, 0),
                        new Point3D(0.5, 0.5, 0),
                        new Point3D(-0.5, 0.5, 0)
                    })
            },
            Material = new DiffuseMaterial
            {
                Brush = vBrush
            },
            BackMaterial = new DiffuseMaterial
            {
                Brush = Brushes.Black
            },
            Transform = CreateGroup(row, col)
        }
    };
    //hook up mouse events, and add to lookup and return the ModelUIElement3D
    model3D.MouseEnter += ModelUIElement3D_MouseEnter;
    model3D.MouseDown += model3D_MouseDown;
    modelToImageLookUp.Add(model3D, imageUri);
    return model3D;
}

This method above is responsible for creating a new ModelUIElement3D for each image url. It also used the row/col to position the ModelUIElement3D at the correct 3D position within the eventail grid layout. It also uses a little helper method that creates a VisualBrush for the mage url. This is shown below

/// <summary>
/// Creates a Border with an Image where the Image.Source is the url
/// input paarmeter. This is then made into a VisualBrush which is
/// retuned for use within a ModelUIElement3D
/// </summary>
private VisualBrush GetVisualBrush(string url)
{
    Border bord = new Border();
    bord.Width = 15;
    bord.Height = 15;
    bord.CornerRadius = new CornerRadius(0);
    bord.BorderThickness = new Thickness(0.5);
    bord.BorderBrush = Brushes.WhiteSmoke;
    try
    {
        Image img = new Image
        {
            Source = new BitmapImage(new Uri(@url, UriKind.RelativeOrAbsolute)),
            Stretch = Stretch.Fill,
            Margin = new Thickness(0)

        };

        bord.Child = img;
    }
    catch (Exception e)
    {
        Trace.WriteLine(e.Message, "ERROR");
    }

    VisualBrush vBrush = new VisualBrush(bord);
    return vBrush;
}

Once all the ModelUIElement3D have been created they are added as Children to the single ContainerUIElement3D (which is a container for other 3D WPF elements) which is within the ViewPort3D within the ucslideImages3DViewPort class

User Controls

Once all the ModelUIElement3D have been created the loading screen is hidden, and the user will be shown the images in 3D space, along with some user controls, such as pan/zoom.

The user is also able to mouse over an image to rotate it in 3D space, or click it to show its associated image in a new popup window. lets look at the Pan and Zoom now

Pan

There is a file that holds certain constants that are used within the application, this is called Constants.cs. The user is able to alter these value within reason. And what happens for the pan is that the COLUMNSTOSHOW value is used to constrain a standard WPF Slider controls upper limit. The slider ValueChanged event is then used to call the Animate() method of the ucslideImages3DViewPort class. This is shown below

///

/// Use bound value of Slider to work out what column to
/// animate the ContainerUIElement3D to
///
private void slideImages_ValueChanged(object sender, RoutedPropertyChangedEventArgs<double> e)
{
    Animate((int)Math.Round(slideImages.Value));
}

And here is the Animate() method. The Animate() method, is used to move all the ModelUIElement3Ds to the required position. Though it doesn't move them individually what it does do is simply move the single ContainerUIElement3D which in turn moves its children with it. This method also applies an angle change while its moving, just baecusee it looks better.

/// <summary>
/// Animates to a partilcular ModelUIElement3D position, uses the col input parameter
/// to work out how far to move the ContainerUIElement3D which holds all
/// the ModelUIElement3Ds
/// </summary>
private void Animate(int col)
{
    double move = col * -MODEL_OFFSET;

    Storyboard storyboard = new Storyboard();
    ParallelTimeline timeline = new ParallelTimeline();
    timeline.BeginTime = TimeSpan.FromSeconds(0);
    timeline.Duration = TimeSpan.FromSeconds(2);
    //do move
    DoubleAnimation daMove = new DoubleAnimation(move, new Duration(TimeSpan.FromSeconds(2)));
    daMove.DecelerationRatio = 1.0;
    Storyboard.SetTargetName(daMove, "contTrans");
    Storyboard.SetTargetProperty(daMove, new PropertyPath(TranslateTransform3D.OffsetXProperty));

    //do angle
    double angle = col > Constants.COLUMNS / 2 ? -15 : 15;
    DoubleAnimation daAngle = new DoubleAnimation(angle, new Duration(TimeSpan.FromSeconds(0.8)));
    Storyboard.SetTargetName(daAngle, "contAngle");
    Storyboard.SetTargetProperty(daAngle, new PropertyPath(AxisAngleRotation3D.AngleProperty));

    DoubleAnimation daAngle2 = new DoubleAnimation(0, new Duration(TimeSpan.FromSeconds(1)));
    daAngle2.BeginTime = daAngle.Duration.TimeSpan;
    Storyboard.SetTargetName(daAngle2, "contAngle");
    Storyboard.SetTargetProperty(daAngle2, new PropertyPath(AxisAngleRotation3D.AngleProperty));

    timeline.Children.Add(daMove);
    timeline.Children.Add(daAngle);
    timeline.Children.Add(daAngle2);

    storyboard.Children.Add(timeline);

    storyboard.Begin(this);
}

Like I say the Pan is done using a Standard WPF Slider control, but it has just had its default Template changed a bit to look sexier. With its default Template applied it would look like

But with Marlons special Template below, it now looks like this

<!-- Slider to move ContainerUIElement3D -->
<Slider x:Name="slideImages" Minimum="0" Maximum="{x:Static local:Constants.COLUMNSTOSHOW}"
        Background="Black" ValueChanged="slideImages_ValueChanged" Width="200"
        Height="20" Margin="10,0,0,0"  >
<Slider.Template>
    <ControlTemplate TargetType="Slider">
        <Grid>
            <Grid.Background>
                <!-- Tile background to show the boxes -->
                <DrawingBrush
                Viewport="0,0,5,5"
                ViewportUnits="Absolute"
                TileMode="Tile">
                    <DrawingBrush.Drawing>
                        <DrawingGroup>
                            <GeometryDrawing Brush="{StaticResource backgroundBrush}">
                                <GeometryDrawing.Geometry>
                                    <RectangleGeometry Rect="0,0,100,100" />
                                </GeometryDrawing.Geometry>
                            </GeometryDrawing>

                            <GeometryDrawing Brush="White">
                                <GeometryDrawing.Geometry>
                                    <GeometryGroup>
                                        <RectangleGeometry Rect="50,50,50,50" />
                                    </GeometryGroup>
                                </GeometryDrawing.Geometry>

                            </GeometryDrawing>

                        </DrawingGroup>
                    </DrawingBrush.Drawing>
                </DrawingBrush>
            </Grid.Background>

            <Track Name="PART_Track">
                <Track.Resources>
                    <Style TargetType="RepeatButton">
                        <Setter Property="Template">
                            <Setter.Value>
                                <ControlTemplate TargetType="RepeatButton">
                                    <Border Background="{TemplateBinding Background}" />
                                </ControlTemplate>
                            </Setter.Value>
                        </Setter>
                    </Style>
                </Track.Resources>
                <Track.DecreaseRepeatButton>
                    <RepeatButton Background="Transparent"
              Command="Slider.DecreaseLarge" />
                </Track.DecreaseRepeatButton>
                <Track.Thumb>
                    <Thumb Width="20" Background="DarkGray" Opacity="0.7" />
                </Track.Thumb>
                <Track.IncreaseRepeatButton>
                    <RepeatButton
               Background="Transparent"
              Command="Slider.IncreaseLarge" />
                </Track.IncreaseRepeatButton>
            </Track>
        </Grid>
    </ControlTemplate>
</Slider.Template>
</Slider>

Zoom

Is also a standard WPF Slider control, whos ValueChanged method simply moves the ViewPort3D cameras Z position in or out, which simulates a zoom

/// <summary>
/// Changes the embedded ViewPort3D camera position between 4-10. Simulating a zoom
/// </summary>
private void slideZoom_ValueChanged(object sender, RoutedPropertyChangedEventArgs<double> e)
{
    CameraPosition = e.NewValue;
}
.....
.....
/// <summary>
/// The new Camera Z position. When set aninmates the camera position to the new
/// Z position. This is a simulated Zoom
/// </summary>
public double CameraPosition
{
    set
    {
        Point3D newPosition = new Point3D(camera.Position.X, camera.Position.Y, value);
        Point3DAnimation daZoom = new Point3DAnimation(newPosition, new Duration(TimeSpan.FromSeconds(1)));
        camera.BeginAnimation(PerspectiveCamera.PositionProperty, daZoom);
    }
}

You can also zoom in/out using the mouse wheel, which is achieved using the following code

/// <summary>
/// Handle the Mouse wheel to Zoom in and out
/// </summary>
/// <param name="e"></param>
protected override void OnMouseWheel(MouseWheelEventArgs e)
{
   double value = Math.Max(0, e.Delta / 10);//divide the value by 10 so that it is more smooth
   value = Math.Min(e.Delta, Constants.COLUMNSTOSHOW);
   slideZoom.Value = value;
}

I think that concludes how it all hangs together, shown below are a few areas where I felt it could be improved, and where PicLens is actually much better

Saving Photos You Like

At the request of Josh Smith, we have also allowed users to save their pictures. Once they click on an image, the user will be presented with a popup window as shown below, from where they will be able to save the picture to a location of their choice

You would be wrong if you thought this code was easy to do. It actualy took a while to get right, and is mainly contained in a class called ImageHelper, should you wish to look at it.

Working with Images in WPF is not as easy as working with GDI+.

Configuration

Due to some requests to be able to not have the rotating on the individual models, we have now added the ability to either use rotation or no. This and other user settings can be set up in the App.Config file where the following key/value pairs may be used to configure MarsaX

<configuration>

  <appSettings>
    <!-- These cant be bigger than 2 and 25 as Yahoo ImageSearch
         API has a limit of 50 (so ROWS * COLS can't be > 50) -->
    <add key="rows" value="2"/>
    <add key="columns" value="25"/>
    <!-- Set this true if you want the 3D model to flip
         around on mouse over -->
    <add key="should3DModelFlipOnMouseOver" value="false"/>
    <!-- Saved image default location -->
    <add key="savedImageLocation" value="c:\"/>
    <!-- Set this true to stretch images to fill 3D model,
         otherwise images will be shown at natural ratio -->
    <add key="stretchImagesFor3DModels" value="true"/>
  </appSettings>
</configuration>

Areas For Improvement

Video Support

PicLens also supports videos for the items within the 3D plane. Whilst obtaining an image for a vidoe is faily easy to extract using the RenderTargetBitmap method, it must be noted that all the videos are web based. Now the MediaElement in WPF is not really intended for live streaming as far as I know. So thats one down fall. The next issue is that the MediaElement in WPF is really only meant to support whatever media formats Windows Media Player (WMP) supports, and the end user has to have WMP installed. The last area that I didn't like was the fact that to display a video in 3D space, I would have had to swap to use Visual2DViewport3D elements, which allow the hosting of 2D Visuals such as a MediaElement in a Viewport3D

Which is all cool, but this type of element doesn't have Mouse events, so one would also need to do hit testing directly on the Viewport3D for these types of elements. Where for images you can use a ModelUIElement3D element, which is a full blown element with mouse events and all. This is what MarsaX uses. I think MSFT missed a trick here and should have made a combined element that had its own events but could also host 2D Visuals. That's just my opinion though.

Virtualization

One of the very cool things about PicLens is that it performs some sort of Virtualization, where it only loads what is visible on the screen. The MarsaX implementation doesn't have any Virtualization. Rather what it does do is load up a set ammount of images from reading the RSS Feed mentioned above, so it's not perfect....I know, I know

History

• v1.2 : 11/06/08, Added more App.Config options and ability to save images
• v1.1 : 10/06/08, Added search textbox enter key down to initiate search. And ability to configure options via App.Config
• v1.0 : 10/06/08, initial posting

Did You Like It

Could I just ask, if you liked this article could you please vote for it, and perhaps leave a comment

You must Sign In to use this message board.

FAQ  Noise Tolerance Very HighHighMediumLowVery Low  Search Messages    Layout Expand All MessagesThread ViewNo Javascript (slow)No Javascript Preview    Per page 102550

Msgs 1 to 25 of 74 (Total in Forum: 74) (Refresh) FirstPrevNext

Excellent job PeterKovach 5:03 11 Nov '08   This is a great example. It illustrates the idea very well and is greatly appreciated!! Thank you for taking the time to do this and post it for everyone!!! Sign In·View Thread·PermaLink Re: Excellent job Sacha Barber 5:38 11 Nov '08   No bother Sacha Barber Microsoft Visual C# MVP 2008 Codeproject MVP 2008 Your best friend is you. I'm my best friend too. We share the same views, and hardly ever argue My Blog : sachabarber.net Sign In·View Thread·PermaLink [Message Removed] Katekortez 10:08 25 Oct '08   Spam message removed Sign In·View Thread·PermaLink SaveImageToDisk() Quiestion? lordavenger 4:21 9 Oct '08   Hello Sacha! Thank you for sharing the article (and many more others too!). It helped me a lot in starting explore the world of WPF. After adapting some of your code for my school project I noticed I get a lot of exceptions when trying to save a JPG image. Your code in ImageHelper.SaveImageToDisk() does some stuff to save the picture using the proper format, but I noticed that you can make it easier using simply: System.Net.WebClient client = new System.Net.WebClient(); client.DownloadFile(originalUrl, filename); Am I correct or I have missed some minor, but important detail? I know it's not quite WPF question Thanks in advance and keep the articles comming! Vik Sign In·View Thread·PermaLink Re: SaveImageToDisk() Quiestion? Sacha Barber 4:42 9 Oct '08   lordavenger wrote: System.Net.WebClient client = new System.Net.WebClient(); client.DownloadFile(originalUrl, filename); Good point well made. That works for me. Sometimes you just get stuck up trying to do things the WPF way, and miss easier things. Thanks for pointing this much easier way out to me. Though my code will also work with byte[] to save the file using the private static void SaveImageData(byte[] imageData, string filePath) method. But for sure your own implementation idea is much better than by own public static bool SaveImageToDisk(string originalUrl, string filename, out string errorMessage) method. By the way here is my latest WPF one http://www.codeproject.com/KB/WPF/StickyNotes.aspx. I'm also working on another 3D one, should have that done my this weekend Sacha Barber Microsoft Visual C# MVP 2008 Codeproject MVP 2008 Your best friend is you. I'm my best friend too. We share the same views, and hardly ever argue My Blog : sachabarber.net Sign In·View Thread·PermaLink develop 3D with .NET 3.0 niknurayunni 18:21 6 Sep '08   Hi I have a question to ask I've been using .NET framework 3.0 and VS 2005 with .NET 3.0 extension for my WPF project is it true that for 3D development(still using WPF and vb.net) I have to install .NET 3.5 and VS 2008? need answer for this, appreciate a lot,thanks regards, Ayunni Sign In·View Thread·PermaLink
