WPF MultiSelect TreeView Sample

By Nick Polyak

Shows how to add multi-select capabilities to WPF TreeView control
C# (C# 3.0), .NET (.NET 3.0, .NET 3.5), WPF, Architect, Dev, Design
Posted:23 Mar 2008
Views:23,616
Bookmarked:15 times
Announcements
Loading...

Search
Advanced Search
Add to IE Search
printPrint   add Share
      Discuss Discuss   Broken Article?Report
4 votes for this article.
Popularity: 2.32 Rating: 3.86 out of 5

1
1 vote, 25.0%
2

3
1 vote, 25.0%
4
2 votes, 50.0%
5

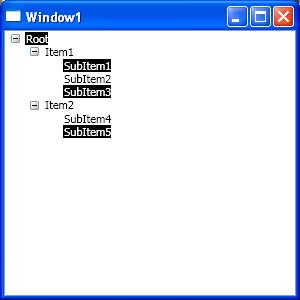

MultiSelectTreeView

Introduction

WPF TreeView control does not give developers an ability to multi-select the nodes of the tree. This article shows a very simple example that simulates multi-select capability for a WPF TreeView control. I say "simulate" because it discards the WPF select mechanism and replaces it with its own.

Ideally another user control called, say MultiSelectTreeView, should be created and packed in a separate DLL, but since I do not have much time to spend on it, I simply showed how to do it by modifying the code in the main Window class.

To multi-select, you should use the left ctrl key on your keyboard together with the mouse. The shift key and ctrl-A multi-select functions were not added (again for the lack of time), but can be added in exactly the same manner.

Simulating the Multi-Selection

As stated above, we disable the WPF selection and, instead use our own selection mechanism, according to which, all TreeViewItem elements that have been selected are stored in selectedItems set. The set is simulated by a Dictionary with null values.

The selected items change their Background and Foreground properties to Brushes.Black and Brushes.White correspondingly.

If LeftCtrl key is not pressed, then, before selecting an item, we clean all the previous selections. If LeftCtrl key is pressed, the previous selections are not cleaned.

Using the Code

The top level code is located in MyTreeView_SelectedItemChanged function and called when SelectedItemChanged event is fired on the TreeView.

First, prevent WPF selection:

treeViewItem.IsSelected = false;

Then, if LeftCtrl is not pressed, clear the previous selections:

if (!CtrlPressed)
{
    List selectedTreeViewItemList = new List();
    foreach (TreeViewItem treeViewItem1 in selectedItems.Keys)
    {
        selectedTreeViewItemList.Add(treeViewItem1);
    }

    foreach (TreeViewItem treeViewItem1 in selectedTreeViewItemList)
    {
        Deselect(treeViewItem1);
    }
}

Then, flip flop the selection state of the item: if selected, make it unselected and vice versa:

ChangeSelectedState(treeViewItem);

We check whether LeftCtrl key is pressed or not by implementing the following property:

bool CtrlPressed
{
   get
   {
       return System.Windows.Input.Keyboard.IsKeyDown(Key.LeftCtrl);
   }
}

History

  • 23rd March, 2008: Initial post
