ContentsIntroductionWith the advent of WPF, the fine folk at Microsoft have now given developers
(and the rest of us) the ability to totally alter the way we see the visual
representation of a That is what this article is all about, it explains several key techniques
that may be used by WPF developers, to not only ensure their own controls work
correctly, but that they also apply It should be noted that I will NOT be discussing theme awareness for custom authored
As I say what this article is about, is really making sure that the control works as it was/is intended to work. Its going to be a fairly small article about several techniques that will help creating well behaved Templatable and Stylable custom controls. This article should also help you to understand how to customize other existing controls and even 3rd party WPF controls. The Articles MeatI think the best place to start with is probably an example of one of the standard

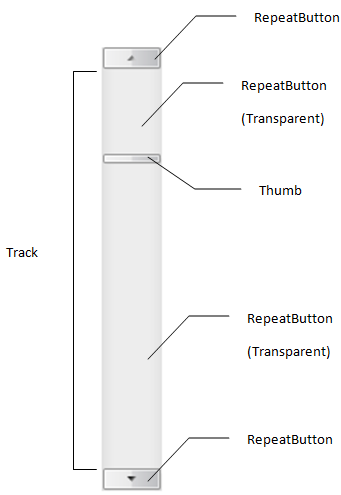

Disection of a standard controlA scrollbar simply looks like this. I am using Windows Vista, and the Aero theme. So dont be suprised/or at all worried, if your scrollbar look a little different to this, as the current control theme, is not the main focus of this article.
And if we look at the standard Which ever of these you choose the code generated should be functionally the
same. I have chosen to take the code for the <!-- Fill Brushes -->
<LinearGradientBrush x:Key="NormalBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#FFF" Offset="0.0"/>
<GradientStop Color="#CCC" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="HorizontalNormalBrush" StartPoint="0,0" EndPoint="1,0">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#FFF" Offset="0.0"/>
<GradientStop Color="#CCC" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="LightBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#FFF" Offset="0.0"/>
<GradientStop Color="#EEE" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="HorizontalLightBrush" StartPoint="0,0" EndPoint="1,0">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#FFF" Offset="0.0"/>
<GradientStop Color="#EEE" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="DarkBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#FFF" Offset="0.0"/>
<GradientStop Color="#AAA" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="PressedBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#BBB" Offset="0.0"/>
<GradientStop Color="#EEE" Offset="0.1"/>
<GradientStop Color="#EEE" Offset="0.9"/>
<GradientStop Color="#FFF" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<SolidColorBrush x:Key="DisabledForegroundBrush" Color="#888" />
<SolidColorBrush x:Key="DisabledBackgroundBrush" Color="#EEE" />
<SolidColorBrush x:Key="WindowBackgroundBrush" Color="#FFF" />
<SolidColorBrush x:Key="SelectedBackgroundBrush" Color="#DDD" />
<!-- Border Brushes -->
<LinearGradientBrush x:Key="NormalBorderBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#CCC" Offset="0.0"/>
<GradientStop Color="#444" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="HorizontalNormalBorderBrush"
StartPoint="0,0" EndPoint="1,0">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#CCC" Offset="0.0"/>
<GradientStop Color="#444" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="DefaultedBorderBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#777" Offset="0.0"/>
<GradientStop Color="#000" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<LinearGradientBrush x:Key="PressedBorderBrush" StartPoint="0,0" EndPoint="0,1">
<GradientBrush.GradientStops>
<GradientStopCollection>
<GradientStop Color="#444" Offset="0.0"/>
<GradientStop Color="#888" Offset="1.0"/>
</GradientStopCollection>
</GradientBrush.GradientStops>
</LinearGradientBrush>
<SolidColorBrush x:Key="DisabledBorderBrush" Color="#AAA" />
<SolidColorBrush x:Key="SolidBorderBrush" Color="#888" />
<SolidColorBrush x:Key="LightBorderBrush" Color="#AAA" />
<!-- Miscellaneous Brushes -->
<SolidColorBrush x:Key="GlyphBrush" Color="#444" />
<SolidColorBrush x:Key="LightColorBrush" Color="#DDD" />
<Style x:Key="ScrollBarLineButton" TargetType="{x:Type RepeatButton}">
<Setter Property="SnapsToDevicePixels" Value="True"/>
<Setter Property="OverridesDefaultStyle" Value="true"/>
<Setter Property="Focusable" Value="false"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type RepeatButton}">
<Border
Name="Border"
Margin="1"
CornerRadius="2"
Background="{StaticResource NormalBrush}"
BorderBrush="{StaticResource NormalBorderBrush}"
BorderThickness="1">
<Path
HorizontalAlignment="Center"
VerticalAlignment="Center"
Fill="{StaticResource GlyphBrush}"
Data="{Binding Path=Content,
RelativeSource={RelativeSource TemplatedParent}}" />
</Border>
<ControlTemplate.Triggers>
<Trigger Property="IsPressed" Value="true">
<Setter TargetName="Border" Property="Background"
Value="{StaticResource PressedBrush}" />
</Trigger>
<Trigger Property="IsEnabled" Value="false">
<Setter Property="Foreground"
Value="{StaticResource DisabledForegroundBrush}"/>
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="ScrollBarPageButton" TargetType="{x:Type RepeatButton}">
<Setter Property="SnapsToDevicePixels" Value="True"/>
<Setter Property="OverridesDefaultStyle" Value="true"/>
<Setter Property="IsTabStop" Value="false"/>
<Setter Property="Focusable" Value="false"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type RepeatButton}">
<Border Background="Transparent" />
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<Style x:Key="ScrollBarThumb" TargetType="{x:Type Thumb}">
<Setter Property="SnapsToDevicePixels" Value="True"/>
<Setter Property="OverridesDefaultStyle" Value="true"/>
<Setter Property="IsTabStop" Value="false"/>
<Setter Property="Focusable" Value="false"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Thumb}">
<Border
CornerRadius="2"
Background="{TemplateBinding Background}"
BorderBrush="{TemplateBinding BorderBrush}"
BorderThickness="1" />
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<ControlTemplate x:Key="VerticalScrollBar" TargetType="{x:Type ScrollBar}">
<Grid >
<Grid.RowDefinitions>
<RowDefinition MaxHeight="18"/>
<RowDefinition Height="0.00001*"/>
<RowDefinition MaxHeight="18"/>
</Grid.RowDefinitions>
<Border
Grid.RowSpan="3"
CornerRadius="2"
Background="#F0F0F0" />
<RepeatButton
Grid.Row="0"
Style="{StaticResource ScrollBarLineButton}"
Height="18"
Command="ScrollBar.LineUpCommand"
Content="M 0 4 L 8 4 L 4 0 Z" />
<Track
Name="PART_Track"
Grid.Row="1"
IsDirectionReversed="true">
<Track.DecreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageUpCommand" />
</Track.DecreaseRepeatButton>
<Track.Thumb>
<Thumb
Style="{StaticResource ScrollBarThumb}"
Margin="1,0,1,0"
Background="{StaticResource HorizontalNormalBrush}"
BorderBrush="{StaticResource HorizontalNormalBorderBrush}" />
</Track.Thumb>
<Track.IncreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageDownCommand" />
</Track.IncreaseRepeatButton>
</Track>
<RepeatButton
Grid.Row="3"
Style="{StaticResource ScrollBarLineButton}"
Height="18"
Command="ScrollBar.LineDownCommand"
Content="M 0 0 L 4 4 L 8 0 Z"/>
</Grid>
</ControlTemplate>
<ControlTemplate x:Key="HorizontalScrollBar" TargetType="{x:Type ScrollBar}">
<Grid >
<Grid.ColumnDefinitions>
<ColumnDefinition MaxWidth="18"/>
<ColumnDefinition Width="0.00001*"/>
<ColumnDefinition MaxWidth="18"/>
</Grid.ColumnDefinitions>
<Border
Grid.ColumnSpan="3"
CornerRadius="2"
Background="#F0F0F0" />
<RepeatButton
Grid.Column="0"
Style="{StaticResource ScrollBarLineButton}"
Width="18"
Command="ScrollBar.LineLeftCommand"
Content="M 4 0 L 4 8 L 0 4 Z" />
<Track
Name="PART_Track"
Grid.Column="1"
IsDirectionReversed="False">
<Track.DecreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageLeftCommand" />
</Track.DecreaseRepeatButton>
<Track.Thumb>
<Thumb
Style="{StaticResource ScrollBarThumb}"
Margin="0,1,0,1"
Background="{StaticResource NormalBrush}"
BorderBrush="{StaticResource NormalBorderBrush}" />
</Track.Thumb>
<Track.IncreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageRightCommand" />
</Track.IncreaseRepeatButton>
</Track>
<RepeatButton
Grid.Column="3"
Style="{StaticResource ScrollBarLineButton}"
Width="18"
Command="ScrollBar.LineRightCommand"
Content="M 0 0 L 4 4 L 0 8 Z"/>
</Grid>
</ControlTemplate>
<Style x:Key="{x:Type ScrollBar}" TargetType="{x:Type ScrollBar}">
<Setter Property="SnapsToDevicePixels" Value="True"/>
<Setter Property="OverridesDefaultStyle" Value="true"/>
<Style.Triggers>
<Trigger Property="Orientation" Value="Horizontal">
<Setter Property="Width" Value="Auto"/>
<Setter Property="Height" Value="18" />
<Setter Property="Template"
Value="{StaticResource HorizontalScrollBar}" />
</Trigger>
<Trigger Property="Orientation" Value="Vertical">
<Setter Property="Width" Value="18"/>
<Setter Property="Height" Value="Auto" />
<Setter Property="Template"
Value="{StaticResource VerticalScrollBar}" />
</Trigger>
</Style.Triggers>
</Style>

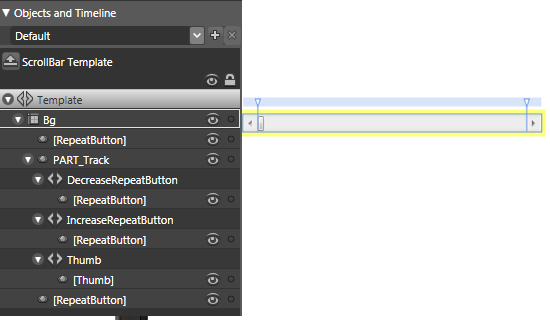

Now if we have a look at at a
There is something that looks rather odd, well at least to me it does. What the heck is this PART_Track thing all about. It just looks strange. As explained in the previous section, the default appearance of a control,
including any triggers that may change its appearance or behavior, is defined
by a Mmmm, I thought we could do what we wanted to do with custom controls, well as it turns out, No.We are not quite as free as we thought we were, there are some restrictions imposed on us. Of course we dont have to abide by these restrictions, but its probably a good idea to, as we want our control to work, even if it does look different. It should still work. Microsoft have thought about this situation, and have not fixed it (which they
couldnt do anyway, as they dont know what the user is going to do to the Think of Template Parts as a loose contract between a control and its Well how do we know which PARTS we are expected to provide, well thats done
to the control author doing a good job, and supplying a documentation attribute,

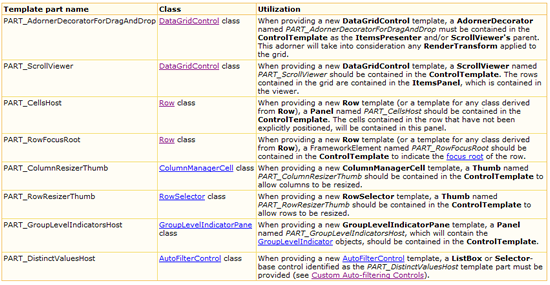

called For example my previous codeproject article MyFriends
uses a 3rd party Data Grid for WPF by a company called Xceed. And if we examine
their documentation, we can see that their data grids
Dont worry about this XCeed example, that was really just to show you a what
a large control might expect from its users, but we are simply going to go back
to our simple
And as I stated above the default template contains a template part, where the part is expected to be called PART_Track and is as shown below <Track
Name="PART_Track"
Grid.Row="1"
IsDirectionReversed="true">
<Track.DecreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageUpCommand" />
</Track.DecreaseRepeatButton>
<Track.Thumb>
<Thumb
Style="{StaticResource ScrollBarThumb}"
Margin="1,0,1,0"
Background="{StaticResource HorizontalNormalBrush}"
BorderBrush="{StaticResource HorizontalNormalBorderBrush}" />
</Track.Thumb>
<Track.IncreaseRepeatButton>
<RepeatButton
Style="{StaticResource ScrollBarPageButton}"
Command="ScrollBar.PageDownCommand" />
</Track.IncreaseRepeatButton>
</Track>

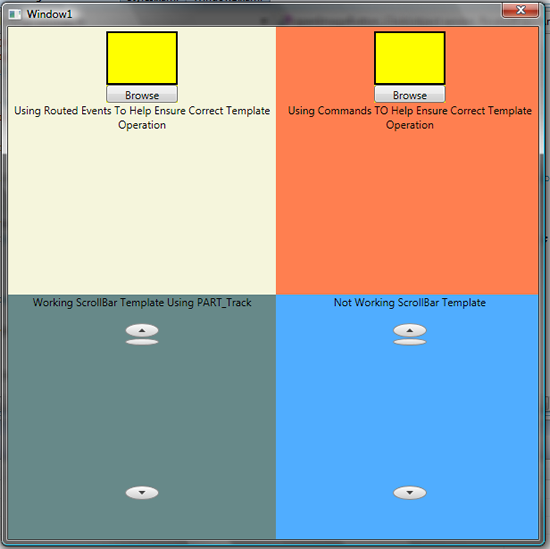

And as ive also demonstrated, the Track is expected to be a part of the To prove this ive included as part of the attached demo application 2 In fact I think now may be a good time to show a small screen shot of the attached demo application. As I say this is a small article, so its nothing fancy. Its basically split into 4 areas. Each area conducts a different function as follows: Top Left : Hosting a custom control, and making it work using Template_Parts Top Right : Hosting a custom control, and making it work using Commands Bottom Left : Has a working Bottom Right : Has a non-working I think I've talked about the bottom row, in what we have discussed above,
where I mentioned that in some cases there is expected to be a certain element
type and name supplied as part of the applied
Well according to the sourced that i've read there are really only a couple of options available, to ensure controls behave well, and that users of controls know what they have to do to ensure this hamonyous arrangement. So the rest of this article will be dedicated to the dicussion of what custom control authors can do with their controls. OPTION 1As the designer of a control, you should decide which parts are important parts of the controls inner workings, and these should probably be designated
as template parts. Remember template parts are a loose contract between a control and its template. After you decide on which elements to designate
as template parts, you should pick a name for them. The convention is "PART_XXX". You should then document each parts existence by using the The next step is to, deal with the designated template parts, which should be done in an override of the Lets see the associated code using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace CustomControlsAndTemplates
{
[TemplatePart(Name = "Part_OpenImage", Type = typeof(Button))]
[TemplatePart(Name = "Part_Image", Type = typeof(Image))]
public class OpenImageCustomControlUsingRoutedEvents : Control
{
static OpenImageCustomControlUsingRoutedEvents()
{
DefaultStyleKeyProperty.OverrideMetadata(
typeof(OpenImageCustomControlUsingRoutedEvents),
new FrameworkPropertyMetadata(
typeof(OpenImageCustomControlUsingRoutedEvents)));
}
public override void OnApplyTemplate()
{
base.OnApplyTemplate();
Button openImageButton = base.GetTemplateChild("Part_OpenImage") as Button;
Image selectedImage = base.GetTemplateChild("Part_Image") as Image;
if (openImageButton != null && selectedImage != null)
openImageButton.Click += new RoutedEventHandler(openImageButton_Click);
}
private void openImageButton_Click(object sender, RoutedEventArgs e)
{
Microsoft.Win32.OpenFileDialog ofd = new Microsoft.Win32.OpenFileDialog();
ofd.AddExtension = false;
ofd.Multiselect = false;
ofd.DefaultExt = ".jpg";
ofd.Filter = "Image Files(*.BMP;*.JPG;*.GIF)|
*.BMP;*.JPG;*.GIF|All files (*.*)|*.*";
ofd.InitialDirectory=System.Environment.GetFolderPath(
Environment.SpecialFolder.MyPictures);
if (ofd.ShowDialog().HasValue)
{
if (!string.IsNullOrEmpty(ofd.FileName))
{
OpenImageCustomControlUsingRoutedEvents parent =
(sender as Button).TemplatedParent as
OpenImageCustomControlUsingRoutedEvents;
Image selectedImage = parent.Template.FindName("Part_Image", parent)
as Image;
if (selectedImage != null)
selectedImage.Source = new BitmapImage(new Uri(ofd.FileName));
}
}
}
}
}
And here is the control being used in XAML, with the correct Part_Image and Part_OpenImage being supplied <local:OpenImageCustomControlUsingRoutedEvents
x:Name="openImageControlUsingRoutedEvents" Width="80" Height="80" Background="Yellow" Margin="0,5,0,0">
<local:OpenImageCustomControlUsingRoutedEvents.Template>
<ControlTemplate>
<StackPanel Orientation="Vertical" Background="{TemplateBinding Background}">
<Border BorderBrush="Black" BorderThickness="2,2,2,2" Height="60">
<Image x:Name="Part_Image" Margin="0" Stretch="Fill" />
</Border>
<Button x:Name="Part_OpenImage" Width="Auto"
Content="Browse" Height="20"/>
</StackPanel>
</ControlTemplate>
</local:OpenImageCustomControlUsingRoutedEvents.Template>
</local:OpenImageCustomControlUsingRoutedEvents>
Note that this implementation gracefully handles Although this option is fine, its not that flexable, not only do we expect there to be a OPTION 2A more flexible way to attach logic to peices of a template is to define and use commands. This not only avoids the need to special names, but the element
trigger no longer even needs to be a The following is a re-write of the OpenImage using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace CustomControlsAndTemplates
{
[TemplatePart(Name = "Part_OpenImage", Type = typeof(Button))]
[TemplatePart(Name = "Part_Image", Type = typeof(Image))]
public class OpenImageCustomControlUsingCommands : Control
{
private static RoutedUICommand openImageCommand = new
RoutedUICommand("Opem File", "OpenImageCommand",
typeof(OpenImageCustomControlUsingCommands));
static OpenImageCustomControlUsingCommands()
{
DefaultStyleKeyProperty.OverrideMetadata(
typeof(OpenImageCustomControlUsingCommands),
new FrameworkPropertyMetadata(
typeof(OpenImageCustomControlUsingCommands)));
//Attach the command to the custom logic
CommandManager.RegisterClassCommandBinding(
typeof(OpenImageCustomControlUsingCommands),
new CommandBinding(OpenImageCommand,
new ExecutedRoutedEventHandler(openImageButton_Click)));
}
public static RoutedUICommand OpenImageCommand
{
get { return openImageCommand; }
}
private static void openImageButton_Click(object sender, RoutedEventArgs e)
{
Microsoft.Win32.OpenFileDialog ofd = new Microsoft.Win32.OpenFileDialog();
ofd.AddExtension = false;
ofd.Multiselect = false;
ofd.DefaultExt = ".jpg";
ofd.Filter = "Image Files(*.BMP;*.JPG;*.GIF)|
*.BMP;*.JPG;*.GIF|All files (*.*)|*.*";
ofd.InitialDirectory=System.Environment.GetFolderPath(
Environment.SpecialFolder.MyPictures);
if (ofd.ShowDialog().HasValue)
{
if (!string.IsNullOrEmpty(ofd.FileName))
{
OpenImageCustomControlUsingCommands parent =
sender as OpenImageCustomControlUsingCommands;
Image selectedImage = parent.Template.FindName(
"selectedImage", parent) as Image;
if (selectedImage != null)
selectedImage.Source = new BitmapImage(new Uri(ofd.FileName));
}
}
}
}
}
And here is the control being using in XAML with the command being wired up. <local:OpenImageCustomControlUsingCommands x:Name="openImageCustomControlUsingCommands"
Width="80" Height="80" Background="Yellow" Margin="0,5,0,0">
<local:OpenImageCustomControlUsingCommands.Template>
<ControlTemplate>
<StackPanel Orientation="Vertical" Background="{TemplateBinding Background}">
<Border BorderBrush="Black" BorderThickness="2,2,2,2" Height="60">
<Image x:Name="selectedImage" Margin="0" Stretch="Fill" />
</Border>
<Button Command="{x:Static
local:OpenImageCustomControlUsingCommands.OpenImageCommand}"
Width="Auto" Content="Browse" Height="20"/>
</StackPanel>
</ControlTemplate>
</local:OpenImageCustomControlUsingCommands.Template>
</local:OpenImageCustomControlUsingCommands>
The only problem I guess with this approach is that you have to know that there is a command available that will do what you want. Well thats it, for this article. I told you it was small. But I hope this was useful in some way. I think its fairly strange, so should still in your mind. At least thats how my mind works, I forget the easy stuff, and remember the outright strange and scary stuff just fine ReferencesThe following is a list of the code that I have looked at and in some case used and altered for this article:
So What Do You Think ?I would just like to ask, if you liked the article please vote for it, and leave some comments, as it lets me know if the article was at the right level or not, and whether it contained what people need to know. ConclusionAlthough this article was fairly short I hope it was of help to someone out there, that may be thinking of authoring a custom WPF control or is dealing with a 3rd party WPF control. | ||||||||||||||||||||
