WPF Book Reader

By chameau

A WPF book reader for cbz/cbr files
C#, .NET (.NET 3.5), WPF, WinForms, Dev
Version:8 (See All)
Posted:30 Jun 2009
Updated:20 Nov 2009
Views:7,868
Bookmarked:32 times
Announcements
Loading...

Search
Advanced Search
Add to IE Search
printPrint   add Share
      Discuss Discuss   Broken Article?Report
11 votes for this article.
Popularity: 4.26 Rating: 4.09 out of 5

1

2
3 votes, 27.3%
3

4
8 votes, 72.7%
5

Introduction

Why this project? There are so many e-book readers already available, but none of them suited my requirements. They unzip pages on the disk, or hang between pages, or do not manage the library, etc.

Background

I decided to use this project to experiment more on WPF, and its graphic capacity fits the needs and helps fulfill the missing functionalities. It's more an experiment than anything else; the solution is clean but not perfect.

Functionalities

The application (in my opinion) has to fulfill the following:

  • Manage the book library, by parsing a specified folder, displaying the cover pages.
  • Reading a book, placing the bookmark on a current page, and restoring it.
  • Saving all for further reading.
  • Being quick because of zipped content access, implement image cache management.
  • Once a book is open, display the pages inside and the folder structure.


Example: The main interface


Example: The options dialog

The Code

This project is very simple. As you can see in the class diagram below, it contains three forms and a few classes.

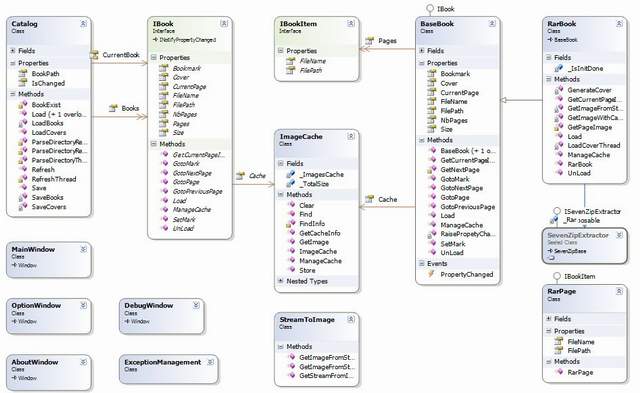

The Class Diagram

Click to enlarge image

The main class is Catalog. It holds a collection of IBooks (mapped to RarBook) which contains an IBookItem (mapped to RarPage). The catalog is in charge of parsing the book directory for all cbz or cbr files, and load/save itself (book name, bookmark, cover) in two separate binary files.

The loading algorithm is the following, and the main point is the usage of a thread to load the covers and parse the folder. The first load will be a bit long, but the generation of the covers will be threaded too. We will see the details later.

private void Load()
{
    try
    {
        string bin =
          System.Reflection.Assembly.GetExecutingAssembly().
            Location.Replace(".exe", ".bin");
        if (File.Exists(bin))
        {
            //load the book name and bookmark
            if (LoadBooks(bin))
            {
                bin =
                  System.Reflection.Assembly.GetExecutingAssembly().
                    Location.Replace(".exe", ".bin2");
                if (File.Exists(bin))
                {
                    // load the cover images
                    Thread t = new Thread(
                      new ParameterizedThreadStart(LoadCovers));
                    t.IsBackground = true;
                    t.Priority = ThreadPriority.BelowNormal;
                    t.Start(bin);
                }
            }

            //then refresh the book
            // ????
        }
        else //binary files does not exist, parse the directory
        {
            Thread t = new Thread(new
                ParameterizedThreadStart(ParseDirectory));
            t.IsBackground = true;
            t.Priority = ThreadPriority.BelowNormal;
            t.Start(_bookPath);
        }
    }
    catch (Exception err)
    {
        ExceptionManagement.Manage(err, true);
    }
}

WPF brings the big advantage of advanced binding, and I use the ObservableCollection so I can notify later that some properties have changed, like the cover images which are loaded after the collection and the binding.

private ObservableCollection<ibook> _Books =
        new ObservableCollection<ibook>();
public ObservableCollection<ibook> Books
{
  get { return _Books; }
  set { _Books = value; }
}

Once I load the book, I start a new thread to get the covers, and the UI will be updated with each Dispatcher=>Delegate - obligation, because the bitmap created here will be used on the UI thread.

public void LoadCovers(object fileName)
{
    IFormatter formatter = new BinaryFormatter();
    Stream streamBin = new FileStream((string)fileName,
        FileMode.Open,
        FileAccess.Read,
        FileShare.None);

    try
    {
        //book count
        int count = (int)formatter.Deserialize(streamBin);

        for (int i = 0; i < count; i++)
        {
            string filePath = (string)formatter.Deserialize(streamBin);

			MemoryStream coverStream =
			  (MemoryStream)formatter.Deserialize(streamBin);

            foreach (IBook book in this._Books)
            {
                if (book.FilePath == filePath)
                {
                    MemoryStream stream2 = new MemoryStream();
                    coverStream.WriteTo(stream2);
                    coverStream.Flush();
                    coverStream.Close();

                    stream2.Position = 0;

                    Application.Current.Dispatcher.Invoke(
                       DispatcherPriority.Normal, (ThreadStart)delegate
                    {
                        BitmapImage myImage = new BitmapImage();
                        myImage.BeginInit();
                        myImage.StreamSource = stream2;
                        myImage.DecodePixelWidth = 70;
                        myImage.EndInit();

                        book.Cover = myImage;
                    });
                    coverStream = null;
                    stream2 = null;
                }
            }
        }
    }

When it's the first loading, I parse the directories, and construct the book with the second parameter set to true to generate its cover in a thread. See the constructor and the GenerateCover function.

foreach (FileInfo file in directory.GetFiles("*.*"))
                {
                    if (Properties.Settings.Default.BookFilter.Contains
						(file.Extension.ToUpper()))
                    {
                        if( !BookExist( file.FullName ) )
                            Application.Current.Dispatcher.Invoke
			    (DispatcherPriority.Background, (ThreadStart)delegate
                            {
                                IBook bk = (IBook)new RarBook(file.FullName, true);
                                bk.Size = file.Length;
                                Books.Add(bk);
                                this.IsChanged = true;
                            });
                    }
                }

The common functions of books are in the BaseBook class. The RarBook only contain specific code due to the wrapper used to read the files. Another important class is ImageCache which holds a collection of Bitmaps as specified in the options dialog (number and time). It's woken up by a timer in the main window.

private DispatcherTimer _TimerClock;

Debug Form

It will be displayed only if you activate the "debug checkbox" in the Options dialog. Otherwise, exceptions are logged into a ".log" file in the application directory. Always remember that everything that has something to do with the UI must be called on the same thread.

catch (Exception err)
{
    Application.Current.Dispatcher.Invoke(
       DispatcherPriority.Normal, (ThreadStart)delegate
    {
        ExceptionManagement.Manage(err, true);
    });
}

[or without thread]

catch (Exception err)
{
    ExceptionManagement.Manage(err, true);
}

Points of interest

Performances vs. Design

WPF is used as the rendering surface, but no special effects are used because it a pain in terms of performance... even more into a development VPC. I just use a simple theme from the WPF toolkit provided on CodePlex to skin the application. Then, I add threads for cover generation and binary reading.

The Problems

Serializing the Covers

I was unable to reload the saved catalog covers into the binary file. I don't know why but BitmapImage is not serializable... I found a solution by going through two MemoryStreams before creating the BitmapImage. This was the same with the rar stream...I got the message: "header corrupted".

Getting the Thread Working

That was the other major point because I put myself in a hurry when I saw the performance :-) but it works.

Contributors

Many thanks to SevenZip which allows me to uncompress in memory.

Conclusion

I hope you will enjoy it as much as I do. If you get any solution for the problems I faced, please forward...

History

  • v1.0
    • First version
  • v2.0
    • Implements refreshing of the catalog. It's done automatically on loading and from command
    • Removed SharpZipLibrary because it left a lock on the files after the cover generation. It makes ZipBook and ZipPage useless. So, all the file reading is done through SevenZip
    • Removed the rar/zip format options in the dialog and settings
    • Extended the file parsing filter in settings to support all 7Zip formats: ARJ, CAB, CHM, CPIO, DEB, DMG, HFS, ISO, LZH, LZMA, MSI, NSIS, RAR, RPM, UDF, WIM, XAR and Z
    • Added in settings the extraction filter to read only images
  • v2.8
    • Uses the latest version of SevenZipSharp
    • Improves the generation of the covers (tested up to 400 books)
    • Zooms with slider or Left Ctrl + Wheel
    • Loops with Left Shift, Mouse move and Full Screen mode
    • Loads a book external to the current catalog path
    • Changes the toolbar
    • Changes the WPF theme to dark, New icons
    • Adds Fit to width or height functions
    • Creates 2 user controls: MagnifyGlass, PageViewer
    • New function to convert PDF to ZIP with the help of pdftohtml.exe (you have to check by yourself if it has worked !)
    • Integration of my new GridSplitterExpander that I developed for NPerf at http://nperf.codeplex.com/
    • Removed all possible exceptions of v2, this is very stable

License

This article, along with any associated source code and files, is licensed under The GNU General Public License (GPL)
