A lot of talking about AJAX is taking place here and there; AJAX is the acronym of "Asynchronous JavaScript and XML", a technology based on XMLHttpRequest, which is now supported by all main browsers. The basic idea is quite simple - and not actually a breakthrough - but it allows updating a page following a server request, without reloading the entire set of data. Some examples can be found on GMail or Google Suggest. For additional information about AJAX, you can see Wikipedia.
In this article, we propose a solution based on AJAX that has a great advantage with respect to those commonly found in Internet: calls are made to the Web Services.
This permits:

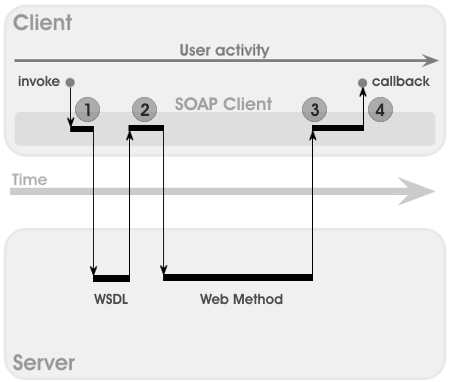

The following diagram shows the SOAP Client workflow for asynchronous calls:
The Client invokes the "SOAPClient.invoke" method using a JavaScript function and specifies the following:
async = true, sync = false).
The "SOAPClient.invoke" method executes the following operations (numbers refer to the previous diagram):
async, the callback method is invoked, otherwise it returns the corresponding object. After having exposed our idea about consuming a Web Service via JavaScript, we only have to analyze the code.
Let's start with the class for the definition of the parameters to be passed to the Web method: "SOAPClientParameters":
function SOAPClientParameters()
{
var _pl = new Array();
this.add = function(name, value)
{
_pl[name] = value;
return this;
}
this.toXml = function()
{
var xml = "";
for(var p in _pl)
{
if(typeof(_pl[p]) != "function")
xml += "<" + p + ">" +
_pl[p].toString().replace(/&/g,
"&").replace(/</g,
"<").replace(/>/g,
">
The code simply consists of an internal dictionary (associative array) with the parameter name (key) and the related value; the "add" method allows appending new parameters, while the "toXml" method provides XML serialization for SOAP requests (see "SOAPClient._sendSoapRequest").
Let's define the "SOAPClient" class, which can only contain static methods in order to allow async calls, and the only "public" method within this class: "SOAPClient.invoke".
Note: since JavaScript does not foresee access modifiers - such as "public", "private", "protected", etc. - we'll use the "_" prefix to indicate private methods.
function SOAPClient() {}
SOAPClient.invoke = function(url, method,
parameters, async, callback)
{
if(async)
SOAPClient._loadWsdl(url, method,
parameters, async, callback);
else
return SOAPClient._loadWsdl(url, method,
parameters, async, callback);
}
The "SOAPClient.invoke" method interface is described above; our implementation checks whether the call is async (call result will be passed to the callback method) or sync (call result will be directly returned). The call to the Web Service begins by invoking the "SOAPClient._loadWsdl" method:
SOAPClient._loadWsdl = function(url, method, parameters, async, callback)
{
// load from cache?
var wsdl = SOAPClient_cacheWsdl[url];
if(wsdl + "" != "" && wsdl + "" != "undefined")
return SOAPClient._sendSoapRequest(url, method,
parameters, async, callback, wsdl);
// get wsdl
var xmlHttp = SOAPClient._getXmlHttp();
xmlHttp.open("GET", url + "?wsdl", async);
if(async)
{
xmlHttp.onreadystatechange = function()
{
if(xmlHttp.readyState == 4)
SOAPClient._onLoadWsdl(url, method,
parameters, async, callback, xmlHttp);
}
}
xmlHttp.send(null);
if (!async)
return SOAPClient._onLoadWsdl(url, method, parameters,
async, callback, xmlHttp);
}
The method searches the cache for the same WSDL in order to avoid repetitive calls:
SOAPClient_cacheWsdl = new Array();
If the WSDL is not found in the cache (it's the first call in the current context), it is requested from the server using an XMLHttpRequest, according to the required mode (sync or not). Once an answer is obtained from the server, the "SOAPClient._onLoadWsdl" method is invoked:
SOAPClient._onLoadWsdl = function(url, method,
parameters, async, callback, req)
{
var wsdl = req.responseXML;
SOAPClient_cacheWsdl[url] = wsdl;
return SOAPClient._sendSoapRequest(url, method,
parameters, async, callback, wsdl);
}
A WSDL copy is stored into the cache and then the "SOAPClient._sendSoapRequest" method is executed:
SOAPClient._sendSoapRequest = function(url, method,
parameters, async, callback, wsdl)
{
var ns = (wsdl.documentElement.attributes["targetNamespace"] +
"" == "undefined") ?
wsdl.documentElement.attributes.getNamedItem(
"targetNamespace").nodeValue :
wsdl.documentElement.attributes["targetNamespace"].value;
var sr =
"<?xml version=\"1.0\" encoding=\"utf-8\"?>" +
"<soap:Envelope " +
"xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\" " +
"xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\" " +
"xmlns:soap=\"http://schemas.xmlsoap.org/soap/envelope/\">" +
"<soap:Body>" +
"<" + method + " xmlns=\"" + ns + "\">" +
parameters.toXml() +
"</" + method + "></soap:Body></soap:Envelope>";
var xmlHttp = SOAPClient._getXmlHttp();
xmlHttp.open("POST", url, async);
var soapaction =
((ns.lastIndexOf("/") != ns.length - 1) ? ns + "/" : ns) + method;
xmlHttp.setRequestHeader("SOAPAction", soapaction);
xmlHttp.setRequestHeader("Content-Type", "text/xml; charset=utf-8");
if(async)
{
xmlHttp.onreadystatechange = function()
{
if(xmlHttp.readyState == 4)
SOAPClient._onSendSoapRequest(method,
async, callback, wsdl, xmlHttp);
}
}
xmlHttp.send(sr);
if (!async)
return SOAPClient._onSendSoapRequest(method,
async, callback, wsdl, xmlHttp);
}
The service namespace is taken out of the WSDL (using different XPath queries for Internet Explorer and Mozilla / FireFox), then a SOAP v. 1.1 request is created and submitted. The "SOAPClient._onSendSoapRequest" method will be invoked upon receiving the server response:
SOAPClient._onSendSoapRequest = function(method,
async, callback, wsdl, req)
{
var o = null;
var nd = SOAPClient._getElementsByTagName(
req.responseXML, method + "Result");
if(nd.length == 0)
{
if(req.responseXML.getElementsByTagName(
"faultcode").length > 0)
throw new Error(500,
req.responseXML.getElementsByTagName(
"faultstring")[0].childNodes[0].nodeValue);
}
else
o = SOAPClient._soapresult2object(nd[0], wsdl);
if(callback)
callback(o, req.responseXML);
if(!async)
return o;
}
The server response is processed looking for faults: if found, an error is raised. Instead, if a correct result is obtained, a recursive function will generate the return type by using the service description:
SOAPClient._soapresult2object = function(node, wsdl)
{
return SOAPClient._node2object(node, wsdl);
}
SOAPClient._node2object = function(node, wsdl)
{
// null node
if(node == null)
return null;
// text node
if(node.nodeType == 3 || node.nodeType == 4)
return SOAPClient._extractValue(node, wsdl);
// leaf node
if (node.childNodes.length == 1 &&
(node.childNodes[0].nodeType == 3 ||
node.childNodes[0].nodeType == 4))
return SOAPClient._node2object(node.childNodes[0], wsdl);
var isarray = SOAPClient._getTypeFromWsdl(node.nodeName,
wsdl).toLowerCase().indexOf("arrayof") != -1;
// object node
if(!isarray)
{
var obj = null;
if(node.hasChildNodes())
obj = new Object();
for(var i = 0; i < node.childNodes.length; i++)
{
var p = SOAPClient._node2object(node.childNodes[i], wsdl);
obj[node.childNodes[i].nodeName] = p;
}
return obj;
}
// list node
else
{
// create node ref
var l = new Array();
for(var i = 0; i < node.childNodes.length; i++)
l[l.length] =
SOAPClient._node2object(node.childNodes[i], wsdl);
return l;
}
return null;
}
SOAPClient._extractValue = function(node, wsdl)
{
var value = node.nodeValue;
switch(SOAPClient._getTypeFromWsdl(
node.parentNode.nodeName, wsdl).toLowerCase())
{
default:
case "s:string":
return (value != null) ? value + "" : "";
case "s:boolean":
return value+"" == "true";
case "s:int":
case "s:long":
return (value != null) ? parseInt(value + "", 10) : 0;
case "s:double":
return (value != null) ? parseFloat(value + "") : 0;
case "s:datetime":
if(value == null)
return null;
else
{
value = value + "";
value = value.substring(0, value.lastIndexOf("."));
value = value.replace(/T/gi," ");
value = value.replace(/-/gi,"/");
var d = new Date();
d.setTime(Date.parse(value));
return d;
}
}
}
SOAPClient._getTypeFromWsdl = function(elementname, wsdl)
{
var ell = wsdl.getElementsByTagName("s:element"); // IE
if(ell.length == 0)
ell = wsdl.getElementsByTagName("element"); // MOZ
for(var i = 0; i < ell.length; i++)
{
if(ell[i].attributes["name"] + "" == "undefined") // IE
{
if(ell[i].attributes.getNamedItem("name") != null &&
ell[i].attributes.getNamedItem("name").nodeValue ==
elementname && ell[i].attributes.getNamedItem("type") != null)
return ell[i].attributes.getNamedItem("type").nodeValue;
}
else // MOZ
{
if(ell[i].attributes["name"] != null &&
ell[i].attributes["name"].value ==
elementname && ell[i].attributes["type"] != null)
return ell[i].attributes["type"].value;
}
}
return "";
}
The "SOAPClient._getElementsByTagName" method optimizes XPath queries according to the available XML parser:
SOAPClient._getElementsByTagName = function(document, tagName)
{
try
{
return document.selectNodes(".//*[local-name()=\""+
tagName +"\"]");
}
catch (ex) {}
return document.getElementsByTagName(tagName);
}
A factory function returns the XMLHttpRequest according to the browser type:
SOAPClient._getXmlHttp = function()
{
try
{
if(window.XMLHttpRequest)
{
var req = new XMLHttpRequest();
if(req.readyState == null)
{
req.readyState = 1;
req.addEventListener("load",
function()
{
req.readyState = 4;
if(typeof req.onreadystatechange == "function")
req.onreadystatechange();
},
false);
}
return req;
}
if(window.ActiveXObject)
return new ActiveXObject(SOAPClient._getXmlHttpProgID());
}
catch (ex) {}
throw new Error("Your browser does not support XmlHttp objects");
}
SOAPClient._getXmlHttpProgID = function()
{
if(SOAPClient._getXmlHttpProgID.progid)
return SOAPClient._getXmlHttpProgID.progid;
var progids = ["Msxml2.XMLHTTP.5.0",
"Msxml2.XMLHTTP.4.0",
"MSXML2.XMLHTTP.3.0",
"MSXML2.XMLHTTP",
"Microsoft.XMLHTTP"];
var o;
for(var i = 0; i < progids.length; i++)
{
try
{
o = new ActiveXObject(progids[i]);
return SOAPClient._getXmlHttpProgID.progid = progids[i];
}
catch (ex) {};
}
throw new Error("Could not find an installed XML parser");
}
By using a single little (less than 10 KB) JavaScript library and, on the server side, simply exposing a Web Service with remote methods, you can use AJAX to create dynamic Web applications with no need for reloading the entire page.
See the on-line demo for an example of usage.
