Exploring Session in ASP.NetBy Abhijit JanaThis article describe about session in ASP.Net 2.0 . Different Types of Session , There Configuration . Also describe Session on Web Farm , Load balancer , web garden etc. |
C# (C#1.0, C#2.0, C#3.0), Windows, ASP.NET, Architect, Dev, Design
|
||||||||||||
|
Advanced Search Add to IE Search |
|
|
||||||||||||||||||
Download Session_SampleApplication.zip - 2.85 KB
First of all I would like to thank all the
readers who read and vote for my article. In Beginner's Guide series, I have
written some articles on state management. Probably this is my last article on
state management. Now coming back to the topic of this
article "Exploring Session in ASP.Net" . This article will give you a
very good understanding of session. In this article I have covered basic of session, different

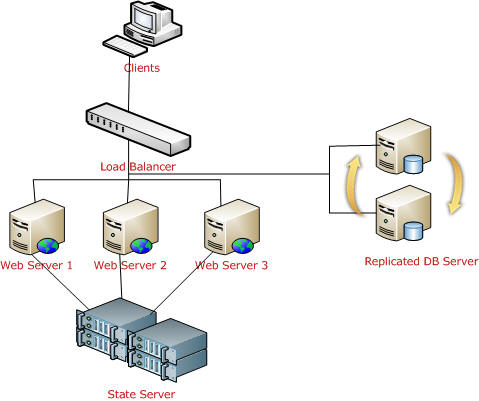

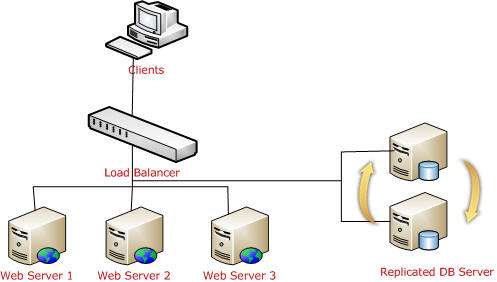

types of storing session object, Session behavior in web farm scenarios ,
Session on Load Balancer etc. I have also explained details of Session Behavior in a
Live production environment. Hope you will enjoy this article and provide your valuable suggestion and feedback.
Web is Stateless, which
means a new instance
of the web page class is re-created each time the page is posted to the server.
As we all know HTTP is a
stateless protocol, it can't hold the client
information on page. If user inserts some information, and move to the next page, that data will be lost and user would not able to retrieve the
information. So what we need? we need to store information. Session
provides that facility to store information on server memory. It can support any type of object
to store along with our custom object.
For every client Session data store separately, means session data is stored as
per client basis. Have a look at the following diagram.
Fig : For every client session data store separately
State Management using session is one of the asp.net best features, because it is secure, transparent from users and we can store any kind of object with in it. Along with advantages, some times session can causes performance issue for heavy traffic sites because its stored on server memory and clients read data from the server itself. Now lets have a look at the advantages and disadvantages of using session in our web application.
Following are the basic advantages and disadvantages of using session. I have describe in details with each type of session at later point of time.
Advantages :
Disadvantages :
StateServer and SQLServer session mode we need to serialize
the object before store. Besides these, there are many advantages and disadvantages of session that are based of session Types. I have Discussed all of them.
Storing and Retrieving values in session are
quite similar with ViewState.
We can interact with Session State with
System.Web.SessionState.HttpSessionState
class, because this provides built in Session Object with Asp.Net Pages.
Following code is used for storing a value to session
//Storing UserName in Session Session["UserName"] = txtUser.Text;
Now, let see how we can retrieve values from Session
//Check weather session variable null or not if (Session["UserName"] != null) { //Retrieving UserName from Session lblWelcome.Text = "Welcome : " + Session["UserName"]; } else { //Do Something else }
we can also store some other object in Session.
Following Example shows how to store a DataSet in session.
//Storing dataset on Session Session["DataSet"] = _objDataSet;
and following code shows how we can retrieve that dataset from the session
//Check weather session variable null or not if (Session["DataSet"] != null) { //Retrieving UserName from Session DataSet _MyDs = (DataSet)Session["DataSet"]; } else { //Do Something else }
Ref & for more Information: Read Session Variable Section
Asp.Net use 120 bit identifier to
track each session. This is secure enough and can't be reverse engineered.
When client communicate with server, only session id is transmitted,
between them. When client request for data, ASP.NET looks on to session ID and retrieves corresponding data. This is done in following steps,
Session State Provider . Session Providers, and retrieve the serialized data from state server and type cast the object . Just have a look on the pictorial flow,
Fig : Communication of Client, web server, and State Provider
Ref. & for more Information: SessionID in MSDN
In ASP.NET there are following session mode available,
InProc
StateServer
SQLServer
Custom
For every session State, there is Session Provider. Following diagram will show you how they are related.
Fig : Session State Architecture
we can choose the session State Provider based on which session state we are selecting. When ASP.NET request for any information based on session ID, session state and its corresponding provider are responsible for sending the proper information based on user. Following tables show, the session mode along with there provider Name.
| Session State Mode | State Provider |
InProc |
In-Memory Object |
StateServer |
Aspnet_state.exe |
SQLServer |
DataBase |
Custom |
CustomProvider |
apart from that, there is another mode,
"Off". If we select this option the session will be
disabled for the application. But our objective is to use session, so we will look into that four session State Mode.
Ref. & for more Information: Session State Providers
If we consider about session state, It means
all the settings that you have made for your web application for maintaining the session. Session State,
it self is a big thing, It says all about your session configuration, Either in
web.config or from code behind. In web.config, <SessionState> elements used for
setting the configuration of session. Some of them are Mode, Timeout, StateConnectionString, Custom provider etc. I have discussed about each and ever section of
connection string. Before I discussed Session Mode, just take a brief overview
of Session Event
There are two types of session events available in asp.net
Session_Start Session_End you can handle both this event in
global.asax file of your web application. When a new session initiate
session_start event raised and Session_End event raised when a session is
abandoned or expired.
void Session_Start(object sender, EventArgs e) { // Code that runs when a new session is started } void Session_End(object sender, EventArgs e) { // Code that runs when a session ends. }
Ref. and for more Information :
Application and Session Events
I have already discussed about the session mode
in ASP.NET, Following are the different types of session modes available in ASP.Net.

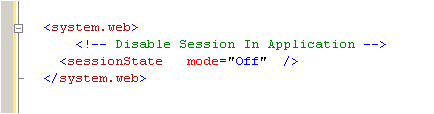

Off InProc StateServer SQLServer Custom If we set Session Mode="off" in
web.config,
Session will be disabled to all over the application. For this we need to configure web.config in following way
This is the default session mode
in Asp.Net. Its stores session Information in Current Application Domain. This
is the best session mode which is based on web application Performance. But
main disadvantage is that, It will lose the data if we restart the server.
There are some more advantages and disadvantages of InProc session mode. I will
come to those points again .
As I have already discussed InProc mode session data will be stored on the current application domain. So It is easily and quickly available.
So, InProc session mode store its session data
in a memory object on that application domain. This is handled by
worker
process in application pool. So If we restart the server we will lose the
session data. If Client request for the data , state provide read the data from
In-Memory Object and return it to the client. In web.config we have to mention
Session mode and also we have to set the Timeout.
This Session TimeOut Setting keeps session alive for 30 minute. This can be configurable from Code behind too.
Session.TimeOut=30;
There are two type of session events
available in asp.net Session_Start() and Session_End. It is the only
mode that supports the Session_End() event. These events will call after
the session timeout period is over. The general flow for the InProc Session
State is some thing like this.
Now, when the Session_End() will
call that depends on Session Time Out. This is a very fast mechanism because no
serialization occurs for storing and retrieving data, and data are staying inside the same application domain.
InProc is the default session
mode. It can be very helpful for a small web sites and where the number of
user are very less, We should avoid InProc in case of Web Garden
(I will come to this topic in details) Scenario .
Advantages :
It store Session data in memory object of current application domain. So accessing data is very fast and data is easily available.
There is not requirements of
serialization to store data in InProc Session Mode.
Implementation is very easy,
just similar to using View State.
Disadvantages :
although InProc Session is fastest, common and default mechanism, It has lots of limitation.
If the worker Process or application domain recycles all session data will be lost.
Though its fastest, but more session data and more users can affects performance, because of memory.
we can't use it in web Garden
scenarios .
This session mode is not
suitable for web farm scenarios also.
So as per above discussion, we can conclude InProc is very fast session storing mechanism but suitable for small web application. InProc Session Data will get lost if we Restart the server, application domain recycles It is also not suitable for Web Farm and Web Garden Scenarios.
Now have a look that what are the other option available to overcome these problem. First Come to StateServer Mode.
This is also called Out-Proc session mode. StateServer uses a stand-alone Windows Services, which is Independent to IIS
and can also run on a separate server. This session state is totally managed by
aspnet_state.exe. This server may runs on the same system, but it's out side of that main application domain where your web
application is running. This allow if you restart your asp.net process
restarted your session data will be alive. This approaches has several
disadvantages due to the overhead of serialization and de-serialization, its
also increases the cost of data access because of every time when user retrieves session data, our application hits a different process.

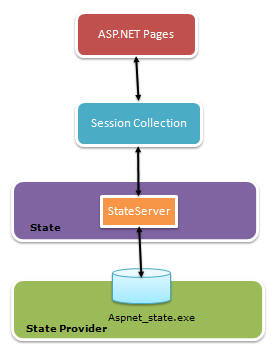

In StateServer the
Session data is stored in a separate Server which is Independent to IIS and Its

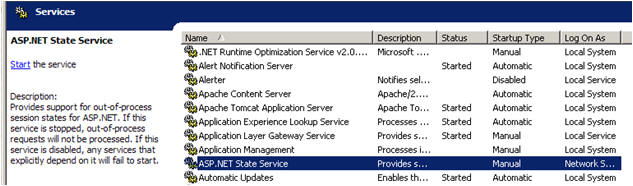

handled by aspnet_state.exe. This process is run as windows Services. you can start this service from windows MMC or from command prompt.

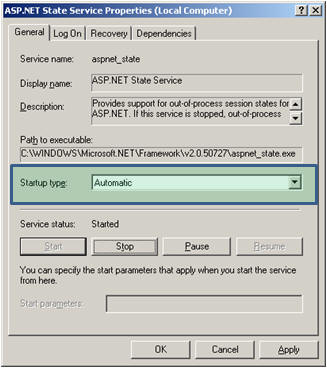

By default "Startup Type" of ASP.NET state service is set
to manual, we have to set it as "Automatic" startup type.
from command from just

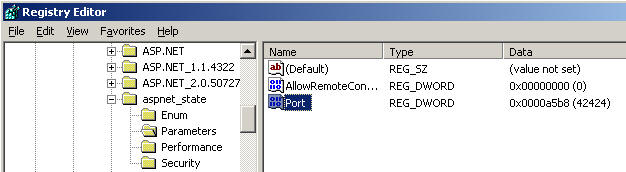

typing "net start aspnet_state". By default this services listen
TCP Port 42424 , but we can change the port from registry editor as given in
below picture .
Now have a look on the web.config
configuration for StateServer Setting. For State Server Setting we need have to
specify the stateConnectionString. This will identify the system
that is running state server. By default stateConnectionString used ip as
127.0.0.1 (localhost) and Port 42424.
When we are using StateServer, we
can configure stateNetworkTimeOut attributes to specify the
maximum number of seconds to wait for the service to respond before canceling
the request. Default time is 10 seconds.
For using StateServer, the object which we are going to store that should be serialized and at the time of retrieving we need to De-Serialize. I have described it with an Example.
We used StateServer Session
Mode to avoid unnecessary session data loss during restart of web Server. StateServer is maintained by process aspnet_state.exe as a windows Services.
This process maintains the all the session data. But need to serialize the data before storing it in StateServer Session Mode.

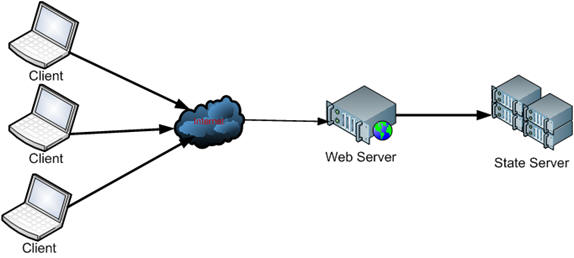

As shown in above figure, that
client request to the web server, then web server stores the session data
on state server. StateServer may be the current system or may be the different
system. But it is totally independent of IIS. Destination of StateServer will
depend on the web.config stateConnectionString attribute settings. If we set it as 127.0.0.1:42424, It will store data on that local system
itself. For change the StateServer destination, we need to change the IP. and
make sure, aspnet_state.exe is up and running on that system. other wise you
will get the following exception while trying to store data on session.
When we are storing any object on session, that should be serialized. That data will be stored to StateServer system using State Provider. and at the time of retrieving the data, State provider will return the data. The complete flow is given in the below picture.
Here is one simple example of using StateServer Session mode. I have created this sample web application directly on the IIS so that we can easily understand its usage.

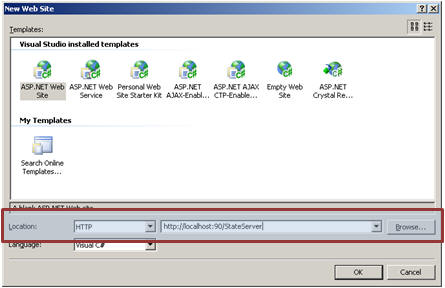

Step 1 :
Open Visual
Studio > File > New > Web Sites
. Choose Location as HTTP and create the web
application .

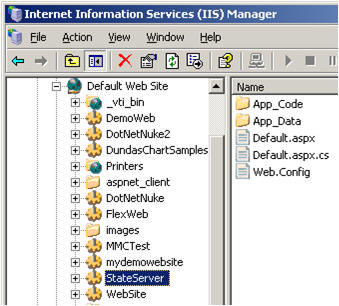

Now if you open the IIS you will
see a Virtual Directory created with the name of your web application , as in my
case it is StateServer.
Step 2 : Create s simple UI
that will take Roll No and Name of a student . We will store the name and roll
in a state server session. I have also create one same class "StudentInfo"
. This class is given below
[Serializable] public class StudentInfo { //Default Constructor public StudentInfo() { } /// <summary> /// Create object of student Class /// </summary> /// <param name="intRoll">Int RollNumber</param> /// <param name="strName">String Name</param> public StudentInfo(int intRoll, string strName) { this.Roll = intRoll; this.Name = strName; } private int intRoll; private string strName; public int Roll { get { return intRoll; } set { intRoll = value; } } public string Name { get { return strName; } set { strName = value; } } }
Now , have a look on the code
behind code. I have just added two button one for storing session and another for
retrieving session.
protected void btnSubmit_Click(object sender, EventArgs e) { StudentInfo _objStudentInfo = new StudentInfo(Int32.Parse( txtRoll.Text) ,txtUserName.Text); Session["objStudentInfo"] = _objStudentInfo; ResetField(); } protected void btnRestore_Click(object sender, EventArgs e) { StudentInfo _objStudentInfo = (StudentInfo) Session["objStudentInfo"]; txtRoll.Text = _objStudentInfo.Roll.ToString(); txtUserName.Text = _objStudentInfo.Name; }
Step 3 : Please Configure your
web.config for state server. As I have already discussed. And Please make
sure aspnet_state.exe is up and running on that configured server.
Step 4 : Run the Application
Enter the data, Click on Submit.
Now there are following Test that I have made which will totally clear your doubts that how exactly StateServer is useful.

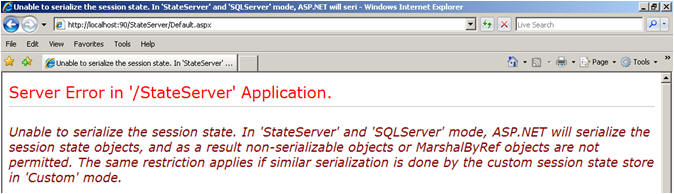

First :Remove the [
Serializable ] key word from the studentinfo class and try to run the application. When you
will click on Submit Button you will get following error
Which clearly says that you should have to serialize the object before store.
Second: Run the Application,
Store data by clicking on Submit Button. Restart IIS
Now, In case of InProc, you have
already lost your session data, But Its StateServer, Click on Restore Session,
You will get your original data. Because State server data does not depend on
IIS. Its keeps it separately.
Third : Stop the
aspnet_state.exe
from the Windows Services MMC and Submit the Data. You will get following error,
Because your State Server Process is not running.
So, Please keep in mind about those three points .
So based on the above discussion
Advantages :
Its keeps the data separate from IIS so, any Issue with IIS does not hamper Session data.
It is useful in web farm and web garden scenarios.
Disadvantages :
Process is slow due to Serialization and De-Serialization
State Server always need to be up and running.
Now, I am stopping here on StateServer, You will find some more interesting points on Load balancer, Web Farm, Web Garden Section.
Ref & for more Information:
This session mode provide us more secure and reliable Session management in asp.net.
In this session mode, the Session data is
serialized and stored in the SQL Server database. Main disadvantages of this session storage methods is
overhead related with Data Serialization and De-Serialization. It is the best option for using in
the web farms.
To setup SQL Server we need to take help of two sql Script.
For Installing:
InstallSqlState.sql
For Un-Installing:
UninstallSQLState.sql
The most easiest way to configure SQL Server, is using aspnet_regsql
command.
I have explained the detailed use of these file in configuration section. This is the most useful state management in the web farm scenario.
In SQL Server Session mode,
we are storing session data in a SQL Server, so we need to first provide the
database connection string in web.config . sqlConnectionString attribute is
used to provide the connection string in web.config.
After setup the connection string
we need to configure the SQL Server. I am explaining how to configure your
your SQL server using aspnet_regsql command.
Step 1: From Command prompt, Go to
your Framework Version Directory
E.g :c:\windows\microsoft.net\framework\<version>.
Step 2 : Run aspnet_regsql
command
with following parameters
Have a look on the parameter and there uses
| Parameters | Description |
-ssadd |
Add support for SQLServer mode session state. |
-sstype p |
P is stands for Persisted. Its persist the session data on server |
-S |
Specify Server Name |
-U |
Specify User Name |
-P |
Specify Password |
After run you will get the following message,
that's all .
Step 3 : Open SQL Server Management Studio, Check, A new database ASPState has been created and there should be two
tables,
ASPStateTempApplications ASPStateTempSessions
Now, Just change the configuration string of the State Server Example and Run the same application that I have explained in State Server.
Just store Roll and User Name and Click on
Submit button, and open ASPStateTempSessions Table from SQL Server Management Studio.. WoW... here is
your session data,
Now. do the following Test that I have already explained in State Server Mode.
I think I have explained the SQL Server Session mode well.
Advantages :
Disadvantages :
Ref & for more Information : Read SQL Server Mode
Generally we use either of InProc, StateServer or SQL Server Session mode for our application, but we also need to know the fundamental of Custom Session mode. This session mode is quite interesting, because Custom session gives full control to us to create every thing even session ID. you can write your own algorithm to generate session ID.
You can implement custom providers that store
session data in other storage mechanisms simply by deriving from
SessionStateStoreProviderBase Class. You can also Generate New Session Id
by Implementing ISessionIDManager.

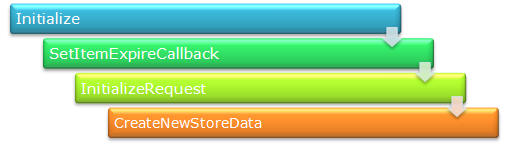

This are the following methods are called during implementation of Custom Session
In Initialize methods we can set the Custom
Provider. This will initialize the connection with that specified
provider. SetItemExpireCallback used to set SessionTimeOut, we can register any
methods that will call at the time of session expire. InitializeRequest is
called on every request and CreateNewStoreData used to create a new instance of
SessionStateStoreData .
we can use custom session mode in following of the cases,
We want to store session data rather than SQL Server.
When we have to use some Existing table to store session data.
When we need to create our own session ID.
We need to configure our
web.config like below,
If you want to Explore some thing more please Check Further study section
Advantages :
We can use some existing Table for the store session data, It is useful when we have to use some old database rather than SQL Server.
It's not depending on IIS , So Restarting web server does not make any effects on session data.
We can crate our own algorithm for generating Session ID.
Disadvantages :
Processing of Data is very slow.
Creating a custom state provider is a low-level task that needs to be handled carefully to ensure security.
Its always recommended to use any third party provider rather than creating your own.
Ref and More Information : Custom Mode
If you want to know more about details session Mode please Read this MSDN Article
Generally Production environments means when we
deploy the application on our live production server. This is a major and Big
Challenge for the web developer to deploy there application on Live Server.
because in a Big production environment there are no of user and its not
possible to handle the load of so many users by a single server. Here the concepts
came of Web Farm, Load Balancer , Web Garden etc.
Just few month back I have deployed one of our web application In a live production environment which is accessible by million of user and there were more than 10 Active Directory, more than 10 Web Server Over Load Balancer and Many DB Server, Exchange Server, LCS Server etc. If we look at the number of web server, this is multiple. The major risk involves in multiple server is Session Management. Following picture shows the general diagram for a Production environments.
I will try to explain the different scenario that you need to keep in mind while deploying your application.
This is one of the
most important thing that you should create for your own application in
Production environment. Application pools used to separate sets of IIS worker
processes that share the same configuration. Application pools enable us to
isolate our web application for better security, reliability, and availability.
The worker process serves as the process boundary that separates each
application pool so that when one worker process or application is having an
issue or recycles, other applications or worker processes are not affected.
Application pool identity configuration is an important aspect of security in IIS 6.0 and IIS 7.0, because it determines the identity of the worker process when the process is accessing resource. This Settings comes from IIS 6.0 In IIS 7.0 there are Three predefine Identity , that are same with IIS 6.0.
| Applicationpool Identity | Description |
|
|
LocalSystem is a built-in account that has administrative privileges on the server. It can access both local and remote resources. For any kind accessing of server files or resources we have to set the Identity of application pool to Local System. |
LocalServices |
LocalServices Built-in account has privileges of an authenticated local user account. It does not have any network access permission |
NetworkServices |
This is the default Identity of Application Pool NetworkServices has privileges of authenticated local user account. |
Open IIS Console, Right Click on Application
Pool Folder > Create New
Give the Application Pool ID and Click
Ok.
Now, Right Click on the Virtual Directory (I
am using StateServer Web sites) and assign the StateServerAppPool to StateServer
Virtual Directory.
So, this StateServer Web sites will run
independently with StateServerAppPool. So any problem related with other
application does not affects your Application. This is the main advantages of
creating application pool separately.
By default Each Application Pool runs with a
Single Worker Process (W3Wp.exe). We can Assign multiple Worker Process With a
Single Application Pool. An Application Poll with multiple Worker process called
Web Gardens. Many worker processes with same Application Pool can sometimes
provide better throughput performance and application response time. And Each
Worker Process Should have there own Thread and Own Memory space.
As Given in Picture, in IIS Server
there may be multiple Applicationpool and each application pool having at least
a single Worker Process. Web Garden should contain multiple Worker process.
There are some Certain Restriction
to use Web Garden with your web application. If we use Session Mode to "in proc", our application will not work correctly because session will be handled by
different Worker Process. For Avoid this Type of problem we should have to use
Session Mode "out proc" and we can use "Session State Server" or "SQL-Server
Session State".
Main Advantage : The worker processes in a Web garden share the requests that arrive for that particular application pool. If a worker process fails, another worker process can continue to process requests.
Right Click on the Application
Pool > Go To Performance Tab > Check Web Garden Section (Highlighted in Picture
)
By default it would be 1 , Just change it to more than one .
I have already discuss that, InProc is handled
by Worker Process. Its keeps data insides its memory object. Now If we have
multiple Worker Process, then It would be very difficult to handled the session
. because, Each and every Worker process has it own memory, so If my first
request goes to WP1 and its keep my session data and Second Request goes to WP2
and I am trying to retrieve session data, it will not able to return . Which
will throw error. So please avoid Web Garden in InProc Session Mode.
we can use StateServer or SQLServer Session mode in case of Web Garden , because I have already explained these two session mode does not depends on Worker Process . In my example, I have also explain, If you restart the IIS then also you are able to get session data.
In Short ,
| Session Mode | Recommended |
InProc |
No |
StateServer |
Yes |
SQLServer |
Yes |
This is the most common term that is used in production deployment . This terms comes, when we are using Multiple Web Server for deploying our product. The main reason behind the scene is to distribute the load over the multiple server. Load balancer is used to distribute the load on those server.
If we check the diagram, Client request the url and it will hit a Load Balancer, which decides which server to access. Load balancer will distribute the traffic over the all web server.
Now how does it affects session
Handling session is one of the most challenging job in web farm .

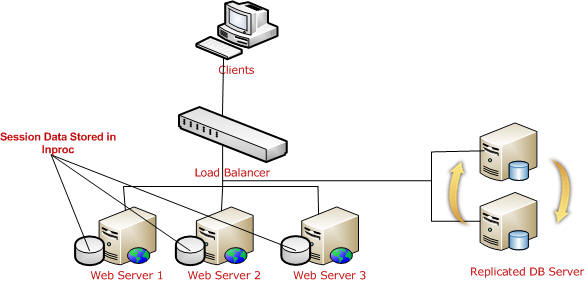

InProc : In InProc session mode,
session data stored in In-Memory Object of worker process. So each and
every server have its own Worker process and they keep session data inside
the memory.
If One server is down in time and request come to different server, user is not able to get session data. So, it is not recommended to use InProc in Web Farm .
StateServer :I have already explained that what a state server
is, how to configure a StateServer etc. Now From this Web farm scenarios you can
easily understand that how much it is important, because all session data will
be stored in a Single location .
Remember,
In a web
farm, make sure you have the same <machinekey> in all your web servers. and
Other things are all same as I have describe earlier. All web.config
having the same configuration (stateConnectionString)
for Session State.
SQL Server :
This is
another approach even best one that we can use in web farm. We need to
configure the data base first. The steps I have already covered .
as shown in the above picture, all web server session data will be stored in a single SQL Server Database. And it can be easily accessible. Keep one thing in mind, you should serialize object in both state server and SQL Server mode. Any time if one of the web server goes down, Load balancer distribute the loads to other server and that user can able to read session data from server, because data is stored in a centralized DB server.
In summary, we can use either of state server or SQL server session mode in web farm . We should avoid the InProc
Clients use cookies to work with session. because the client needs to present the appropriate session ID with each request. we can do it in following ways
Using
cookies: ASP.NET creates a special cookies named
ASP.NET_SessionId
automatically when the session collection is used. This is the default. Session
ID is transmitted through that cookies .
Cookie
Munging : Some older browser doest not support cookies or user
may disable cookies in there browser, in that case ASP.Net transmitted
session ID in a specially modified (or “munged”) URL.
When user request for a
page on a server, Server encoded the session id and add it with every
href
link in page. When user click any links ASP.NET decodes that session id
and passes it to the page that user requesting. Now the requesting page can
retrieve any session variable. This all happens automatically, if
ASP.NET
detects that the users browser does not support cookies.
For that we have to make session state Cookie less.
Following are the list of methods that are used to removing the session .
| Method | Description |
Session.Remove(strSessionName); |
Remove an Item from Session State Collection |
Session.RemoveAll() |
Remove all items from session collection |
Session.Clear() |
Remove all items from session collection Note: There is no difference between Clear and RemoveAll. RemoveAll() calls Clear(), internally. |
Session.Abandon() |
Cancels the Current Session |
For performance optimization we can enable or disable session. because each and every page read and write access of the page, and this involves some performance overhead. So its always better to enable and disable session based on requirements rather than make it enable always. we can enable and disable the session State in two ways:
Page Level Application Level Page Level :
we can disable
session state in page level using EnableSessionState attributes with in Page
directive.
This will disable the session activities for that particular page
Same way we can make it read only also , It will permit to access session data, but it will not allow writing data on session.
Session state can be
disabled for all over the web application using EnableSessionState property in
Web.Config .
Generally we are use Page level, because some of page may not require any session data or may be only read the session data.
Ref. & for more Information :
Now hope you are familiar with Session, Use of it, how to apply it in web farms etc in ASP.NET 2.0. So as a summary,
The
In-Process(InProc)
Session provider is the fastest method, because
of everything stored inside the memory. Session data will be loss if we restart web server or if
Worker Process Recycles. You can use in small web application
where number of users are less. Do not use InProc in Web
Farm.
In StateServer Session modes
Session data maintain by aspnet_state.exe. Its keeps session
data out of Web server. So any issue with web server does
not affect session data. You need to Serialized object
before storing data in StateServer Session. we can use it
in web farm also.
SQLServer Session modes store
data in SQL Server, we need to provide the connection string. Here we also need to serialize the data before storing it to session. This is very useful in production environment with web
farm mode.
we can use
Custom provider
for custom data source or when we need to use some existing
table to store session data. We can also create our custom sessionID in Custom mode. But it is not recommended to create
your own
custom provider. Its recommended to use any third party provider.
Hope you have enjoyed the article. Please give your suggestion and Feedback for further improvement. Again Thanks for Reading .
Reference I have already added with different section. Here I am giving few of the link which will really help you for further study.
First Release : 15th Jan 2009
Updated on : 24th Jan 2009 (Update: some Content, Spelling and Grammars )
Updated on : 25th Jan 2009 ( Update : References are placed with content for further study )
General
News
Question
Answer
Joke
Rant
Admin
Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads.
|
PermaLink |
Privacy |
Terms of Use
Last Updated: 23 Jan 2009 Editor: |
Copyright 2009 by Abhijit Jana Everything else Copyright © CodeProject, 1999-2010 Web21 | Advertise on the Code Project |
