Dictionary

Introduction

This is an implementation of Google Suggest like dictionary in ASP.NET.

Background

After seeing Google Suggest, I was amazed and wanted to know how it worked. This project is just an experiment using the same technique that Google uses.

Using the code

The ZIP file consists of two files. One is an HTML file that uses the XMLHttpRequest object to make requests and get back data. The other one is a server script implemented in ASP.NET that connects to a SQL Server database. If you wish to implement a similar interface, just use the HTML functions provided. A proof of concept website could be accessed here.

How does it work?

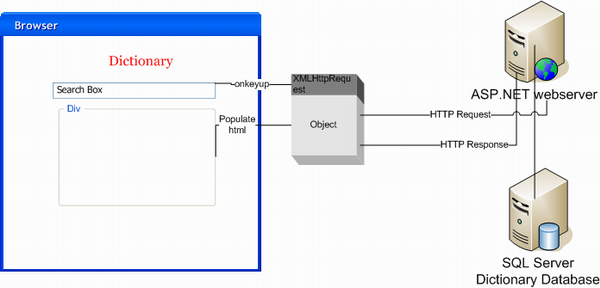

The architecture could be explained as outlined below:

Concept

As you type a word in the textbox, a JavaScript event fires an HTTP GET request to the ASPX page. The response from the ASPX page is simply displayed in a div tag under the textbox. The page is not refreshed/reloaded for every keystroke as everything is done by the JavaScript in the page. The main JavaScript object that allows us to do this is XMLHttpRequest. You could read about it from Apple's developer site here. This is supported by IE 5.0 +, Mozilla 1.0 + and Apple's own Safari 1.2 +.

Database

The database contains just one table. The data comes from a freely available online dictionary (a public domain English word list dictionary, based on the public domain portion of "The Project Gutenberg Etext of Webster's Unabridged Dictionary" which is in turn based on the 1913 US Webster's Unabridged Dictionary. You could download it from here). The table is called WordList:

WordList
Word varchar(255)
Type varchar (10)
Meaning text

I created an index on "Word" column for speed. There are a total of 182696 words in the database.

ASP.NET page

The ASP.NET page is pretty straight forward. Gets the top 10 matching rows from the database and spits it out. Below is the code I am using (although SqlDataReader might be more appropriate):

<%@Page Language="C#"%>
<%@Import Namespace="System.Data"%>
<%@Import Namespace="System.Data.SqlClient"%>
<%@Import Namespace="System.Configuration"%>

<script runat="server">

    public void Page_Load(object sender,EventArgs args)
    {
        string keyword=Request["k"];
        if(keyword!=null  && keyword.Trim()!="")
        {
            string sql="select top 10* from WordList where" +
                   " word like '"+keyword.Trim().Replace("'","''")+"%'";
            SqlConnection conn=new
               SqlConnection(ConfigurationSettings.AppSettings["connectionString"]);
            conn.Open();
            DataTable dt=new DataTable();
            SqlCommand command=new SqlCommand(sql,conn);
            SqlDataAdapter adapter=new SqlDataAdapter(command);
            adapter.Fill(dt);
            conn.Close();

            foreach(DataRow row in dt.Rows)
            {
                string meaning=row["Meaning"].ToString();
                Response.Write("<strong>"+row["Word"].ToString()+"</strong> <i>");
                  Response.Write("row["Type"].ToString()+"</i>: "+meaning+"<br>");
            }
        }


    }

</script>

XMLHttpRequest object in the HTML page

<html>
    <head>
        <script>
var req;

function Initialize()
{
    try
    {
        req=new ActiveXObject("Msxml2.XMLHTTP");
    }
    catch(e)
    {
        try
        {
            req=new ActiveXObject("Microsoft.XMLHTTP");
        }
        catch(oc)
        {
            req=null;
        }
    }

    if(!req&&typeof XMLHttpRequest!="undefined")
    {
        req=new XMLHttpRequest();
    }

}

function SendQuery(key)
{
    Initialize();
    var url="http://www.objectgraph.com/dictionary/dict.aspx?k="+key;

    if(req!=null)
    {
        req.onreadystatechange = Process;
        req.open("GET", url, true);
        req.send(null);

    }

}

function Process()
{
    if (req.readyState == 4)
        {
        // only if "OK"
            if (req.status == 200)
            {
                if(req.responseText=="")
                    HideDiv("autocomplete");
                else
                {
                    ShowDiv("autocomplete");
                    document.getElementById("autocomplete").innerHTML =
                                                      req.responseText;
                }
            }
            else
            {
                document.getElementById("autocomplete").innerHTML=
                    "There was a problem retrieving data:<br>"
                    + req.statusText;
            }
        }
}

function ShowDiv(divid)
{
   if (document.layers) document.layers[divid].visibility="show";
   else document.getElementById(divid).style.visibility="visible";
}

function HideDiv(divid)
{
   if (document.layers) document.layers[divid].visibility="hide";
   else document.getElementById(divid).style.visibility="hidden";
}

function BodyLoad()
{
    HideDiv("autocomplete");
    document.form1.keyword.focus();

}
</script>
    </head>
    <body onload="BodyLoad();">
        <form name="form1">
        <input name="keyword" onKeyUp="SendQuery(this.value)"
          style="WIDTH:500px" autocomplete="off">
            <div align="left" class="box" id="autocomplete"
              style="WIDTH:500px;BACKGROUND-COLOR:#ccccff"></div>
        </form>

    </body>
</html>

The KeyUp event on the textbox triggers the SendQuery method. Note that we are disabling the auto-complete feature so it does not overlap with our div tag. The Initialize method creates the XMLHttpRequest object. In Mozilla and Safari, you could simply do this by using:

req=new XMLHttpRequest();

In IE, you could create the object based on the user's installation of MSXML libraries. The Process method acts as an event handler and displays the response text once the response is complete from the web server.
