The Forgotten Problems of 64-bit Programs DevelopmentBy Karpov AndreyIn this article, I have discussed some mistakes connected with 64-bit C/C++ code development to Windows. |
C++, C, Windows, Win64, Visual Studio, Dev, QA
|
|
Advanced Search Add to IE Search |
|
|
|
||||||||||||||||
The history of 64-bit programs is not new and is more than a decade old already [1]. In 1991 the first 64-bit microprocessor MIPS R4000 was released [2, 3]. Since that time, the discussions devoted to porting the programs to 64-bit systems appeared in forums and articles. There began a discussion of the problems connected with the 64-bit programs development in C language. The following questions were discussed: which data model is better, what is long long and many others. Here, for example, is an interesting collection of messages [4] from comp.lang.c news group devoted to using long long type in C language, which, in its turn, was connected with 64-bit systems appearance.

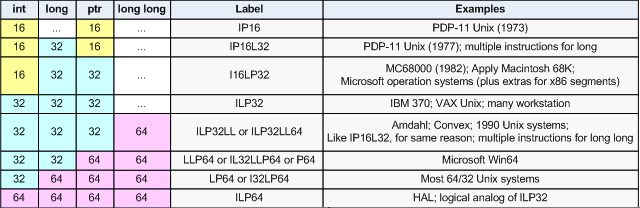

One of the most widespread and sensitive to the change of the digit capacity of data type is C language. Because of its low-level features, it is necessary to constantly control the correctness of the program ported to a new system in this language. It is natural that with the appearance of 64-bit systems, the developers all around the world again face the problems of providing the compatibility of the old source code with the new systems. One of the indirect evidences of the difficulty of program migration is a big number of data models which must be constantly taken into consideration. Data model is a correlation of the size of base types in a programming language. In picture 1, the digit capacity of types in different data models is shown, which we will refer to further on.
Of course, it was not the first stage of digit capacity change. That's enough to recollect the transition from 16-bit systems to 32-bit. It's natural that the acquired experience had a good influence on the stage of migration to 64-bit systems.
But the migration to 64-bit systems had its own peculiarities as a result of which there appeared a number of investigations and publications on these problems, for example [5, 6, 7].
The mistakes of the following kinds were pointed out by the authors of those times:
int type in the system with LP64 database will result in truncation of the pointer value and impossibility to use it further on. sizeof() operator. int x = 100000, y = 100000, z = 100000;
long long s = x * y * x;
Some other mistakes that were more rare were also considered, but the main ones are mentioned in the list.
On the ground of the investigation of the question of verification of 64-bit code, some solutions were offered that provide the diagnostics of dangerous constructions. For example, such verification was realized in Gimpel Software PC-Lint (http://www.gimpel.com) and Parasoft C++test (http://www.parasoft.com) static analyzers.
The question arouses: if 64-bit systems exist for such a long time, as well as article devoted to this problem, and even program tools that provide the control of dangerous constructions in the code, why should we get back to this question?
Unfortunately, yes, we should. The reason is the program that has taken place during these years in the sphere of informational technologies. And the urgency of this question is connected with fast spreading of 64-bit versions of OS Windows.
The existing informational support and tools in the field of 64-bit technologies development went out of date and need fundamental reprocessing. But you will object, saying that there are many modern articles (2005-2007) in the Internet devoted to the problems of 64-bit applications development in C/C++ language. Unfortunately, they turn out to be no more than retelling older articles concerning new 64-bit Windows version without taking into consideration its specific character and the changes in the technology.
Let us start from the beginning. The authors of some articles don't take into consideration large memory capacity that became available to modern applications. Of course, the pointers were 64-bit in ancient times yet, but such programs didn't have a chance to use arrays of several gigabytes in size. As a result, both in old and new articles, there appeared a whole stratum of errors connected with the mistakes of indexation of big arrays. It is practically impossible to find a description of a mistake in the articles similar to the following:
for (int x = 0; x != width; ++x)
for (int y = 0; y != height; ++y)
for (int z = 0; z != depth; ++z)
BigArray[z * width * height + y * width + x] = InitValue;
In this example, the expression "z * width * height + y * width + x", which is used for addressing, has the int type, which means that the code will be incorrect at the arrays containing more that 2 GB of elements. At the 64-bit systems for a safer indexation to large arrays such types as ptrdiff_t, size_t should be used or their derivatives. The absence of the description of such kind of a mistake in the article can be easily explained. In the time when they were written the machines with memory capacity, which makes it possible to store such arrays were practically not available. Now it becomes a common task in programming, and we can watch with a great surprise how the code that has been serving faithfully for many years stopped working correctly dealing with big data arrays at 64-bit systems.
The other stratum of problems, which has not been touched upon, is represented by the mistakes connected with the possibilities and peculiarities of C++ language. It also quite explicable why it happened so. During the introduction of first 64-bit systems C++ language did not exist for them or was not spread. That's why practically all the articles are devoted to the problems in the field of C language. Modern authors substituted the name C with C/C++ but they didn't contribute anything new.
But the absence of the mistakes typical of C++ in the articles does not mean that they don't exist. There are such mistakes that show up during the migration of programs to 64-bit systems. They are connected with virtual functions, exceptions, overloaded functions and so on. You may get acquainted with such mistakes in article [8] in more detail. Let us give an example connected with using virtual functions.
class CWinApp {
...
virtual void WinHelp(DWORD_PTR dwData, UINT nCmd);
};
class CSampleApp : public CWinApp {
...
virtual void WinHelp(DWORD dwData, UINT nCmd);
};
Let us follow the life cycle of development of a certain application. Let us suppose that first it was developed in Microsoft Visual C++ 6.0. when WinHelp function in CWinApp class had the following prototype:
virtual void WinHelp(DWORD dwData, UINT nCmd = HELP_CONTEXT);
It was right to realize the overriding a virtual function in CSampleApp class like it is show in the example. Then the project was ported to Microsoft Visual C++ 2005 where the prototype of the function in CWinApp class underwent changes that consisted in changing DWORD type into DWORD_PTR type. The program will continue working correctly at a 32-bit system for the DWORD and DWORD_PTR types coincide here. The problems will show up during the compilation of the code to 64-bit platform. There will come out two functions with identical names but with different parameters, in the result of what the user's code will not be able to activate.
Besides the peculiarities of 64-bit programs development from the point of view of C++ language, there exist other moments to be paid attention to. For example, the peculiarities connected with the architecture of 64-bit Windows version. We'd like to let developers know about possible problems and recommend that they pay more attention to testing 64-bit software.
Now let us get back to the methods of verification of the source code using static analyzers. I think you have already guessed that everything is not so nice here as it may seem. In spite of the declared support in diagnosing the peculiarities of 64-bit code, this support at the moment does not meet the necessary demands. The reason is that the diagnostic rules were created according to all those articles that do not take into account the specific character of C++ language or processing large data arrays, that exceed 2 GB.
For Windows developers, the case is somewhat worse. The main static analyzers are rated at diagnosing 64-bit errors for LP64 data model while in Windows LLP64 data model is used [10]. The reason is that 64-bit Windows versions are young and older 64-bit systems were represented by Unix-like systems with LP64 data model.
As an example, let us consider the diagnostic message 3264bit_IntToLongPointerCast (port-10), which is generated by the analyzer Parasoft C++test.
int *intPointer;
long *longPointer;
longPointer = (long *)intPointer; //-ERR port-10
C++ test presupposes that from the point of view of LP64 model, this construction will be incorrect. But in the scope of data model accepted in Windows, this construction will be safe.
Ok, you will say, the problems of 64-bit program versions are urgent. But how to detect all these mistakes?
It is impossible to give an exhaustive answer, but it is quite possible to give a number of recommendations that will make it possible to provide the safe migration to 64-bit systems and to provide a necessary level of reliability.
