This program shows how to dynamically load data from a database and application into the Crystal Report. By using this program, we can customize a Crystal Report to some limit at run time of the application like specifying which field (Columns of a particular table) should be displayed in the report.
This problem arose because a group of students from SLIIT asked me how to dynamically generate a Crystal Report using C# 2.0 (.NET 2005). I tried to find a solution for this by searching many forums and sites, but unfortunately I couldn't find any solution for that. Some forums said that there is no way to create dynamic Crystal Reports using .NET 2005. Finally, I found a way to do that.

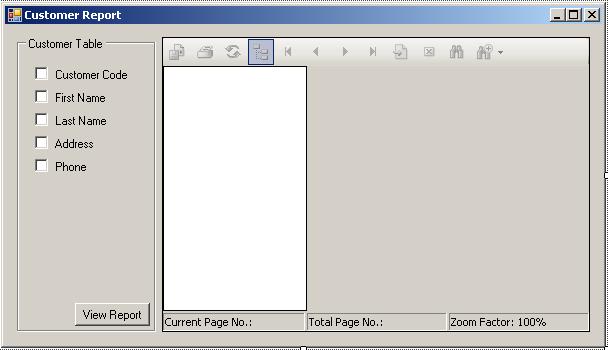

Now you can add Checkboxes that correspond to columns of a particular table that should be displayed in the Crystal Report and CrystalReportViewer control to the form.
For this demonstration, I have created a database called db1.mdb (in bin\Debug) using Access and created a table called Customer.
DataSet (*.xsd file) to your project using add -> New Items in solution explorer. After that, add a DataTable to the DataSet.
Add columns to DataTable and name them Column1, Column2, and so on. The number of columns depends on how many columns should be displayed in the Crystal report.

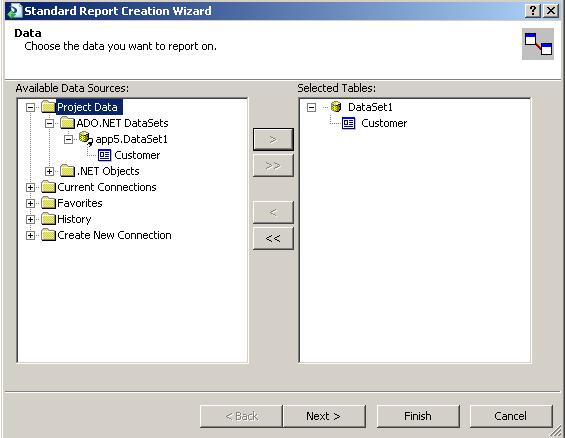

DataSets of the Project data source as the data source of the Crystal Report and select Customer data table of DataSet1 as the selected table of the Crystal Report. Then select fields to be displayed in your report. Then remove Column1…, Column5 objects in Section 2 of the Crystal Report.
col1, col2… col5 (the number of parameters should be equal to the number of columns displayed in the Crystal Report.) using Field Explorer.
Add the following method to your Form for Create SQL SELECT query and assign values to parameters of the Crystal Report according to user selected columns that should be displayed on your report.
/// <summary>
/// This method is used to
/// 1. create SELECT query according to the selected column names and
/// 2. create parameters and assign values for that parameter
/// that correspond to the crystal report.
/// NOTE: This parameter is used to display Column names of the
/// Crystal Report according to the user selection.
/// </summary>
/// <returns></returns>
private string CreateSelectQueryAndParameters()
{
ReportDocument reportDocument;
ParameterFields paramFields;
ParameterField paramField;
ParameterDiscreteValue paramDiscreteValue;
reportDocument = new ReportDocument();
paramFields = new ParameterFields();
string query = "SELECT ";
int columnNo = 0;
if (chbCode.Checked)
{
columnNo++;
query = query.Insert(query.Length, "Code as Column" +
columnNo.ToString());
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "Customer Code";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
if (chbFirstName.Checked)
{
columnNo++;
if (query.Contains("Column"))
{
query = query.Insert(query.Length, ", ");
}
query = query.Insert(query.Length, "FirstName as Column" +
columnNo.ToString());
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "First Name";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
if (chbLastName.Checked)
{
columnNo++; //To determine Column number
if (query.Contains("Column"))
{
query = query.Insert(query.Length, ", ");
}
query = query.Insert(query.Length, "LastName as Column" +
columnNo.ToString());
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "Last Name";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
if (chbAddress.Checked)
{
columnNo++;
if (query.Contains("Column"))
{
query = query.Insert(query.Length, ", ");
}
query = query.Insert(query.Length, "Address as Column" +
columnNo.ToString());
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "Address";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
if (chbPhone.Checked)
{
columnNo++;
if (query.Contains("Column"))
{
query = query.Insert(query.Length, ", ");
}
query = query.Insert(query.Length, "Phone as Column" +
columnNo.ToString());
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "Phone";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
//if there is any remaining parameter, assign empty value for that
//parameter.
for (int i = columnNo; i < 5; i++)
{
columnNo++;
paramField = new ParameterField();
paramField.Name = "col" + columnNo.ToString();
paramDiscreteValue = new ParameterDiscreteValue();
paramDiscreteValue.Value = "";
paramField.CurrentValues.Add(paramDiscreteValue);
//Add the paramField to paramFields
paramFields.Add(paramField);
}
crystalReportViewer1.ParameterFieldInfo = paramFields;
query += " FROM Customer" ;
return query;
}
//
Add the following method to the button click event to display a report when the user presses the button:
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;
using System.Data.OleDb;
using CrystalDecisions.CrystalReports.Engine;
using CrystalDecisions.ReportSource;
using CrystalDecisions.Shared;
using CrystalDecisions.Windows.Forms;
namespace app5
{
public partial class Form1 : Form
{
CrystalReport1 objRpt;
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
objRpt = new CrystalReport1();
string connString = "Provider=Microsoft.Jet.OLEDB.4.0;" +
"Data Source=|DataDirectory|\\db1.mdb";
//Get Select query String and add parameters to the
//Crystal report.
string query = CreateSelectQueryAndParameters();
//if there is no item select, then exit from the method.
if (!query.Contains("Column"))
{
MessageBox.Show("No selection to display!");
return;
}
try
{
OleDbConnection Conn = new OleDbConnection(connString);
OleDbDataAdapter adepter =
new OleDbDataAdapter(query, connString);
DataSet1 Ds = new DataSet1();
adepter.Fill(Ds, "Customer");
objRpt.SetDataSource(Ds);
crystalReportViewer1.ReportSource = objRpt;
}
catch (OleDbException oleEx)
{
MessageBox.Show(oleEx.Message);
}
catch (Exception Ex)
{
MessageBox.Show(Ex.Message);
}
}
