The HTML Report Engine

• Download demo project - 37 Kb
• Download source - 16.4 Kb

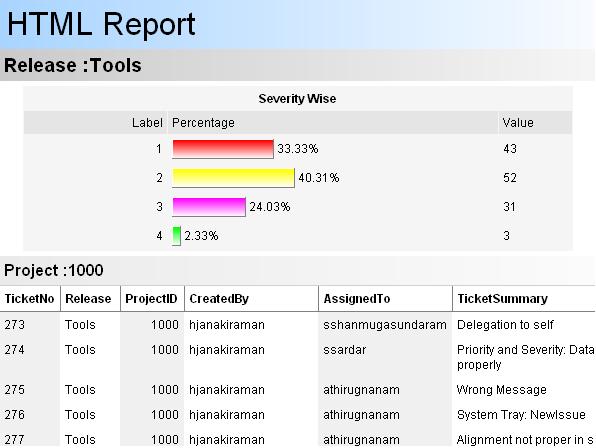

Sample HTML Report

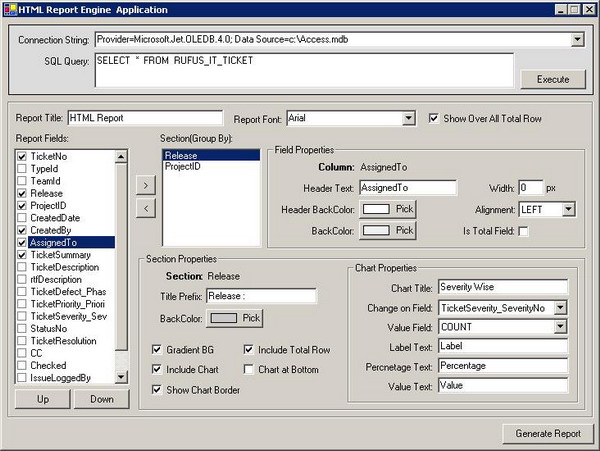

HTML Report Generator - Sample Application Screenshot

Introduction

The HTML Report Engine is a .NET class library which helps in generating well formatted HTML reports. It can take any DataSet as its report source. Reports can have sectional data contents and bar charts.

Background

Crystal Reports is a reporting tool that comes along with VS.NET, but designing and deploying a Crystal Reports report in your application is a bit complex. Though this HTML report engine utility has only limited number of features, it can produce awesome reports with no complex designing and coding work involved.

Using the code

It�s a generic reporting utility which takes as a report source, a DataSet containing at least one DataTable. The class library contains three main classes:

• Field
• Section
• Report

The Field class contains report field information like report column name, column header, background color, and so on.

The Section class holds information about a section like �group by� column name, title prefix, background color, charting information, and so on.

The Report class contains all the methods and properties required to render an HTML report. In this class, a few CSS (Cascaded Style Sheet) classes are used to format the report content. The following code sample explains how to use this utility in your application:

//Include the namespace

using HTMLReportEngine;

//Create report object and set properties.

Report report = new Report();
report.ReportTitle = "Issue Report";
//Create a DataSet ds and fill it before using this code.

report.ReportSource = ds;

//Create Section

Section release = new Section("Release","Release: ");

//Create SubSection

Section project = new Section("Project","ProjectID: ");

//Add the sections to the report

release.SubSection = project;
report.Sections.Add(release);

//Add report fields to the report object.

report.ReportFields.Add(new Field("TicketNo", "Ticket", 50, ALIGN.RIGHT));
report.ReportFields.Add(new Field("CreatedBy", "CreatedBy", 150));
report.ReportFields.Add(new Field("AssignedTo", "AssignedTo"));
report.ReportFields.Add(new Field("Release", "Release", 200));
report.ReportFields.Add(new Field("Project", "Project", 150, ALIGN.RIGHT));

//Generate and save the report

report.SaveReport(@"C:\Data\Report.htm");

Class properties and methods

Formatting the report

Including totals

This report engine supports multiple SUM fields for a report. And the SUM can be displayed on demand in any of the sections added to the report. The SUM field must be of type numeric. The following code explains how to add SUM fields:

//Add Total fields

report.TotalFields.Add("Project");
report.TotalFields.Add("ProgressedHours");

//Set IncludeTotal property of the sections to true

project.IncludeTotal = true;
release.IncludeTotal = true;

Adding charts

This engine can produce bar charts. The developer has to provide only the ChangeOnField and ValueField as input. If the developer has not given any ValueField, the record count will be taken as the Value. Changing the ChartShowAtBottom property would let your charts come either at the top or the bottom of the section.

//Set Chart properties

release.ChartChangeOnField = "Severity";
release.ChartValueField = "ProgressedHours";

release.ChartTitle = "Severity-Wise report";
release.ChartLabelHeader = "Severity Type";
release.ChartValueHeader = "Hours";
release.ChartPercentageHeader = "Progress";

Aligning fields

Field texts can be aligned to Left, Right, or Center. By default, the text alignment is set to Left.

//Set field Alignment

Field field1 = new Field();
field1.Alignment = ALIGN.RIGHT;

Specifying colors

The developers are allowed to change the background colors of section headers, column headers, and column data. Section headers can have gradient backgrounds by setting the GradientBackground property to true.

//Specifying Colors

//Main Section header color

release.BackColor = Color.WhiteSmoke;
release.GradientBackground = true;

//Sub Section header color

project.BackColor = Color.GhostWhite;
project.GradientBackground = true;

//Field Colors

field1.HeaderBackColor = Color.LightSlateGray;
field1.BackColor = Color.Gainsboro;
field2.HeaderBackColor = Color.LightSlateGray;
field2.BackColor = Color.White;
field3.HeaderBackColor = Color.LightSlateGray;
field3.BackColor = Color.Gainsboro;

Points of interest

It is recommended that you specify the column width for all report fields except one. That one may be a variable text field. The field without column width will automatically fit into the remaining space available in the table.

There is a simple way to export data to MS Excel. You can open the generated HTML file in Internet Explorer, right click on the report, and select 'Export to Excel'. Done!

History

• Version 2.0 - Added features for formatting and to allow multiple Total columns in the report.
• Version 1.0 - Initial version.
