IntroductionThis article shall describe an approach that may be used to upload any sort of file through a web service from a Windows Forms application. The approach demonstrated does not rely on the ASP.NET file uploader control and allows the developer the opportunity to upload files programmatically and without user intervention. Such an approach may be useful for doing something like processing out the contents of a local message queue when an internet service is available (if the user base were mobile and had only intermittent connectivity). The article also addresses the use of a file size check as a precursor to allowing a file to upload through the service.
Figure 1: Test application shown uploading a file

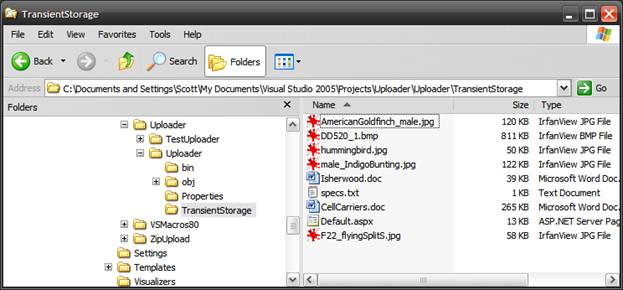

Figure 2: Mixed bag of different file types in transient storage folder Getting StartedThe solution contains two projects: one is an ASP.NET Web Service project ( The web service project contains only a single web service (

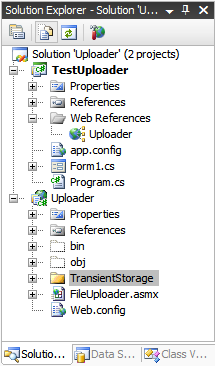

Figure 3: Solution Explorer with the both projects visible Code: Uploader Web Service ProjectThe Uploader web service project is an ASP.NET web service project containing a single web service called using System;
using System.Data;
using System.Web;
using System.Collections;
using System.Web.Services;
using System.Web.Services.Protocols;
using System.ComponentModel;
using System.IO;
namespace Uploader
{
/// <summary>
/// This web method will provide an web method to load any
/// file onto the server; the UploadFile web method
/// will accept the report and store it in the local file system.
/// </summary>
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
[ToolboxItem(false)]
public class FileUploader : System.Web.Services.WebService
{
The class starts out with the default imports. I added The remainder of the code supplied in this class is used to define the web method used to upload the file; the code is annotated. The essential process is that files converted to byte arrays are passed along with the full name of the file (not the path), including the extension as arguments, to the The web method is set up to return a string. If all goes well, the string returned will read, “OK.” If not, the error message encountered will be returned to the caller. [WebMethod]
public string UploadFile(byte[] f, string fileName)
{
// the byte array argument contains the content of the file
// the string argument contains the name and extension
// of the file passed in the byte array
try
{
// instance a memory stream and pass the
// byte array to its constructor
MemoryStream ms = new MemoryStream(f);
// instance a filestream pointing to the
// storage folder, use the original file name
// to name the resulting file
FileStream fs = new FileStream
(System.Web.Hosting.HostingEnvironment.MapPath
("~/TransientStorage/") +
fileName, FileMode.Create);
// write the memory stream containing the original
// file as a byte array to the filestream
ms.WriteTo(fs);
// clean up
ms.Close();
fs.Close();
fs.Dispose();
// return OK if we made it this far
return "OK";
}
catch (Exception ex)
{
// return the error message if the operation fails
return ex.Message.ToString();
}
}
}
}
Code: Test Uploader Windows Forms ApplicationThe test application contains a single Windows Forms class. This form contains a text box used to display the name of the file selected for upload, a browse button to launch an open file dialog box that is used to navigate to and select a file for upload, and an upload button which is used to pass the file to the web service so that the selected file may be stored on the server. The code for this class begins with the following: using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;
using System.IO;
namespace TestUploader
{
/// <summary>
/// A test form used to upload a file from a windows application using
/// the Uploader Web Service
/// </summary>
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private void Form1_Load(object sender, EventArgs e)
{
// do nothing
}
Aside from the default imports, I have added only The next bit of code in the class is a private method used to prepare the file for submittal to the web service and to actually make that submittal. The code below is annotated to describe the activity, but the essential parts of the operation are to check the file size to see if the web service will accept the file and to convert the file to a byte array. By default, the web server will accept uploads smaller than 4 MB in size; the web.config file must be updated in order to support larger uploads. When everything is ready, the byte array and the name of the file, including the extension, is passed to an instance of the web service web method. Note that when setting up the demo, you will have remove and add the web reference back into the project in order for it to work for you. /// <summary>
/// Upload any file to the web service; this function may be
/// used in any application where it is necessary to upload
/// a file through a web service
/// </summary>
/// <param name="filename">Pass the file path to upload</param>
private void UploadFile(string filename)
{
try
{
// get the exact file name from the path
String strFile = System.IO.Path.GetFileName(filename);
// create an instance fo the web service
TestUploader.Uploader.FileUploader srv = new
TestUploader.Uploader.FileUploader();
// get the file information form the selected file
FileInfo fInfo = new FileInfo(filename);
// get the length of the file to see if it is possible
// to upload it (with the standard 4 MB limit)
long numBytes = fInfo.Length;
double dLen = Convert.ToDouble(fInfo.Length / 1000000);
// Default limit of 4 MB on web server
// have to change the web.config to if
// you want to allow larger uploads
if (dLen < 4)
{
// set up a file stream and binary reader for the
// selected file
FileStream fStream = new FileStream(filename,
FileMode.Open, FileAccess.Read);
BinaryReader br = new BinaryReader(fStream);
// convert the file to a byte array
byte[] data = br.ReadBytes((int)numBytes);
br.Close();
// pass the byte array (file) and file name to the web
service
string sTmp = srv.UploadFile(data, strFile);
fStream.Close();
fStream.Dispose();
// this will always say OK unless an error occurs,
// if an error occurs, the service returns the error
message
MessageBox.Show("File Upload Status: " + sTmp, "File
Upload");
}
else
{
// Display message if the file was too large to upload
MessageBox.Show("The file selected exceeds the size limit
for uploads.", "File Size");
}
}
catch (Exception ex)
{
// display an error message to the user
MessageBox.Show(ex.Message.ToString(), "Upload Error");
}
}
Following the /// <summary>
/// Allow the user to browse for a file
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void btnBrowse_Click(object sender, EventArgs e)
{
openFileDialog1.Title = "Open File";
openFileDialog1.Filter = "All Files|*.*";
openFileDialog1.FileName = "";
try
{
openFileDialog1.InitialDirectory = "C:\\Temp";
}
catch
{
// skip it
}
openFileDialog1.ShowDialog();
if (openFileDialog1.FileName == "")
return;
else
txtFileName.Text = openFileDialog1.FileName;
}
The class wraps up with the button click event handler for the upload button. This handler merely checks for text in the file name text box and, if something is there, it sends the value to the /// <summary>
/// If the user has selected a file, send it to the upload method,
/// the upload method will convert the file to a byte array and
/// send it through the web service
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void btnUpload_Click(object sender, EventArgs e)
{
if (txtFileName.Text != string.Empty)
UploadFile(txtFileName.Text);
else
MessageBox.Show("You must select a file first.", "No File
Selected");
}
That wraps up all of the client- and server-side code necessary to upload any sort of file to a server from a Windows Forms application. SummaryThis article was intended to demonstrate an easy approach to uploading any sort of a file to a web server from a Windows Forms application. This example uses the default upload size of 4096 KB. If you need to upload larger files, you will need to alter this value by changing the History
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
