Pager Control for Repeater, DataList, or an Enumerable CollectionBy kevnordThis control acts as the middle man between a paged DataSet and your Repeater. |
C#, Windows, .NET 1.1, ASP.NET, VS.NET2003, Dev
|
|
Advanced Search |
|
|
|
||||||||||||||||
Instead of trying to create an enhanced Repeater, I decided to make a separate control that would take care of paging. This CollectionPager acts as a middleman for a control (like the Repeater) and your data source (Dataset or Collection object). It uses the PagedDataSource class to accomplish this.
Having this functionality in a separate control allows you to add paging to any Web Control that accepts a data source. Also, you can place the CollectionPager wherever you want in relation to the control it is binding to.

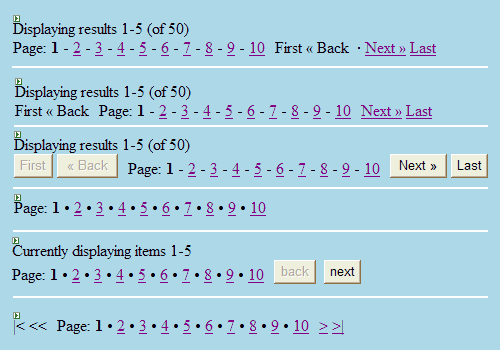

This control also allows you to page through your collection with two different methods:
Page".
To use the control, simply add a reference to the complied DLL and put it in your toolbox. You can then drag it to your project. If you wish to do it by hand, it'll look something like this in your .aspx file....
<%@ Register TagPrefix="cc1" Namespace="SiteUtils"
Assembly="CollectionPager" %>
<%@ Page language="c#" Codebehind="Example.aspx.cs"
AutoEventWireup="false" Inherits="CollectionPagerExample.WebForm1" %>
<HTML>
<HEAD><TITLE>Collection Repeater Example</TITLE></HEAD>
<BODY>
<DIV>
<ASP:LITERAL id=litDifferentResultsFormat runat="server"></ASP:LITERAL>
</DIV>
<DIV>
<ASP:LITERAL id=litTopPager runat="server"></ASP:LITERAL>
</DIV>
<ASP:REPEATER id="Repeater1" runat="server">
<HEADERTEMPLATE>
<TABLE BORDER="1" CELLPADDING="3" CELLSPACING="0">
<TR>
<TH>Header1</TH>
<TH>Header2</TH>
<TH>Header3</TH>
<TH>Header4</TH>
<TH>Header5</TH>
</TR>
</HEADERTEMPLATE>
<ITEMTEMPLATE><TR>
<TD><%# DataBinder.Eval(Container.DataItem, "Column1") %></TD>
<TD><%# DataBinder.Eval(Container.DataItem, "Column2") %></TD>
<TD><%# DataBinder.Eval(Container.DataItem, "Column3") %></TD>
<TD><%# DataBinder.Eval(Container.DataItem, "Column4") %></TD>
<TD><%# DataBinder.Eval(Container.DataItem, "Column5") %></TD>
</TR></ITEMTEMPLATE>
<FOOTERTEMPLATE>
</TABLE>
</FOOTERTEMPLATE>
</ASP:REPEATER>
<CC1:COLLECTIONPAGER id="CollectionPager1" runat="server">
</CC1:COLLECTIONPAGER>
</BODY>
</HTML>
In your code behind, you just feed the CollectionPager1 object your data source. If you are using a DataSet as your data source, you will need to pass a DataView of it... for example:
public class WebForm1 : System.Web.UI.Page
{
protected System.Web.UI.WebControls.Repeater Repeater1;
protected SiteUtils.CollectionPager CollectionPager1;
private void Page_Load(object sender, System.EventArgs e)
{
//Create DataSet DataSet SampleDataSet = SampleData();
//Set DataSource of Pager to Sample Data
CollectionPager1.DataSource = SampleDataSet.Tables[0].DefaultView;
//Let the Pager know what Control it needs to DataBind during the PreRender.
CollectionPager1.BindToControl = Repeater1; //UPDATED!
//The Control now takes the object you are binding to,
// instead of the name of it (as a string)
//Set the DataSource of the Repeater to the PagedData coming from the Pager.
Repeater1.DataSource = CollectionPager1.DataSourcePaged;
//Done!
}
protected override void Render(HtmlTextWriter writer)
{
//Example of how to have the results show up in a different spot.
litDifferentResultsFormat.Text =
CollectionPager1.BuildResults("Currently viewing {0} through {1}");
//Example of how to have a second pager that is tied in...
litTopPager.Text = CollectionPager1.RenderedHtml;
base.Render (writer);
}
... other stuff ...
}

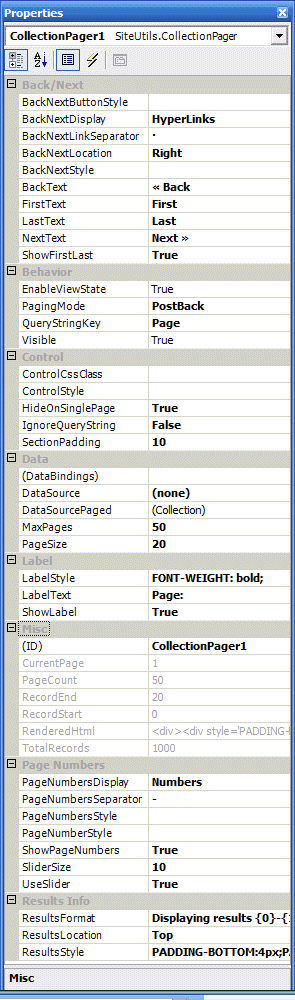

This control has a lot of properties that allow for customizing its appearance. Every section allows you to specify a CssClass and Style. You can also control the character which is used between page numbers. Here's a screenshot of the properties available:
You can install the control in the standard way:
Unzip the ZIP file with the demo. Right-click on the "CollectionPagerExample" subfolder and select Properties. On the Properties window, click "web-sharing" and check "Share this folder".
You should then be able to browse to:
There should be a "CollectionPagerSolution.sln" file in the root of the unzipped folder. When you open this file, you may be prompted for the CollectionPagerExample location. Use the Browse button to locate the CollectionPagerSample folder.
Please let me know if you have any questions or thoughts. As this is my first CodeProject article, I hope that I was clear enough on what it does and how to use it. Thanks!!!
SliderSize and UseSlider properties to make it happen. :-)
object as its BindToControl property. This should reduce confusion when using user controls and such. On a side note, there is now an example of using the control with a user control.
ResultsInfo in your code behind. This allows you to place this info elsewhere on the page. See example.
RenderedHTML" property, you can easily create a second pager above your grid. See example. ShowBackNextLinks property to allow you to display or hide the Back & Next buttons/links.
ShowPageNumbers property to allow you to display or hide the page numbers. PagingMode property to allow you to choose QueryString or PostBack methods of changing pages.
QueryStringKey property. Allows you to have multiple controls on a single page. Use a unique key for each control.
