Introduction

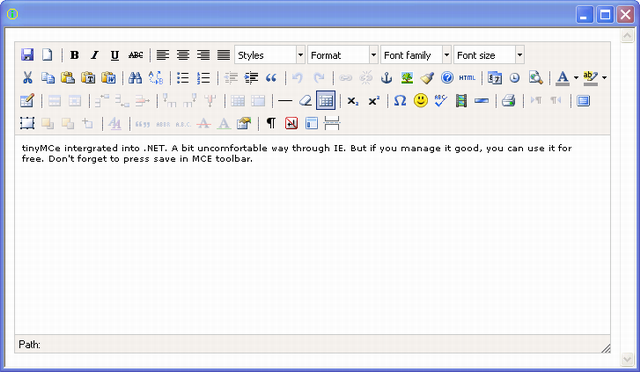

Had you in past need to incorporate some HTML validating editor into your .NET desktop client? I did, so I started to look around for some components and found one, which is free and widely used, tinyMCE form Moxito.

One complication is that this one uses browser to render edited content and is completely written in JScript, so one have to “hack” some browser control.

I’ll describe how to incorporate an IE ActiveX into .NET form, join needed soap of tinyMCE into work file and load this work file into IE ActiveX.

Background

As I said tinyMCE is JScript wrapper over browser textarea control.

One possible solution is to use some browser control, load it with content and let the browser to do the work with Jscript. Let’s assume, we’re on Windows platform, so IE is incorporated in system.

So what we need is to store somewhere tinyMCE package, generate work HTML file, which contains edited text and links to tinyMCE scripts.

I decided to use users application folder, special subfolder will be created and tinyMCE package as like as workfile will be stored.

Last thing to solve is to look over tinyMCE and check what it needs to work. And it’s not too much, in minimal version only few lines of code.
Let’s take simple example based on tinyMCE package examples:

<html>
<head>
<title>tinyMCE
minimal example</title>

<!—SETTINGS
section -->
<!--
TinyMCE -->
<script type="text/javascript" src="../jscripts/tiny_mce/tiny_mce.js"></script>
<script type="text/javascript">
       tinyMCE.init({
              mode : "textareas,save",
              theme : "simple"
       });
</script>
<!-- /TinyMCE -->

</head>
<body>

<!—tiny MCE section -->
<form method="post" action="http://tinymce.moxiecode.com/dump.php?example=true">
       <textarea id="elm1" name="elm1" rows="15" cols="80" style="width: 80%">
        This is Edited Text
       </textarea>
</form>

</body>
</html>

Looking around this snippet, one can see we need to construct settings section and tiny MCE section. Settings are needed for tinyMCE to tell what plugins to load, what encoding and format of the text we need etc., and second section is textarea element encapsulated in form element, and this is what tinyMCE hooks and use as editing area.

Last point about “design” - it has to be reusable around few applications, so I encapsulated everything in one form class FrmHTMLBrowser, which is enabled to view or edit text. Why not in control? Well, tinyMCE is not pure control, we have to use some “hacks” with temp files, so it is a bit safer and more robust to use modal dialog box. Programmers, who will use this form, will be forced to use it more carefully and declaratively, not allowed to just paste control in designer whereever they think is fine.

One little thing to think about - browser needs to be JScript in path or subpath where workfile resides. That's why we have to place everything in one place. Basically, no matters where, if in ApplicationData\LocalSettings ot \Temp or wherever else, but in one place.

Think also about running your application on terminal services - that's why I chose user ApplicationData. No problem with interfering forms.

Note: Problem with interfering forms will arise when same applications will run concurrently in same user profile and will be of same editor type (same Type parameter in EditText). But this is not my case, if yours, try to use more specific storage or workfile indexing (find first "free" name). tinyMCE package can be shared, that's not a problem.

"line-height: normal;" class="MsoNormal">

 Using the code
"line-height: normal;" class="MsoNormal">I used some helper methods to get it
everything work in FrmHTMLBrowser.

private string
getWorkPath(string subPath)

this one gets path to temporary
storage where work file and tinyMCE package are stored. Actually returns
subfolder M_WORKPATH in  Environment.SpecialFolder.LocalApplicationData

public void PrepareTinyMCE()

checks
if tinyMCE already exists, if not, unzips package using ICSharp.ZipLib

public Stream GetResourceFile(string File)

gets
stream from embedded resources

public string EditText(string Text, string Type, string CSSFile)

Public method for editing text,
covers and calls showText.

Type allows you
to store work file with different name, so you can call simultaneously few
edit forms in one running user profile (theoretically, it’s not this case while form is shown modal).
private void showText(bool edit)

Main method. Here, HTML work file with links to tinyMCE Jscript is constructed
and stored into temporary file.

There’s a little bit custom code in this method, CSS replacement. Method looks
in settings for [CSS] string and replaces it with passed path to CSS. Why this
is usefull? Well, when you’ll use this form eg. as editor for product
descriptions over multiple regional databases of multiple companies, You’ll need
to pass different CSSs got from database for example.





Aftre constructing work page and preparing tinyMCE package browser is navigated to work
file by calling

axBrowser.Navigate(sDoc);

User stores text by pressing Save
button in tinyMCE, that’s why in setting section it’s declared tinyMCE have to
use save plugin. One more hack, when
save is used, one need to cancel postback action of the form otherwise will
get tinyMCE error message. Looking into implementation leads to simple solution
in showText:

sb.AppendLine("<form method=\"\" action=\"\" onsubmit=\"return false;\">");

That’s it, smart guys in Moxito
think about it, cancelling onsubmit will cancel error message too.

Last thing, how to get edited text
back?

m_text = ((mshtml.IHTMLDocument3)axBrowser.Document).getElementById("elm1").innerText;

Retyping root DOM document of the IE
control to IHTMLDocument3 allows you to access document elements represented by
DOM model, so it’easy to get content of textarea elm1, where tinyMCE resides.

Use FrmHTMLBrowser class to create
editor enabled window just as in example.

tinyMCE and settings are stored in
resources as embedded resource, you can of course modify this solution and use disk
storage or whatever you imagine.
 Call FrmHTMLBrowser as you need, you'll get content of the editor back.

  FrmHTMLBrowser brw = new FrmHTMLBrowser();
  ctlRtf.Text = brw.EditText(ctlRtf.Text, "tempfilename", "yourCSS.css");

Here in "tempfilename"
you can specify name of work file, yourCSS.css will specify path to CSS
file (of course again, it'll be copied into work folder and make as relative path to packcage) , which will be used by tinyMCE to fillup Style combobox.

Links


tinyMCE is © of Moxito, http://tinymce.moxiecode.com/

sharpZIPLib is http://sharpdevelop.net/OpenSource/SharpZipLib
Points of Interest
It's not my point of interest, HTML editors.
Rather HW, Neural Networks, signal processing. But as in real life, I needed
some HTML editor, and this one is very good and free under GPL.
