Barcode Image Generation Library

By Brad Barnhill

This library was designed to give an easy class for developers to use when they need to generate barcode images from a string of data.
C# (C# 2.0), Windows (Win2K, WinXP, Win2003), .NET 2.0, Visual Studio (VS2005), GDI+, Dev
Version:6 (See All)
Posted:10 Oct 2007
Updated:3 Nov 2009
Views:219,467
Bookmarked:581 times
Announcements
Loading...

Search
Advanced Search
Add to IE Search
printPrint   add Share
      Discuss Discuss   Broken Article?Report
187 votes for this article.
Popularity: 10.92 Rating: 4.81 out of 5
2 votes, 1.1%
1

2
3 votes, 1.6%
3
15 votes, 8.0%
4
167 votes, 89.3%
5

Introduction

This article and its code provide a way for developers to put barcodes into their applications. It allows for the generation of barcode images without the use of "barcode fonts". This need arose out of the necessity for one of my own projects to use barcodes and the lack of free libraries on the web to do the job.

To give an idea of what happens in this library: it first turns the data into a series of 1s and 0s representing equal-width bars and spaces. This string of binary information is then sent to a drawing function that converts it to an image representing the desired barcode. This approach allows for one common drawing method to be used on all symbologies.

Supported Encoding Types

Code 128 Code11 Code 39 (Extended / Full ASCII)
Code 93 EAN-8 EAN-13
UPC-A UPC-E JAN-13
MSI ISBN Standard 2 of 5
Interleaved 2 of 5 PostNet UPC Supplemental 2
UPC Supplemental 5 Codabar ITF-14

** Keep in mind that some symbologies go by more than one name, so make sure the one you are using isn't listed above by a different name before contacting me to add it. If it isn't listed above and you would like me to look at adding it to this library, please post a comment below, and I will take a look at it as soon as possible. (Bugs are always a priority, so please send me bug reports.)

Using the Code

The library contains a class called BarcodeLib. There are three constructors:

Barcode();
Barcode(string);
Barcode (string, BarcodeLib.TYPE);

If you decide to create an instance with parameters, the parameters are as follows: The string is the data to be encoded into the barcode, and the BarcodeLib.TYPE is the symbology to encode the data with. If you do not choose to specify the data and type at the time the instance is created, you may specify them through the appropriate property later on (but before you encode).

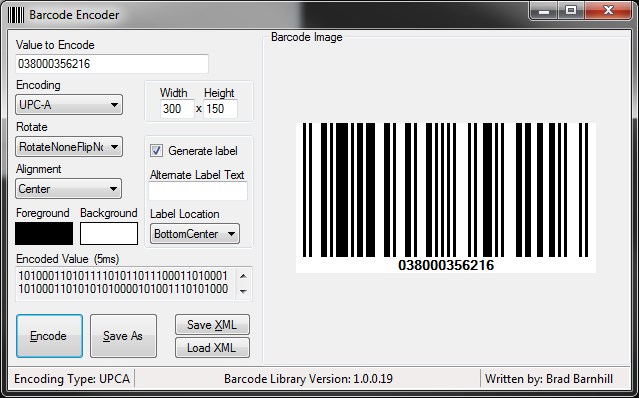

BarCodeLib.Barcode b = new BarCodeLib.Barcode(BarCodeLib.TYPE.UPCA,
          "038000356216", Color.Black, Color.White, 300, 150);

To get the image representing the data generated, you must then call one of the many Encode functions.

public Image Encode(TYPE iType, string StringToEncode, int Width, int Height)
public Image Encode(TYPE iType, string StringToEncode,
		Color ForeColor, Color BackColor, int Width, int Height)
public Image Encode(TYPE iType, string StringToEncode, Color ForeColor, Color BackColor)
public Image Encode(TYPE iType, string StringToEncode)
Encode(TYPE iType)
Encode()

The resulting Image contains the barcode in image format. More functionality has been added, so you can save the Image once it is encoded.

public void SaveImage(string Filename, SaveTypes FileType)

This function can be used by specifying the full path (filename included) of the location you would like to save the image to as a string. The second parameter is an enumerator (BarcodeLib.SaveTypes) that represents the supported types (JPG, BMP, PNG, GIF, TIFF) of files you can save. Functionality has been added so that you can now set the IncludeLabel parameter to allow it to draw the data that's encoded in the barcode, below the image, as a label. Keep in mind that this will take up some of the space you specify for the size of the image.

b.IncludeLabel = true;

This is used to put the data encoded at the bottom of the image. If you do not set this parameter, it will just generate the barcode without the data at the bottom.

Points of Interest

Writing this library offered me the chance to become intimately familiar with how barcode symbologies work and how the symbologies differ from one another.

A new property has been added to allow exportation of the image and properties in XML format. Keep in mind that the barcode must be encoded first before this property is read otherwise an error will be thrown to notify you of this mistake.

b.XML

History

  • October 10th, 2007 - Initial release (bugs most certainly exist, and a couple of symbologies need to be modified/implemented).
  • October 16th, 2007 - Updated Encode_Code39() to fix a bug that didn't include inter-character spaces. Also updated the function Generate_Image(Color, Color), and replaced the section using SetPixel with the following:
    using (Graphics g = Graphics.FromImage(b))
    {
        g.DrawLine(new Pen(c), x, 0, x, b.Height);
        g.DrawLine(new Pen(c), x + 1, 0, x + 1, b.Height);
    }//using
  • October 17th, 2007 - Changed the Generate_Image(Color, Color) function again to be a little more efficient. Instead of drawing two lines, it just uses a 2px-wide pen now. Thanks for the comments; they continue to make this library better.
    using (Graphics g = Graphics.FromImage(b))
    {
        g.DrawLine(new Pen(c, (float)2), new Point(x, 0),
        new Point(x, b.Height));
    }//using

    Also, functionality was added so that if you call BarcodeLib.Generate_Labels(Image), it will add the label showing the data encoded at the bottom of the barcode.

    Fixed a bug in the Test application where, if you encoded with PostNet as the type, it would automatically try to put the label at the bottom and labels aren't available on PostNet images. This caused it to throw an error that a try{}catch{} can handle for now.

    Took c0ax_lx's advice and moved...

    using (Graphics g = Graphics.FromImage(b))

    ... outside the while loop to improve resource usage.

  • October 26th, 2007 - Article edited and moved to the main CodeProject article base.
  • November 1st, 2007 - Complete restructuring of the library to abstract portions of it. Should be much cleaner to look at. An interface was added to force any updates to adhere to the structure. There were some bugs that were fixed in this release. Some of the encoding types on the menu were encoding with a different type than they said. Changed CheckNumericOnly() to be 1 line of code instead of a massive O^2 complicated take. (Thanks, Pete!)
  • December 9th, 2007 - Bug fixed in UPC-E encoding that would cause an index-out-of-range exception to be thrown. (Thanks Luca Z.)
    int pos = 0;

    This library is getting better with the help of people like Luca and Pete. Keep up the good work, friends.

  • April 16th, 2008 - Code 128 support is here. It is still very much in the beta phase (the FNC* chars are still not encoding right... I have to figure that out), but ... it's at least here for your trial and for your comments. Also, there were a few country codes left out of the EAN-13 assigning country lookup. I added what I could find that I left out. If you find any more, just let me know. Thanks again for your support and help.

    I also had to change the CheckNumericOnly() back to a more complex task because some data being encoded was longer than what Int64.TryParse(string, out) could handle ... so back to a more complex, but still a faster, task than comparing each char. Now, I break the string into pieces and test each piece.

  • May 3rd, 2008 - Code 128 had some bug fixes added. One was present in InsertStartandCodeCharacters(). The other was when trying to encode an apostrophe, it needed an escape character when selecting the data for it from the dataset. This should fix all the bugs for now ... if you find any more, let me know so I can try to track them down. Thanks again for your support.
  • May 27th, 2008 - PostNet now supports 5, 6, 9, 11 digit data. Also, a bug with the check-digit for PostNet is fixed. Code 128 now supports specifying and locking the encoding to a specific type (Code A, B, C). Code 39 Extended (Full ASCII) is now supported.
  • May 29th, 2008 - Bug fixed (thanks Koru.nl) in Bitmap Generate_Image(Color DrawColor, Color BackColor) that caused the drawing to be off by one horizontal pixel. This caused the drawing to cut 1 pixel width off the first bar that was drawn if it was drawn up against the edge of the image. The drawing function also changed a bit to eliminate the variable int x; from the function. All positions are now calculated off the variable int pos; which cuts out one unnecessary and confusing variable.
  • July 30th, 2008 - Bug fixed (thanks Kazna4ey and WolfgangRoth) in init_Code128() that caused .Select(string filterExpression) to return the wrong rows due to case insensitivity. So, the following was added:
    this.C128_Code.CaseSensitive = true;

    Another function byte[] GetImageData(SaveTypes savetype) was added so that users may request the bytes of the image easily. (Useful if using Crystal Reports, etc.)

  • August 26th, 2008 - Bug fixed (thanks JackyWu2005) in Code128.cs that was preventing the proper start characters from being inserted. This only happened when switching back to A from any other encoding type.
  • October 20th, 2008 - Added ITF-14 and Code93. Fixed a bug in Save As functionality that was not saving files in the selected format. Labels now show checksums except in C128 and C11.
  • December 3rd, 2008 - Can now specify image size before encoding. Complete overhaul of the drawing function to allow for dynamic drawing size. Now calculates the bar width based on the specified image size. Removed resize functions due to inaccuracy of the resizing method. The encoding functions have been revamped to reflect these changes (removed some of the overloaded functions referencing the resize functions). Also removed a majority of the case statements from the Generate_Image() to simplify it. Updated the article to reflect the changes to the Encode functions and the changes to the drawing functions. There may be some bugs due to the size of the changes made in this version. Please report any you find, in the comments below.
  • February 11th, 2009 - Fixed bug in Code 128C that would not insert a 0 in front of an odd length string of raw data. Fixed a bug (thanks Shaihan Murshed) in Code 39 that let the user encode * in the string of data. This should only be used for starting characters, and is now handled. Fixed a bug in Code 39 that was inserting an extra 0 at the end of the encoded string. This did not affect the validity of the barcodes, it was just not supposed to be there. Added a new property to the library called FormattedData. This value is what is actually encoded. It is formatted for certain types of barcodes, for example, Code 39 requires * in front and behind the barcode.
  • June 4th, 2009 (1.0.0.6)
    • Fixed a bug in Code128-A and Code128-B that would cause it to encode incorrectly due to incorrectly trying to compact the barcode for Code128-C. This functionality is now bypassed if Code128-A or Code128-B is selected.
    • Removed a useless variable bEncoded from BarcodeLib.cs
    • Static methods now support generating the data label (required addition of a parameter to 3 of the 5 static methods used to encode).
    • Property now available to retrieve the amount of time (EncodingTime) it took to encode and generate the image. (Might be helpful for diagnostics)
    • Modified a few error messages to be more descriptive about correcting the problem with data length.
    • Barcode class now inherits from IDisposable - XML export functionality added to BarcodeLib to allow the data, encoded data and other properties to be exported in XML along with the Image in Base64String format. This includes functionality to GetXML() and GetImageFromXML(BarcodeXML).
    • To go along with the XML functionality, there is now a dataset included that has the basic layout of the XML data to make importing and exporting easy.
    • ImageFormat is now a property to set to select what type of image you want returned (JPEG is default). This can help speed of transferring data if using a webservice.
    • ITF-14 now draws the label with the proper background color instead of always being white.
  • August 16th, 2009 (1.0.0.7)
    • Fixed a bug that allowed non-numeric data to be encoded with Code128-C, a check has been put in place to handle this. It throws an error EC128-6 now if found to contain something that isn't in Code128-C.
    • Fixed a bug in GetEncoding() for C128. This would allow Code128-B to switch and dynamically use Code128-A if it couldn't find a char in its set.
  • November 2nd, 2009 (1.0.0.8)
    • Changed the use of a Pen object that was not disposed of. This was not causing a problem, just bad technique.
    • Fixed an encoding issue with C128-B that had a wrong character in its encoding set at one point (U instead of Z in codeset B).

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
