Introduction

This article describes how to use the Gios Pdf.NET open source library, a complete object-oriented .NET library for generating impressive reports with few lines of code.

Background

I started writing this library because I really couldn�t find a good C# library for exporting my reports. When you open a PDF document with Notepad to find out if it�s possible to edit it� well� you change your mind!

...But if you download the PDF format specifications from Adobe�s official site� you can demystify everything!

In this article, it�s not my intention to teach �how to write a clone of my library� but �how to use it� � By the way, if you want to try to write your own library� try it: it�s not impossible and it's a good (and difficult!) exercise!

Using the code

Start instantiating the document with a new PdfDocument object. Remember to set the document format. In this case we specify width and height in centimeters. Document format is provided by the PdfDocumentFormat class:

PdfDocument myPdfDocument =
  new PdfDocument(PdfDocumentFormat.InCentimeters(21,29.7));

Now we create a table of 100 lines, 6 columns and 4 points of padding:

PdfTable myPdfTable =
  myPdfDocument.NewTable(new Font("Verdana",12),200,6,4);

Importing data from the datatables... (also column names for the headers!):

myPdfTable.ImportDataTable(Table);

Set the format for correct date-time representation:

myPdfTable.Columns[2].SetContentFormat("{0:dd/MM/yyyy}");

Now we set our Graphic Design: Colors and Borders...

myPdfTable.HeadersRow.SetColors(Color.White,Color.Navy);
myPdfTable.SetColors(Color.Black,Color.White,Color.Gainsboro);
myPdfTable.SetBorders(Color.Black,1,BorderType.CompleteGrid);

With just one method, we can set the proportional width of the columns. It's a "percentage like" assignment, but the sum can be different from 100.

myPdfTable.SetColumnsWidth(new int[]{5,25,16,20,20,15});

You can also set colors for a range of cells, in this case, a row:

myPdfTable.Rows[7].SetColors(Color.Black,Color.LightGreen);

Now we set some alignment... for the whole table and then, for a column:

myPdfTable.SetContentAlignment(ContentAlignment.MiddleCenter);
myPdfTable.Columns[1].SetContentAlignment(ContentAlignment.MiddleLeft);

This is the most important feature of the library: each page generated by the table can be managed in all the details:

while (!myPdfTable.AllTablePagesCreated)
{
    // we create a new page to put the generation of the new TablePage:


    PdfPage newPdfPage=myPdfDocument.NewPage();
    PdfTablePage newPdfTablePage =
      myPdfTable.CreateTablePage(new PdfArea(myPdfDocument,48,120,500,670));

    // we also put a Label


    PdfTextArea pta=new PdfTextArea(new Font("Verdana",26, FontStyle.Bold),
      Color.Red, new PdfArea(myPdfDocument,0,20,595,120),
      ContentAlignment.MiddleCenter,"Contact List");

    // nice thing: we can put all the objects

    // in the following lines, so we can have

    // a great control of layer sequence...


    newPdfPage.Add(newPdfTablePage);
    newPdfPage.Add(pta);

    // Now we create a loop for serching for people born in 1968. If we find

    // one, we will draw a circle over

    // the birthday cell. This is possible using the

    // the CellArea, that is the Area occupied by a rasterized Cell.


    for (int index=newPdfTablePage.FirstRow;index<=newPdfTablePage.LastRow;index++)
       if (((DateTime)myPdfTable.Rows[index][2].Content).Year==1968)
       {
          PdfCircle pc=newPdfTablePage.CellArea(index,2).InnerCircle(Color.Blue,2);
          pc.StrokeWidth=3.5;
          newPdfPage.Add(pc);
       }

    // we save each generated page before start rendering the next.

    newPdfPage.SaveToDocument();

}

At last... remember to save the document!

myPdfDocument.SaveToFile("Example1.pdf");

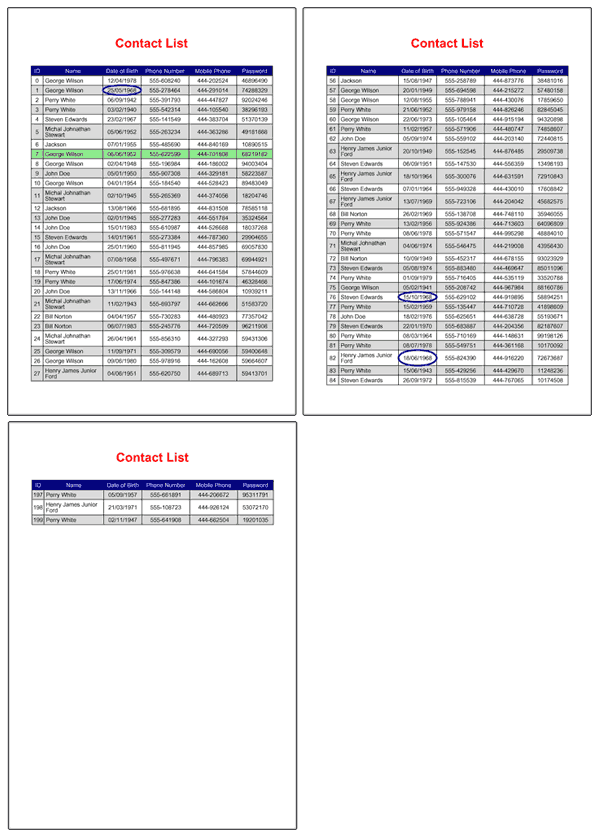

And this is the result:

Remember, you can also output the PDF to a generic Stream. These are the lines for a Web Response:

Response.ClearHeaders();
Response.AppendHeader("Content-disposition",
   string.Format("attachment;filename={0}","Report.pdf"));
Response.ContentType="application/pdf";
myPdfDocument.SaveToStream(Response.OutputStream);
Response.End();
