When I started using WTL, I didn't find any tool that could help me add message handlers like the Class Wizard. So, I decided to develop my own add-in for Microsoft Visual Studio (MS VS) that does that. Sorry for my English, I don't know it very well.
First, you should download WTL Helper Setup and run it to install the add-in. The add-in automatically registers the shortcut CTRL+ALT+W to call the dialogue. However, if you use one of the predefined keyboard mapping schemes then the registration of the shortcut will fail. Instead, you should create a copy of the current keyboard mapping scheme. To do this, go to the menu Tools->Options. In the Environment section, select Keyboard, press the Save As button and select a name for the new keyboard scheme. Then you can manually set a shortcut for WTL Helper (its full name is WtlHelper.Connect.WtlHelper).

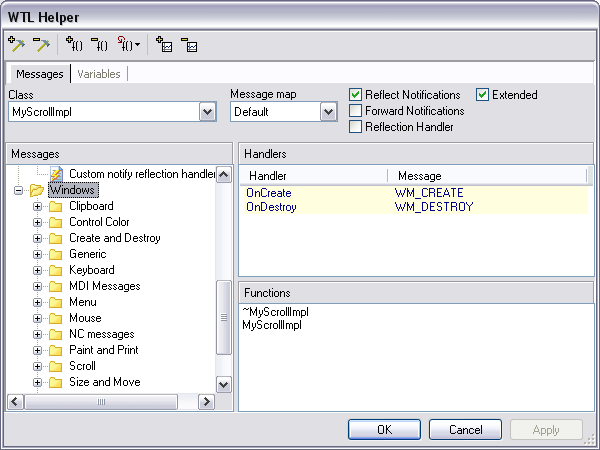

If the add-in is installed properly, the WTL Helper sub-menu appears in the menu Tools. Click on WTL Helper and you will get the dialogue shown above. The structure of the left TreeView panel is described in the WTL files. These WTL files are unpacked into the {installation_path}\Messages directory, if you use the setup file, or they are in the \wtl subdirectory in the source archive. The description of these files is as follows. I've grouped these messages by categories for faster search. If you think that this order is inconvenient, you can change the WTL files to have your own view of the message tree.
On the left panel of the dialogue, you can see the control IDs for the selected dialogue. By default, there are only dialogue classes in the combo box. On the right panel, there are variables that correspond to these ID controls.
Other menu item Options allow you to choose the following options:
CRect, CPoint, CSize classes will be used: WTL or ATLMore explanation on these options is given below.
wParam and lParam. So, the message handler functions become more laconic. However, there are some troubles because crackers must be used with a message map starting not with BEGIN_MSG_MAP, but with BEGIN_MSG_MAP_EX. The BEGIN_MSG_MAP macro and cracked handlers are only possible for ATL 7.0 and above, and only for classes inherited from CWindowIml or CDialogImpl. WM_CREATE, WM_DESTROY, etcWM_COMMAND messageWM_NOTIFY messageCHAIN_MSG_MAPCRect, CPoint and CSize are declared. You can also use the WTL classes CRect, CPoint and CSize. If you check this option, you will use the WTL ones. Otherwise, you will use the ATL ones. If you choose the WTL classes, the file <atlmisc.h> will be included for each header file where the message handler that uses CRect, CPoint, CSize is declared. If you choose ATL classes, the file <atltypes.h> will be included in the same way.
Select the colours you like the most and the handlers will be highlighted in that way.
i (m_iVar1) or str (m_strVar2). Since version 0.9.9.0, I've added a few context menu handlers to make the calling of WTL Helper easy. In Visual Studio 2003, the context menus are MS Office Command Bars. So, I need to know their names to add my menu items. Here are command bar names and where they are called from:
After loading the add-in, my menu items appear in these context menus.
I've added two menu items that show the main window of WTL Helper. The only difference is that the first one sets the handler/function page while the second one sets the DDX variable page as default.

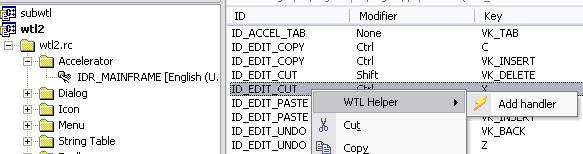

For the accelerator or toolbar button, you can simply add a command handler.

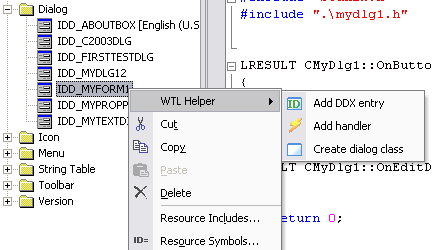

In the above picture, you can see a context menu for a dialogue. The first two items are equal to the Class View ones. To use the last one, you should have WTL Wizards at least version 1.1. WTL Wizards are a set of dialogues for adding WTL classes.
You can simply add a handler or a variable for a control without showing the main window of WTL Helper.

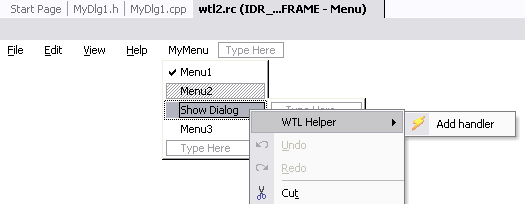

The same as for accelerator or toolbar buttons, you can simply add a command handler for the menu item.
The same goes for the dialog editor.
I had some troubles when I tried to get the current resource ID and the selected resource item. The Visual Studio add-in framework has no documented ways to get such information. The most difficult was to determine the resource that is currently being edited and its ID. I've done this not in the correct way (I don't know the correct one), but I have found a way out. You can see that the resource editing window has a caption that consists of the resource file name, ID of the currently edited resource and the type of the resource. So, I use this caption to get all that I need.
The next question is how to retrieve the ID of the currently edited resource item (menu item, control on the dialogue and so on). You can get the EnvDTE::SelectionContainer object from the EnvDTE::SelectedItems object and then you can get an object for the selected item. However, for resource items there is no such documentation. These objects are defined in ResEditPKGLib. To use them, you should import TLB with GUID {7365C6FE-4191-476B-A3FE-1CB6A7B1C119} as follows:
#import "libid:7365C6FE-4191-476B-A3FE-1CB6A7B1C119" version("7.1") lcid("0") no_implementation
Every resource item object has a property ID, but there is no common interface for the objects. So, I use the Invoke method of the IDispatch interface to retrieve the current resource item ID.
Since version 0.9.9.0, I've added the possibility to override some of the functions of the parent classes. In the picture above, you can see the menu for a child of the CScrollWindowImpl class. The first two functions are available for all of the classes except dialogue classes. The others are available only for the specified classes. For example, DoScroll and DoPaint are available only for the children of CScrollImpl.
The problem is that there is no exact definition of the map. I think that in Microsoft, maps are called objects which start from one of the predefined macros, such as BEGIN_MSG_MAP, BEGIN_MESSAGE_MAP and so on. It causes some problems while working with this object of EnvDTE.
The macro BEGIN_MSG_MAP_EX is not recognized as the beginning of the map; it is recognized as a function. All of the macros that are used in the declaration of the classes are recognized as functions, as well. But it isn't the main issue. The main problem is that when you create a message map by the macro BEGIN_MSG_MAP_EX or another map (such as DDX map) and try to insert the function into the source document, it returns an error.
The second problem is the recognition of some of the map entries and the end of the map. For example:
CHAIN_MSG_MAP(CFrameWindowImpl<CMainFrame>) CHAIN_MSG_MAP(CUpdateUI<CMainFrame>) CHAIN_MSG_MAP(CMessageFilter) CHAIN_MSG_MAP(CIdleHandler<CMainFrame>)
...is recognized as:
CHAIN_MSG_MAP(CFrameWindowImpl<CMainFrame>) CHAIN_MSG_MAP(CMessageFilter) CHAIN_MSG_MAP(CIdleHandler<CMainFrame>)
When I tried to understand this behavior, I found out that the second CHAIN_MSG_MAP with the parameter templatization class is not recognized (in the example, CUpdateUI<CMainFrame>). However, if the second CHAIN_MSG_MAP is CMessageFilter and the third is CUpdateUI<CMainFrame>, then CMessageFilter is recognized properly, but CUpdateUI<CMainFrame> is not recognized.
When some map entries are not recognized in the map EnvDTE, the end of the map will not be recognized either. There is one more problem with BEGIN_MSG_MAP_EX. If the map starts with BEGIN_MSG_MAP_EX and ends with END_MSG_MAP, then EnvDTE cannot recognize any CodeElement after the map. I've solved this problem in the following way: I've added a macro in stdafx.h.
#define END_MSG_MAP_EX END_MSG_MAP
When I added this macro in the same header as the map, I got the same result as without the macro. However, it works well in stdafx.h.
The main functionality is in the files VSElements.h or VSElements.cpp. It's my superstructure of EnvDTE concerning CodeElement interfaces. There are some classes that wrap functions, variables, maps, classes and parameters of functions.
The most important of these wrappers is the map wrapper, VSMap. I've remade this class to get map entries, since using EnvDTE::CodeElement (with kind of EnvDTE::vsCMElementMap) or VCCodeModelLibrary::VCCodeMap does not give the exact result that we want. These problems have been described above.
I've created a special class, VSMessageMap, for the message map. I am sorry about the Russian comments in the files, but I don't have enough time to add English ones. All the dialogues that you can see while working are in the \dialog subdirectory. Classes for parsing resources are in the \resources subdirectory.
The latest version of WTL Helper is here. You can help me make the WTL Helper better. I need someone who can draw the toolbars and icons for me, as I think they are not very good right now.
