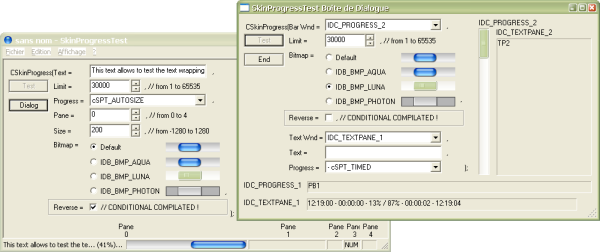

Introduction

Originally developed based on the work of Chris Maunder on CProgressBar. This CSkinProgress class intend to be used everywhere some calculations are needed. It features :

• Bitmapped progress bar (default, from resource - which need little code modification - or from external source)
• Auto-sizing of the progress bar
• Auto-sizing of the text
• Paning of the progress bar
• Optional completion status message (percent or timed)
• And more...

All features can be changed during run-time :

• Switch in real-time between different bitmaps according to your mood or needs (normal mode, alert bar, ...)
• Change the text to show different states of the process being calculated
• Change the range of the progress bar with resample if more accuracy provided
• And more...

Now the explanation of the features...

Features

1. Mode

CSkinProgress allows to create a progress bar in a status bar or in a dialog. All depends on the constructor you will use and which parameters you will provide to CSkinProgress.

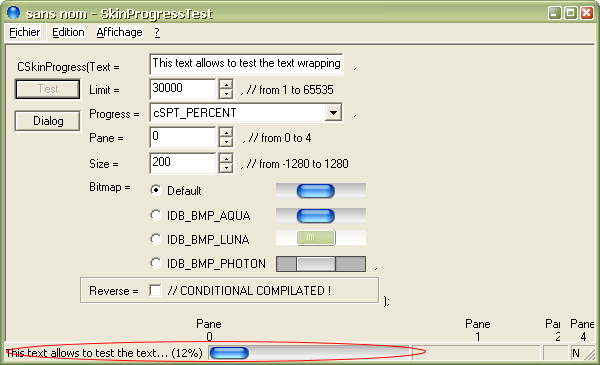

Status Bar

CSkinProgress
(
  LPCTSTR  i_poStrMessage,
  int      i_nUpper       = 100,
  int      i_nProgress    = cSPT_PERCENT,
  int      i_nPane        = 0,
  int      i_nSize        = 200,
  CBitmap* i_poBitmap     = NULL
#ifdef dCSP_SLIDERBAR_METHOD
 ,BOOL     i_bReverse     = false
#endif // dCSP_SLIDERBAR_METHOD

);

With this constructor you can create a progress bar with text, completion status, select the pane, the bitmap and if the progress bar have to be displayed from the end.

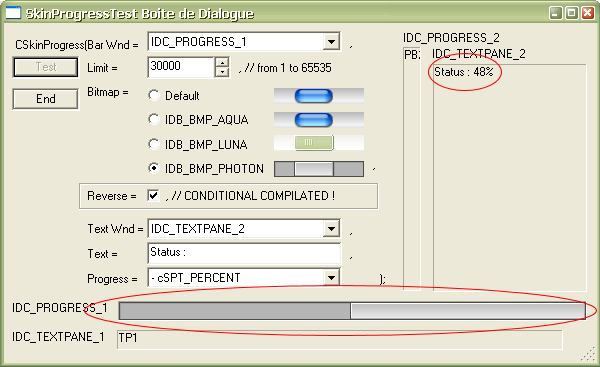

Dialog

#ifdef dCSP_DIALOG_PROGRESS
CSkinProgress
(
  CWnd*    i_poWndProgress,
  int      i_nUpper       = 100,
  CBitmap* i_poBitmap     = NULL,
#ifdef dCSP_SLIDERBAR_METHOD
  BOOL     i_bReverse     = false,
#endif // dCSP_SLIDERBAR_METHOD

  CWnd*    i_poWndMessage = NULL,
  LPCTSTR  i_poStrMessage = NULL,
  int      i_nProgress    = cSPT_NONE
);
#endif // dCSP_DIALOG_PROGRESS

If the dCSP_SLIDERBAR_METHOD define is activated, you can use this constructor to create a progress bar inany CWnd object with a parent (important) in the dialog. You don't have to provide a pane number, but a CWnd anchor used to create the progress bar, and another CWnd in which the text will be displayed.

2. Sizing

You can provide a size for the progress bar. This size is only used when the progress bar is located in the status bar and in pane 0, thus share it with the text. You can select 3 modes of text sharing :

Positive size

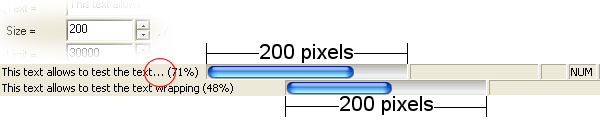

If the given size is positive, the size of the progress bar is FIXED. Thus the text is wrapped if there is not enough place.

Zero size

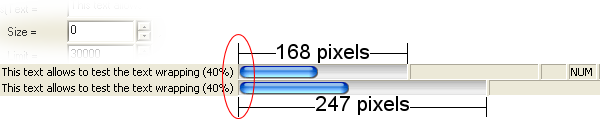

If the given size is null, the size of the progress bar fits the remaining place left by the text. Thus the text is never wrapped if there is not enough place. It can only be if there is a completion message that takes too much place.

Negative size

If the given size is negative, the size of the progress bar fits the remaining place left by the text if there is no enough place, otherwise the given size is used.

3. Text

You can provide any text you want (Note: not too long - up to 128 characters).

4. The Panes

You can create as many panes as you want in the status bar, just follow these rules...

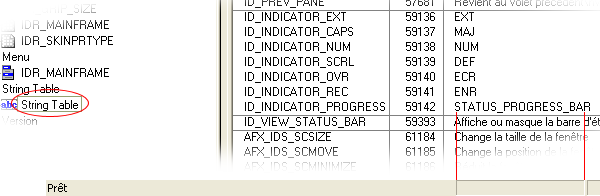

Add an ID in the string table, in the ID_INDICATORS section, otherwise the text will appears in the pane. The longer the text, the more the width of the pane will be important !

Now add this user pane ID in the 'indicators' array in the beginning of the 'MainFrm.cpp' file. First entry is pane 0.

Then, select the pane number you will use to display the progress bar. For instance, the user pane is number 0 where the text is located :

You can even use system panes, such pane 3 where the NUM-LOCK indicator is located:

5. The completion message

You can ask to CSkinProgress to add a message at the end of your text in order to provide the current completion status. The progress bar gives a graphical information, but sometimes it is useful to have more information. An enum list is fitted with increasing value with a different meaning for each of them. Here are the different kinds of messages :

• cSPT_NONE : Don't add any messages, quite fast.




• cSPT_PERCENT : Add a simple text percent completion report, a bit slower than NONE




• cSPT_TIMED : Add a full features message that gives the date/time of start, the current percentage of completion, the remaining percentage, the remaining time, and the expected date/time of end - quite slow




• cSPT_AUTOSIZE : Automaticaly select the best message between PERCENT and TIMED according to the remaining place in pane 0 - the slowest.




• NEGATIVE : Suppress the parenthesis (NEW)



  You can now delete the parenthesis by providing a negative progress number, like you can stop the wrapping of the text by providing a negative size for the progress bar in pane 0 !

6. The bitmap

You can select the default and embedded bitmap (which is the same as IDB_BMP_AQUA) or use a resource bitmap (needs to change conditions for the compilation and modify the code in CSkinProgress::SetBitmap(...))

You can also provide a bitmap to the CSkinProgress

7. Reverse display

When not selected, the progress bar start from the left (or top in a vertical progress bar).

For some reasons you can select to display the progress bar from its end. Especially useful for vertical bar in dialog, so that it starts from the bottom, like a thermometer.

The Code

Constructors

Status bar

CSkinProgress::CSkinProgress
( // Default constructor

)

Create a default progress bar in the status bar with "Work in progress" and the default constructor values given below.

CSkinProgress::CSkinProgress
( // Default constructor with parameters for status bar usage

  LPCTSTR     i_poStrMessage, // Text to display

  int         i_nUpper,       // = 100          : Default range from 0 to

                              //                  i_nUpper

  int         i_nProgress,    // = cSPT_PERCENT : Message type to add to the

                              // text

  int         i_nPane,        // = 0            : Pane number in which

                              // display the progress bar

  int         i_nSize,        // = 200          : Size of the progress bar if

                              //                  in pane 0

  CBitmap*    i_poBitmap      // = NULL         : Pointer to a user bitmap

#ifdef dCSP_SLIDERBAR_METHOD
 ,BOOL        i_bReverse      // = false        : Reverse display of the

                              // progress bar

#endif // dCSP_SLIDERBAR_METHOD

)

WARNING : This constructor has changed since the original version 1.00/1.12dev !

The most simple status bar constructor is :

CSkinProgress::CSkinProgress
( // Default constructor with parameters for status bar usage

  LPCTSTR     i_poStrMessage, // Text to display

)

Dialog

#ifdef dCSP_DIALOG_PROGRESS
CSkinProgress::CSkinProgress
( // Default constructor with parameters for dialog usage

  CWnd*       i_poWndProgress,  // Pointer to the anchor CWnd to use for the

                                // progress bar

  int         i_nUpper,         // = 100,      : Default range from 0 to

                                // i_nUpper

  CBitmap*    i_poBitmap,       // = NULL      : Pointer to a user bitmap

#ifdef dCSP_SLIDERBAR_METHOD
  BOOL        i_bReverse,       // = false,    : Reverse display of the

                                //               progress bar

#endif // dCSP_SLIDERBAR_METHOD

  CWnd*       i_poWndMessage,   // = NULL,     : Pointer to the anchor CWnd

                                //               to use for the text pane

  LPCTSTR     i_poStrMessage,   // = NULL      : Text to display,

  int         i_nProgress       // = cSPT_NONE : Message type to add to the

                                //               text

)
#endif // dCSP_DIALOG_PROGRESS

To use the dialog constructor, make sure the dCSP_DIALOG_PROGRESS define is set. You can bypass the text pane declaration, as I have put the i_bReverse parameter in the middle of the function parameter list. Beware of your coding, you may use also the dCSP_SLIDERBAR_METHOD define yourself in order to provide conditionnal compilated facilities to your own code.

The most simple status bar constructor is :

CSkinProgress::CSkinProgress
( // Default constructor with parameters for status bar usage

  CWnd*       i_poWndProgress,  // Pointer to the anchor CWnd to use for the

                                // progress bar

)

Destructor

CSkinProgress::~CSkinProgress
( // Destructor

)

Bitmap Process

BOOL CSkinProgress::SetBitmap
( // Change of progress bar image

  CBitmap* i_poBitmap           // = NULL : Pointer to an existing bitmap

#ifndef dCSP_TIMED_REDRAW
 ,BOOL     i_bDisplay           // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

The two following addi(c)tive functions are used by CSkinProgress::SetBitmap(...) in order to copy/convert TRUE/COLOR bitmap pictures (don't support mapped color bitmap yet). They can be used for your own purposes :

BOOL CSkinProgress::CopyBitmap
( // Copy a bitmap

  CBitmap* o_poBitmap,          // Pointer to an EXISTING but NOT INITIALIZED

                                // bitmap

  CBitmap* i_poBitmap           // Pointer to the source bitmap

)

BOOL CSkinProgress::ConvBitmap
( // Convert a bitmap to a specified device context

  CBitmap*    o_poBitmap,       // Pointer to an EXISTING but NOT INITIALIZED

                                // bitmap

  CBitmap*    i_poBitmap,       // Pointer to the source bitmap

  CDC*        i_poDC            // = NULL : Pointer to the DC to use for the

                                // conversion, if NULL use the current DC

)

Progress Interface

BOOL CSkinProgress::SetRange
( // Set the new range

  int  i_nLower,                // Minimum limit

  int  i_nUpper,                // Maximum limit

  int  i_nStep,                 // = 1     : Step increment

  BOOL i_bResamble              // = false : Resample the current position

                                // from the new Lower and Upper values

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true  : Display the changes

#endif // dCSP_TIMED_REDRAW

)

int CSkinProgress::SetPos
( // Set <M_NRIGHT> value

  int  i_nPos                   // Set a new current position

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

int CSkinProgress::OffsetPos
( // Forward of <NOFFSET> value

  int  i_nOffset                // Add the offset to the current position

                                // (can be negative)

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

int CSkinProgress::SetStep
( // Set <M_NSTEP> value

  int i_nStep                   // Set the step increment

)

int CSkinProgress::StepIt
( // Forward of <M_NSTEP> value

#ifndef dCSP_TIMED_REDRAW
  BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

Extended Progress Interface

BOOL CSkinProgress::SetSize
( // Set size of the progress bar in pane 0

  int  i_nSize                  // Set the size of the progress bar

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

int CSkinProgress::GetSize
( // Get width or height of the progress bar in pixel, mostly used in

  // CSkinSlider

)

int CSkinProgress::GetPos
( // Get <M_NRIGHT> value

  BOOL i_bPercent               // = false

)

int CSkinProgress::GetStep
( // Get <M_NSTEP> value

)

int CSkinProgress::GetLower
( // Get <M_NLOWER> value

)

int CSkinProgress::GetUpper
( // Get <M_NUPPER> value

)

#ifdef dCSP_SLIDERBAR_METHOD
int CSkinProgress::SetStart
( // Set <M_NLEFT> value

  int  i_nStart                 // Set a new start position

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)
#endif // dCSP_SLIDERBAR_METHOD

#ifdef dCSP_SLIDERBAR_METHOD
int CSkinProgress::GetStart
( // Get <M_NLEFT> value

  BOOL i_bPercent               // = false

)
#endif // dCSP_SLIDERBAR_METHOD

void CSkinProgress::Reset
( // Reset the progress bar

#ifndef dCSP_TIMED_REDRAW
  BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

Text Interface

BOOL CSkinProgress::SetText
( // Set the new text

  LPCTSTR i_poStrMessage        // New text to display

#ifndef dCSP_TIMED_REDRAW
 ,BOOL    i_bDisplay            // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

BOOL CSkinProgress::SetProgress
( // Set <M_NPROGRESSTEXT> value

  int  i_nProgress              // Set progress text

#ifndef dCSP_TIMED_REDRAW
 ,BOOL i_bDisplay               // = true : Display the changes

#endif // dCSP_TIMED_REDRAW

)

int CSkinProgress::GetProgress
( // Get <M_NPROGRESSTEXT> value

)

Update Process

BOOL CSkinProgress::RefreshPanes
( // Resize the text pane and the progress bar

)

Compiling the Source

Manage the CSkinProgress features with conditionnal compilation ! Here the explanation of each compilation define :

• dCSP_DIALOG_PROGRESS : Activate the use of CSkinProgress in dialogs

• dCSP_TIMED_REDRAW : When set/uncommented, don't redraw/refresh the text/progress bar at each event but only 50 times a second (enough for accuracy). In some loops, CSkinProgress::StepIt() can be easily called far more than 50 times a second !

• dCSP_VERTICAL_BAR : Activate the full vertical bar calculation. Not used in the status bar, but can be used when dCSP_DIALOG_PROGRESS is set

• dCSP_SLIDERBAR_METHOD : Turns the progress bar into a full slider bar. Allows the bar to be reverse displayed, so uncomment this define if you want to use the 'reverse' feature of CSkinProgress


Specific defines are used for very experimental purposes, use them with care :

• dCSP_RESOURCE_BITMAP : Use a resource bitmap as default bitmap. The current ID name of the resource bitmap is IDB_AQUABAR, but you mey change this by modifying the name of the ressource bitmap in CSkinProgress::SetBitmap(...)

• dCSP_CREATE_BITMAP_FILE : At the end of CSkinProgress::SetBitmap(...), create a source file in the root of C: ! Used to change the default embedded bitmap : create a CSkinProgress and provide a user bitmap, you'll get the converted bitmap into a source file !

• dCSP_DISPLAY_STRETCH : Display the stretched picture used for the image list creation. There is hardly usage of this feature, beside documentation or verification of the CSkinProgress::SetBitmap(...) function

The Progress Bar Bitmap

Now to finish this little introduction to the CSkinProgress graphic engine, the overview of the method used to create the progress bar picture. A bitmap is provided to CSkinProgress::SetBitmap(...)...

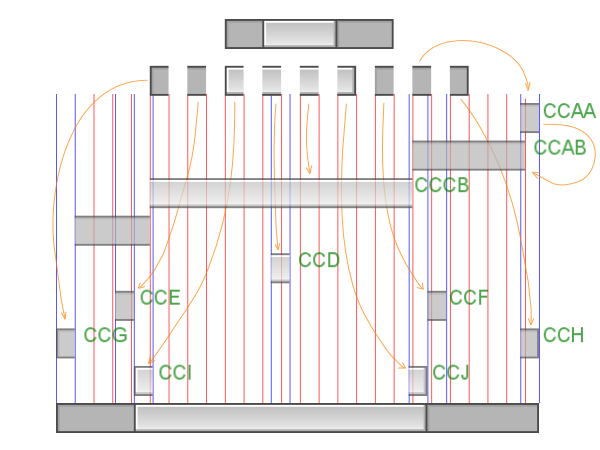

This bitmap is divided into 9 parts...

From left to right, here are the meaning and associated ID define :

• cSPB_START : The start of the progress bar background

• cSPB_BEFORE : The element before the beginning of the bar, could be an hilight

• cSPB_LEFT : The left part of the bar, its beginning

• cSPB_CENTER : The center part of the progress bar, could be interpreted as a grab knot

• cSPB_BAR : The bar body

• cSPB_RIGHT : The right part of the bar, its end

• cSPB_AFTER : The element after of the end of the bar, could be a shadowing

• cSPB_BACKGROUND : The progress bar background

• cSPB_END : The end of the progress bar background


To create your own bitmap skin, make any bitmap with 9 parts like above. The height of the bitmap is not really important (BTW not too large - no more than 32 pixels, of course) and the width should be multiple of 9 (important), thus : width % 9 = 0 ! Have a look at the bonus/hidden bitmaps to understand that/how CSkinProgress allows you to make funny things ;)

Relative positions of the keys elements are calculated on the range of the progress bar and its current position. Then, once get these values as percent, calculate the absolute positions of these key elements. There is now just the place them on the progress bar image in a defined order so that some elements could hide some others, like on layers in Paint Shop Pro.

Blue columns are the exact positions of the elements.
Red columns are the base columns based on the width of an element.

The three/four letters are the key of comments into the CSkinProgress::OnPaint() function for you to spot them easily...

Version history

Rev 1.02 : July 12 2003 14:01:53 (Kochise)

extracting files : no error
parsing files : no error
diff engine : no error
modify.public.constructor:CSkinProgress
touch.protected.function:CreateCommon
modify.protected.function:ProgressInStatusBar
modify.protected.function:ProgressInDialog
modify.public.function:SetRange
touch.public.function:SetPos
modify.public.function:GetPos
touch.public.function:SetStart
modify.public.function:GetStart
modify.public.function:Reset
add.public.function:SetProgress
add.public.function:GetProgress
modify.public.function:RefreshPanes
touch.protected.function:CompactText
modify.protected.function:GetTimed
modify.protected.function:UpdateProgress
modify.protected.function:OnPaint
compiling project files : no error
packing files : no error

Rev 1.01 : July 06 2003 22:08:37 (Kochise)

extracting files : no error
parsing files : no error
diff engine : no error
modify.public.constructor:CSkinProgress
add.public.constructor:CSkinProgress
modify.public.function:SetBitmap
modify.public.function:ConvBitmap
modify.public.function:SetRange
modify.public.function:SetPos
modify.public.function:OffsetPos
modify.public.function:StepIt
modify.public.function:SetSize
add.public.function:GetSize
add.public.function:GetPos
add.public.function:GetStep
add.public.function:GetLower
add.public.function:GetUpper
add.public.function:SetStart
add.public.function:GetStart
add.public.function:Reset
modify.public.function:SetText
mutate.function:protected.ResizeTextPane->public.RefreshPanes
modify.public.function:RefreshPanes
mutate.function:public.Clear->protected.Clear
add.protected.function:GetTargetRect
mutate.protected.function:Create->CreateCommon
modify.protected.function:CreateCommon
add.protected.function:ProgressInStatusBar
add.protected.function:ProgressInDialog
modify.protected.function:CompactText
add.protected.function:UpdateProgress
modify.protected.function:OnPaint
compiling project files : no error
packing files : no error

Rev 1.00 : May 25 2003 13:25:12 (Kochise)

add.public.constructor:CSkinProgress
add.public.constructor:CSkinProgress
add.public.function:SetRange
add.public.function:SetText
add.public.function:SetSize
add.public.function:SetBitmap
add.public.function:CopyBitmap
add.public.function:ConvBitmap
add.public.function:SetPos
add.public.function:OffsetPos
add.public.function:SetStep
add.public.function:StepIt
add.public.function:Clear
add.public.destructor:~CSkinProgress
add.protected.function:Create
add.protected.function:GetStatusBar
add.protected.function:ResizeTextPane
add.protected.function:CompactText
add.protected.function:GetTimed
add.protected.function:OnEraseBkgnd
add.protected.function:OnPaint
add.protected.function:OnSizing
add.protected.function:OnSize
add.protected.function:OnTimer
compiling project files : no error
packing files : no error

You must Sign In to use this message board.

Per page 102550

FirstPrevNext

Dude.... mkriese 8:55 25 Aug '08   You might win the award for hardest to understand code on this entire website. Why in sweet baby jesus did you make the different modes an #ifdef? How did you manage to make something as simple as progress bar so bloody complicated. I almost want to submit this to the daily WTF. As a fun exercise (maybe for those masochists out there) for the reader, try turning off the border (of course the border is not inherited from the control you put on the dialog, it's hard coded). You will now see that a black bar is drawn on the bottom of the progress bar. Now try getting rid of it. If you need a hint I can help you. Sign In·View Thread·PermaLink Re: Dude.... Kochise 8:16 1 Oct '08   Yeah, this code might looks like pretty weird, yet it appeared to be well structured, and that's all I wanted to achieve, a very well structured/commented code. If you get an in-deep look at my component, you'll see that it's complicated mostly because it handles several things all by itself, such displaying the time elapsed/remaining in the place you defined, it automatically move/resize itself, the coder doesn't have to care. That's a good component, dude, I assure you (stroking component's head, component purring gently)... Kochise In Code we trust ! Sign In·View Thread·PermaLink File(s) Copy progress UltraWhack 9:33 18 Dec '06   This code looks great, thanks. I'm looking at implementing it when I dragdrop a number of large files onto my form - have it copy to a named directory. How can I show an overall files copy progressbar to show current filename being copied and overall filescopy progress ? Sign In·View Thread·PermaLink Re: File(s) Copy progress Kochise 9:43 18 Dec '06   Have you some sort of experience about MFC ? The steps are easy to follow : 1- Create a dialog with a static text (give it an ID) and a static bar that will receive the progress bar. 2- In your main code, instanciate the dialog object (CProgressDlg for instance) and display it 3- Create the CSkinProgress object (dialog constructor) giving it the two static references (one for the bar, the other for the text) 4- Make the progress evolve while copying, change the text with SetText 5- At the end, destroy the CSkinProgress object first 6- Hide the dialog, destroy it Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: File(s) Copy progress UltraWhack 11:41 18 Dec '06   I'm using Visual Studio 2005 express. Can you walk me through implementing Cskinprogress ? Sign In·View Thread·PermaLink 1.00/5 Re: File(s) Copy progress Kochise 10:37 19 Dec '06   Just see how I done in my example program... Kochise In Code we trust ! Sign In·View Thread·PermaLink Great stuff - two issues nadiric 7:39 28 Sep '06   First of all, great work. Two issues I'm having 1. Flicker This occurs when I update at a very high rate... possibly just limitations of my machine...? 2. If a window goes over the progress bar area, the bar is never displayed again, only the text updates. Is there a forced redraw that can fix this? Thanks Sign In·View Thread·PermaLink Re: Great stuff - two issues Kochise 22:18 28 Sep '06   1. Where does it flickers ? In the status bar ? This is pretty normal, and yes, this is due to a too fast redraw. Use the dCSP_TIMED_REDRAW compilation define in the header to solve things a bit. 2. The progress bar, in the status bar or in a dialog ? I will see this for the next upgrade. Sounds it's on the good track now, I just re-re-reinstalled my computer, so maybe for Xmas, who knows Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: Great stuff - two issues nadiric 7:47 29 Sep '06   I'm using the status bar exclusively Sign In·View Thread·PermaLink Debug Assertion Failed in wincore Line 880 evil-peter 1:00 20 Jun '06   Hi, I'm a noob, but... I get your class in my application like this: void CTest_Dialog::progressStart() { if(i { int b = _ttoi((LPCTSTR) set.in_strZeit); int nMultiplyDelay = 300000*b; BOOL m_bCheckReverse = true; // CBitmap bitmap; bitmap.LoadBitmap(IDB_BMP_BAR1); #ifdef dCSP_DIALOG_PROGRESS CSkinProgress progress ( &t_cProgress1, nMultiplyDelay, &bitmap, #ifdef dCSP_SLIDERBAR_METHOD m_bCheckReverse #endif // dCSP_SLIDERBAR_METHOD ); progress.SetPos(0); progress.SetStep(1); for(int a = 0; a < nMultiplyDelay; a += 1) { progress.StepIt(); PeekAndPump(); } #endif } else{} } and then i start the progress per Return: BOOL CTest_Dialog::PreTranslateMessage(MSG* pMsg) { // TODO: Speziellen Code hier einfügen und/oder Basisklasse aufrufen // Falls Taste gedrueckt wurde if (pMsg->message == WM_KEYDOWN) { // Wenn RETURN dann progress starten if (pMsg->wParam == VK_RETURN) { progressStart(); } // Wenn ESCAPE dann Fenster schließen if(pMsg->wParam == VK_ESCAPE) { OnOK(); } return 0; } // Standard-Behandlung durchfuehren return CDialog::PreTranslateMessage(pMsg); } After progress is finished, i get an error in the debug-version: Debug Assertion Failed in wincore Line 880 What can i do? P.S.: with press on a Button, works fine Sign In·View Thread·PermaLink Re: Debug Assertion Failed in wincore Line 880 Kochise 22:33 20 Jun '06   Maybe, just maybe : int b = _ttoi((LPCTSTR) set.in_strZeit); int nMultiplyDelay = 300000*b; I think 'nMultiplyDelay' is a bit high (even if I use internally 64 calculation). There is also : for(int a = 0; a < nMultiplyDelay; a += 1) { progress.StepIt(); PeekAndPump(); } This is called from : BOOL CTest_Dialog::PreTranslateMessage(MSG* pMsg) Just understand that 'PeekAndPump()' do its work, that's to say to Peek and Pump messages, in other word call 'PreTranslateMessage' ! The problem MAY be that there is some recursive loop behind the scene because you nor invalidated the current keystroke message, which match again and again. Try : if (pMsg->wParam == VK_RETURN) { pMsg->wParam = 0; progressStart(); } Otherwise, try to trigger things more correctly and/or launch a thread aside... Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: Debug Assertion Failed in wincore Line 880 evil-peter 0:12 21 Jun '06   I have solve the Problem: Just put the line "return TRUE" in the PreTranslationMessage like this: BOOL CTest_Dialog::PreTranslateMessage(MSG* pMsg) { // TODO: Speziellen Code hier einfügen und/oder Basisklasse aufrufen // Falls Taste gedrueckt wurde if (pMsg->message == WM_KEYDOWN) { if (pMsg->wParam == VK_RETURN) { progressStart(); return TRUE; } if(pMsg->wParam == VK_ESCAPE) { OnOK(); } return 0; } // Standard-Behandlung durchfuehren return CDialog::PreTranslateMessage(pMsg); } Thanks for the Answer!! Sign In·View Thread·PermaLink Re: Debug Assertion Failed in wincore Line 880 Kochise 4:12 21 Jun '06   See, you aren't such the "noob" you believed. Keep confidence in yourself man ! Ich bin ganz frulig dass du hast das problem gefunden... (sorry, bad german) Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: Debug Assertion Failed in wincore Line 880 [modified] evil-peter 6:35 21 Jun '06   Yes, now i believe much more. And my english is "very" bad!! Regards -- modified at 11:37 Wednesday 21st June, 2006 Sign In·View Thread·PermaLink The threat has started here : Kochise 23:18 3 Jul '06   http://www.c-plusplus.de/forum/viewtopic-var-p-is-1081745.html I'll keep an eye on you, hu hu hu... Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: The threat has started here : evil-peter 2:41 4 Jul '06   I hope, thats OK for you!! Regards Sign In·View Thread·PermaLink Re: The threat has started here : Kochise 23:09 4 Jul '06   But hey, there is no problem at all guy, I just hope my component provided the help you needed This component has no more purpose than to serves its user... Kochise In Code we trust ! Sign In·View Thread·PermaLink How to put test in another pane than 0 jongallegraud 7:13 20 Mar '06   Hi, First of all, thnak you for this big job. It allows having a very cool status bar. I d like to bring some changes to your class so that I can have both the test and the progress bar in the same pane (and not forcefully 0) like in Chris Maunder's example. I ve tried some modifications from your code and Chris's but did not figure out how to do what I wanted. Do you have some hints to give me ? Thanks in advance Jong Sign In·View Thread·PermaLink Re: How to put test in another pane than 0 Kochise 10:01 26 Mar '06   I planned to release a new version some months ago, but then I had a computer crash (nasty technology), and not yet reinstalled my dev environment. The mix of bar and text is planned though (quite easy in facts). Note That I need to reinstall my devy sooner than expected, so I'll try to finish all that stuff first, understand ASAP ! Kochise In Code we trust ! Sign In·View Thread·PermaLink what a cool progress bar ! unionize 6:45 29 Jun '05   Great work ! Sign In·View Thread·PermaLink Re: what a cool progress bar ! Kochise 12:04 5 Jul '05   Thanks alot for your feedback An update is coming (say one/two months) that correct many hidden bugs (and may correct Alan Moore's concern). Just stay tuned in some weeks... Kochise In Code we trust ! Sign In·View Thread·PermaLink Re: what a cool progress bar ! Einst 20:33 14 Jan '06   Hi Kochise! What is the license for your hard work? can i use for my commercial application? regards, Sign In·View Thread·PermaLink 2.00/5 License for CSkinProgress Kochise 3:44 24 Jan '06   http://www.codeproject.com/info/faq.asp -> Articles : Can I use code snippets and programs in my own work? To sum up : you can freely use my component into your $$$ products ! Tune it as much as you want, change the default bitmap, whatever ! Just two request : 1- Just credit this article (complete URL) in your documentation, not just me (name or nick). So maybe other coding people may find this component useful and use it in their own products. 2- If you find bugs, just tell me. Sorry to people who expected an earlier answer from me, but I had several changes in my life, and one major project I'm working on. To tell things clearly, I started to recode CSkinProgress in pure Win32, and had to code some string functions. The string functions grew bigger, then I needed to code a memory allocator. With all of this I started to code a rasterizer to output my strings... You see what it means and what it led me to ? Kochise In Code we trust ! Sign In·View Thread·PermaLink Vertical? Alan Moore 9:41 18 May '05   Hi, I'm still looking for some help to figure out why my vertical SkinProgress bar has jagged edges. I'm starting a new thread because I never got a response to my last post on the other thread. I can send you a screen capture if you like. At this point I can't use this control on my project unless I can get a smooth display so I'd really like to resolve this. Thanks, Alan Sign In·View Thread·PermaLink 2.00/5 Oups... Kochise 20:56 19 May '05   I don't check my trash/spam/scam/whatever mailbox at caramail.com. Use the email I sent you in private... Kochise In Code we trust ! Sign In·View Thread·PermaLink

Last Visit: 20:14 21 Nov '09     Last Update: 20:14 21 Nov '09 1234 Next »
