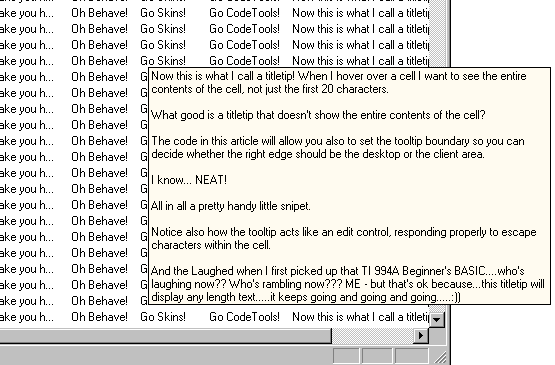

Sample Image - Multiline_Titletips.gif

A titletip is similar to a tooltip, but is used to display data in a control that is otherwise not large enough to display the full text. We are all used to seeing cell titletips that display contents that are hidden by the width of the cell. These titletips typically use a single line. If the contents are greater than the single line, they were truncated.

The code presents a titletip class that can show the complete contents of a cell regardless of its size. The titletip window will adjust itself up or down depending on the cell being displayed, and will take into account the size of the parent's client area, and that of the screen. It will do its utmost to show you that data!

This article is based on code written by Zafir Anjum, but has been extensively reworked to add a great deal of new functionality.

How to use CTitleTip

Using the class is extremely easy. Just declare an object of type CTitleTip in your main windows' header, and then create the title tip window in your dialog's OnInitDialog, or your view's OnInitialUpdate:

// dialog header file

class CTitleTipDemoDlg : public CDialog
{
	...

	CTitleTip m_TitleTip;
}

BOOL CTitleTipDemoDlg::OnInitDialog()
{
	CDialog::OnInitDialog();
	...
	m_TitleTip.Create(this);

	return TRUE;  // return TRUE  unless you set the focus to a control

}

You then need to add a mouse over handler so that when the mouse cursor moves over controls that may contain large amounts of text, you can popup a title tip to display that text. For instance, in our demo dialog we have a static control (m_staticText) that displays a lot of text. Just add an OnMouseMove handler and add the following code:

void CTitleTipDemoDlg::OnMouseMove(UINT nFlags, CPoint point)
{
	// Get the dimensions of the static control

	CRect rect;
	m_staticText.GetWindowRect(rect);
	ScreenToClient(rect);

	// If the mouse is over the control, display the titletip.

	// Note: The title tip will only be displayed if the text

	// in the static control is too large for the static control

	if (rect.PtInRect(point))
	{
		CString str;
		m_staticText.GetWindowText(str);
		m_TitleTip.Show(rect, str, 0, 80);
	}

	CDialog::OnMouseMove(nFlags, point);
}

The CTitleTip::Show function has the following syntax

void Show(CRect rectTitle,            // Bounds of the control containing the text

          LPCTSTR lpszTitleText,      // The text to display

          int xoffset = 0,            // offset to display text within title tip

          int nMaxChars = -1,         // Maximum number of characters per line to display

          LPRECT lpHoverRect = NULL,  // Once the mouse moves outside of this

                                      //   rect, the title tip will disappear

          LPLOGFONT lpLogFont = NULL) // The font in which to display the text

If nMaxChars is less than 0, then the text will only wrap where there is insufficient room to display the entire line.

if lpHoverRect is NULL then it will be set as rectTitle.

You must Sign In to use this message board.


Per page

Good Job
clxye

16:50 13 Dec '07

Thank you!
Sign In·View Thread·PermaLink

CTitleTip Class not found
123Asha

21:40 4 Sep '07

When i use the above mentioned CTitleTip class, it is said tht CTitleTip' : missing storage-class or type specifiers
Sign In·View Thread·PermaLink

To display Custom tooltiptext in taskbar
123Asha

21:37 4 Sep '07

i need to display a tooltip text in a taskbar for an application other than appication's window text... can anyone help me for that
Sign In·View Thread·PermaLink

Can this be used with app's taskbar button tooltip ???
ana_v123

14:01 11 Apr '06

How to use this control be used to replace app's taskbar button tooltip ??? For MDI Application (MFC/VC++6.0), when we place mouse cursor over taskbar button of that application, ToolTip is displayed (showing application Title). How to modify toolTip text and font (For one MDI Application and not system-wide) ? Thanks for any idea or direction. Ana Ana_v123 Ana_v123
Sign In·View Thread·PermaLink

Strage behaviour
iasen_st

4:01 23 Aug '04

try this: move the object wih the titletip to the left or the right side ot the screen. and then do what you do to show the titletip.If it's the right side, then you'll notice that the titletip is shown somewhere out of the screen If you choose the left side, the size is goin' crazy. Any ideas how to correct this? Great work though.
Sign In·View Thread·PermaLink

problem! pls help!
ns

8:53 12 Nov '03

If I dblclick in the editbox thats currently showing the tooltip in the are not occupied by the tooltip, it freezes even when we go away from that area. How shall I get this to fix itself? Thanks, ns
Sign In·View Thread·PermaLink	1.00/5

Trying to use an edit box
ns

5:22 7 Nov '03

If I add another static t ext to your sample code, it works great. But if I put an edit control, it doesnt show the tooltip (the edit ctrl I mean) Help! Thanks, ns
Sign In·View Thread·PermaLink

nice work...and bug?
HighJack

22:52 11 Feb '03

TitleTip.cpp line:148 [CTitleTip::Show(...)]
   m_rectDisplay.right = m_rectDisplay.left + size.cx /*+ xoffset*/;
Probably, "xoffset" is unnecessary.

TitleTip.cpp line:283 [CTitleTip::Show(...)]
   int nHeight = dc.DrawText(m_strTitle,&rectCalc,0 ....
Before this, SelectObject(&Font) is required.

     if (lpLogFont)
          pOldFont = dc.SelectObject( &font );
     else
          pOldFont = dc.SelectObject( m_pParentWnd->GetFont() );

     int nHeight = dc.DrawText(m_strTitle,&rectCalc,0
            | DT_CALCRECT
            | DT_LEFT
            | DT_NOCLIP
            | DT_EDITCONTROL
            | DT_NOPREFIX
            | DT_WORDBREAK
            );

     pOldFont = dc.SelectObject( pOldFont );

Thanks Chris Smile

Excellent
JohnJ

1:41 3 Jan '03

Very good - I was fiddling around trying to get a multiline tooltip to work on Tree control items - Problem solved!! Thanks Chris JohnJ Sleep(28800000); http://www.rainbow-innov.co.uk[^]
Sign In·View Thread·PermaLink

How can I use this titletip in CGridctrl.
Anonymous

19:32 3 Nov '02

How can I use this titletip in CGridctrl. Please Help..
Sign In·View Thread·PermaLink	1.00/5

Re: How can I use this titletip in CGridctrl.
Chopper

1:21 18 Dec '02

hi, a bit off-topic, but since you got no answer here i could an answer by suggesting to visit www.tooltips.net where you can download tooltips attachable to anything. Regards, Vitaly Tomilov
Sign In·View Thread·PermaLink	2.00/5

nice work
Kevin Smith

10:44 26 Aug '02

excellent! and cool, I got this working
Sign In·View Thread·PermaLink

SDI app
Kevin Smith

9:52 23 Aug '02

How can I use this so a tooltip appears when my mouse is over a column heading in my CListView? Sample code would be appreciated. Thanks
Sign In·View Thread·PermaLink	1.80/5

Can't detect double click
hierro

4:17 30 Nov '01

I used your multiline titletip, works great. But after using it, the CRect object can't detect any double click messages. Instead it'll invoke the LButtonDown function which is in place also. Any idea how to circumvent that?
Sign In·View Thread·PermaLink

Re: Can't detect double click
Roger Allen

7:25 16 Apr '02

You can handle the double click like this in the OnLButtonDown()

 	static bool double_wait = false ; // must be static due to 	re-entrant function
	static bool handled = false ; // must be static due to re-entrant function
	MSG		msg ;
	if (double_wait)
		{
		// this is a double click
		// do double click code here
		TRACE("Double click\n") ;
		handled = true ;
		return ;
		}
	else
		handled = false ;
	double_wait = true ;
	UINT	time = GetDoubleClickTime() ;
	UINT	slice = time / 10 ;

	for (int i = 0 ; i < 10 && !handled ; i++)
		{
		// break up the sleep into chuncks to give better response
		if (i == 9)
			Sleep(slice + time % 10) ;
		else
			Sleep(slice) ;		// dispatch any messages that have come in, including any clicks on this button again.
		while (::PeekMessage(&msg, NULL, 0, 0, PM_NOYIELD | PM_REMOVE))
			{
			::TranslateMessage(&msg) ;
			::DispatchMessage(&msg) ;
			}
		}
	// time ran out,
	if (!handled)
		{
		// this is a single click
		// do single click code here
		TRACE("Single click\n") ;
		}
	double_wait = false ;

Roger Allen
Sonork 100.10016

yet to be identified being from the planet Paltinmoriumbanfrettybooter

An easier way...
R

6:48 5 Aug '02

There is an easier way...

1. Add CS_DBLCLKS to the WNDCLASS style so that the TitleTip receives double-click messages:

In CTitleTip::CTitletip()
wndcls.style = CS_SAVEBITS; changes to: wndcls.style = CS_SAVEBITS | CS_DBLCLKS;

2. Add WM_LBUTTONDBLCLK to the messages recognised by the PreTranslateMessage:

In CTitleTip::PreTranslateMessage(MSG* pMsg)

   switch (pMsg->message)
   {
   case WM_LBUTTONDOWN:
   case WM_RBUTTONDOWN:
   case WM_MBUTTONDOWN:

changes to:

   switch (pMsg->message)
   {
   case WM_LBUTTONDOWN:
   case WM_RBUTTONDOWN:
   case WM_MBUTTONDOWN:
   case WM_LBUTTONDBLCLK:

and

   switch (pMsg->message)
   {
   case WM_LBUTTONDOWN:
      pMsg->message = WM_NCLBUTTONDOWN;
      break;
   case WM_RBUTTONDOWN:
      pMsg->message = WM_NCRBUTTONDOWN;
      break;
   case WM_MBUTTONDOWN:
      pMsg->message = WM_NCMBUTTONDOWN;
      break;
   }

changes to:

   switch (pMsg->message)
   {
   case WM_LBUTTONDOWN:
      pMsg->message = WM_NCLBUTTONDOWN;
      break;
   case WM_RBUTTONDOWN:
      pMsg->message = WM_NCRBUTTONDOWN;
      break;
   case WM_MBUTTONDOWN:
      pMsg->message = WM_NCMBUTTONDOWN;
      break;
   case WM_LBUTTONDBLCLK:
      pMsg->message = WM_NCLBUTTONDBLCLK;
   }

3. Handle the WM_LBUTTONDBLCLK message as normal in the titletip's parent.

Doing it this way keeps it nice and neat, and handles the double-click in the same way as the single click. I believe this method will also work for other messages (e.g. Keydown's).
