CPPToolTip v2.1

• Download source files - 84 Kb
• Download demo project - 360 Kb

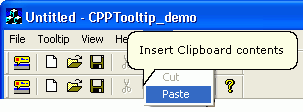

Placing an anchor on any edge	Tooltip for the menu item

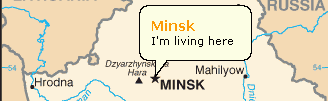

Tooltip for the toolbar item	Tooltip for the map item
Titletip for the different controls	Tooltip with hyperlinks and hot areas

Contents

• Features
• How to integrate CPPToolTip in your application
  • Create a CPPToolTip object
  • Using with a toolbar
  • Using with a menu
• Class Members
• PPTOOLTIP_INFO Structure
• History
• Thanks to ...
• Known Problems
• Planned Enhancements
• Contact Author

Features

• Standard and balloon tooltip
• Built-in HTML-lite language for a tooltip
• Built-in support for CSS styles
• Built-in support for menus and toolbars
• Support for any size icons (max. 256 colors)
• Support for bitmaps
• Support for ImageList
• Load icons, bitmaps and strings from resources, DLLs or files
• Support Fade-in and Fade-out effects
• Support for gradient shadow for tooltip and images
• Support for applies miscellaneous effects over the any images (lighten, darken, grayed)
• Support for hyperlinks
• Support for hot areas
• Support for tables
• Support for CScrollView
• Extended <br> and <t> tags
• Extended resource strings for the menu and toolbars items
• Every size can be customized
• Change runtime a tooltip's text

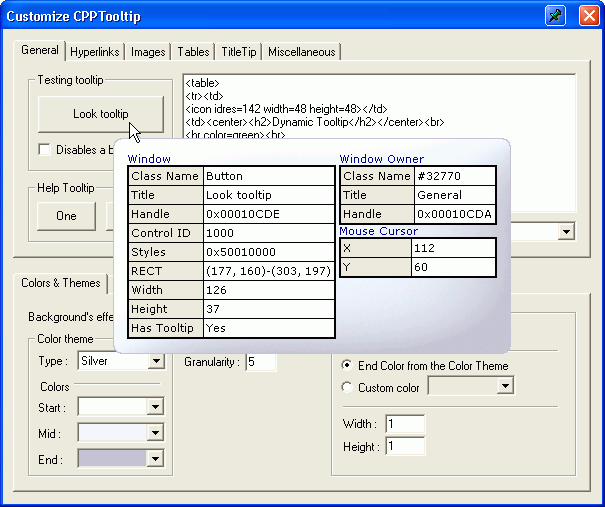

• Implemented a Debug Mode (an idea from www.tooltips.net site with Vitaly Tomilov's permission)
• Support for an animation - NEW in v2.1
• Support a text wrapping - NEW in v2.1
• Full source code included!

How to integrate CPPToolTip in your application

To integrate PPToolTip control in your application you should add next files to your project:

Files	Description
PPTooltip.h PPTooltip.cpp	CPPTooltip class
PPHtmlDrawer.h PPHtmlDrawer.cpp	CPPHtmlDrawer class. It's need to drawing HTML string in tooltip body
PPDrawManager.h PPDrawManager.cpp	CPPDrawManager class is a set of methods to work with graphics.
CeXDib.h CeXDib.cpp	CCeXDib class thanks to Davide Pizzolato and Davide Calabro. This class use for extend background's effect.

Extend background effects by Davide Pizzolato and Davide Calabro become available if defined USE_SHADE:

in PPDrawManager.h
#define USE_SHADE

Create a CPPToolTip object

Include PPTooltip.h in the header file where you want to use the CPPToolTip window and create a member variable for the window:

CPPToolTip m_tooltip;

Now create the window. For dialog-based applications, in your OnInitDialog:

// Call the base-class method

CDialog::OnInitDialog();

// Create the CPPToolTip object

m_tooltip.Create(this);

Now call AddTool function to register a tool with the tool tip control, so that the information stored in the tool tip is displayed when the cursor is on the tool:

m_tooltip.AddTool(GetDlgItem(IDC_BUTTON1), _T(
 "Tooltip to the control IDC_BUTTON1"));

or for rectangle area

m_tooltip.AddTool(this, _T("Tooltip for rectangle area"),
 CRect (100, 100, 200, 200));

Now you must add RelayEvent function call to pass a mouse message to a tooltip control for processing.

BOOL ... ::PreTranslateMessage(MSG* pMsg)
{
    m_tooltip.RelayEvent(pMsg);
}



Using a tooltip with a toolbar

1. Create CPPToolTip object in the header CMainFrame

CPPToolTip m_tooltip;

2. In CMainFrame::OnCreate() call a AddToolBar method.

int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
    ...
    m_tooltip.Create(this);
    //Adds tooltip for toolbar

    m_tooltip.AddToolBar(&m_wndToolBar);
    return 0;
}

3. Add RelayEvent function call to pass a mouse message to a tooltip control for processing.

BOOL CMainFrame::PreTranslateMessage(MSG* pMsg)
{
    m_tooltip.RelayEvent(pMsg);
}

Extended string from resources

Notice, that the text for tooltips are automatically loaded from resources.
The string format was expanded with the third parameter, used for disabled items of the the menu and the toolbar.

Format string in resource: Parameter1\nParameter2\nParameter3

,where :

• Parameter1 - text for the normal menu items and status bar
• Parameter2 - text for the normal toolbar items
• Parameter3 - text for the disabled menu and toolbars items

Using a tooltip with a menu

1. Create CPPToolTip object in the header CMainFrame

CPPToolTip m_tooltip;

2. In CMainFrame::OnCreate() call a Create method.

m_tooltip.Create(this);

3. Uncomments a line to enable a work with menus.

in PPTooltip.h
#define PPTOOLTIP_USE_MENU

4. Adds two handlers to CMainFrame.

void CMainFrame::OnMenuSelect(UINT nItemID, UINT nFlags, HMENU hSubMenu)
{
     m_tooltip.OnMenuSelect(nItemID, nFlags, hSubMenu);
     CFrameWnd::OnMenuSelect(nItemID, nFlags, hSubMenu);
}


void CMainFrame::OnEnterIdle(UINT nWhy, CWnd* pWho)
{
     m_tooltip.OnEnterIdle(nWhy, pWho);
}

5. Add RelayEvent function call to pass a mouse message to a tooltip control for processing.

BOOL CMainFrame::PreTranslateMessage(MSG* pMsg)
{
    m_tooltip.RelayEvent(pMsg);
}



Class Members

Construction
CPPToolTip	Constructs a CPPToolTip object.
Create	Creates a tooltip control and attaches it to a CPPToolTip object.
Behaviour
SetBehaviour	Sets the behaviour's tooltip
GetBehaviour	Gets the behaviour's tooltip
Background
SetColorBk	Specifies the color to use for the control.
SetEffectBk	Sets the control colors to the default colors.
Tools
AddTool	Adds the info of the tool.
AddToolBar	Adds a toolbar to the tooltip control.
RemoveTool	Removes specified tool.
RemoveAllTools	Removes all tools.
ShowHelpTooltip	Show the tooltip as help window
HideTooltip	Hide the tooltip
CImageList
SetImageList	Sets the image list to tooltip.
Border
SetBorder	Sets the color and the width of the tooltip's border.
HideBorder	Hides a border of the tooltip.
Notification
SetNotify	Enable notification about changing the data or the view.
GetNotify	Is enabled notification about changing the data or the view..
CSS Styles
SetCssStyles	Sets the CSS styles of the HTML text
GetCssStyles	Retrieves information about the CSS styles of the HTML text
Delays
SetDelayTime	Sets the delay time for a tooltip control.
GetDelayTime	Retrieves the initial, pop-up, and reshow durations currently set for a CPPToolTip control

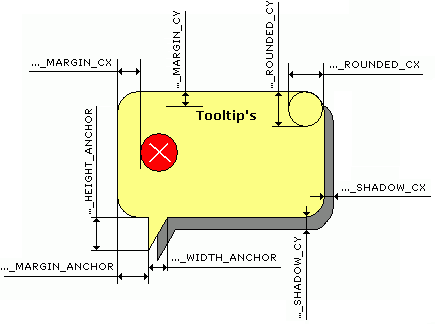

Sizes
SetDefaultSizes	Sets all sizes as default.
SetSize	Sets the tooltip's sizes.
GetSize	Retrieves the size of the specified value.
Direction
SetDirection	Sets a placement of the tooltip's anchor.
GetDirection	Retrives a placement of the tooltip's anchor.
Others
SetDebugMode	Sets a debug mode for a tooltip control.
EnableEscapeSequences	Enables or disables an escape sequences in the HTML string.
SetTransparency	Sets a transparency of the tooltip.
GetTransparency	Gets a transparency of the tooltip.
SetTooltipShadow	Sets a tooltip's shadow.
SetImageShadow	Sets a image's shadow.
SetMaxTipWidth	Sets the maximum width for a tooltip window.
SetImageShadow	Sets a image's shadow.
Hyperlinks
EnableHyperlink	Associates name of resource with his ID.
SetCallbackHyperlink	Search index of array by with specified name or ID resource.
Menus (availables if PPTOOLTIP_USE_MENU defined only)
MenuToolPosition	Sets a position of the tooltip's anchor about menu item.
GetMenuToolPosition	Gets a position of the tooltip's anchor about menu item..
Operations
RelayEvent	Passes a mouse message to a tooltip control for processing.
Version
GetVersionI	Get CPPToolTip version
GetVersionC	Get CPPToolTip version



CPPToolTip::CPPToolTip

CPPToolTip ();

Remarks
Constructs a CPPToolTip object. You must call Create after that.

CPPToolTip Overview | Class Members



CPPToolTip::Create

BOOL Create (CWnd* pParentWnd, BOOL bBalloonSize = TRUE);

Parameters

• pParentWnd - Points to the parent window of the tooltip control, usually a CDialog. It must not be NULL.
• bBalloonSize - If TRUE CPPToolTip object will be sets to balloon size, otherwise to standard size.

Return Value

Nonzero if the CPPToolTip object is successfully created; otherwise 0.

Remarks
You construct a CPPToolTip in two steps. First call the constructor to construct the CPPToolTip object; then call Create to create the tool tip control and attach it to the CPPToolTip object.

CPPToolTip Overview | Class Members

CPPToolTip::SetBehaviour

void SetBehaviour(DWORD dwBehaviour = 0)

Parameters

• dwBehaviour - The behaviour of the tooltip. This parameter can be one of the following values:
  • PPTOOLTIP_MULTIPLE_SHOW - This option sets multiple show of the tooltip for specified tool or all tools of tooltip object. With this option the tooltip will be shown for each stop of the mouse pointer.
  • PPTOOLTIP_CLOSE_LEAVEWND - If set this flag then tooltip will be hide when mouse pointer to leave the control.
  • PPTOOLTIP_NOCLOSE_OVER - If set this flag then tooltip will not hide if the mouse pointer over the tooltip
  • PPTOOLTIP_DISABLE_AUTOPOP - a tooltip with this flag will not hide from the autopop timer. This flag automatically adding for Help tooltip (see ShowHelpTooltip)

Remarks

Calls the function to set the tooltip's behaviour.

CPPToolTip Overview | Class Members

CPPToolTip::GetBehaviour

DWORD GetBehaviour()

Return value

The behavior of the tooltip. See the SetBehaviour function for the list of the available flags

Remarks

Retrieves the behavior of the tooltip.

CPPToolTip Overview | Class Members

CPPToolTip::SetColorBk

void SetColorBk(COLORREF color)
void SetColorBk(COLORREF crBegin, COLORREF crEnd)
void SetColorBk(COLORREF crBegin, COLORREF crMid, COLORREF crEnd)

Parameters

• color - A COLORREF value that contains RGB information for the solid background
• crBegin - A COLORREF value that contains RGB information for the first color.
• crMid - A COLORREF value that contains RGB information for the middle color.
  Used with a following effects:


  CPPDrawManager::EFFECT_HGRADIENT CPPDrawManager::EFFECT_VGRADIENT CPPDrawManager::EFFECT_HCGRADIENT CPPDrawManager::EFFECT_VCGRADIENT CPPDrawManager::EFFECT_3HGRADIENT CPPDrawManager::EFFECT_3VGRADIENT CPPDrawManager::EFFECT_NOISE CPPDrawManager::EFFECT_DIAGSHADE CPPDrawManager::EFFECT_HSHADE CPPDrawManager::EFFECT_VSHADE CPPDrawManager::EFFECT_HBUMP CPPDrawManager::EFFECT_VBUMP CPPDrawManager::EFFECT_SOFTBUMP CPPDrawManager::EFFECT_HARDBUMP CPPDrawManager::EFFECT_METAL

• crEnd - A COLORREF value that contains RGB information for the end color.

Remarks

Function sets the colors for gradient filling of background.

CPPToolTip Overview | Class Members

CPPToolTip::SetEffectBk

void SetEffectBk(UINT nEffect, BYTE nGranularity = 5)

Parameters

• nEffect - This value sets the effect of the background bitmap. Can be one of the following values:


  CPPDrawManager::EFFECT_SOLID CPPDrawManager::EFFECT_HGRADIENT CPPDrawManager::EFFECT_VGRADIENT CPPDrawManager::EFFECT_HCGRADIENT CPPDrawManager::EFFECT_VCGRADIENT CPPDrawManager::EFFECT_3HGRADIENT CPPDrawManager::EFFECT_3VGRADIENT CPPDrawManager::EFFECT_NOISE CPPDrawManager::EFFECT_DIAGSHADE CPPDrawManager::EFFECT_HSHADE CPPDrawManager::EFFECT_VSHADE CPPDrawManager::EFFECT_HBUMP CPPDrawManager::EFFECT_VBUMP CPPDrawManager::EFFECT_SOFTBUMP CPPDrawManager::EFFECT_HARDBUMP CPPDrawManager::EFFECT_METAL

• nGranularity - this parameter add an uniform noise to the background bitmap. A good value is from 5 to 20; 0 to disable the effect. The noise has a positive effect because it hides the palette steps. This parameter has no effect if the nEffect value is from CPPDrawManager::EFFECT_SOLID to CPPDrawManager::EFFECT_3VGRADIENT.

Remarks

Sets an effect for the background bitmap. Note that effect value from CPPDrawManager::EFFECT_NOISE to CPPDrawManager::EFFECT_METAL is available when

#define USE_SHADE //in PPDrawManager.h

only.

CPPToolTip Overview | Class Members

CPPToolTip::AddTool

void AddTool(CWnd * pWnd, DWORD dwIdString, LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);
void AddTool(CWnd * pWnd, LPCTSTR lpszString = NULL, LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);
void AddTool(CWnd * pWnd, PPTOOLTIP_INFO & ti);
To be compatible with old version of CPPToolTip ...
void AddTool(CWnd * pWnd, DWORD dwIdString, HICON hIcon, LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);
void AddTool(CWnd * pWnd, DWORD dwIdString, DWORD dwIdIcon, CSize & szIcon = CSize(0, 0), LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);
void AddTool(CWnd * pWnd, LPCTSTR lpszString, HICON hIcon, LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);
void AddTool(CWnd * pWnd, LPCTSTR lpszString, DWORD dwIdIcon, CSize & szIcon = CSize(0, 0), LPCRECT lpRectBounds = NULL, DWORD dwIDTool = 0);

Parameters

• pWnd - Pointer to the window that contains the tool.
• lpszString - Pointer to the text for the tool.
• dwIdString - ID of string resource
• hIcon - Handle of the icon
• dwIdIcon - ID of icon resource
• szIcon - Specifies the width and the height, in pixels, of the icon to load.
• lpRectBounds - Pointer to a RECT structure containing coordinates of the tool's bounding rectangle.
  The coordinates are relative to the upper-left corner of the client area of the window identified by pWnd.
  NULL if bounding rectangle don't uses for specified window
• dwIdTool - ID of the tool
• ti - Reference to PPTOOLTIP_INFO structure containing the parameters of the tooltip

Remarks

A tooltip control can be associated with more than one tool. Call this function to register a tool with the tooltip control, so that the information stored in the tooltip is displayed when the cursor is on the tool.

CPPToolTip Overview | Class Members

CPPToolTip::AddToolBar

void RemoveTool(CToolBar * pBar)

Parameters

• pBar - Pointer to the toolbar window.

Remarks

Call this function to register a toolbar in the collection of toolbars supported by a tooltip control. This method automatically remove CBRS_TOOLTIPS style from toolbar's style to disable standard tooltip.

CPPToolTip Overview | Class Members

CPPToolTip::RemoveTool

void RemoveTool(CWnd * pWnd, LPCRECT lpRectBounds = NULL)

Parameters

• pWnd - Pointer to the window that contains the tool.
• lpRectBounds - Pointer to a RECT structure containing coordinates of the tool's bounding rectangle.
  The coordinates are relative to the upper-left corner of the client area of the window identified by pWnd.
  NULL if bounding rectangle don't uses for specified window.

Remarks

Call this function to removes the tool specified by pWnd and lpRectBounds from the collection of tools supported by a tooltip control.

CPPToolTip Overview | Class Members

CPPToolTip::RemoveAllTools

void RemoveAllTools()

Remarks

Call this function to remove all tools from the collection of tools supported by a tooltip control.

CPPToolTip Overview | Class Members

CPPToolTip::ShowHelpTooltip

void ShowHelpTooltip (LPPOINT pt, DWORD dwIdText, HICON hIcon = NULL);
void ShowHelpTooltip (LPPOINT pt, DWORD dwIdText, DWORD dwIdIcon, CSize & szIcon = CSize(0, 0));
void ShowHelpTooltip (LPPOINT pt, LPCTSTR lpszString, HICON hIcon = NULL);
void ShowHelpTooltip (LPPOINT pt, LPCTSTR lpszString, DWORD dwIdIcon, CSize & szIcon = CSize(0, 0));
void ShowHelpTooltip (LPPOINT pt, PPTOOLTIP_INFO & ti);

Parameters

• pt - Pointer to a POINT structure that receives the screen coordinates of the tooltip's anchor
• lpszString - Pointer to the text for the help tooltip.
• dwIdString - ID of string resource
• hIcon - Handle of the icon
• dwIdIcon - ID of icon resource
• szIcon - Specifies the width and the height, in pixels, of the icon to load.
• ti - Reference to PPTOOLTIP_INFO structure containing the parameters of the tooltip

Remarks

Shows the help tooltip in any place of screen.

CPPToolTip Overview | Class Members

CPPToolTip::HideTooltip

void HideTooltip ();

Remarks

Hides the tooltip.

CPPToolTip Overview | Class Members

CPPToolTip::SetImageList

void SetImageList(UINT nIdBitmap, int cx, int cy, int nCount, COLORREF crMask /* = RGB(255, 0, 255) */)
void SetImageList(HBITMAP hBitmap, int cx, int cy, int nCount, COLORREF crMask /* = RGB(255, 0, 255) */)

Parameters

• nIdBitmap - Resource IDs of the bitmap to be associated with the image list
• hBitmap - Handle of the bitmap to be associated with the image list
• cx - Dimensions of each image, in pixels.
• cy - Dimensions of each image, in pixels.
• nCount - Number of images that the image list initially contains.
• crMask - Color used to generate a mask. Each pixel of this color in the specified bitmap is changed to black, and the corresponding bit in the mask is set to one.

Remarks

This function sets the image list to tooltip. After this function in body of the tooltip string you can to use the <ilst> tag which will be draw the image from image list in specified place.

CPPToolTip Overview | Class Members



CPPToolTip::SetBorder

void SetBorder(COLORREF color, int nWidth = 1, int nHeight = 1);
void SetBorder(HBRUSH hbr, int nWidth = 1, int nHeight = 1);

Parameters

• color - A COLORREF value that contains RGB information to create a solid brush to be used to draw the border.
• hbr - Brush handle that identifies the brush to be used to draw the border.
• nWidth - Specifies the width of the border in vertical brush strokes in device units.
• nHeight - Specifies the height of the border in horizontal brush strokes in device units.

Remarks

Call this member function to draws a border around the tooltip's region by using the specified brush.

CPPToolTip Overview | Class Members

CPPToolTip::HideBorder

void HideBorder()

Remarks

The function hides the border around the tooltip's region.

CPPToolTip Overview | Class Members

CPPToolTip::SetTooltipShadow

void SetTooltipShadow(int nOffsetX, int nOffsetY, BYTE nDarkenPercent /* = 50 */, BOOL bGradient /* = TRUE */, int nDepthX /* = 7 */, int nDepthY /* = 7 */)

CPPToolTip::SetImageShadow

void SetImageShadow(int nOffsetX, int nOffsetY, BYTE nDarkenPercent /* = 50 */, BOOL bGradient /* = TRUE */, int nDepthX /* = 7 */, int nDepthY /* = 7 */)

Parameters

• nOffsetX, nOffsetY - The offsets of the shadow from the object.
• nDarkenPercent - So far as colors under the shadow will be darken (0 - 100). For gradient shadow the best value is a 50 percent, for original - 25.
• bGradient - TRUE to use a gradient shadow.
• nDepthX, nDepthY - The gradient depths of the gradient shadow. For better result use odd value (3, 5, 7 ...).

Remarks

This function sets the shadow to the tooltip or the images on him.

CPPToolTip Overview | Class Members

CPPToolTip::SetNotify

void SetNotify(BOOL bParentNotify = TRUE)
void SetNotify(HWND hWnd)

Parameters

• bParentNotify - If TRUE the control will send the notification to parent window. Otherwise the notification will not send.
• hWnd - If non-NULL the control will send the notification to specified window. Otherwise the notification will not send.

Remarks

This function enables or disables the ability to send notification messages to destination window from the control. If user enabled notify message passing from tooltip to owner class then tooltip object sends the UDM_TOOLTIP_DISPLAY notification before displaying. In a handler of this notify owner class can change any parameters of tooltip displaying. With UDM_TOOLTIP_DISPLAY notification NM_PPTOOLTIP_DISPLAY structure is transferred, contained all necessary information.

Structure NM_PPTOOLTIP_DISPLAY looks as follows:

typedef struct tagNM_PPTOOLTIP_DISPLAY
{
    NMHDR hdr;
	   HWND hwndTool;       //HWND of the window to display a tooltip

    LPPOINT pt;          //The current screen coordinates of

                          //the tooltip's anchor

    PPTOOLTIP_INFO * ti; //The pointer to the PPTOOLTIP_INFO

                          //structure which contains parameters for

                          //displaying tooltip

} NM_PPTOOLTIP_DISPLAY;

Owner object should process notification messages to have the ability to change tooltip appearance and placement by changing approppriate members of this structure.

Here example:

Add next lines to header and implementation files accordingly.

afx_msg void NotifyDisplayTooltip(NMHDR * pNMHDR, LRESULT * result);

ON_NOTIFY (UDM_TOOLTIP_DISPLAY, NULL, NotifyDisplayTooltip)

and

void CParentDlg::NotifyDisplayTooltip(NMHDR * pNMHDR,
 LRESULT * result)
{
    *result = 0;
	NM_PPTOOLTIP_DISPLAY * pNotify =
     (NM_PPTOOLTIP_DISPLAY*)pNMHDR;

     switch (CWnd::FromHandle(pNotify->hwndTool)
      ->GetDlgCtrlID())
	{
    case IDC_BUTTON1:
        //Changes the tooltip's text

        pNotify->ti->sTooltip = _T("Dynamically
            changed text for BUTTON1");
        break;
    case IDC_BUTTON2:
        //Changes background color of the tooltip as RED

        pNotify->ti->crBegin = RGB (255, 0, 0);
        break;
    }
}

CPPToolTip Overview | Class Members

CPPToolTip::GetNotify

BOOL GetNotify()

Return value

TRUE if the control notified the specified window.

Remarks

This function determines if  notification messages are passed to destination window from the control or not.

CPPToolTip Overview | Class Members

CPPToolTip::SetCssStyles

void SetCssStyles(LPCTSTR lpszCssString /* = NULL */);

Parameters

• lpszCssString - Pointer to the string with CSS styles or NULL if sets the default CSS styles (like Codeproject).

Remarks
Call this method to customize the CSS styles used on HTML page. For more information look the description on CPPHtmlDrawer class.

CPPToolTip Overview | Class Members



CPPToolTip::GetCssStyles

LPCTSTR GetCssStyles();

Return Value

A const pointer to the string that contains the CSS styles.

Remarks
Call this method to retrive the CSS styles used on HTML page. For more information look the description on CPPHtmlDrawer class.

CPPToolTip Overview | Class Members

CPPToolTip::SetDelayTime

void SetDelayTime(DWORD dwDuration, DWORD dwTime)

Parameters

• dwDuration - Flag that specifies which duration value will be retrieved. This parameter can be one of the following values:


  	PPTOOLTIP_TIME_AUTOPOP	Retrieve the length of time the tooltip window remains visible if the pointer is stationary within a tool's bounding rectangle.
  	PPTOOLTIP_TIME_INITIAL	Retrieve the length of time the pointer must remain stationary within a tool's bounding rectangle before the tool tip window appears.
  	PPTOOLTIP_TIME_FADEIN	Retrieve the length of time for each step of fade-in effect.
  	PPTOOLTIP_TIME_FADEOUT	Retrieve the length of time for each step of fade-out effect.
  	PPTOOLTIP_TIME_ANIMATION	Retrieve the length of time for each step of animation.
  	For compatibility with 1.x versions of CPPToolTip a following values are available also:
  	TTDT_AUTOPOP	Same PPTOOLTIP_TIME_AUTOPOP
  	TTDT_INITIAL	Same PPTOOLTIP_TIME_INITIAL


  dwTime - The specified delay time, in milliseconds.

Remarks

Call this function to set the delay time for a tooltip control. The delay time is the length of time the cursor must remain on a tool before the tooltip window appears. The default delay time is 500 milliseconds.

CPPToolTip Overview | Class Members

CPPToolTip::GetDelayTime

DWORD GetDelayTime(DWORD dwDuration) const

Return Value

The specified delay time, in milliseconds

Parameters

• dwDuration - Flag that specifies which duration value will be retrieved. See CPPToolTip::SetDelayTime for a description of the valid values.

Remarks

Retrieves the initial, pop-up, and reshow durations currently set for a CPPToolTip control

CPPToolTip Overview | Class Members

CPPToolTip::SetDefaultSizes

void SetDefaultSizes(BOOL bBalloonSize = TRUE)

Parameter

• bBalloonSize - If TRUE CPPToolTip object will be sets to balloon size, otherwise to standard size.

Remarks

This function sets all sizes as default.

CPPToolTip Overview | Class Members

CPPToolTip::SetSize

void SetSize(DWORD dwSizeIndex, DWORD dwValue)

Parameters

• dwSizeIndex - Index of the size. This parameter can be one of the following values:


  	PPTTSZ_ROUNDED_CX PPTTSZ_ROUNDED_CY	The width and the height of the ellipse used to draw the rounded corners.
  	PPTTSZ_MARGIN_CX PPTTSZ_MARGIN_CY	The left, right and top, bottom margins of the tooltip's text from the tooltip's edges.
  	PPTTSZ_WIDTH_ANCHOR	The width of the tooltip's anchor.
  	PPTTSZ_HEIGHT_ANCHOR	The height of the tooltip's anchor.
  	PPTTSZ_MARGIN_ANCHOR	The margin of the tooltip's anchor from his edge.
  	PPTTSZ_OFFSET_ANCHOR_CX PPTTSZ_OFFSET_ANCHOR_CY	The horizontal and vertical offset of the tooltip's anchor from the hot spot of a cursor

• dwValue - The size in pixels.

Remarks

Call this member function to set the tooltip's sizes. For addition information see following picture:

CPPToolTip Overview | Class Members

CPPToolTip::GetSize

DWORD GetSize(DWORD nSizeIndex)

Return value

The size of the specified value.

Parameters

• dwSizeIndex - Index of the size. See CPPToolTip::SetSize for a description of the valid values.

Remarks

This method returns the size of the specified value. See CPPToolTip::SetSize for addition information.

CPPToolTip Overview | Class Members

CPPToolTip::SetDirection

void SetDirection(DWORD dwDirection = PPTOOLTIP_BOTTOMEDGE_LEFT)

Parameters

• dwDirection - mouse-pointer relative placement direction of the tooltip. This parameter can be one of the following values:


  	PPTOOLTIP_TOPEDGE_LEFT	A left corner of the top edge
  	PPTOOLTIP_TOPEDGE_RIGHT	A right corner of the top edge.
  	PPTOOLTIP_TOPEDGE_CENTER	By center of the top edge.
  	PPTOOLTIP_BOTTOMEDGE_LEFT	A left corner of the bottom edge
  	PPTOOLTIP_BOTTOMEDGE_RIGHT	A right corner of the bottom edge.
  	PPTOOLTIP_BOTTOMEDGE_CENTER	By center of the bottom edge.
  	PPTOOLTIP_LEFTEDGE_TOP	A top corner of the left edge
  	PPTOOLTIP_LEFTEDGE_BOTTOM	A bottom corner of the left edge.
  	PPTOOLTIP_LEFTEDGE_VCENTER	By center of the left edge.
  	PPTOOLTIP_RIGHTEDGE_TOP	A top corner of the right edge
  	PPTOOLTIP_RIGHTEDGE_BOTTOM	A bottom corner of the right edge.
  	PPTOOLTIP_RIGHTEDGE_VCENTER	By center of the right edge.
  	For compatibility with 1.x versions of CPPToolTip a following values are available also:
  	PPTOOLTIP_LEFT_TOP	Same PPTOOLTIP_TOPEDGE_LEFT.
  	PPTOOLTIP_RIGHT_TOP	Same PPTOOLTIP_TOPEDGE_RIGHT.
  	PPTOOLTIP_LEFT_BOTTOM	Same PPTOOLTIP_BOTTOMEDGE_LEFT.
  	PPTOOLTIP_RIGHT_BOTTOM	Same PPTOOLTIP_BOTTOMEDGE_RIGHT.

Remarks

Sets a placement of the tooltip's anchor. For additional information above on this page.

CPPToolTip Overview | Class Members

CPPToolTip::GetDirection

DWORD GetDirection()

Return value

A placement of the tooltip's anchor. See CPPToolTip::SetDirection for a description of the valid values.

Remarks

Gets a placement of the tooltip's anchor.

CPPToolTip Overview | Class Members

CPPToolTip::SetTransparency

void SetTransparency(BYTE nTransparency = 0)

Parameters

• nTransparency - A transparency value to be used on the tooltip. The default 0 assumes that your tooltip is opaque and 0xFF (255) for full transparency of the tooltip.

Remarks

Sets a transparency of the tooltip.

CPPToolTip Overview | Class Members

CPPToolTip::GetTransparency

BYTE GetTransparency()

Return value

A transparency value to be used on the tooltip.

CPPToolTip Overview | Class Members

CPPToolTip::SetDebugMode

void SetDebugMode(BOOL bDebug /*= TRUE*/)

Parameters

• bDebug - Enables or disables a debug mode for the tooltip.

Remarks

Call this function to set a debug mode for a tooltip. In this mode tooltip will be displaying for any control of the parent window even if tool for this window not availabled in the tool's collection of the tooltip. Tooltip in a debug mode is a information about window under the mouse (owner, title, bounding rectangle, ID etc.).

CPPToolTip Overview | Class Members



CPPToolTip::MenuToolPosition

void MenuToolPosition(DWORD nPos /*= PPTOOLTIP_MENU_LEFT | PPTOOLTIP_MENU_TOP*/)

Parameters

• nPos - A tooltip's position. This parameter can be any combination of single horizontal value and single vertical value of CPPToolTip:


  	Horizontal position
  	PPTOOLTIP_MENU_LEFT
  	PPTOOLTIP_MENU_RIGHT
  	PPTOOLTIP_MENU_CENTER
  	Vertical position
  	PPTOOLTIP_MENU_TOP
  	PPTOOLTIP_MENU_BOTTOM
  	PPTOOLTIP_MENU_VCENTER

Remarks

Sets a position of the tooltip's anchor about menu item.

CPPToolTip Overview | Class Members



CPPToolTip::EnableEscapeSequences

void EnableEscapeSequences(BOOL bEnable)

Parameters

• bEnable - nables the escape sequences. If the escape sequences was disabled HTML-lite compiler will ignore the codes less then 0x20 (such \n, \r, \t).

Remarks

Call this function to enable or disable escape sequences in the HTML string.

CPPToolTip Overview | Class Members



CPPToolTip::SetMaxTipWidth

void SetMaxTipWidth(int nWidth);

Parameters

• nWidth - The maximum tool tip window width to be set.

Remarks

Sets the maximum width for a tool tip window.

CPPToolTip Overview | Class Members



CPPToolTip::RelayEvent

void RelayEvent(MSG* pMsg)

Parameters

• pMsg - Pointer to a MSG structure that contains the message to relay.

Remarks

Call this function to pass a mouse message to a tooltip control for processing. A tooltip control processes only the following messages, which are sent to it by RelayEvent:

WM_LBUTTONDOWN	WM_MOUSEMOVE
WM_LBUTTONUP	WM_RBUTTONDOWN
WM_MBUTTONDOWN	WM_RBUTTONUP
WM_MBUTTONUP

CPPToolTip Overview | Class Members



CPPToolTip::GetVersionI()

short GetVersionI()

Return Value

Number version of CPPToolTip.

Remarks

Returns the CPPToolTip version as a short number. Divide by 10 to get actual version.

CPPToolTip Overview | Class Members



CPPToolTip::GetVersionC()

LPCTSTR GetVersionC()

Return Value

Number version of CPPToolTip as string.

Remarks

Returns the CPPToolTip version as a string.

CPPToolTip Overview | Class Members



PPTOOLTIP_INFO Structure

struct PPTOOLTIP_INFO
{
    UINT nIDTool;
    CRect rectBounds;
    CString sTooltip;
    UINT nMask;
    UINT nStyles;
    UINT nDirection;
    UINT nEffect;
    UINT nBehaviour;
    BYTE nGranularity;
    BYTE nTransparency;
    COLORREF crBegin;
    COLORREF crMid;
    COLORREF crEnd;
} PPTOOLTIP_INFO;

	nIDTool	ID of the tool
	rectBounds	Pointer to a RECT structure containing coordinates of the tool's bounding rectangle. The coordinates are relative to the upper-left corner of the client area of the window identified by pWnd. NULL if bounding rectangle don't uses for specified window
	sTooltip	String containing the text for the tool
	nMask	Mask of parameters not by default. This parameter can be any combination of following values: PPTOOLTIP_MASK_STYLES PPTOOLTIP_MASK_EFFECT PPTOOLTIP_MASK_COLORS PPTOOLTIP_MASK_DIRECTION PPTOOLTIP_MASK_BEHAVIOUR PPTOOLTIP_MASK_TRANSPARENCY
	nStyles
	nDirection	This value sets a placement of the tooltip's anchor. See CPPToolTip::SetDirection for a description of the valid values.
	nEffect	This value sets an effect of the background bitmap. See CPPToolTip::SetEffectBk for a description of the valid values.
	nBehaviour	This value sets a behavior of the tooltip. See the CPPToolTip::SetBehaviour function for the list of the available flags .
	nGranularity	This parameter add an uniform noise to the background bitmap. See CPPToolTip::SetEffectBk for a description of the valid values.
	nTransparency
	crBegin, crMid, crEnd	The values sets the colors for gradient filling of background. See CPPToolTip::SetColorBk for a description of the valid values.

History

14 Feb 2003	First release
17 Feb 2003	Released version 1.1 - Added new styles PPTOOLTIP_SHOW_DISABLED and PPTOOLTIP_SHOW_INACTIVE - Added new feature to Create() and SetDefaultSizes() methods for set the type of the tooltip's size. - Fixed bug with 0 TTDT_AUTOPOP value. - Fixed bug shows the tooltip after switch application on Alt+Tab
19 Feb 2003	Released version 1.2 - Added support the tooltip for rectangles - Added new FindTool, IsExistTool and SetAtTool methods. - Many methods was updated. - New tool's collection basis on CArray instead CMap - Added three members to PPTOOLTIP_INFO structures - Removed the pointer to the window from NM_PPTOOLTIP_DISPLAY structure - Added new demo for implementation the tooltip with toolbars
02 Apr 2003	Released version 1.3 - Added support the tooltip as help window (see ShowHelpTooltip) - Added the vertical aligns for the icon (see Styles) - Added support the icons with difference sizes (16x16, 32x32, 48x48 etc.) - Added new behaviours - Now the tooltip is not show if the PPTOOLTIP_INFO members as sTooltip is empty and hIcon is NULL. - Added two tags <img>, <ilst> to support draw a bitmaps and an icons inside a tooltip's text - A few minor update
13 Apr 2003	Released version 1.4 - Added two tags <bmp> and <icon> to support draw a bitmaps and an icons inside a tooltip's text - Scales images which drawn with <img>, <bmp> and <icon> tags. - Added new behaviour (PPTOOLTIP_DISABLE_AUTOPOP) - A few minor update
17 Apr 2003	Released version 1.5 - A few versions of the AddTool methods extended a new szIcon parameter - Added a feature to show a tooltip for child window (Thanks to Michael Ushakov). - A few minor update
12 Mar 2004	Released version 2.0 - New core of a tooltip. More changes and new features. But so there are complexities at updating the programs using the version 1.х to version 2.0. Sorry!!! :(
21 Nov 2004	Released version 2.1 - Added a support of animation in the tooltip (Look up SetDelayTime method and parameter "speed" of <ilst> tag) - Fixed some problems with UNICODE - Corrected a drawing for the some tooltip's directions and for the large tooltips - Changes a GetWndFromPoint mechanism - SetMaxTipWidth method was added

Thanks to ...

• Yaroslav Petrikevich for your help with writing this file.
• Davide Calabro for his class CButtonST in which decisions of some questions have been found.
• Chris Maunder for his articles devoted subclassing of the control.
• Tomasz Sowinski for his help with Tooltip.
• Michael Ushakov his help and advices on work with rectangles and toolbars.
• Many people assisting to me the answers on CodeProject's forum.


Known Problems

• If you can help me, please let me know so that I can incorporate them into the next release.

Planned Enhancements

• If you have any other suggested improvements, please let me know so that I can incorporate them into the next release.

Contacting the Author

You are encouraged to use this class everywhere you want; there is no fee required for CPPTooltip. Freely add modifications and/or fix bugs, but please, send any of these to me!

You must Sign In to use this message board.

FAQ    Noise Tolerance Very HighHighMediumLowVery Low   Layout Expand Posts & RepliesThread ViewNo JavascriptNo JS + Preview   Per page 102550

Msgs 1 to 25 of 531 (Total in Forum: 531) (Refresh) FirstPrevNext

I like it dxlee 5:45 23 Oct '09   I will definitely use it. Thanks! Sign In·View Thread·PermaLink this is so cools,thanks. sherlockhua 23:47 22 Oct '09   this is so cools,thanks. Sign In·View Thread·PermaLink great!! giada22 0:46 24 Jul '09   great!! Sign In·View Thread·PermaLink thes System o48hm 22:25 11 Jul '09   Hi.... thank you so much for hilp me....and..thank you so much for thes System.... o48hm Sign In·View Thread·PermaLink I get Error when rebuild demo project. Cuongfdd 13:10 12 Jun '09   Dear sir, How can I solve these error: Deleting intermediate files and output files for project 'CPPTooltip_demo - Win32 ReleaseUnicode'. --------------------Configuration: CPPTooltip_demo - Win32 ReleaseUnicode-------------------- Compiling resources... Compiling... StdAfx.cpp Compiling... CeXDib.cpp ColourPicker.cpp ColourPopup.cpp CPPTooltip_demo.cpp CPPTooltip_demoDoc.cpp CPPTooltip_demoView.cpp CustomizeTooltip.cpp MainFrm.cpp PageBehaviours.cpp PageColors.cpp PageCssStyles.cpp PageShadow.cpp PageSizes.cpp PageStyles.cpp PageTestHyperlinks.cpp PageTestImages.cpp PageTestListTree.cpp PageTestMisc.cpp PageTestTable.cpp PPDrawManager.cpp Generating Code... Compiling... PPHtmlDrawer.cpp E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(1690) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(1968) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(2129) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(3512) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(3539) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(4491) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(4499) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPHtmlDrawer.cpp(4506) : error C2664: 'GetColorByName' : cannot convert parameter 1 from 'char [1]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast PPTooltip.cpp E:\VC Code\cpptooltip_demo\PPTooltip.cpp(600) : error C2664: 'AfxTrace' : cannot convert parameter 1 from 'char [21]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast E:\VC Code\cpptooltip_demo\PPTooltip.cpp(1415) : error C2664: 'void __cdecl CString::Format(const unsigned short *,...)' : cannot convert parameter 1 from 'char [7]' to 'const unsigned short *' Types pointed to are unrelated; conversion requires reinterpret_cast, C-style cast or function-style cast TestPageGeneral.cpp TrayIconPosition.cpp Generating Code... Error executing cl.exe. CPPTooltip_demo.exe - 10 error(s), 0 warning(s) Sign In·View Thread·PermaLink 5.00/5 (1 vote) Re: I get Error when rebuild demo project. Cuongfdd 17:24 28 Jun '09   Hi folks, I goto Build -> Set Active Configuration ->Win32 Release or Win32 Debug on the menu, this project work OK as below when I build it. But when I set to "Win32 ReleaseUnicode" I still get above errors, Anyone can help me? --------------------Configuration: CPPTooltip_demo - Win32 Release-------------------- Compiling resources... Compiling... StdAfx.cpp Compiling... CeXDib.cpp ColourPicker.cpp ColourPopup.cpp CPPTooltip_demo.cpp CPPTooltip_demoDoc.cpp CPPTooltip_demoView.cpp CustomizeTooltip.cpp MainFrm.cpp PageBehaviours.cpp PageColors.cpp PageCssStyles.cpp PageShadow.cpp PageSizes.cpp PageStyles.cpp PageTestHyperlinks.cpp PageTestImages.cpp PageTestListTree.cpp PageTestMisc.cpp PageTestTable.cpp PPDrawManager.cpp Generating Code... Compiling... PPHtmlDrawer.cpp PPTooltip.cpp TestPageGeneral.cpp TrayIconPosition.cpp Generating Code... Linking... CPPTooltip_demo.exe - 0 error(s), 0 warning(s) Thanks and Best regards, Cuong Sign In·View Thread·PermaLink 2.00/5 (2 votes) Help! How to add a close button into the tooltip? Tangyoufox 1:16 7 May '09   Help! How to add a close button into the tooltip? It is very urgent.Thank you. Sign In·View Thread·PermaLink 1.00/5 (2 votes) RelayEvent Member 2662535 3:30 24 Apr '09   How to subclass a window from a HWND instead of to use RelayEvent() & PreTranslateMessage only used with MFC ? Thank's Fab Sign In·View Thread·PermaLink CListCtrl toop tip [modified] CanopenR 9:09 13 Apr '09   I'm trying to use your class on a ClistCtrl for show the info that is in the control item. it works fine for the first one but hovering over another item does not work. i have to leave the control then come back to it and it then show the new data. Any ideal what i'm doing wrong? I'm using a ClistCtrl and the event handler "LVN_HOTTrack". The tooltip doesn't seem to show twice on the same control. CanopenR modified on Wednesday, April 15, 2009 12:04 PM Sign In·View Thread·PermaLink 2.00/5 (2 votes) Re: CListCtrl toop tip CanopenR 7:37 15 Apr '09   Found it. the class has already address it with SetBehaviour().. m_ToolTip.SetBehaviour(PPTOOLTIP_MULTIPLE_SHOW); ///////////////////////////////////////////////////////////////////////////// // CPPToolTip::SetBehaviour() // Sets a tooltip's behaviour //--------------------------------------------------------------------------- // Parameters: // dwBehaviour - A tooltip's behaviour. 0 for normal tooltip without // specific behaviours. This parameter can be any combination // of CPPToolTip behaviours: // PPTOOLTIP_MULTIPLE_SHOW - Multiple show for single control // PPTOOLTIP_TRACKING_MOUSE - Tracking for mouse // PPTOOLTIP_CLOSE_LEAVEWND - Close tooltip if mouse leave the control // PPTOOLTIP_NOCLOSE_OVER - No close tooltip if mouse over him // PPTOOLTIP_DISABLE_AUTOPOP - Disables autopop tooltip from timer ///////////////////////////////////////////////////////////////////////////// Sign In·View Thread·PermaLink can not pass the building using vc6.0 for unicode release?help e_ilite 21:56 9 Apr '09   log and code is below,please help to check,thanks in advance! E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(346) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(347) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(349) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(351) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(354) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(355) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(357) : error C2002: invalid wide-character constant E:\Downloads\TheWordDownLoad\cpptooltip_demo\PPHtmlDrawer.cpp(358) : error C2002: invalid wide-character constant Error executing cl.exe. CPPTooltip_demo.exe - 8 error(s), 0 warning(s) void CPPHtmlDrawer::SetListSpecChars() { AddSpecChar(_T("&amp;"), _T("&")); // ampersand AddSpecChar(_T("&bull;"), _T("\x95\0")); // bullet NOT IN MS SANS SERIF AddSpecChar(_T("&copy;"), _T("\x00A9\0")); // copyright // AddSpecChar(_T("&euro;"), _T("\x80\0")); // euro sign IN NOT CYRILLIC FONTS AddSpecChar(_T("&euro;"), _T("\x88\0")); // euro sign IN CYRILLIC FONTS AddSpecChar(_T("&gt;"), _T(">")); // greater than AddSpecChar(_T("&iquest;"), _T("\xBF\0")); // inverted question mark AddSpecChar(_T("&lt;"), _T("<<")); // less than AddSpecChar(_T("&nbsp;"), _T(" ")); // nonbreaking space AddSpecChar(_T("&para;"), _T("\xB6\0")); // paragraph sign AddSpecChar(_T("&pound;"), _T("\xA3\0")); // pound sign AddSpecChar(_T("&quot;"), _T("\"")); // quotation mark AddSpecChar(_T("&reg;"), _T("\xAE\0")); // registered trademark AddSpecChar(_T("&trade;"), _T("\x99\0")); // trademark NOT IN MS SANS SERIF } //End of SetListSpecChars Great & Free windows software for you http://www.aisnote.com Sign In·View Thread·PermaLink Re: can not pass the building using vc6.0 for unicode release?help e_ilite 21:42 20 Aug '09   just modify the code as below: //AddSpecChar(_T("&copy;"), _T("\xA9\0")); // copyright AddSpecChar(_T("&copy;"), _T("\\0xA9\0")); // copyright. Great & Free windows software for you http://www.aisnote.com Sign In·View Thread·PermaLink Hot rectangle underneath a group box. Shraddhan 10:25 19 Mar '09   I have a dialog with an area in it for which I would like a tool tip. Doing only this is no problem, but I also want to enclose the area in a group box. If I pass a pointer to the dialog window as the first argument to AddTool, the hWnd is not recognised so no tool tip is displayed. If I pass a pointer to the group box as the first parameter, the hWnd is recognised, but the mouse coordinates are transformed by an unnecessary call to ScreenToClient inside FindTool. These coordinates are now incorrect, so again no tool tip. How do I solve this? Sign In·View Thread·PermaLink 5.00/5 (1 vote) Tool Tip in rectangle area Padmanabha_M 1:01 17 Dec '08   Can any one explain how to show tool tip on a rectangular area in a dialog based application. no controls is there. Sign In·View Thread·PermaLink 2.00/5 (1 vote) Re: Tool Tip in rectangle area UKSonics 11:58 23 Dec '08   http://www.codeproject.com/KB/miscctrl/pptooltip.aspx?msg=1141859#xx1141859xx[^] Sign In·View Thread·PermaLink anybody know how to tooltip for Child dialog? kaviniswell 22:32 16 Nov '08   the Child dialog cannot override the PreTranslateMessage and cannot RelayEvent,so how to use the tooltips? anybody know? thanku! Sign In·View Thread·PermaLink 5.00/5 (1 vote) DrawIcon rendering is incorrect for icons with transparency mruban 2:22 14 Nov '08   To reproduce, just place icon with transparency onto gradient background. There is incorrect (non-background) pixels in a zone with transparency. When we apply SRCAND (tooltip & icon_mask), the pixels in transparency zone are filled with BkColor (not left untouched) void CPPDrawManager::DrawIcon(...) { ... if (m_bIsAlpha) { // ::SelectObject(hSrcDC, hBitmap); AlphaChannelBitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0); } else { //------------------------------------------------------------------- // !!! ATTENTION !!! // I don't know why a icon uses text's color // Therefore I change a text's color to BLACK and after draw I restore // original color //------------------------------------------------------------------- COLORREF crOldColor = ::SetTextColor(hDC, RGB(0, 0, 0)); //Merge the image mask with background ::SelectObject(hSrcDC, csOriginal.hbmMask); ::BitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0, SRCAND); // <- //Draw the image ::SelectObject(hSrcDC, hBitmap); ::BitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0, SRCPAINT); ::SetTextColor(hDC, crOldColor); } //if ... } For NT platforms, I changed the code to fix the problem as follows: void CPPDrawManager::DrawIcon(...) { ... if (m_bIsAlpha) { // ::SelectObject(hSrcDC, hBitmap); AlphaChannelBitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0); } else { const DWORD ROP4_TRANSPARENTBLIT = 0xCCAA0020; ::SelectObject(hSrcDC, hBitmap); MaskBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0, csOriginal.hbmMask, 0, 0, ROP4_TRANSPARENTBLIT); } ... } nb. MaskBlt is not supported under Win9x Sign In·View Thread·PermaLink Re: DrawIcon rendering is incorrect for icons with transparency mruban 7:34 14 Nov '08   To support both 9x & NT families, you may use the following code: // some "smart-pointers" namespace { class compatible_dc_t { public: compatible_dc_t(HDC hDC) : _hbitmap(0) { _hdc = ::CreateCompatibleDC(hDC); } ~compatible_dc_t() { if(_hbitmap) ::SelectObject(_hdc, _hbitmap); ::DeleteDC(_hdc); } operator HDC() { return _hdc; } compatible_dc_t& load_bitmap(HBITMAP hBitmap) { _hbitmap = (!_hbitmap) ? ::SelectObject(_hdc, hBitmap):_hbitmap; return *this; } protected: HDC _hdc; HGDIOBJ _hbitmap; compatible_dc_t(const compatible_dc_t&); compatible_dc_t& operator=(const compatible_dc_t&); }; template class T class gdiobj_sptr_t { public: gdiobj_sptr_t(const T& hObject):_hgdi_obj(hObject) { } ~gdiobj_sptr_t() { ::DeleteObject((HGDIOBJ)_hgdi_obj); } operator T() { return _hgdi_obj; } protected: T _hgdi_obj; gdiobj_sptr_t(const gdiobj_sptr_t&); gdiobj_sptr_t& operator=(const gdiobj_sptr_t&); }; } void CPPDrawManager::DrawIcon(...) { ... if (m_bIsAlpha) { // ::SelectObject(hSrcDC, hBitmap); AlphaChannelBitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0); } else { gdiobj_sptr_t mask_bitmap(CreateImageEffect(csOriginal.hbmMask, dwWidth, dwHeight, dwEffect, FALSE, RGB(255, 255, 255), clrShadow)); gdiobj_sptr_t area_bitmap(CreateImageEffect(csOriginal.hbmMask, dwWidth, dwHeight, dwEffect, FALSE, RGB(255, 255, 255), clrShadow)); ::SelectObject(hSrcDC, mask_bitmap); // apply mask to tooltip background (have black on the place of icon pixels) ::BitBlt(hDC, x, y, dwWidth, dwHeight, hSrcDC, 0, 0, SRCAND); // create inverted mask by using (white surface) SRCINVERT (mask) gdiobj_sptr_t white_brush(::CreateSolidBrush(RGB(255, 255, 255))); compatible_dc_t masked_icon_dc(hDC); masked_icon_dc.load_bitmap(area_bitmap); RECT rc = { 0, 0, dwWidth, dwHeight }; ::FillRect(masked_icon_dc, &rc, white_brush); ::BitBlt(masked_icon_dc, 0, 0, dwWidth, dwHeight, hSrcDC, 0, 0, SRCINVERT); // apply mask to icon (have black on the place of tooltip pixels) compatible_dc_t origin_icon_dc(hDC); origin_icon_dc.load_bitmap(hBitmap); ::BitBlt(masked_icon_dc, 0, 0, dwWidth, dwHeight, origin_icon_dc, 0, 0, SRCAND); // merge ::BitBlt(hDC, x, y, dwWidth, dwHeight, masked_icon_dc, 0, 0, SRCPAINT); } //if ... } Hope, you'll got the idea and will fix this problem in future. Anyway, thank you so much for such a useful component! Sign In·View Thread·PermaLink the AddTool's first parameter ?? kaviniswell 2:10 14 Nov '08   hi, i note that the function AddTool's first parameter is CWnd*, so if i draw an image in a picture, for example, m_Image, how do i use you CppTooltip? the code is: void CMyStaticDlg::PreSubclassWindow() { ... ... // other codes // m_tooltip.AddTool(GetDlgItem(IDC_BUTTON1), str);// ok m_tooltip.AddTool( m_Image, str); // err,cannot convert parameter 1 from 'class CMyImage' to 'class CWnd *' . and how can i convert it? ... ... } class CMyImage { public: BOOL Draw(CDC* pDC, int xPos, int yPos, int nWidth, int nHeight, int nxSrcPos, int nySrcPos, int xSrcWidth, int ySrcHeight); ... } thank u very much! Sign In·View Thread·PermaLink Re: the AddTool's first parameter ?? kaviniswell 2:33 14 Nov '08   i changed the definition of CMyImage to: class CMyImage : public CWnd { public: BOOL Draw(CDC* pDC, int xPos, int yPos, int nWidth, int nHeight, int nxSrcPos, int nySrcPos, int xSrcWidth, int ySrcHeight); ... although m_tooltip.AddTool( m_Image, str); can compile,but when it runs, the tooltips cannot appear, and could you tell me what's the problem? thanku! Sign In·View Thread·PermaLink Compatibility with Windows Mobile kashifhisam 21:23 6 Nov '08   Hi, I want this balloon window for Windows Mobile. Is it possible to use this project on Win Mobile enironment? Thanks, Kashif Sign In·View Thread·PermaLink How to show balloon on system tray icon? justanywhere 17:22 28 Oct '08   hi, it's a very nice job. Thanks for your works. I want to know whether this control can show balloon tip beside some system tray icon? how to anchor balloon on tray icon? Sign In·View Thread·PermaLink 2.00/5 (1 vote) _UNICODE coghlans 3:21 16 Oct '08   It would be really nice if this compiled without complaining for UNICODE. We use the following to force proper CString usage #define _ATL_CSTRING_EXPLICIT_CONSTRUCTORS // some CString constructors will be explicit Sign In·View Thread·PermaLink 2.00/5 (2 votes) thank you cafe123 2:00 10 Oct '08   It is so cool! Sign In·View Thread·PermaLink Would you provide dll of the program? MisterT99 16:58 6 Oct '08   Eugene, Very nice program. I would like to use with VB.NET. Would you please create a dll that we can call from .NET? Thank you Tom Sign In·View Thread·PermaLink 1.00/5 (1 vote)

Last Visit: 4:16 21 Nov '09     Last Update: 4:16 21 Nov '09 1234567891011 Next »
