Using the WebBrowser control, simplified.

• Download source files - 8.08 Kb
• Download demo project - 49 Kb

Introduction

SimpleBrowser is intended to make it easier to use the WebBrowser control in MFC applications. If you've ever tried this before, you know that doing simple things can be overly complicated. I wanted to do the following with the control:

• Generate HTML in my code, and pass it to the control as a string.
• Navigate to HTML documents that are resources in my program.
• Catch events from the control.
• Print the control's content.

The WebBrowser control exposes the IWebBrowser2 interface, which lets you control the browser. It signals events using the DWebBrowserEvents2 interface, which lets you know what the browser is doing. Unfortunately, neither of these give you a clear-cut and simple way to do the things I've listed.

The SimpleBrowser class

SimpleBrowser wraps the IWebBrowser2 interface with MFC-friendly methods. The methods convert arguments into the form required by the interface. Some of the IWebBrowser2 methods require BSTRs, others VARIANTs, and there's even the occasional SAFEARRAY, all of which can be awkward (or at least not intuitive) for casual MFC use.

How do you 'navigate' the WebBrowser to a document in memory? An obvious solution is to write the document to a temporary file, and then navigate the control to the file via a URL of the form file://c:\dir\filename.ext. This seems slow and cumbersome. You also need to delete the temporary file when you're done. The IWebBrowser2 interface lets you retrieve an interface pointer to the current HTML document (IHTMLDocument2), which then lets you manipulate the document directly without the need for temporary files. The problem is, the interface isn't available until the browser has completed navigating to a document. The interface does include a write() method, so if we can get a document, we can use this to write our data to the browser.

The WebBrowser supports the res: protocol, which lets you use program resources in your HTML pages using the URL syntax res://EXE/type/resource. EXE is the path to your executable. Type is either the string name of the resource type, or a string of the form #nnn, where nnn is the numerical value of one of the predefined resource types (RT_BITMAP, and so on). Resource is the string name of the resource, or a string of the form #nnn, where nnn is the resource ID. As long as you use the string form of the res: protocol, you can navigate to a URL directly. This requires that you use the following type of statement in your .RC file:

"MyPage"    "HTML"    "MyPage.html"

You could then navigate to this page using the URL res://MyProgram.Exe/HTML/MyPage. If you want to use the built-in RT_HTML resource type and integer resource identifiers,

IDR_MY_PAGE  HTML   "MyPage.html"

the URL becomes a problem. The WebBrowser control doesn't seem to like URLs with "#" characters, and using the replacement character "%23" is messy (since it's followed by a numeric value). The WebBrowser also does not seem to handle ANSI/UNICODE issues very well in either case.

The WebBrowser lets you print the current document using the ExecWB() method in the IWebBrowser2 interface. Unfortunately, ExecWB() is something of a catch-all, and requires several arcane arguments. It turns out, there is a way to specify header and footer formats for printing, but the mechanism is awkward. SimpleBrowser wraps this up in a single method.

SimpleBrowser exposes the DWebBrowserEvents2 events via virtual functions that you can override in a derived class. Event data is converted into MFC-friendly forms before being passed to the virtual functions. The base class versions of these functions send notifications to the parent window via the standard WM_NOTIFY mechanism.

Create(DWORD dwStyle, const RECT& rect, CWnd* pParentWnd,UINT nID)

Create is the standard window creation function. The noteworthy thing about the Create(...) function is what happens after it creates the browser. SimpleBrowser navigates to the predefined document about:blank, and then waits for the document interface to become available.

Navigate(_T("about:blank"));

IHTMLDocument2 *document = NULL;
HRESULT         hr       = S_OK;

while ((document == NULL) && (hr == S_OK)) {

  Sleep(0);

  IDispatch *dispatch = NULL;

  hr = _Browser->get_Document(&dispatch);

  // if dispatch interface available,

  // retrieve document interface


  if (SUCCEEDED(hr) && (dispatch != NULL)) {

    // retrieve document interface


    hr = dispatch->QueryInterface(IID_IHTMLDocument2,
                                  (void **)&document);

    dispatch->Release();

  }

}

if (document != NULL) {
  document->Release();
}

This ensures that the browser is ready to be used as soon as the Create(...) function returns.

CreateFromControl(CWnd *pParentWnd,UINT nID)

CreateFromControl() 'creates' the SimpleBrowser in a dialog by replacing another control. You can lay out your dialog, placing a static control where you want the browser window. pParentWnd in this case is a dialog box (this, for example), while nID identifies the static control. CreateFromControl() gets the location of the static control, destroys the static (since it won't be used), and then creates the browser in its place using Create(...). The browser uses the ID originally given to the static control (nID). You don't have to use a static control; any control type will do. I use a static control with the 'static edge' style set (that makes it easier to see the extent of the control).

IHTMLDocument2 *GetDocument()

GetDocument() returns an interface pointer to the IHTMLDocument2 interface for the current HTML document loaded in the browser control. This interface pointer can be used to manipulate the document directly, in case you've got something special in mind that's not supported by the direct methods supplied by SimpleBrowser. GetDocument() returns NULL in case you've navigated the control to something other than an HTML document. For example, the WebBrowser control is perfectly happy to let you navigate to a Microsoft Word document, which will be hosted by the control.

Write(LPCTSTR string)

Write(...) lets you create an HTML document in a string, and display it in a browser window in your application. This is useful for creating displays or reports that don't lend themselves to a fixed set of Windows controls, or information that needs special formatting. HTML is easy to generate, and you get printing 'for free' (see the Print() method below).

SimpleBrowser writes the string to the WebBrowser control using the following:

// get document interface


IHTMLDocument2 *document = GetDocument();

if (document != NULL) {

  // construct text to be written to browser as SAFEARRAY


  SAFEARRAY *safe_array = SafeArrayCreateVector(VT_VARIANT,0,1);

  VARIANT *variant;

  SafeArrayAccessData(safe_array,(LPVOID *)&variant);

  variant->vt      = VT_BSTR;
  variant->bstrVal = CString(string).AllocSysString();

  SafeArrayUnaccessData(safe_array);

  // write SAFEARRAY to browser document


  document->write(safe_array);

  document->Release();
  document = NULL;

}

The Write(...) method appends the string to the current document. One nicety is that the WebBrowser control is tolerant of HTML documents that are not 'well-formed':

This lets you construct your document using several Write(...) calls. You can also update the browser contents as needed, without having to rebuild the whole document every time.

Clear()

Clear() deletes any existing content in the WebBrowser control. If you've got an HTML document in the control, Clear() empties the display by closing and re-opening the current document, and then refreshing the display. This appears to be faster than navigating to about:blank, which is used when you don't have an HTML document in the control.

NavigateResource(int resource_ID)

The res: protocol lets you use resources in your executable, in your HTML pages. As I mentioned earlier, the res: protocol isn't terribly friendly for URLs that you pass to the WebBrowser, especially when using numeric resource IDs. My solution is to load the HTML resource into a string and use the Write(...) approach. NavigateResource() expects the resource to be defined in the .RC file as follows:

IDR_MY_PAGE  HTML   "MyPage.html"

HTML is the resource type used when you insert an HTML resource using the IDE.

NavigateResource() gets interesting when it comes to loading UNICODE HTML resources in an application compiled for MBCS (ANSI), or vice versa. My method is to convert the document to match the application. This works well until you have a UNICODE resource containing characters not in the ANSI character set (Japanese Kanji, for example) and an MBCS application. In this case, the conversion does not work. This shouldn't hurt too much, because you probably wouldn't be trying to display a Far Eastern HTML document in an ANSI application anyway.

Print(LPCTSTR header,LPCTSTR footer)

The IWebBrowser2 interface lets you print the current contents of the WebBrowser control using the ExecWB method. The Print(...) function I've supplied eliminates the cryptic arguments to ExecWB(), and adds a simple way to specify the header and footer for the printed page:

// construct two element SAFEARRAY;

// first element is header string,

// second element is footer string


HRESULT hr;

VARIANT     header_variant;
VariantInit(&header_variant);
V_VT(&header_variant)   = VT_BSTR;
V_BSTR(&header_variant) =
  CString(header).AllocSysString();

VARIANT     footer_variant;
VariantInit(&footer_variant);
V_VT(&footer_variant)   = VT_BSTR;
V_BSTR(&footer_variant) =
  CString(footer).AllocSysString();

long index;

SAFEARRAYBOUND  parameter_array_bound[1];
SAFEARRAY       *parameter_array = NULL;

parameter_array_bound[0].cElements = 2;
parameter_array_bound[0].lLbound   = 0;

parameter_array = SafeArrayCreate(VT_VARIANT,1,
                                  parameter_array_bound);

index = 0;
hr    = SafeArrayPutElement(parameter_array,
                            &index,
                            &header_variant);

index = 1;
hr    = SafeArrayPutElement(parameter_array,
                            &index,
                            &footer_variant);

VARIANT parameter;
VariantInit(�meter);
V_VT(�meter)    = VT_ARRAY | VT_BYREF;
V_ARRAY(�meter) = parameter_array;

// start printing browser contents


hr = _Browser->ExecWB(OLECMDID_PRINT,
                      OLECMDEXECOPT_DODEFAULT,
                      �meter,
                      NULL);

// release SAFEARRAY


if (!SUCCEEDED(hr)) {
  VariantClear(&header_variant);
  VariantClear(&footer_variant);
  if (parameter_array != NULL) {
    SafeArrayDestroy(parameter_array);
  }
}

There is one caveat with using the Print(...) function, caused by the way the WebBrowser control handles printing. The ExecWB() method passes a copy of the document to a separate thread, which then performs the actual printing. The ExecWB() method returns immediately, without waiting for the thread to finish. For this reason, there is no simple way to determine that printing has completed. In fact, if the browser is destroyed while printing is still in progress, only part of the contents will be printed.

Handling events

SimpleBrowser is actually a basic CWnd that is a container for the actual WebBrowser control. Using MFC, the WebBrowser control signals events to its container via an 'event sink map'. The events that may be 'sunk' are described by the DWebBrowserEvents2 interface. SimpleBrowser forwards these events to the outside world by converting event information into MFC-friendly forms (CString's and so on) and calling a virtual function. The base class implementations of these functions send the events to the parent window using the WM_NOTIFY mechanism.

SimpleBrowser supports these events:

If you derive your own class from SimpleBrowser, your event handlers can choose whether or not to inform the parent window of the event, by whether or not they call the base class function.

Notification functions in the parent require an entry in the message map like this:

ON_NOTIFY(SimpleBrowser::NotificationType,control ID,OnNotificationType)

The functions themselves look like the following:

afx_msg void OnNotificationType(NMHDR *pNMHDR,LRESULT *pResult);

...

void MyDialog::OnNotificationType(NMHDR *pNMHDR,LRESULT *pResult)
{
  SimpleBrowser::Notification
    *notification = (SimpleBrowser::Notification *)pNMHDR;

  ...

  *pResult = 0;
}

The Notification structure is used to pass the information that describes the event:

Please note that, even though I've used the standard WM_NOTIFY mechanism and the NMHDR notification header, SimpleBrowser doesn't support the common notifications like NM_CLICK, since these events are handled internally by the WebBrowser control.

About the code

SimpleBrowser is compatible with the WebBrowser control supplied by Internet Explorer version 5.0 and greater.

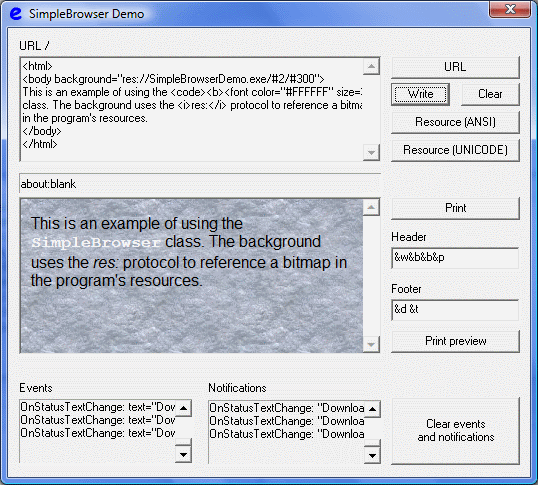

The demo program illustrates using SimpleBrowser in a dialog application. Enter text into the edit control at the top, and click on the Write button to invoke Write(...) with the contents of the edit control. The Resource (ANSI) and Resource (UNICODE) buttons use NavigateResource(...) to display HTML documents in the program's resources, encoded as ANSI and UNICODE respectively.

The demo program uses a class derived from SimpleBrowser (SimpleBrowser_Example) to show how events are handled. SimpleBrowser_Example constructs a string describing the event and passes the string on to the dialog, which then displays the string in the edit control at the bottom left of the dialog. The edit control at the bottom center of the dialog displays the same information as handled via the notification mechanism in the dialog itself.

I've included both Visual C++ 6.0 workspace/project and Visual Studio .NET solution/project files. The project compiles for either MBCS (e.g. ANSI) or UNICODE through a #define found in stdafx.h.

Credits and references

I'd like to credit the following sources for information I used in developing the SimpleBrowser class:

• Joan Murt's article HTMLCtrl with dynamic HTML content illustrates how to "navigate" a control to an HTML document in memory. (Thanks, Joan)
• This article (not on Code Project, I'm afraid) provides a second example on how to navigate to an HTML document in memory.
• Paul DiLascia's article in the January 2000 issue of Microsoft System Journal provides a method for reusing the CHTMLView class in a dialog. This wasn't the approach I used, but the information was valuable anyway.
• Microsoft Knowledge Base article 241750: BUG: CHtmlView Leaks Memory by Not Releasing BSTRs in Several Methods. More information on using CHTMLView.
• Microsoft Knowledge Base article 267240: HOWTO: Print Custom Headers and Footers for a WebBrowser Control.
• Microsoft Knowledge Base article 256195: HOWTO: Handle Data From a Post Form When Hosting WebBrowser Control.

History

• April 6, 2003
  • Initial version.
• April 11, 2003
  • Replaced the original NavigateString() method with Write(...) and Clear().
  • Added GetDocument() method.
  • Added notifications.
  • Modified Create() to wait for document available.
  • Expanded the BeforeNavigate2 event handling to include the POST data and headers.
  • Revised article text as appropriate.
