Advanced UxTheme wrapperBy Guillaume LeparmentierHow to use, and understand, visual styles for custom controls drawn with a C# wrapper (uxtheme.dll) |
C# 1.0.NET 1.1, Win2K, WinXP, GDI+, WinForms, VS.NET2003, Dev
|
|
Advanced Search |
|
|
|
||||||||||||||||

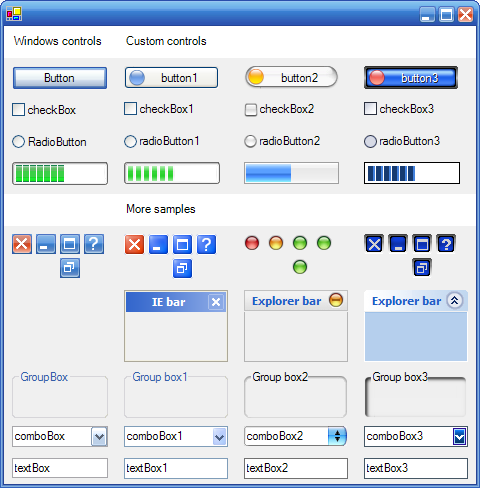

Sample application using custom controls (Button, CheckBox, RadioButton, ProgressBar, etc.) drawn with the wrapper.
It's been a long time since I became a member of The Code Project. I've learned a lot and it's time for me to share my knowledge.
I think this is not the first time you are reading an article on an uxtheme wrapper. Like me, you have probably done a lot of Googling, seeking information and C# samples about uxtheme (also known as Visual Styles or Windows themes) and found nothing that matches what you want.
However, there are many great articles on The Code Project, like "A Managed C++ Wrapper Around the Windows XP Theme API" by Don Kackman or "Add XP Visual Style Support to OWNERDRAW Controls" by David Zhao and "Themed Windows XP style Explorer Bar" by Mathew Hall, which describe visual styles and provide useful tips. But, in my point of view, they were not designed for a generic C# usage and they don't offer a simple way to use visual styles in our applications.
I wanted to have a way to enumerate and switch between available themes on a computer, so I decided to make my own C# wrapper.
So, how does this work?
I've split this artcile in three parts:
Here are the features I wanted to find in a wrapper:
What you will find in this sample:
You will also find custom Designers/Editors if you want to learn how to create your own design-time support.
I will not explain how the uxtheme.dll works, I do not have enough space in this article (an I'm not going to rewrite the msdn).
The interesting thing is how to write a C# wrapper. The principle is quite simple: find the dll (or module) you want to handle, seek its function's signatures, and then write them in a C# equivalent form.
The uxtheme function's signatures are defined in the uxtheme.h file, and enumerations/constants in the tmschema.h file. Those files are located in "C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\PlatformSDK\Include" directory if you're using VS 2003.
In uxtheme.h, you'll find something like:
//-----------------------------------------------------------------------
// DrawThemeText() - draws the text using the theme-specified
// color and font for the "iPartId" and
// "iStateId".
//
// hTheme - theme data handle
// hdc - HDC to draw into
// iPartId - part number to draw
// iStateId - state number (of the part) to draw
// pszText - actual text to draw
// dwCharCount - number of chars to draw (-1 for all)
// dwTextFlags - same as DrawText() "uFormat" param
// dwTextFlags2 - additional drawing options
// pRect - defines the size/location of the part
//-----------------------------------------------------------------------
THEMEAPI DrawThemeText(HTHEME hTheme, HDC hdc, int iPartId,
int iStateId, LPCWSTR pszText, int iCharCount, DWORD dwTextFlags,
DWORD dwTextFlags2, const RECT *pRect);
The next step is to write the C# equivalent method. For example, the DrawThemeText() function can be translated as:
/// <summary>
/// Draws text using the color and font defined by the visual style.
/// </summary>
/// <param name="hTheme">Handle to a window's specified
/// theme data.</param>
/// <param name="hdc">Handle to a device context (HDC) used for
/// drawing the theme-defined background image.</param>
/// <param name="iPartId">Value that specifies the part to draw.</param>
/// <param name="iStateId">Value that specifies the state of the
/// part to draw.</param>
/// <param name="pszText">Pointer to a string that contains the text
/// to draw.</param>
/// <param name="iCharCount">Value that contains the number of
/// characters to draw. If the parameter is set to -1, all
/// the characters in the string are drawn.</param>
/// <param name="dwTextFlags">A bitwise combination
/// of <see cref="TextFormatFlags"/> values to specify the text
/// formatting.</param>
/// <param name="dwTextFlags2">Not used. Set to 0.</param>
/// <param name="pRect">Pointer to a RECT structure that contains
/// the rectangle, in logical coordinates, in which the text
/// is to be drawn.</param>
[DllImport("UxTheme.dll", CharSet=CharSet.Unicode, SetLastError=true)]
public static extern System.Int32 DrawThemeText(
IntPtr hTheme,
IntPtr hdc,
UInt32 iPartId,
UInt32 iStateId,
String pszText,
Int32 iCharCount,
UInt32 dwTextFlags,
UInt32 dwTextFlags2,
ref RECT pRect
);
When translating a function, you need to use the DllImport attribute setting the name of the module (or the absolute path) you're going to import as the first parameter.
There are many other optional parameters for the DllImport attribute (look at its description at msdn), but you should always use SetLastError set to true. This parameter indicates the callee to call the SetLastError function and advise the runtime marshaler to keep a copy of the last win32 error (it's very usefull when you don't know if a function call has succeed or not).
To get the last win32 error, you can use the following code sample:
//using System.Runtime.InteropServices;
//using System.ComponentModel;
//...
// call an imported function using SetLastError=true before
// using this piece of code
int errorCode = Marshal.GetLastWin32Error();
Console.WriteLine("The last win32 error code was: "+errorCode);
// depends on the called function's error codes
if(errorCode < 0) throw new Win32Exception(errorCode);
The next table provides quick equivalents between c++ types and C# :
| C++ | C# |
| BOOL | System.Boolean or bool |
| BYTE | byte |
| CSize | System.Drawing.Size or System.Drawing.SizeF |
| CString, LPCWSTR | string or System.String |
| DWORD | System.UInt32 or uint |
| HBITMAP | System.IntPtr or System.Drawing.Bitmap |
| HBRUSH | System.IntPtr |
| HDC | System.IntPtr or System.Drawing.Graphics |
| HPEN | System.IntPtr |
| LONG | System.Int32 or int |
| WORD | System.UInt16 or ushort |
Most of the other c++ types can be translated as System.IntPtr, except for structs which have to be defined in C#.
A Theme can be defined as UI properties grouped by a "Color scheme" and a "Size scheme". Then, a theme is retrieved by its color and size scheme.
Those properties are dispatched into three files:

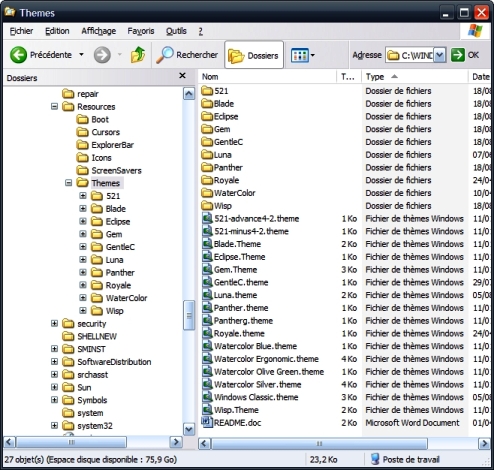

Basically, available themes are located in "%windir%\Resources\Themes" directory, as shown below :
Each .theme file has its own directory, and a .msstyles file with the same name (eg. panther.theme has its .msstyles file in the directory named panther).
You will also find inside the theme's directory a folder named shell, which has a folder for each theme's scheme.
Finally, scheme's directory contains a shellstyle.dll. You can also find bitmaps (like wallpapers) or other resources referenced by the shellstyle.dll in this directory.
A .theme file is an initialization file, with sections and key/value pairs defining many informations. The following sample shows the content of a .theme file.
[Theme]
; Recycle Bin
[CLSID\{645FF040-5081-101B-9F08-00AA002F954E}\DefaultIcon]
full=%SystemRoot%\SYSTEM32\shell32.dll,32
empty=%SystemRoot%\SYSTEM32\shell32.dll,31
[Control Panel\Desktop]
TileWallpaper=0
WallpaperStyle=2
Pattern=
ScreenSaveActive=0
SCRNSAVE.EXE=%WinDir%system32\logon.scr
[VisualStyles]
Path=%ResourceDir%\Themes\Panther\Panther.msstyles
ColorStyle=NormalColor
Size=NormalSize
[MasterThemeSelector]
MTSM=DABJDKT
ThemeColorBPP=4
The interesting section is [VisualStyles]. You'll find in it three important tips : the relative path to the .msstyles file (Path), the color scheme used by the theme (ColorStyle) and the size behavior (Size).
Note: if you don't have the %ResourceDir% defined in the environment variables, you can use the sample code below :
System.Collections.IDictionary vars =
System.Environment.GetEnvironmentVariables();
// extract the "Path" value
System.Text.StringBuilder val =
new System.Text.StringBuilder(MAX_PATH); // MAX_PATH = 255
Kernel32.GetPrivateProfileString(sectionName, keyName, "", val,
MAX_PATH, iniFile); // MAX_PATH = 255
// remove comments
String path = val.ToString();
if(path.IndexOf(";") != -1) path = path.Substring(0,
result.IndexOf(";"));
path = path.Replace("%WinDir%", @"%windir%\");
path = path.Replace(@"\\", @"\");
path = path.Replace("%ResourceDir%", @"%windir%\Resources");
path = path.Replace("%windir%", Convert.ToString(vars["windir"]));

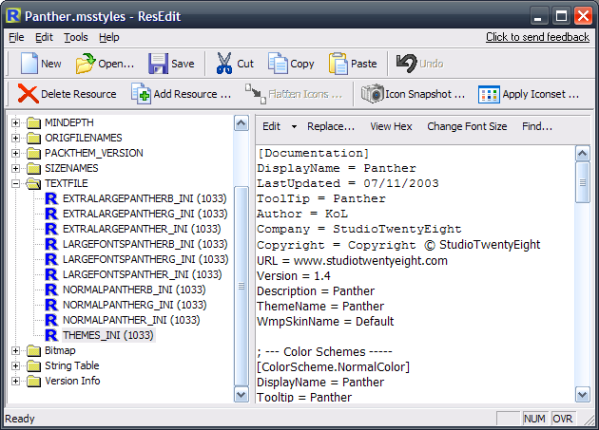

A .msstyles file is basically a PE file (eg. a DLL). What we are looking for is in the resource section, under the TEXTFILE and BITMAP resource directories.
Note: You can use a software like ResEdit to explore your .msstyles file.
The most important file is THEME_INI. It gives use :
If we use the informations
[VisualStyles]
Path=%ResourceDir%\Themes\Panther\Panther.msstyles
ColorStyle=NormalColor
Size=NormalSize
specified in the .theme file, we will find our reference tips into the section named [File.]["color scheme"]["theme name"] like
[File.Normalpanther]
ColorSchemes = panther
Sizes = NormalSize
In our example, the .ini file which contains the theme datas is named NORMALPANTHER_INI and the prefix value is set in the ColorSchemes key (the bitmap's names will start with PANTHER).
These files contain informations for each class and parts of the visual style.
After reading numerous of this kind of file, section's rules seem to be :
Then, if you want the checkbox data you will have to look in the section [Button.Checkbox] or [button.checkbox].
The article of Mathew Hall describes the internals of this file. If you are interested in understanding it, look "Themed Windows XP style Explorer Bar" his article in The Code Project.

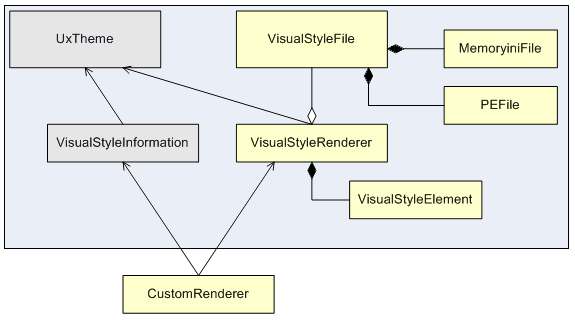

The following figure describes how the wrapper is designed :
A quick description :
UxTheme class is the generic wrapper. It is used by VisualStyleInformation and VisualStyleRenderer to get property values or to draw a specific control with the current theme's data. VisualStyleInformation, VisualStyleRenderer, and VisualStyleFile.
VisualStyleInformation provides access to the current theme information, like the theme's author or the copyright. VisualStyleRenderer is used to paint controls. It calls the UxTheme wrapper functions for the current visual style, and VisualStyleFile to handle other themes. VisualStyleFile handle theme's datas. You can use it to extract bitmaps, or just to get a component properties. MemoryIniFile is used to map into memory .ini files embedded in the .msstyles theme's file. PEFile is used to read a .msstyles file, and to access its resource section. I'm not going to enumerate all the methods provided by each classes because it's not the topic. I will focus on VisualStyleFile and its associated classes/structs.
This class is the more important one : its role is to provide an object representation of a Theme. It's also a component that can be shared among your custom controls.
It retrieves the visual style's information through a .theme file, eg. it retrieves the theme's .mssstyles, maps the used .ini files and then maps the theme's properties into eight structures :
VisualStyleDocumention which provides basic information about the documentation specified in a visual style file, VisualStyleMetrics which provides basic information about colors, fonts, sizes specified in a visual style file,
VisualStyleMetricColors for the system colors defined in the visual style, like ActiveCaption VisualStyleMetricFonts for the system fonts defined in the visual style, like CaptionFont VisualStyleMetricSizes for the system sizes defined in the visual style, like CaptionBarHeight VisualStyleProperties which maps properties for a given component (eg. class+part+state), VisualStyleScheme which maps properties for a given color scheme, VisualStyleSize which maps properties for a given size scheme. So, if you want to access a Theme's raw information/data, you just have to create an new VisualStyleFile and get what you want as shown below :
// create a new VisualStyleFile
String themeFile = @"C:\WINDOWS\Resources\Themes\Luna.theme";
using(VisualStyleFile theme = new VisualStyleFile(themeFile))
{
// get the documentation informations
VisualStyleDocumention doc = theme.Documentation;
Console.WriteLine(doc.Author + " - " + doc.Copyright);
// get the color/size scheme
Console.WriteLine("Color scheme: "+theme.ThemeSchemeName);
Console.WriteLine("Size scheme: "+theme.ThemeSizeName);
// get the properties of a component
VisualStyleProperties buttonProps = theme.GetElementProperties(
"BUTTON", (uint)ButtonPart.PushButton);
Console.WriteLine(
"Button is transparent : "+buttonProps.Transparent);
Console.WriteLine("Background image: "+buttonProps.ImageFile);
// etc...
}
I know, it is quite tedious. But the good news are that all you've read is implemented in this sample. I built this part as an FAQ, maybe you'll find what you want to know.
String[] themes = VisualStyleInformation.GetThemeFiles();
foreach(String theme in themes)
{
Console.WriteLine(theme);
}
If you want the current visual style information :
// Documentation properties
Console.WriteLine(
"Current theme file: "+VisualStyleInformation.CurrentThemeFileName);
Console.WriteLine(
"Application themed? "+VisualStyleInformation.IsApplicationThemed);
Console.WriteLine("Current theme author: "+VisualStyleInformation.Author);
Console.WriteLine("Current theme company: "+VisualStyleInformation.Company);
// etc...
// Theme raw properties for a "Button"
VisualStyleRenderer renderer = VisualStyleRenderer("BUTTON",
(uint)ButtonPart.PushButton, (uint)PushButtonState.Normal);
// bool properties
bool isButtonTransparent = renderer.GetBoolean(BooleanProperty.Transparent);
bool isBacgroundFilled = renderer.GetBoolean(BooleanProperty.BackgroundFill);
// Color properties
Color borderColor = renderer.GetColor(ColorProperty.BorderColor);
Color fillColor = renderer.GetColor(ColorProperty.FillColor);
Color textColor = renderer.GetColor(ColorProperty.TextColor);
// String properties
String backgroundImage = GetFilename(FilenameProperty.ImageFile);
String glyph = GetFilename(FilenameProperty.GlyphImageFile);// for combo or
// caption button
// etc...
If you want the properties for a specific theme (not the current one) :
String themeFile = @"C:\WINDOWS\Resources\Themes\Luna.theme";
using(VisualStyleFile theme = new VisualStyleFile(themeFile))
{
// get the documentation informations
VisualStyleDocumention doc = theme.Documentation;
Console.WriteLine(doc.Author + " - " + doc.Copyright);
// get the color/size scheme
Console.WriteLine("Color scheme: "+theme.ThemeSchemeName);
Console.WriteLine("Size scheme: "+theme.ThemeSizeName);
// get the properties of a component
VisualStyleProperties buttonProps = theme.GetElementProperties("BUTTON",
(uint)ButtonPart.PushButton);
Console.WriteLine("Button is transparent : "+buttonProps.Transparent);
Console.WriteLine("Background image: "+buttonProps.ImageFile);
// etc...
}
Note: Even for the current theme, my preference is the second solution.
// save the .ini files of a specific theme
String themeFile = @"C:\WINDOWS\Resources\Themes\Luna.theme";
String savePath = Environment.CurrentDirectory + @"\inifiles\";
using(VisualStyleFile theme = new VisualStyleFile(themeFile))
{
theme.SaveIniFiles(savePath);
}
// gets an identified bitmap
String themeFile = @"C:\WINDOWS\Resources\Themes\Luna.theme";
String savePath = Environment.CurrentDirectory;
using(VisualStyleFile theme = new VisualStyleFile(themeFile))
{
// gets the properties
VisualStyleProperties buttonProps = theme.GetElementProperties("BUTTON",
(uint)ButtonPart.PushButton);
// save the bitmap to disk
using(Bitmap bmp = theme.GetBitmap(buttonProps.ImageFile))
{
bmp.Save(savePath+@"\buttonBitmaps.bmp");
}
}
How to use a theme's data (not the current one) with your custom control?

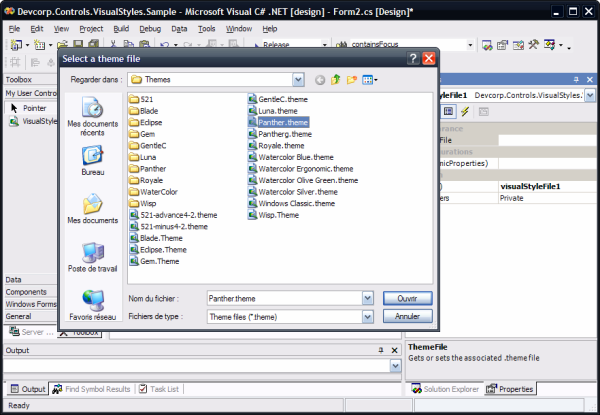

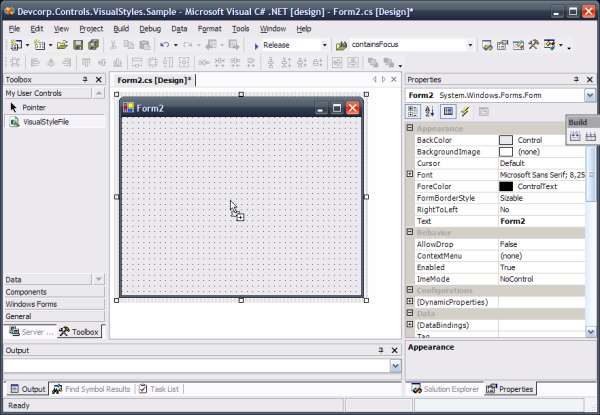

You just have to add a VisualStyleFile to your form via the designer, and update/set its ThemeFile property.
Then, set the VisualStyleFile property of your custom control with the new VisualStyleFile.
Implementation is up to you : it depends on what you want to paint (eg. a listview header, a button, a scrollbar, a caption, etc.). The tip is to clearly separate the painting behavior from the component logic. My point of view is to create your custom controls as a "bean" which computes the right values (bounds, sizes, etc.) and pass them as parameters to your renderer methods.
Let's have a 15 minutes tutorial : create a renderer for a window's caption button.
WindowPart and WindowButtonState enumerations. The WindowPart contains a lot of values, so the best way to use only the window's button values is to create an enumeration like :
public enum WindowButtonType : int
{
CloseButton = (int)WindowPart.CloseButton,
MaxButton = (int)WindowPart.MaxButton,
MinButton = (int)WindowPart.MinButton,
HelpButton = (int)WindowPart.HelpButton,
RestoreButton = (int)WindowPart.RestoreButton,
SysButton = (int)WindowPart.SysButton
};
RadioButtonRenderer for example), and remove unusefull methods. /// <summary>
/// Provides methods for drawing a WindowButton control (eg. Help, Close,
/// Minize, etc.).
/// </summary>
public sealed class WindowButtonRenderer
{
/// <summary>
/// Gets a value indicating whether the WindowButtonRenderer class
/// can be used to draw a window button control with visual styles.
/// </summary>
public static bool IsSupported
{
get
{
return VisualStyleInformation.IsApplicationThemed;
}
}
private WindowButtonRenderer(){ }
// ...
}
DrawButton methods) and remember that your renderer will use a Graphics object and will need your component bounds and type. /// <summary>
/// Provides methods for drawing a WindowButton control (eg. Help, Close,
/// Minize, etc.).
/// </summary>
public sealed class WindowButtonRenderer
{
/// <summary>
/// Gets a value indicating whether the WindowButtonRenderer class
/// can be used to draw a window button control with visual styles.
/// </summary>
public static bool IsSupported
{
get
{
return VisualStyleInformation.IsApplicationThemed;
}
}
private WindowButtonRenderer(){ }
#region Methods
#region Misc
/// <summary>
/// Gets a VisualStyleRenderer for the specified button state.
/// </summary>
/// <param name="button">The button type.</param>
/// <param name="state">The button state.</param>
private static VisualStyleRenderer GetButtonRenderer(
WindowButtonType button, WindowButtonState state)
{
switch(state)
{
case WindowButtonState.Normal:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Normal);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Normal);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Normal);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Normal);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Normal);
case WindowButtonState.Hot:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Hot);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Hot);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Hot);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Hot);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Hot);
case WindowButtonState.Pushed:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Pressed);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Pressed);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Pressed);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Pressed);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Pressed);
case WindowButtonState.Disabled:
default:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Disabled);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Disabled);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Disabled);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Disabled);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Disabled);
}
}
/// <summary>
/// Gets a <see cref="VisualStyleRenderer"> for the specified
/// button state.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="button">The button type.</param>
/// <param name="state">The button state.</param>
private static VisualStyleRenderer GetButtonRenderer(
VisualStyleFile style, WindowButtonType button,
WindowButtonState state)
{
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.GetElement(
style, state));
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.GetElement(
style, state));
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.GetElement(
style, state));
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.GetElement(
style, state));
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.GetElement(
style, state));
}
#endregion
#region Drawing
public static void DrawButton(Graphics g, Rectangle bounds,
WindowButtonType button, WindowButtonState state)
{
if(!IsSupported) throw new InvalidOperationException();
VisualStyleRenderer renderer = GetButtonRenderer(button, state);
if(renderer != null) renderer.DrawBackground(g, bounds);
}
/// <summary>
/// Draws a window Close button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawCloseButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.CloseButton, state);
}
/// <summary>
/// Draws a window Help button control in the specified state and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawHelpButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.HelpButton, state);
}
/// <summary>
/// Draws a window Minize button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMinizeButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.MinButton, state);
}
/// <summary>
/// Draws a window Maximize button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMaximizeButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.MaxButton, state);
}
/// <summary>
/// Draws a window Restore button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawRestoreButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.RestoreButton, state);
}
#endregion
#endregion
}
</see>
VisualStyleFile support to your renderer /// <summary>
/// Provides methods for drawing a WindowButton control (eg. Help, Close,
/// Minize, etc.).
/// </summary>
public sealed class WindowButtonRenderer
{
/// <summary>
/// Gets a value indicating whether the WindowButtonRenderer class
/// can be used to draw a window button control with visual styles.
/// </summary>
public static bool IsSupported
{
get
{
return VisualStyleInformation.IsApplicationThemed;
}
}
private WindowButtonRenderer(){ }
#region Methods
#region Misc
/// <summary>
/// Gets a VisualStyleRenderer for the specified button state.
/// </summary>
/// <param name="button">The button type.</param>
/// <param name="state">The button state.</param>
private static VisualStyleRenderer GetButtonRenderer(
WindowButtonType button, WindowButtonState state)
{
switch(state)
{
case WindowButtonState.Normal:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Normal);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Normal);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Normal);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Normal);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Normal);
case WindowButtonState.Hot:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Hot);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Hot);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Hot);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Hot);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Hot);
case WindowButtonState.Pushed:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Pressed);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Pressed);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Pressed);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Pressed);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Pressed);
case WindowButtonState.Disabled:
default:
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.Disabled);
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.Disabled);
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.Disabled);
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.Disabled);
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.Disabled);
}
}
/// <summary>
/// Gets a <see cref="VisualStyleRenderer"> for the specified
/// button state.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="button">The button type.</param>
/// <param name="state">The button state.</param>
private static VisualStyleRenderer GetButtonRenderer(
VisualStyleFile style, WindowButtonType button,
WindowButtonState state)
{
if(button == WindowButtonType.CloseButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.CloseButton.GetElement(
style, state));
else if(button == WindowButtonType.MaxButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MaxButton.GetElement(
style, state));
else if(button == WindowButtonType.MinButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.MinButton.GetElement(style,state));
else if(button == WindowButtonType.HelpButton)
return new VisualStyleRenderer(
VisualStyleElement.Window.HelpButton.GetElement(style,state));
else return new VisualStyleRenderer(
VisualStyleElement.Window.RestoreButton.GetElement(style,state));
}
#endregion
#region Drawing
public static void DrawButton(Graphics g, Rectangle bounds,
WindowButtonType button, WindowButtonState state)
{
if(!IsSupported) throw new InvalidOperationException();
VisualStyleRenderer renderer = GetButtonRenderer(button, state);
if(renderer != null) renderer.DrawBackground(g, bounds);
}
public static void DrawButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonType button, WindowButtonState state)
{
if(!IsSupported) throw new InvalidOperationException();
VisualStyleRenderer renderer = GetButtonRenderer(style, button,
state);
if(renderer != null) renderer.DrawBackground(g, bounds);
}
/// <summary>
/// Draws a window Close button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawCloseButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.CloseButton, state);
}
/// <summary>
/// Draws a window Close button control in the specified state
/// and bounds.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
//// specifies the visual state of the button.</param>
public static void DrawCloseButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonState state)
{
DrawButton(style, g, bounds, WindowButtonType.CloseButton, state);
}
/// <summary>
/// Draws a window Help button control in the specified state and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawHelpButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.HelpButton, state);
}
/// <summary>
/// Draws a window Help button control in the specified state and bounds.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawHelpButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonState state)
{
DrawButton(style, g, bounds, WindowButtonType.HelpButton, state);
}
/// <summary>
/// Draws a window Minize button control in the specified
/// state and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMinizeButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.MinButton, state);
}
/// <summary>
/// Draws a window Minize button control in the specified state
/// and bounds.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMinizeButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonState state)
{
DrawButton(style, g, bounds, WindowButtonType.MinButton, state);
}
/// <summary>
/// Draws a window Maximize button control in the specified state
/// and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMaximizeButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.MaxButton, state);
}
/// <summary>
/// Draws a window Maximize button control in the specified state and
/// bounds.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawMaximizeButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonState state)
{
DrawButton(style, g, bounds, WindowButtonType.MaxButton, state);
}
/// <summary>
/// Draws a window Restore button control in the specified
/// state and bounds.
/// </summary>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawRestoreButton(Graphics g, Rectangle bounds,
WindowButtonState state)
{
DrawButton(g, bounds, WindowButtonType.RestoreButton, state);
}
/// <summary>
/// Draws a window Restore button control in the specified
//// state and bounds.
/// </summary>
/// <param name="style">The visual style file to use.</param>
/// <param name="g">The Graphics used to draw the button.</param>
/// <param name="bounds">The button bounds.</param>
/// <param name="state">One of the WindowButtonState values that
/// specifies the visual state of the button.</param>
public static void DrawRestoreButton(VisualStyleFile style, Graphics g,
Rectangle bounds, WindowButtonState state)
{
DrawButton(style, g, bounds, WindowButtonType.RestoreButton, state);
}
#endregion
#endregion
}
</see>
WindowButton component, just like the renderer (copy the CustomRadioButton component for example, and remove unusefull fields and methods).WindowButtonState and WindowButtonType and change the renderer in the OnPaint() event with your brand new WindowButtonRenderer.public class WindowButton : System.Windows.Forms.Control,
IVisualStyleSwitchable
{
/// <summary>Event fired when a control's property changes.</summary>
[Category("Action"), Description(
"Occurs when a control's property changes."),]
public event EventHandler PropertyChanged = null;
#region Fields
private System.ComponentModel.IContainer components = null;
private WindowButtonType type = WindowButtonType.CloseButton;
private WindowButtonState state = WindowButtonState.Normal;
private Color backColor;
private Rectangle realBounds = Rectangle.Empty;
private Size realSize = Size.Empty;
private VisualStyleFile file = null;
#endregion
#region Accessors
#region Runtime
/// <summary>
/// Gets or sets the button state.
/// </summary>
private WindowButtonState State
{
get
{
return this.state;
}
set
{
if(this.state == value) return;
this.state = value;
OnPropertyChanged();
}
}
/// <summary>
/// Get the control real size.
/// </summary>
false),>
[DesignerSerializationVisibility(
DesignerSerializationVisibility.Hidden),]
private Size RealSize
{
get
{
if(this.realSize==Size.Empty) realSize = Size;
return this.realSize;
}
set
{
this.realSize = value;
}
}
/// <summary>
/// Get the control bound's rectangle.
/// </summary>
false),>
[DesignerSerializationVisibility(
DesignerSerializationVisibility.Hidden),]
public new Rectangle ClientRectangle
{
get
{
if(this.realBounds.Width != RealSize.Width ||
this.realBounds.Height != RealSize.Height)
{
this.realBounds = new Rectangle(0, 0, RealSize.Width,
RealSize.Height);
}
return this.realBounds;
}
}
#endregion
#region Appearance
/// <summary>
/// Gets or sets the visual style to use.
/// </summary>
true), Category("Appearance"),>
[DefaultValue(null),]
public Devcorp.Controls.VisualStyles.VisualStyleFile VisualStyle
{
get
{
return this.file;
}
set
{
if(this.file == value) return;
if(this.file != null) this.file.ThemeFileChanged -=
new EventHandler(file_ThemeFileChanged);
this.file = value;
if(this.file != null) this.file.ThemeFileChanged +=
new EventHandler(file_ThemeFileChanged);
OnPropertyChanged();
}
}
/// <summary>
/// Gets or sets the visual style to use.
/// </summary>
true), Category("Appearance"),>
[DefaultValue(typeof(WindowButtonType),"CloseButton"),]
public WindowButtonType Type
{
get
{
return this.type;
}
set
{
if(this.type == value) return;
this.type = value;
OnPropertyChanged();
}
}
/// <summary>
/// Gets or sets the background color.
/// </summary>
true), Category("Appearance"),>
[DefaultValue(typeof(Color), "Control"),]
public new Color BackColor
{
get
{
return this.backColor;
}
set
{
if(this.backColor == value) return;
this.backColor = value;
base.BackColor = value;
OnPropertyChanged();
}
}
#endregion
#endregion
#region Constructor(s)
/// <summary>
/// Default constructor.
/// </summary>
public WindowButton()
{
SetStyle(ControlStyles.UserPaint, true);
SetStyle(ControlStyles.AllPaintingInWmPaint, true);
SetStyle(ControlStyles.DoubleBuffer, true);
SetStyle(ControlStyles.ResizeRedraw, true);
SetStyle(ControlStyles.SupportsTransparentBackColor, true);
SetStyle(ControlStyles.Selectable, true);
InitializeComponent();
}
/// <summary>
/// Default constructor.
/// </summary>
public WindowButton(System.ComponentModel.IContainer container) : this()
{
container.Add(this);
}
#endregion
#region Methods
#region VS generated code
/// <summary>Clean up any resources being used.</summary>
protected override void Dispose( bool disposing )
{
if( disposing )
{
if (components != null)
{
components.Dispose();
}
}
base.Dispose( disposing );
}
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
//
// WindowButton
//
this.Size = new System.Drawing.Size(20, 20);
}
#endregion
#region Drawing
/// <summary>
/// Handles Onpaint event.
/// </summary>
protected override void OnPaint(PaintEventArgs e)
{
base.OnPaint(e);
if(!Disposing && !Parent.Disposing)
{
if(this.file != null && this.file.StyleFile!=String.Empty)
{
WindowButtonRenderer.DrawButton(this.file, e.Graphics,
ClientRectangle, this.type, this.state);
}
else
{
WindowButtonRenderer.DrawButton(e.Graphics,
ClientRectangle, this.type, this.state);
}
}
}
#endregion
#region Events
private void file_ThemeFileChanged(object sender, EventArgs e)
{
Invalidate();
}
/// <summary>
/// Fires the PropertyChange event.
/// </summary>
protected virtual void OnPropertyChanged()
{
if(PropertyChanged!=null) PropertyChanged(this, EventArgs.Empty);
Invalidate();
}
/// <summary>
/// Handles WM messages to set the right button states.
/// </summary>
/// <param name="m"></param>
protected override void WndProc(ref Message m)
{
base.WndProc(ref m);
if(m.HWnd == Handle)
{
switch(m.Msg)
{
case (int)Messages.WM_NCCALCSIZE:
if(m.WParam==IntPtr.Zero || m.WParam==new IntPtr(1))
{
NCCALCSIZE_PARAMS csp = (
NCCALCSIZE_PARAMS)Marshal.PtrToStructure(
m.LParam, typeof(NCCALCSIZE_PARAMS));
RealSize = new Size((csp.rgrc1.Right-csp.rgrc1.Left),
(csp.rgrc1.Bottom-csp.rgrc1.Top));
Marshal.StructureToPtr(csp, m.LParam, false );
}
break;
case (int) Messages.WM_CREATE:
this.state = (Enabled)? WindowButtonState.Normal:
WindowButtonState.Disabled;
break;
case (int)Messages.WM_LBUTTONDBLCLK:
case (int)Messages.WM_LBUTTONDOWN:
if(Enabled)
{
if(!Focused) Focus();
State = WindowButtonState.Pushed;
}
break;
case (int)Messages.WM_LBUTTONUP:
if(Enabled)
{
State = WindowButtonState.Hot;
}
break;
case (int)Messages.WM_MOUSEHOVER:
case (int)Messages.WM_MOUSEMOVE:
if(Enabled)
{
if(this.state != WindowButtonState.Pushed) State =
WindowButtonState.Hot;
}
break;
case (int)Messages.WM_MOUSELEAVE:
case (int)Messages.WM_KILLFOCUS:
if(Enabled)
{
State = WindowButtonState.Normal;
}
break;
case (int)Messages.WM_SETFOCUS:
case (int)Messages.WM_ENABLE:
if(Enabled)
{
State = WindowButtonState.Normal;
}
else
{
State = WindowButtonState.Disabled;
}
break;
}
}
}
#endregion
#endregion
}
Omedeto! Your custom WindowButton is ready to use! (Hoops! You should add it on your form before)
Note: I've included four more renderers in the sample (a ButtonRenderer, a CheckboxRenderer, a RadioButtonRenderer and a ProgressBarRenderer). You can use them to create your own renderers (or ask me if I've already implement what you need).
VisualStyleFile can cause your application to crash : don't associate this kind of VisualStyleFile to your custom controls. VisualStyleFiles in your project will cause your form(s) to flicker when loading (I'm working on a way to throw an event when all of a theme's data would have been populated) VisualStyleFiles in your project will cause a high memory usage (because we are in a managed environment of course) If you find a bug or an incoherence, don't be afraid to tell me. I'll fix it and update this article.
Maybe the first interesting point is the wrapper itself. The more complicated part is bitmap drawing and stretch operations. You can look at the DrawBackground() methods in the VisualStyleRenderer class and StretchBitmap() methods in VisualStyleHelper class.
Implementing a PE file reader is quite a hard task. I you want to build your own PE file reader, you can read the PECOFF format specification, or you can use/extend the PEFile class of the sample. Another idea, you can extend the PEFile class to create a resource editor like ResEdit.
While I was doing a lot a refactoring and performance tests, I've implemented a fast .ini file memory mapper. The aim target was to avoid working with backep-up files (the .ini embedded in the .msstyles) which involved a lot of I/O (and to use win32 Kernel functions). You will find it as the MemoryIniFile and MemoryIniSection classes.
Another interesting thing is the wrapper design. For those who are still using .NET 1.1 and are going to use .NET 2.0 (or 3.0), it will be quite easy because they will find exactly the same classes (but with less possibilities). Converting their projects will be as simple as rename references to the namespace "Devcorp.Controls.VisualStyles" to "System.Windows.Forms.VisualStyles" and copy missing classes.
MemoryIniHelper (redundant duplicated methods). VisualStyleRenderer.DrawBackground(). VisualStyleProperties). GroupBoxRenderer. ComboBoxRenderer. TextBoxRenderer. VisualStyleFile support in GetBackgroundContentRectangle() method. VisualStyleFile support in DrawEdge() method. ExplorerBarRenderer renderer (and its sample). IEBarRenderer renderer (and its sample). MemoryIniFile : some lines with key/value and a comment were not computed. VisualStyleFile. WindowButton and WindowButtonRenderer in the sample.
General
News
Question
Answer
Joke
Rant
Admin
|
PermaLink |
Privacy |
Terms of Use
Last Updated: 13 Jul 2007 Editor: Sean Ewington |
Copyright 2007 by Guillaume Leparmentier Everything else Copyright © CodeProject, 1999-2009 Web18 | Advertise on the Code Project |
, G.
. Can I also use it for commerical use? Any license or restrictions?
