C# Validating TextBox ControlBy Martin HaesemeyerA TextBox Control with Input Validation written in C# |
C#, Windows, .NET 1.0, Dev
|
|
Advanced Search |
|
|
|
||||||||||||||||
While writing a little tool in C# which I will present here at CodeProject some time in the future I needed a TextBox Control with the ability of input validation. Because I didn't find a control like this written in C# here at CodeProject I wrote my own and try to present it with my first article!
Right now this control performs basic input validation of the characters entered by the user by comparing them to a string containing valid or invalid characters.
The ValidatingTextBox class resides in the TextBoxExtension.dll assembly in the TextBoxExtension namespace.
The behaviour of the ValidatingTextBox control is controlled by three properties:
public string ValidationString{get;set;}
This property gets or sets the string to validate the input against.
public ValidationType ValidationMode{get;set;}
This property controls wether the characters in the provided ValidationString contain the valid chars or the invalid chars.
public bool CaseSensitiveValidation{get;set;}
If this property is set to true uppercase letters are treated differently than lowercase ones.
Depending on user action various events are fired by the control:
public event EventHandler ValidationModeChanged;
This event gets fired whenever the ValidationMode Property has been changed.
public event EventHandler ValidationStringChanged;
This event gets fired whenever the ValidationString changed.
<code>public event EventHandler CaseSensitiveValidationChanged;
Whenever the case sensitivity of the validation is altered this event gets fired.
public event EventHandler ValidationSuccessful;
Whenever a character input has been successfully validated this event gets fired.
public event CharValidationFailedEventHandler CharValidationFailed; public class CharValidationFailedEventArgs : EventArgs { public CharValidationFailedEventArgs(ValidationType mode, char failed) { currentValidationMode = mode; failedChar = failed; } // Holds the char that failed validation private char failedChar; // Holds the validation mode private ValidationType currentValidationMode; // This property gets the char that failed validation public char FailedChar { get { return failedChar; } } // This property gets the current Validation mode public ValidationType CurrentValidationMode { get { return currentValidationMode; } } } public delegate void CharValidationFailedEventHandler(object sender, CharValidationFailedEventArgs e);
This event is raised whenever a char failed validation. The event handler presents the char that failed validation (f.e. for error reporting) along with the current validation mode.
The validation process takes place in an override of the WndProc method of
the base class:
In this override WM_CHAR messages are intercepted and the method of the base
class is only called when a valid char has been entered. Non displayable
keyboard input like Tab, Delete and Return are always treated as valid:
private const int WM_CHAR = 0x0102; private const int VK_BACK = 0x08; private const int VK_TAB = 0x09; private const int VK_CLEAR = 0x0C; private const int VK_RETURN = 0x0D; protected override void WndProc(ref Message message) { if(message.Msg == WM_CHAR) { char cTest = (char)message.WParam; string sTest;//needed for case insensitive validation string sValidate;//needed for case insensitive validation if(caseSensitiveValidation) { sTest = cTest.ToString(); sValidate = validationString; } else //Uppercase both strings to neutralize casing { sTest = cTest.ToString().ToUpper(); sValidate = validationString.ToUpper(); } switch(cTest)//some characters always pass through { case (char)VK_BACK: case (char)VK_CLEAR: case (char)VK_RETURN: case (char)VK_TAB: base.WndProc(ref message); if(CharValidationSuccessful!=null) { EventArgs args = new EventArgs(); CharValidationSuccessful(this,args); } return; } //start validation if(validationMode == ValidationType.ValidateAgainstValid) { if(sValidate.IndexOf(sTest)<0)//char not present in validation string { if(CharValidationFailed!=null) { CharValidationFailedEventArgs args = new CharValidationFailedEventArgs(validationMode,cTest); CharValidationFailed(this,args); } return; } else//valid char { base.WndProc(ref message); if(CharValidationSuccessful!=null) { EventArgs args = new EventArgs(); CharValidationSuccessful(this,args); } return; } } else //ValidationString contains all invalid chars { if(sValidate.IndexOf(sTest)<0)//valid char { if(CharValidationSuccessful!=null) { EventArgs args = new EventArgs(); CharValidationSuccessful(this,args); } base.WndProc(ref message); return; } else//char present in invalidation string { if(CharValidationFailed!=null) { CharValidationFailedEventArgs args = new CharValidationFailedEventArgs(validationMode,cTest); CharValidationFailed(this,args); } return; } } } else //other than WM_CHAR message { base.WndProc(ref message); } }
If you have to revalidate the content of the control you can call the
public bool RemoveInvalidChars(){...}
method of the control and all invalid characters will be removed. This function never removes linefeed, carriage return or tabs. It returns true if any chars have been removed.

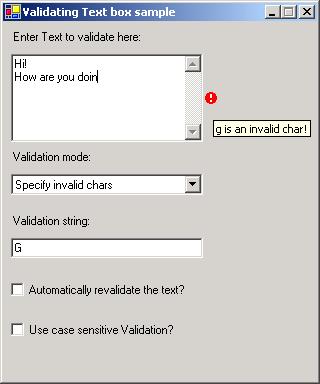

The sample project for this article lets you play around with the features of this control. You can add this control to your toolbox by right clicking on the toolbox and selecting customize (hope that's how it is called as I have the german version of VS .NET). Then you can add the assembly containing my control to the list of .NET assemblies - et voila. Please let me know if you find a bug or think that this control is useful.
