Simple Device Manager

• Download demo project - 29.8 Kb
• Download source - 26.4 Kb

Introduction

This article demonstrates a simple enumeration device and a dynamic, driver load/unload facility. I tried to prepare four very simple functionality for everyone's use.

Device enumeration

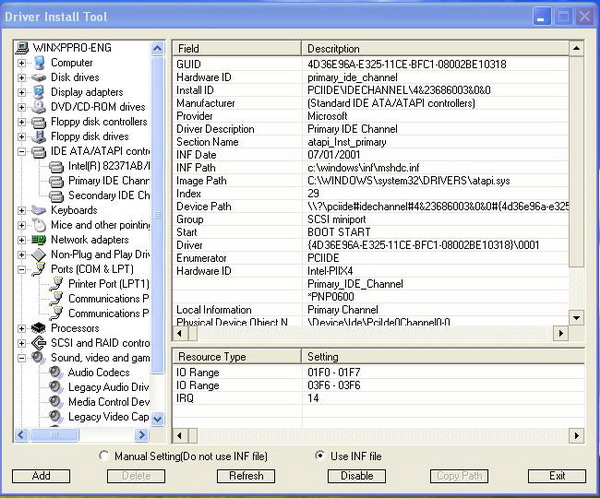

First of all, let us look at the image below which shows a window with device manager information. It is easy, the device manager enumerates devices when we expand the tree for a particular device.

The idea of device enumeration is not difficult for understanding:

Get the device information for a device using the SetupDiGetClassDevs function. When first calling the function, the first and the second parameters should be set to �0�, and the last parameter should be set to the DIGCF_ALLCLASSES constant to get all devices.

hDevInfo = SetupDiGetClassDevs(0L, 0L, _hDlg, DIGCF_PRESENT |
                               DIGCF_ALLCLASSES | DIGCF_PROFILE);

Getting the information

Use the SetupDiEnumDeviceInfo function to enumerate all devices:

SetupDiEnumDeviceInfo(hDevInfo,  wIndex, &spDevInfoData));

The second parameter is supplied a zero-based index of the device to be retrieved. Get the device name from the Registry via the SetupDiGetDeviceRegistryPropertyA function.

SetupDiGetDeviceRegistryProperty(hDevInfo,
                                 &spDevInfoData,
  // Supplies one of the following values,

  // indicating the property to be retrieved.

                                 SPDRP_CLASS,
                                 0L,
                                 (PBYTE)szBuf,
                                 2048,
                                 0);

Device resource

As you can see in the picture below, a device class has a name and a GUID (so it can be found in the Registry). The class can also have a description. For example, for class "Ports" has the description: "Ports (COM & LPT)". A class can also have devices that are present in the configuration.

• Get information about the current configuration using the CM_Get_First_Log_Conf function.
• Get the resource descriptor from the current configuration using the CM_Get_Next_Res_Des function. Do this and follow the same steps for every resource till they exist.
• Get information about the size of a resource data using the CM_Get_Res_Des_Data_Size function.
• Get resource data using the CM_Get_Res_Des_Data function.

Load/unload non-PNP driver

Windows allows loading drivers at runtime using the Service Control Manager. Yes, the Service Control Manager in Windows can not only be used to load and manage services, but you can use it with device drivers to load/unload/start/stop Windows services.

If you want to send/receive data to the device driver loaded, you have to get a handle to the driver. For this purpose, you can use the function CreateFile, and pass the driver name as the file name. You can see that Windows is so abstract in this aspect.

Load/unload class driver

Windows allows loading class drivers at runtime using the SetupDiXXXX API. You can use it with Windows device drivers as you use it to load/unload your device driver.
