Console Enhancements

• Download source files - 17 Kb

Introduction

System.Console is a class provided by the framework to handle console I/O and redirection. The Win32 API also supports a set of console APIs. Win32 supports a single console for each application (process), even a Windows Forms Application. Consoles support a number of features such as buffering, full-screen mode, colors, and so on. You can call another process and capture its output into your own console. With console applications, the console is inherited from the calling process; however, Windows application are detached from any console.

Unfortunately, the Console class does not take advantage of most of the features supported in the console APIs.  So, I introduced a new class called WinConsole, that provides more of the functionality offered by the Win32 class. It provides some of the more popular console functions, but not yet all of them. It can be used in both Console and Windows Applications and probably Class Libraries as well. I plan to add the full range of functionality sometime in the future.

I initially intended to use it for debugging purposes and was going to call it DebugConsole, but it is also used as a replacement or extension for the existing Console class. I found that testing a low-level UI-less, data structure or class in a full-fledged Windows Application can be very difficult. Standard I/O no longer work. The Debugger Output Window is just a poor substitute for the console. It has fewer capabilities than the console and requires flipping between the application and the debugger. Now, with WinConsole, Console.WriteLine() and Console.ReadLine() are both available for WinForms apps.

Web applications are still out of luck. Sorry.

WinConsole in Console Application

In Console applications, WinConsole provides additional features such as the following:

1) Hiding and showing the console window (WinConsole.Visible = false)
2) Clearing the console window (WinConsole.Clear())
3) Getting or setting the cursor location
4) Changing the color of text to one of 16 different console colors (WinConsole.Color = ConsoleColor.Red)

<

5) Having standard error output written with a different color as demonstrated above.
6) Automatically flashing window and beeping when an error message is written out. (WinConsole.Beep())
7) Capturing asserts and traces to standard error each with a different color scheme

To read input and write output, you can use Console.WriteLine and Console.ReadLine. You can also use WinConsole.WriteLine or WinConsole.ReadLine, but it always defers to the Console functions.

WinConsole in Windows Application

WinConsole truly shines in a Windows application environment. It enables the use of an additional console window alongside the main application window, which can be hidden and shown anytime. It contains all the additional enhancements, listed above for Console applications, and more.

WinConsole is especially useful for debugging and tracing. Testing data structures becomes a lot harder when moving from a console app to a windows application, because of the omission of console window to report interesting messages. The standard Debug.Write, Trace.Write call OutputDebugString, which sends data to the limited Debugger's output window.

With WinConsole, calls from Debug.Write(Line), Trace.Write(Line), and even Console.Write(Line) and Console.Error.Write(Line) can output to the application console window, each in its own independent color. In addition to coloring, there is a flashing mode that can be selected (flash once, flash until response) to alert the developer/tester to warning and error messages.

Input can also be read from the console window through Console.Read(Line). This allows the application to easily receive input from the user in a simple synchronous model instead of a more complex event-driven model. In this way, an entire command-line system can be developed for the application while it is running for performing various tests.

The best part is that the console window is owned and painted separately by the operating system in a separate thread, so that it is always viewable while debugging even after entering break mode or flipping back and forth between the debugger and the application. In contrast, normal application windows are frozen--they cannot be redrawn since event processing is suspended after a break.

WinConsole API

To use the WinConsole in a Windows application, WinConsole.Visible should be assigned at some point before the console is used. Of course, the assignment needs to be true in order to see any contents. Alternatively, WinConsole.Initialize() can be called, but the console may not be visible.

In console applications, WinConsole.Initialize() is sufficient. Most of the properties and methods in WinConsole will cause an initialization to occur as well, if it has not already occurred.

Below is a list of properties.

To change the color of text, Color must be assigned a ConsoleColor.

ConsoleColor is an enum consist of flags Red, Blue, Green, Intensified, RedBG, BlueBG, GreenBG, IntensifiedBG. The BG colors are for the background color. By using various combinations of each color flags, you can achieve 16 colors for text and 16 colors for the background. To produce white, Red|Green|Blue|Intensified must be set. When the intensified flag is missing, the unintensified color is midway between black and the chosen color. So, white becomes gray, red becomes dark red, and so on.

Below is a list of properties.

In addition to these methods and properties, WinConsole also includes all the standard Console methods and properties, which it simply redirects to the Console class, so that there is exactly no difference between calling a Console method and its corresponding WinConsole method. For example, WinConsole.WriteLine calls Console.WriteLine.

Coloring Standard Error Output, Debug Output or Trace Output

I have also included a ConsoleWriter class, which can be used to provided colored output, flashing, and/or beeping to the console window.

ConsoleWriter is constructed by calling new on the ConsoleWriter(TextWriter writer, ConsoleColor color, ConsoleFlashingMode mode, bool beep) constructor.

Redirecting Standard Error:
Console.Error = new ConsoleWriter(Console.Error, ConsoleColor.Red|ConsoleColor.Intensified, 0, true);

Redirecting Debug or Trace Output:
Debug.Listeners.Remove("default"); // Debug.Listeners.Clear();
Debug.Listeners.Add( new TextWriterTraceListener( new ConsoleWriter(Console.Error, ...) ) );

You can also use the convenience function: WinConsole.RedirectDebugOutput(...).

Launch Notepad Dialog

At Microsoft, virtually every group uses a command-line environment for building, testing and so on; this can sometimes make it difficult to get a complex set of information from a user, because of the UI-less environment.

Thus, the infamous notepad dialog was invented. A command would start a notepad.exe with a filename argument and wait for it to exit. The file is prepopulated with help comments and default information. The user edits the file and indicates OK by exiting notepad. The suspended command, which was waiting for notepad to exit, is now resumed and ready to process the notepad file.

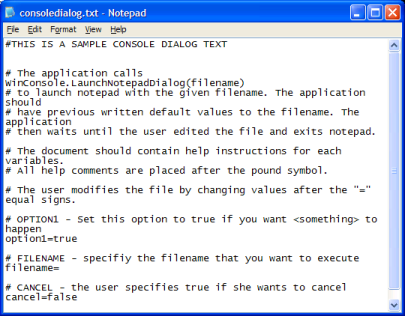

The image shows a typical notepad dialog.

WinConsole.LaunchNotepadDialog takes a filename argument, and launches a notepad dialog, in which the user can modified the specified file.

Conclusion

This represents just one of my articles in the debugging series. There will be others.

I'd appreciate your vote; it is a powerful motivating force for me.

Version History

• June 28, 2003 - Original article.
