Keep ASP.NET ViewState out of ASPX Page for Performance Improvement

• Download demo project - 52.1 Kb

Introduction

ASP.NET ViewState is a great mechanism that simplifies the life of ASP.NET developers. But, as everybody knows, the .NET Framework saves the ViewState data as a hidden field on your ASPX page. If your page has only a few controls, this is not a problem. But, if your page has some Panels and/or some DataGrids, with the technique demonstrated on this article, you could reduce dramatically the load time of the page.

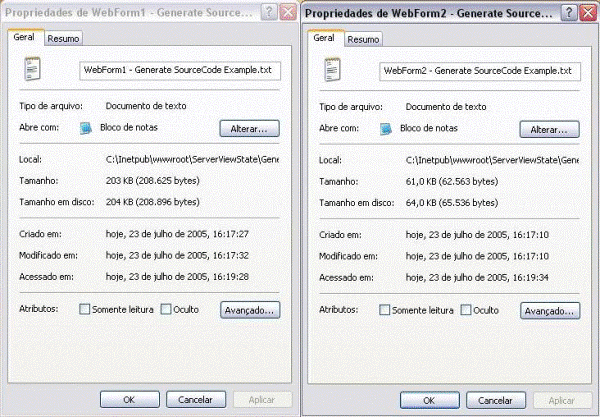

We will start our analysis thinking where the Framework needs to work with the data saved on the ViewState hidden field. The answer is: only on the server side. The system doesn't need to work with the ViewState data on the client side, so, if we start to save this data on the server instead of carrying all this from the server to the client and from the client to the server again, we will save a lot of time while loading our documents. You probably won't note the difference while loading the page on the same computer that the application is installed, but, test it using a dial-up connection and you will see what happens. You cold also see the the size of the source code generated with and without this technique.

This example consist of a class that inherits the System.Web.UI.Page, and overrides the methods SavePageStateToPersistenceMedium and LoadPageStateFromPersistenceMedium. These methods are responsible for saving and loading the ViewState used by the controls on a page. What we do is intercept the call to these methods and, using some simple custom config keys on the Web.Config, set how this class should work. It can save the ViewState on the server using two destinations: Session and Cache, and, has the ability to work as the original class, saving the ViewState data to the ASPX page.

If you already have a project and want to start using this technique, all that you need to do is add a reference to the class that accompanies this example and inherit your "code-behind files" from it instead of the System.Web.UI.Page, and add the Config information to your Web.Config.

To develop this technique, I read a lot of articles over the internet, but, one really "opened my mind" of how this implementation could be done and the benefits of it. See more information on the Points of Interest Section.

I included a demo project that you could download and use to test the implementation. Note that the demo project saves the ViewState to the session, which I think is the best place to store it.

Using the code

As I said, the implementation is very easy. So, let's start with my Class code, and after discussing it, let's see the configuration of the Web.Config file.

'KEEPING THE VIEWSTATE OUT OF THE ASPX PAGE

'Autor.: Régis Daniel de Oliveira

'E-Mail: regisxp@hotmail.com

'Date..: 07/2005


'Reserach Source:

'http://www.eggheadcafe.com/articles/20040613.asp


Imports System.Configuration.ConfigurationSettings
Imports System.Diagnostics

Public Class VSPage
    Inherits System.Web.UI.Page

Now, let's see the method responsible for saving the ViewState data, called SavePageStateToPersistenceMedium. All that this method does is see if the ServerSideViewState on our Web.Config file is enabled (True). If no, the system will perform a normal ViewState save, storing it on the ASPX document. If yes, the system will check which is the ServerSideViewState method that you want to use: CACHE or SESSION. If you choose CACHE, the data will be stored on the cache and will expire after some time. If you choose SESSION, the data will be saved on the user session and will be discarded when the user session expires. When this option is used, the system automatically creates a DataTable that will be saved on the session and will hold all the ViewState data. The maximum number of ViewState data that could be held on the DataTable is defined by the Web.Config parameter ViewStateTableSize. The default value, 150, represents that the ViewState data of the last 150 postbacks will be available to the system. So, if the user clicks on the navigator's Back button 150 times (what is improbable to occur), the ViewState for that page will already be present to be used. This is a very good number...

    Protected Overrides Sub _
               SavePageStateToPersistenceMedium(ByVal viewState As Object)

        Dim VSKey As String
        'String that will hold the Unique Key

        'used to reference this ViewState data


        Debug.WriteLine(MyBase.Session.SessionID)

        'Create the key based on the SessionID, on the Request.RawUrl

        'and on the Ticks representated by the exact time

        'while the page is being saved

        VSKey = "VIEWSTATE_" & MyBase.Session.SessionID & "_" & _
                Request.RawUrl & "_" & Date.Now.Ticks.ToString

        'Check if the ServerSideViewState is Activated

        If UCase(AppSettings("ServerSideViewState")) = "TRUE" Then

            'Check were we will save the ViewState Data

            If UCase(AppSettings("ViewStateStore")) = "CACHE" Then

                'Store the ViewState on Cache

                    Cache.Add(VSKey, viewState, Nothing, _
                        Date.Now.AddMinutes(Session.Timeout), _
                        Cache.NoSlidingExpiration, _
                        Web.Caching.CacheItemPriority.Default, Nothing)

            'The ViewStateData will be Saved on the SESSION

            Else

                Dim VsDataTable As DataTable
                Dim DbRow As DataRow

                'Check if the ViewState DataTable are on the Session

                If IsNothing(Session("__VSDataTable")) Then

                    'No, it's not. Create it...

                    Dim PkColumn(1), DbColumn As DataColumn
                    VsDataTable = New DataTable("VState")
                    'Create the DataTable


                    'Column 1 - Name: VSKey - PrimaryKey

                    DbColumn = New DataColumn("VSKey", GetType(String))
                    VsDataTable.Columns.Add(DbColumn)
                    PkColumn(0) = DbColumn
                    VsDataTable.PrimaryKey = PkColumn

                    'Column 2 - Name: ViewStateData

                    DbColumn = New DataColumn("VSData", GetType(Object))
                    VsDataTable.Columns.Add(DbColumn)

                    'Column 3 - Name: DateTime

                    DbColumn = New DataColumn("DateTime", GetType(Date))
                    VsDataTable.Columns.Add(DbColumn)

                Else
                    'The ViewState DataTable is already on the UserSession

                    VsDataTable = Session("__VSDataTable")

                End If

                'Check if we already have a ViewState saved with the same key.

                'If yes, update it instead of creating a new row.

                '(This is very dificult to happen)

                DbRow = VsDataTable.Rows.Find(VSKey)

                If Not IsNothing(DbRow) Then
                    'Row found!!! Update instead of creating a new one...

                    DbRow("VsData") = viewState
                Else
                    'Create a new row...

                    DbRow = VsDataTable.NewRow
                    DbRow("VSKey") = VSKey
                    DbRow("VsData") = viewState
                    DbRow("DateTime") = Date.Now
                    VsDataTable.Rows.Add(DbRow)
                End If

                'Check if our DataTable is OverSized...

                If Convert.ToInt16(AppSettings("ViewStateTableSize"))_
                                      < VsDataTable.Rows.Count Then
                    Debug.WriteLine("Deleting ViewState Created On " _
                           & DbRow(2) & ",ID " & DbRow(0))
                    VsDataTable.Rows(0).Delete() 'Delete the 1st line.

                End If

                'Store the DataTable on the Session.

                Session("__VSDataTable") = VsDataTable

            End If

        'Register a HiddenField on the Page,

        'that contains ONLY the UniqueKey generated.

        'With this, we'll be able to find with ViewState

        'is from this page, by retrieving these value.

        RegisterHiddenField("__VIEWSTATE_KEY", VSKey)

        Else

        'Call the normal process.

        MyBase.SavePageStateToPersistenceMedium(viewState)

        End If

    End Sub

And now, let's see the method responsible to load the ViewStateData, LoadPageStateFromPersistenceMedium:

    Protected Overrides Function LoadPageStateFromPersistenceMedium() As Object

        'Verifica se o ServerSideViewState está ativado

        If UCase(AppSettings("ServerSideViewState")) = "TRUE" Then

            Dim VSKey As String 'ViewState UniqueKey

            VSKey = Request.Form("__VIEWSTATE_KEY")
            'Request the Key from the page and validade it.


                If Not VSKey.StartsWith("VIEWSTATE_") Then
                    Throw New Exception("Invalid VIEWSTATE Key: " & VSKey)
                End If

            'Verify which <SPAN id=BABID_Results7>modality was used to save ViewState

            If UCase(AppSettings("ViewStateStore")) = "CACHE" Then
                Return Cache(VSKey)

            Else

                Dim VsDataTable As DataTable
                Dim DbRow As DataRow
                VsDataTable = Session("__VSDataTable")
                DbRow = VsDataTable.Rows.Find(VSKey)

                    If IsNothing(DbRow) Then
                        Throw New Exception("VIEWStateKey not Found. " & _
                              "Consider increasing the ViewStateTableSize" & _
                              " parameter on Web.Config file.")
                    End If

                    Return DbRow("VsData")

            End If

        Else

            'Return the ViewState using the Norma Method

            Return MyBase.LoadPageStateFromPersistenceMedium()

        End If

    End Function

End Class

And now, this is what we need to insert on our config file Web.Config:

    <!-- application specific settings -->
    <appSettings>

        <!--ServerSideViewState: Defines if ViewState
                 will be saved on the Server: True|False-->
        <add key="ServerSideViewState" value="True"/>

        <!--ViewStateStore: Defines where we'll save the ViewState: Cache|Session-->
        <add key="ViewStateStore" value="Session" />

        <!--ViewStateCacheFSSize: Define the maximum Number
           of viewStates will be saved when ViewStateStore = Session -->
        <add key="ViewStateTableSize" value="150" />

    </appSettings>

Points of Interest

A lot of research was done to implement the login presented on this article. One of the most interesting sources is this. If you would like to know more about these techniques and see the result of some stress tests, follow the link.

Conclusion

ViewState really simplifies the development of ASP.NET applications, but due to increase in the page load time, some developers don't like to use it. With this technique, you could have all the advantages of using ViewState on your projects without worry about the size of the generated page source code.
