Roles-Based Authentication

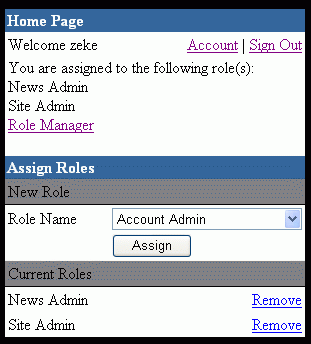

Sample Image - screenshot.gif

Introduction

This article demonstrates how to use Form Authentication in ASP.NET. I have written a set of classes and a small web application that uses these classes as an example. The small application features 4 forms (pages) that allow you to do the following functions: Add new user, assign roles to users, remove roles from users and manage roles. Although the classes I've written provide quite enough functions that are ready to use, for the demonstration purpose, I have limited the fields in the User class. That means users can provide some basic fields when registering for a new account: Full Name, Email, Password, Biography. You can add more fields later if you want, it's quite easy.

The Classes Overview

There are 4 classes: User, Role, SitePrincipal and SiteIdentity. I would like to overview the classes' methods and properties here:

The User class

`User()`	Default parameter less constructor to create a new user
`User(int userID)`	This constructor gets a `userID` and looks up the user details from the database
`User(string email)`	This constructor gets an email and looks up the user details from the database
`GetUsers()`	This method returns a `DataSet` of all the users available in the database
`GetRoles()`	This method returns a `DataSet` of roles assigned to the current user
`GetUserRoles(int userID)`	This static method grabs the `userID` and returns a roles `ArrayList` assigned to that user
`AddToRole(int roleID)`	This method assigns a role to the current user
`RemoveFromRole(int roleID)`	This method removes current user from the role that has been passed by the `roleID`.
`Add()`	Adds a new user to the database
`Update()`	Updates current user information
`Delete()`	Deletes current user
`UserID`	Gets/Sets user's id number
`FullName`	Gets/Sets user's full name
`Email`	Gets/Sets user's email
`Password`	Gets/Sets user's password
`Biography`	Gets/Sets user's biography
`DateAdded`	Gets/Sets user's registering date

The Role class

`Role()`	Default parameter less constructor to create a new role
`Role(int roleID)`	This constructor gets a `roleID` and looks up the role details from the database
`GetRoles()`	This method returns a `DataSet` of all roles available in the database
`Add()`	Adds a new role to the database
`Update()`	Updates current role information
`Delete()`	Deletes current role
`RoleID`	Gets/Sets role ID number
`RoleName`	Gets/Sets role name

The SitePrincipal class (implements the IIPrincipal Interface)

`SitePrincipal(int userID)`	This constructor gets a `userID` and looks up details from the database
`SitePrincipal(string email)`	This constructor gets an email and looks up details from the database
`IsInRole()`	(`IIPrincipal.IsInRole()`) Indicates whether a current principal is in a specific role
`ValidateLogin()`	Adds a new user to the database
`Identity`	(`IIPrincipal.Identity`) Gets/Sets the identity of the current principal
`Roles`	Gets the roles of the current principal

The SiteIdentity class (implements the IIdentity Interface)

`SiteIdentity(int userID)`	This constructor gets a `userID` and looks up the user details from the database
`SiteIdentity(string email)`	This constructor gets an email and looks up the user details from the database
`AuthenticationType`	(`IIdentity.AuthenticationType`) Always returns "`Custom Authentication`"
`IsAuthenticated`	(`IIdentity.IsAuthenticated`) Always returns `true`
`Name`	(`IIdentity.Name`) Gets the name of the current user
`Email`	Gets the email of the current user
`Password`	Gets the password of the current user
`UserID`	Gets the user ID number of the current user

Enabling Forms Authentication

To enable ASP.NET Forms Authentication, your application web.config file must contain the following information:

<configuration>
     <system.web>
      <authentication mode="Forms">
            <forms name="RolesBasedAthentication"
                path="/"
                loginUrl="/Login.aspx"
                protection="All"
                timeout="30">
            </forms>
         </authentication>
     </system.web>
</configuration>

The authentication mode is set to Forms, this enables the Forms Authentication for the entire application. The value of the name attribute is the name of the browser cookie, the default value is .ASPXAUTH but you should provide a unique name if you are configuring multiple applications on the same server. The loginUrl is the URL to your login page. The timeout is the amount of time in minutes before a cookie expires, this attribute does not apply to persistent cookies. The protection attribute: is the way your cookie data is protected, ALL means that your cookie data will be encrypted and validated. Other values that you can set are: None, Encryption, Validation.

When Forms Authentication is enabled, each time a user requests a page, the form will attempt to look up for a cookie in the user's browser. If one is found, the user identity was kept in the cookie represented in the FormsIdentity class. This class contains the following information about the authenticated user:

AthenticationType - returns the value Forms
IsAthenticated - returns a boolean value indicating where the user was authenticated
Name - Indicates the name of an authenticated user

Because the FormsIdentity contains only the Name of the user and sometimes you need more than that, that's why I have written the SiteIdentity which implements the IIdentity interface to contain more information about the authenticated user.

Creating the Login Page

For creating the login page, you simply need 2 textboxes to let the user input the email address and password, named Email and Password, respectively. You may need 1 check box to ask if the user wants us to set a persistent cookie, and finally one submit button with OnClick event which is handled as follows:

private void Submit_Click(object sender, System.EventArgs e)
{
      // call the ValidateLogin static method to

      // check if the email and password are correct

      // if correct the method will return a new user else return null

      SitePrincipal newUser =
        SitePrincipal.ValidateLogin(Email.Text, Password.Text);

    if (newUser == null)
    {
        ErrorMessage.Text = "Login failed for " + Email.Text;
        ErrorMessage.Visible = true;
    }
    else
    {
        // assign the new user to the current context user

        Context.User = newUser;
        // set the cookie that contains the email address

        // the true value means the cookie will be set persisted

        FormsAuthentication.SetAuthCookie( Email.Text, true );
        // redirect the user to the home page

        Response.Redirect("Default.aspx");
    }
}

The code above is straightforward, first we call SitePrincipal.ValidateLogin() which looks up the database and check if the user has entered the correct email and password and returns the new instance of SitePrincipal object. If the new object is null that means the user has not entered a correct email or password, otherwise we assign the current user with the new object. Then set the cookie and redirect the user to the main page.

Authenticating User On Every Request

Whenever user requests a page, the ASP.NET Forms Authentication will automatically pick up our cookie. But we haven't replaced the current context user with our own, so we should create a pagebase class as base class and replace the current context user with our own so that every page that is derived from this pagebase will have our own SitePrincipal instance as context user. When the SitePrincipal is instantiated, it will automatically search for roles that match the current user and assign to the user's roles. The code below creates a pagebase class and replaces the current context with our own:

public class PageBase: System.Web.UI.Page
{
    public PageBase()
    {
    }

    protected override void OnInit(EventArgs e)
    {
        base.OnInit(e);
        this.Load += new System.EventHandler(this.PageBase_Load);
    }



    private void PageBase_Load(object sender, System.EventArgs e)
    {
      if (Context.User.Identity.IsAuthenticated)
      {
        if (!(Context.User is SitePrincipal))
        {
              SitePrincipal newUser =
                new SitePrincipal( Context.User.Identity.Name );
              Context.User = newUser;
            }
    }
    }
}

So now every page should derive this bass class instead of deriving the System.Web.UI.Page. So if you want to get the current name or email address or user ID of the authenticated user, you can do like this:

if (Context.User.Identity.IsAuthenticated)
{
    string name = ((SiteIdentity)Context.User.Identity).FullName;
    string email = ((SiteIdentity)Context.User.Identity).Email;
    string password = ((SiteIdentity)Context.User.Identity).Password;
    string userID = ((SiteIdentity)Context.User.Identity).UserID;
}

Or if you can check if the current user is in a specific role as following:

if (Context.User.Identity.IsAuthenticated)
{
    // if user is not in the Site Admin role,

    // he/she will be redirected to the login page

    if (!((SitePrincipal)Context.User).IsInRole("Site Admin"))
        Response.Redirect("Login.aspx");
}

The Demo Application

All the code above is the only base for using my classes to turn your application into a roles-based authentication system. How ever I have written a small demo web application that uses these classes as an example with quite enough functions like: insert/update/delete roles, assign user to roles and remove user from roles. In order to get the application up and running, you need to have SQL Sever, since I'm not using Access as a database management system.

You can download the demo application and all the source code for the classes from the links at the top of this page and follow these steps to get the application up and running:

Copy the RolesBasedAthentication.Web folder to the wwwroot directory.
Share the RolesBasedAthentication.Web folder by right clicking and choose Properties and then open the Web Sharing tab and choose Share this folder.
Create a new database and name it RolesBasedAuthentication.
Run the script in the database.sql using Query Analyzer to create tables and stored procedures for the new database.

When running the application, log on with account: admin@site.com and password: admin to have full access. Hope you find this small application helpful.
