Automatic HTMLHelp Documentation for COM type libraries

• Download source files - 171 Kb
• Download installation package - 1.51 Mb Kb

Description

Tool for Documentation of Type Libraries (DocLibTool) is a VB6 program that helps you document Microsoft COM type libraries (and thus any COM component described in a type library) in HTML Help format. It created it while working in a company to help me create the documentation for some large COM objects. Information from the type library is extracted using the functions of the TypeLib Information component implemented in TLBINF32.DLL. Read the MSDN magazine article Visual Basic: Inspect COM Components Using the TypeLib Information Object Library for details about this component.

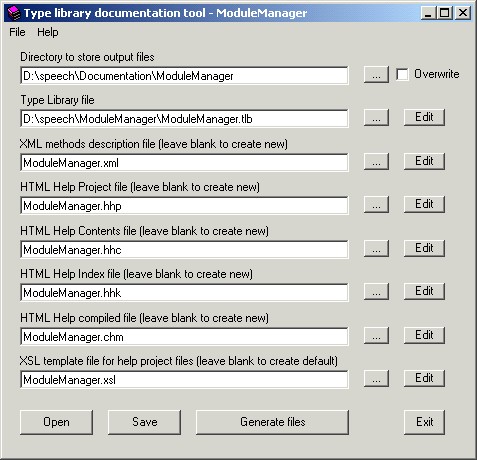

Basic use of the program is simple. You have to provide a source file containing a type library (*.EXE, *.DLL, *.TLB) created by any COM-enabled language (VC++, VB, Delphi, ...), point to a directory where all output files will be put and then press the "Generate files" button. The program will create a set of  HTML files describing the type library (objects, interfaces, methods, enumerations), an XML file having all this information in a structured way, an HTML Help Project file (.HHP) , a HTML Help Contents file (.HHC), a HTML Help Index file (.HHK). To compile the help file ( .CHM extension) you open HTML Help Project file with the Microsoft's HTMLHelp program and press the "Compile" button. If you don't have the HTMLHelp tool you can freely download it from Microsoft's MSDN site (search for 'HTMLHelp' and you 'll find it).

You can add your own customized information to the help file, by editing the XML file and filling the empty tags that exist for this purpose: CoClassDescription, InterfaceDescription, MemberDescription, ReturnValueDescription, ParameterDescription, ExampleCode, Related, EnumerationDescription. A program has also a visual editor that allows you to easily enter additional information for the methods (general description, parameters/return value descriptions, example source code). The editor saves this information in the XML file. You can also edit the Contents file and the Index file with the Microsoft HTMLHelp tool. Finally, you can also change the format of the HTML files and their structure (more difficult !) by editing the XSL files. When you re-generate the files (due to a change in the type library for example) all the custom information that you have entered in the XML is copied from the old file to the new one. If you have added entries in the contents or the index file they will be retained also. Information for each project is stored in a configuration file with the .dlt extension. The format of the file is the same as the format of INI files.

How to enhance the tool

Information extracted from the type library is saved in an XML file. XSL transformations (extended with some Microsoft VBscript code) are used to create the output files (HTML,etc.). If you want to improve the documentation that the tool produces, you can edit the following files that are used by it. These files are:

History

• 13 Jan 2003 - added installation download
• 7 Mar 2003 - updated installation download
