Change Font & Size of Crystal Report Dynamically

By , 2 Nov 2011
Rate this:
Please Sign up or sign in to vote.

Introduction

This article describes how to change font and size of crystal report dynamically (runtime) in VB.NET 2005.

Using the Code

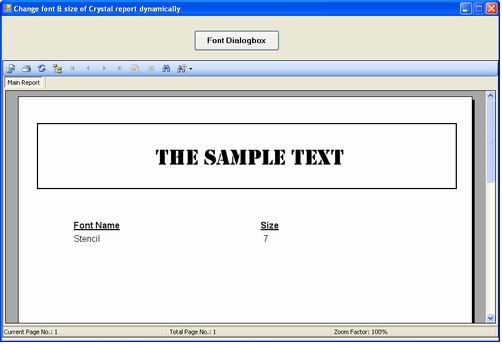

Open a new Windows application project using VB.NET and add a button, CrystalReportViewer from the Toolbox. Adding the control and dropping it on the form design it as shown in fig.

then add a SQL Database name as “Database1.mdf” create a table name as “Fonts” with 3 fields : FontName, Size, SrNo and set SrNo field value as 1

Imports System.Data.SqlClient

Public Class Form1

    Dim rpt As New CrystalDecisions.CrystalReports.Engine.ReportDocument
    'path variable use for Get application running path
    Dim path As String = (Microsoft.VisualBasic.Left(Application.StartupPath, Len(Application.StartupPath) - 9))
    'connetiong string
    Dim con As New SqlConnection("Data Source=.\SQLEXPRESS;AttachDbFilename=" & path & "Database1.mdf;Integrated Security=True;User Instance=True")
    Dim cmd As SqlCommand

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        FontDialog1.ShowDialog()
        'Update query is fired
        cmd = New SqlCommand("UPDATE Fonts SET FontName ='" & FontDialog1.Font.Name.ToString & "',Size = " & FontDialog1.Font.Size.ToString & " WHERE SrNo = 1", con)
        cmd.ExecuteNonQuery()
        'Function report call
        report()
    End Sub

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        con.Open()
        'Function report call
        report()
    End Sub
    Sub report()
        On Error Resume Next
        Dim dset As New DataSet
        Dim adp As New SqlDataAdapter("Select * from Fonts", con)
        adp.Fill(dset, "Fonts")
        'path variable store a runnig application path"
        rpt.Load(path & "CrystalReport1.rpt")
        rpt.SetDataSource(dset)
        rpt.Refresh()
        CrystalReportViewer1.ReportSource = rpt
    End Sub

End Class
Create a crystal report and add field from Database FontName & Size then Add Formula Fields name as “font”.Edit the Formula Field and use html font tag set it attributes face & size save it

The HTML tag is used in crystal report to set a font

Drop the formula field on crystal report then right click on it: Format Object -> Paragraph -> text interpretation -> HTML text -> OK button.

Limitations

Some font are not supporting to Html tag ,font size will be set 1 to 7 only. This is a drawback.
