Setting Version of Assemblies in ASP.NET MVC Application with TeamCity Build Feature

, 15 Oct 2015
Rate this:
Please Sign up or sign in to vote.
Setting version of assemblies in ASP.NET MVC application with TeamCity Build Feature

Introduction

The last five posts (1, 2, 3, 4, 5) were all about fun stuff with Arduino. Now it’s time for something more mundane. ;) In this post, I will show you how to create TeamCity build that automatically sets version information in all assemblies produced by ASP.NET application. It's nothing new but I hope to give you some useful background information and note a few gotchas you may face...

The complete code of the sample application is available in this GitHub repository.

TeamCity has a build feature called AssemblyInfo patcher that makes setting assembly version easy... This feature is usable on any type of .NET project because it works by updating AssemblyInfo files. Content of such files is used to create version information that .NET Framework uses for picking up correct version of referenced assemblies. Version data is also shown in Windows file properties... Here's a part of AssemblyInfo.cs file which is automatically added by Visual Studio when you create a new project:

// Version information for an assembly consists of the following four values:
//
//      Major Version
//      Minor Version
//      Build Number
//      Revision
//
// You can specify all the values or you can default the Revision and Build Numbers
// by using the '*' as shown below:
[assembly: AssemblyVersion("1.0.0.0")]
[assembly: AssemblyFileVersion("1.0.0.0")]

It contains two attributes: AssemblyVersion and AssemblyFileVersion along with a comment that describes numbering pattern recommended by Microsoft. We will also use another attribute: AssemblyInformationalVersion which is not added by default. AssemblyVersion sets version number that is recognized by .NET for dependency resolution. AssemblyFileVersion is used for file version as seen by Windows and AssemblyInformationalVersion is meant more for human consumption as it can contain strings (we will make use of it for holding Git commit hash)... Detailed description of the meaning of these attributes is outside the scope of this post but check this great SO answer if you want to know more.

Sample Application

My test application was created in Visual Studio Community 2013 by using ASP.NET Web Application / MVC project template (C#/.NET 4.5). Two additional projects of Class Library type were added. Here’s how the full solution looks:

Visual Studio solution... Click to enlarge...

Home/Index.cshtml view generated by VS was modified to present version information pulled from three .NET assemblies that are produced by the solution (one is for main web app project and two others are for class libraries). Such div was added to the view:

<div class="row text-primary">
    <div class="col-md-12">
        <dl>
            <dt>Core assembly info:</dt>
            <dd>@ViewBag.CoreAssemblyInfo</dd>
            <dt>DataAccess assembly:</dt>
            <dd>@ViewBag.DataAccessAssemblyInfo</dd>
            <dt>Web assembly info:</dt>
            <dd>@ViewBag.WebAssemblyInfo</dd>
        </dl>
    </div>
</div>

You can see some Bootstrap classes there since nowadays Visual Studio templates use Bootstrap framework for styling...

This is how rendered view looks before TeamCity processes AssemblyInfo.cs files:

Version information in web app before TC build... Click to enlarge...

And here's how version info looks after version attributes are modified by build feature:

Version information in web app after TC build... Click to enlarge...

If you wonder how the view gets version info, here's HomeController.Index action method:

public ActionResult Index()
{
    ViewBag.CoreAssemblyInfo = SomeCoreClass.GetAssemblyInfo();
    ViewBag.DataAccessAssemblyInfo = SomeDataAccessClass.GetAssemblyInfo();

    Assembly assembly = Assembly.GetExecutingAssembly();
    string webAsseblyInfo = string.Format
    ("Full Name = \"{0}\"; Informational Version = \"{1}\"",
                            assembly.FullName,
                            FileVersionInfo.GetVersionInfo(assembly.Location).ProductVersion);
    ViewBag.WebAssemblyInfo = webAsseblyInfo;

    return View();
}

You can see how the most important assembly version number (the one used by .NET and designated by AssemblyVersion attribute) is a part of assembly's FullName. Informational version (the one that can have strings) is taken with the help of FileVersionInfo class. You can get the number form AssemblyFileVersion attribute too - just check all the interesting stuff that GetVersionInfo method returns... The same kind of code is used in GetAssemblyInfo methods in SomeCoreClass and SomeDataAccessClass.

Ok, so we have our test application - the full code is here. Note: I’ve pushed all used Nuget packages to the repository – that takes some space in the repo and might be against the recommended way of using Git but it makes TeamCity setup easier. If packages folder is not committed, you can expect this type of error during build:

[Csc] App_Start\BundleConfig.cs(2, 18): error CS0234:
The type or namespace name 'Optimization' does not exist in the namespace 'System.Web'
(are you missing an assembly reference?)

To solve it, you would have to restore Nuget packages during build (here’s some info on how to do it).

Teamcity Configuration

Now, it's time for building the server config! I assume that you have some working knowledge about setting TeamCity build for .NET application, so I will discuss only the steps relevant to versioning. I’ve used TeamCity 9.1.3 but don't worry if you have a bit older TC (AssemblyInfo patcher feature exists for a while). I used TC to build code from Git repository checkout on my local drive...

Before setting up AssemblyInfo patcher, add two new build parameters: Minor and Major. These are meant to represent two initial segments of version number and should be set manually - it's your (technical/marketing?) decision whether to name your next version 1.9 or 2.0, right?

Major and Minor build parameters... Click to enlarge...

The next step is to add AssemblyInfo patcher build feature:

AssemblyInfo patcher build feature... Click to enlarge settings...

And set its properties:

AssemblyInfo patcher settings... Click to enlarge...

I've decided to use such settings:

  • AssemblyVersion: %Major%.%Minor%.%build.number%
  • AssemblyFileVersion: %Major%.%Minor%.%build.number%
  • AssemblyInformationalVersion: %Major%.%Minor%.%build.number%.%build.vcs.number%

You can see that our Major and Minor parameters are used. You can also see the use of TeamCity built-in parameter named build.number. Last attribute contains another TeamCity param: build.vcs.number. It gets version control revision id. I'm using Git so this is a long alphanumerical SHA-1 hash. It means that it cannot be used in setting AssemblyVersion attribute. If you try to do so, you will get an error like this:

[Csc] Properties\AssemblyInfo.cs(35, 12): error CS0647:
Error emitting 'System.Reflection.AssemblyVersionAttribute'
attribute -- 'The version specified
'2.1.13.536ea0163412325ab7962957ce1cec777799d587' is invalid'

If you try to use it for AssemblyFileVersion, you can expect a warning:

[Csc] CSC warning CS1607: Assembly generation -- The version
'2.1.12.536ea0163412325ab7962957ce1cec777799d587' specified for the 'file version'
is not in the normal 'major.minor.build.revision' format

But you can safely use it in AssemblyInformationalVersion as .NET doesn't care if you put letters there... Note: If you work with SVN instead of Git, you are lucky because value returned for build.vcs.number is an integer and can be used in all three version-related attributes. If you really need to set revision in AssemblyVersion while using Git, you might need to add a custom build step for creating integer id... Let's keep it simple here and leave the last part of version number intact (as 0)...

Once you have AssemblyInfo patcher feature configured and you run the build, you can expect such entries in the build log:

[22:46:02]Step 1/1: Visual Studio (sln) (2s)
[22:46:02][Step 1/1] Update assembly versions:
Scanning checkout directory for assembly information related files to update version to 2.1.14
[22:46:02][Update assembly versions] Updating assembly version in
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\AssemblyInfoTest\Properties\AssemblyInfo.cs
[22:46:02][Update assembly versions] Updating assembly version in
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\Core\Properties\AssemblyInfo.cs
[22:46:02][Update assembly versions] Updating assembly version in
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\DataAccess\Properties\AssemblyInfo.cs

If all went OK, your log should also contain something like this:

[22:46:05]Reverting patched assembly versions
[22:46:05][Reverting patched assembly versions] Restoring
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\AssemblyInfoTest\Properties\AssemblyInfo.cs
[22:46:05][Reverting patched assembly versions] Restoring
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\Core\Properties\AssemblyInfo.cs
[22:46:05][Reverting patched assembly versions] Restoring
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\DataAccess\Properties\AssemblyInfo.cs

Don't worry, reverting takes place only in build agent work files. The build artifacts contain properly versioned assemblies. You've seen a proof of that rendered on HTML page, you can also check DLL files properties:

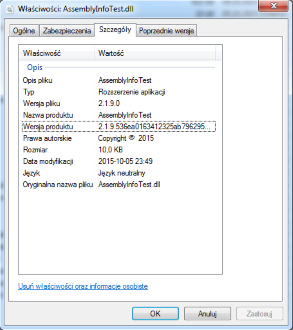

File properties with version information... Click to enlarge...

Properties window shows version set by AssemblyFileVersion and AssemblyInformationalVersion. I have Polish Windows so the properties are labeled Wersja pliku (it means File version) and Wersja produktu (it means Product version).

Keep in mind that AssemblyInfo patcher will not work if version attribute has non-standard format (or AssemblyInfo files are in unusual locations).

Let's say you have something like this (because you keep information about your product in static class constants):

[assembly: AssemblyVersion(ProductInfo.Version)]

You can expect such warning during build:

[Update assembly versions] Assembly info version was specified, but couldn't be patched in file
C:\TeamCity\buildAgent\work\8c2a410f7087e36b\.NET\AssemblyInfoTest\AssemblyInfoTest\Properties\AssemblyInfo.cs.
Is necessary attribute missing?

Summary

And that's all! We have a TeamCity build that sets version information in ASP.NET MVC application assemblies. :)

If somebody will be interested, I can write a little supplement to this post in which I will describe how to add version info into zip package (artifact) and how to display it on Team City UI...
