Connecting to Amazon Web Services (AWS) IoT using MQTT

, 17 May 2016
Rate this:
Please Sign up or sign in to vote.
This article provides a step-by-step guide to show you how to set up a connection to Amazon Web Services (AWS) IoT using MQTT, as well as command and code samples for additional setup and ease of use.

This article is for our sponsors at CodeProject. These articles are intended to provide you with information on products and services that we consider useful and of value to developers

Get access to the new Intel® IoT Developer Kit, a complete hardware and software solution that allows developers to create exciting new solutions with the Intel® Galileo and Intel® Edison boards. Visit the Intel® Developer Zone for IoT.

This article provides a step-by-step guide to show you how to set up a connection to Amazon* Web Services* (AWS*) IoT using MQTT*, as well as command and code samples for additional setup and ease of use.

AWS* IoT initial setup

  1. Create an account on https://aws.amazon.com, if you do not yet have one.

  2. Install the AWS* CLI by following the instructions at http://docs.aws.amazon.com/cli/latest/userguide/installing.html.

Adding the AWS* CLI path to environment variables on Windows*

  1. Go to Control Panel and click System.

  2. Click Advanced system settings.

  3. On the Advanced tab, click Environment Variables.

  4. In the User variables for me box, double-click PATH.

  5. Click New, add the full path to the AWS* CLI installation directory, and click OK.

  6. In the System variables box, double-click Path.

  7. If the AWS* CLI installation directory is not listed, repeat the actions from step 5.

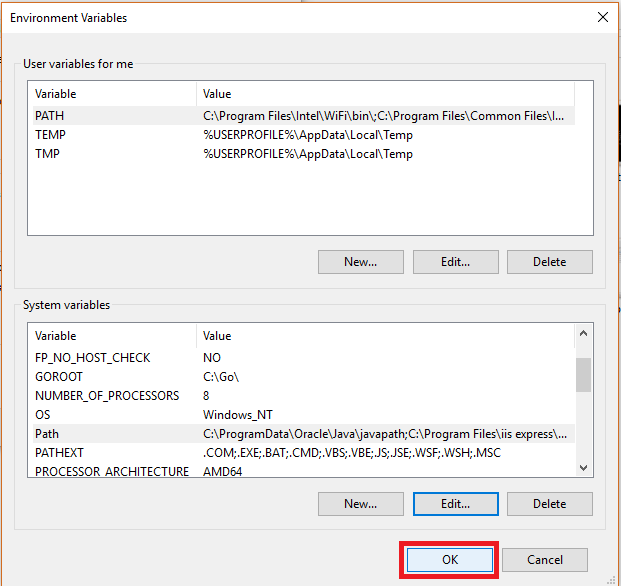

  8. In the Environment Variables window, click OK.

  9. In the System Properties window, click OK.
    Note: For ease of use on Windows*, while using the AWS* CLI, follow the subsequent steps of this tutorial in the directory where you cloned this repository (for example, C:\Users\me\Documents\GitHub\intel-iot-examples-mqtt\support\aws).

Verify the setup by running this command:

aws iot help

You should see the output like this:

Create a new device

To create a new device, use the create-thing command as follows:

aws iot create-thing --thing-name "edison1"

You should see the output like this:

Get the list of devices

To list your devices, use the list-things command as follows:

aws iot list-things

You should see the output like this:

Obtain and configure a certificate for device use

  1. Provision a certificate:

    aws iot create-keys-and-certificate --set-as-active --certificate-pem-outfile cert.pem --public-key-outfile publicKey.pem --private-key-outfile privateKey.pem

    You should see the output like this:

  2. Create/attach policy:

    aws iot create-policy --policy-name "PubSubToAnyTopic" --policy-document file:///intel/how-to-code-samples/docs/mqtt/aws-device-policy.json

    You should see the output like this:

  3. Attach the certificate to a device (you need certificate-arn from step 1):

    aws iot attach-principal-policy --principal "certificate-arn" --policy-name "PubSubToAnyTopic"

Determine the AWS* endpoint

You can obtain the host to use by running the following command:

aws iot describe-endpoint

You should see the output like this:

Installing certificates to the Intel® Edison board

From your computer, run the following commands:

scp -r cert.pem USERNAME@xxx.xxx.x.xxx:/home/root/.ssh
scp -r publicKey.pem USERNAME@xxx.xxx.x.xxx:/home/root/.ssh
scp -r privateKey.pem USERNAME@xxx.xxx.x.xxx:/home/root/.ssh

where USERNAME@xxx.xxx.x.xxx is the username and IP address you set for your board.

Installing certificates to the Intel® Edison board (Windows* only)

We'll be using WinSCP* for the next steps. For installation instructions, refer to https://github.com/intel-iot-devkit/how-to-code-samples/blob/master/docs/cpp/using-winscp.md.

  1. Log into your device using WinSCP*.

  2. Make sure your host machine is in the directory where you ran your previous AWS* CLI commands.

  3. Copy cert.pem, privateKey.pem, and publicKey.pem to your /home/root directory on your Intel® Edison board.

Summary

If you have followed all the steps above, you should have all the information that your program needs to connect to the MQTT* server:

MQTT_SERVER - use the host value you obtained by running the aws iot describe-endpoint command, along with the ssl://(for C++) or mqtts:// protocol (for JavaScript*)

MQTT_CLIENTID - use \<Your device name\>

MQTT_TOPIC - use devices/\<Your device name\>

MQTT_CERT - use the filename of the device certificate as described above

MQTT_KEY - use the filename of the device key as described above

MQTT_CA - use the filename of the CA certificate (/etc/ssl/certs/VeriSign_Class_3_Public_Primary_Certification_Authority_-_G5.pem)

Additional setup for C++

When running your C++ code on the Intel® Edison board, you need to set the MQTT* client parameters in Eclipse*. To do that:

  1. Go to Run configurations and, in the Commands to execute before application field, type the following:

    chmod 755 /tmp/<Your app name>; export MQTT_SERVER="ssl://<Your host name>:8883"; export MQTT_CLIENTID="<Your device ID>"; export MQTT_CERT="/home/root/.ssh/cert.pem"; export MQTT_KEY="/home/root/.ssh/privateKey.pem"; export MQTT_CA="/etc/ssl/certs/VeriSign_Class_3_Public_Primary_Certification_Authority_-_G5.pem"; export MQTT_TOPIC="devices/<Your device ID>"
  2. Click the Apply button to save these settings.

  3. Click the Run button to run the code on your board.

Additional setup for JavaScript*

When running your JavaScript* code on the Intel® Edison board, you need to set the MQTT* client parameters in the Intel® XDK IDE. Add the following entries to the config.json file:

{
"MQTT_SERVER": "mqtts://<Your host name>:8883",
"MQTT_CLIENTID": "<Your device ID>",
"MQTT_CERT": "/home/root/.ssh/cert.pem",
"MQTT_KEY": "/home/root/.ssh/privateKey.pem",
"MQTT_TOPIC": "devices/<Your device ID>"
}
