Standardize Page Objects with Visual Studio Item Templates

, 17 Jan 2017
Rate this:
Please Sign up or sign in to vote.
Learn how to create Visual Studio item templates. Create faster WebDriver Page Objects through item templates. Download the full set of Pages item templates.

I believe that to write high-quality tests, we need to prevent the copy-paste development. To write UI tests, we usually utilize the Page Object Design Pattern. Most people to create a new page, they copy an existing one and delete the redundant code. I believe that this practice is error prone and tedious. Because of that in this publication, I am going to show you how to create item templates to solve this problem. You can find similar solutions in the other articles from the Automation Tools Series.

Quick Navigation

What is an Item Template?

Definition

The metadata file (*.vstemplate) that Visual Studio uses to define how to display the project item in the integrated development environment (IDE) and, if you have specified the appropriate properties, to customize how the project item is created.

How to Create Single Page Template for Standard Page Object?

In my article, Page Object Pattern in Automated Testing, I showed you how to use the default WebDriver Page Objects. Below, you can find the default code for a regular page.

public class BingMainPage
{
    private readonly IWebDriver driver;
    private readonly string url = @"http://www.bing.com/";

    public BingMainPage(IWebDriver browser)
    {
        this.driver = browser;
        PageFactory.InitElements(browser, this);
    }

    [FindsBy(How = How.Id, Using = "sb_form_q")]
    public IWebElement SearchBox { get; set; }

    [FindsBy(How = How.Id, Using = "sb_form_go")]
    public IWebElement GoButton { get; set; }

    [FindsBy(How = How.Id, Using = "b_tween")]
    public IWebElement ResultsCountDiv { get; set; }

    public void Navigate()
    {
        this.driver.Navigate().GoToUrl(this.url);
    }

    public void Search(string textToType)
    {
        this.SearchBox.Clear();
        this.SearchBox.SendKeys(textToType);
        this.GoButton.Click();
    }

    public void ValidateResultsCount(string expectedCount)
    {
        Assert.IsTrue(this.ResultsCountDiv.Text.Contains(expectedCount),
        "The results DIV doesn't contains the specified text.");
    }
}

Usually, if you want to create a new page, you will copy one of the existing pages, remove the redundant code and start to add the new logic. However, for me, this process is tedious and error prone. Because of that, I believe that if we create a template for this boilerplate code, we will reduce the amount of the required work and errors.

Create Clean Default Template

  1. Copy the above page and start deleting the redundant code. Leave only the bare minimum required.
    // <copyright file="PageTemplate.cs" company="Automate The Planet Ltd.">
    // Copyright 2016 Automate The Planet Ltd.
    // Licensed under the Apache License, Version 2.0 (the "License");
    // You may not use this file except in compliance with the License.
    // You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.
    // </copyright>
    // <author>Anton Angelov</author>
    // <site>http://automatetheplanet.com/</site>

    using Microsoft.VisualStudio.TestTools.UnitTesting;
    using OpenQA.Selenium;
    using OpenQA.Selenium.Support.PageObjects;

    namespace PageObjectPattern.Selenium.Bing.Pages
    {
        public class PageTemplate
        {
            private readonly IWebDriver driver;
            private readonly string url = @"http://www.bing.com/";

            public PageTemplate(IWebDriver browser)
            {
                this.driver = browser;
                PageFactory.InitElements(browser, this);
            }

            [FindsBy(How = How.Id, Using = "sb_form_q")]
            public IWebElement SampleElement { get; set; }

            public void Navigate()
            {
                this.driver.Navigate().GoToUrl(this.url);
            }

            public void SampleAction()
            {
            }

            public void AssertIsTrue(bool expectedCondition = true)
            {
                Assert.IsTrue(expectedCondition);
            }
        }
    }

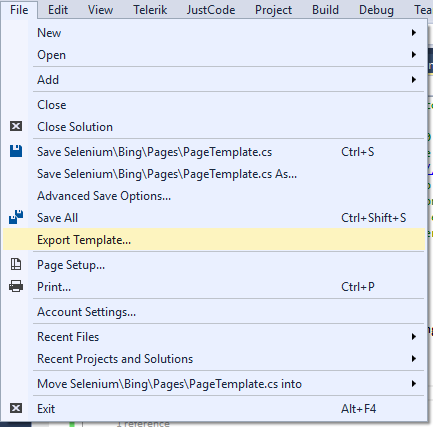

  2. Now it is time to export the file as a template. On the File menu, click Export Template.

    Export Item Template

  3. Click Item Template, select the project that contains the item and click Next.

    Item Template Type Wizard

  4. Select the item for which you want to create a template, and click Next.

    Select Item for Template

  5. You can select the assembly references to be included in the template, but we will skip this part.

    Select Item References

    ?

  6. Next type the icon file name, preview image. You can find the most appropriate from some of the most popular sites such as FlatIcon.

    Find Icon

  7. Type the template name and description, and click Finish.

    Export Template Wizard

    The files for the template are added to a .zip file and copied to whatever directory you specify in the dialog. The default location is ..Users/<username>/Documents/Visual Studio <Version>/My Exported Templates/ folder.

Import Exported Templates in Visual Studio

My Exported Templates

By default, the template is imported automatically. However, if for some reason, you have deleted it, you need to copy the exported template to ..Users/<username>/Documents/Visual Studio <Version>/Templates/ItemTemplates/.

How to Use the Created Items Templates?

To use your new template, add a new item:

Open New Item Window

It is possible not to see your template at first when you open the new item window. To fix the problem, close all Visual Studio instances and open your solutions' folder. Delete the .vs folder.

Delete .vs folder

After that, open your solution again and try to create a new item.

Create New Item Page Object

The following new file is created:

// <copyright file="MyNewPage.cs" company="Automate The Planet Ltd.">
// Copyright 2016 Automate The Planet Ltd.
// Licensed under the Apache License, Version 2.0 (the "License");
// You may not use this file except in compliance with the License.
// You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// </copyright>
// <author>Anton Angelov</author>
// <site>http://automatetheplanet.com/</site>

using Microsoft.VisualStudio.TestTools.UnitTesting;
using OpenQA.Selenium;
using OpenQA.Selenium.Support.PageObjects;

namespace PageObjectPattern
{
    public class MyNewPage
    {
        private readonly IWebDriver driver;
        private readonly string url = @"http://www.bing.com/";

        public MyNewPage(IWebDriver browser)
        {
            this.driver = browser;
            PageFactory.InitElements(browser, this);
        }

        [FindsBy(How = How.Id, Using = "sb_form_q")]
        public IWebElement SampleElement { get; set; }

        public void Navigate()
        {
            this.driver.Navigate().GoToUrl(this.url);
        }

        public void SampleAction()
        {
        }

        public void AssertIsTrue(bool expectedCondition = true)
        {
            Assert.IsTrue(expectedCondition);
        }
    }
}

The class name and the filename are automatically changed to the value that you have specified in the new item window.

This is how the current version of the exported template looks like - MyTemplate.vstemplate file.

<VSTemplate Version="3.0.0"

xmlns="http://schemas.microsoft.com/developer/vstemplate/2005" Type="Item">
  <TemplateData>
    <DefaultName>WebDriverPageObjectItemTemplate.cs</DefaultName>
    <Name>WebDriverPageObjecttemTemplate</Name>
    <Description>Creates a WebDriver Page Object</Description>
    <ProjectType>CSharp</ProjectType>
    <SortOrder>10</SortOrder>
    <Icon>__TemplateIcon.png</Icon>
    <PreviewImage>__PreviewImage.png</PreviewImage>
  </TemplateData>
  <TemplateContent>
    <References />
    <ProjectItem SubType="" TargetFileName="$fileinputname$.cs"

    ReplaceParameters="true">PageTemplate.cs</ProjectItem>
  </TemplateContent>
</VSTemplate>

Download the Page Object Item Template

Automation Tools

References

The post Standardize Page Objects with Visual Studio Item Templates appeared first on Automate The Planet.
