Build digital photo frame with a Raspberry Pi

, 1 Jan 2018
Rate this:
Please Sign up or sign in to vote.
With $35 raspberry pi and an old screen to build your own digital photo frame.

Introduction

A custom digital photo frame powered by a Raspberry Pi. I'm using Html5 canvas element to display images, along with the weather, time and date information.

Prerequisites

You need to configure raspberry pi and install an operating system, which I have covered in my previous article

Using the code

The Html code to display photos, along with the weather, time and date information:

<div class="container" style="overflow: hidden;">
        <div class="event">
            <h1 style="margin-bottom: 5px;font-family:Alegreya Sans;text-align: center;"><span style="padding-left:15px;" id="dateHead"></span></h1>
            <h1 style="margin-bottom: 5px;font-family:Alegreya Sans;"><span style="padding-left:15px;" id="weatherHead"></span></h1>
            <h4 style="margin-top: 5px;font-family:Alegreya Sans;"><span style="padding-left:15px;font-size:18px;" id="weatherBody"></span></h4>
            <h1 style="margin-bottom:5px;font-family:Alegreya Sans;text-align: center;"><span id="timeHead"></span></h1>
        </div>
       <canvas id="photoGallery" style="background-color :black;top: 0px;left: 0px;">
                Your browser does not support the HTML5 canvas tag.
       </canvas>
</div>

The HTML <canvas> element is used to draw graphics, via JavaScript. Here is the javascript code to load images in canvas.

var imgIndex = 0;
var photoTimer = 10000;
var weatherTimer = 1000 * 60 * 60;
var clockTimer = 1000;
var canvas = document.getElementById('photoGallery');
var context = canvas.getContext('2d');
var img = new Image();
img.src = images[imgIndex];
img.onload = function () {
      var width = window.innerWidth;
      var height = window.innerHeight;
      context.canvas.width = width;
      context.canvas.height = height;
      context.drawImage(img, 0, 0, width, height);
};

setClock();
setInterval(loadPhoto, photoTimer);
setInterval(getWeather, weatherTimer);
setInterval(setClock, clockTimer);

function loadPhoto() {
   imgIndex = imgIndex >= images.length ? 0 : ++imgIndex;
   img.src = images[imgIndex];
}

function setClock() {
  var d = new Date();
  $("#dateHead").html(d.toDateString());
  $("#timeHead").html(d.toLocaleTimeString());
}

function getWeather() {
 $.simpleWeather({
    location: 'Burlington,CA',
    woeid: '',
    unit: 'c',
    success: function (weather) {
        html = weather.city + ', ' + weather.region + '&nbsp;&nbsp;&nbsp;' + weather.temp + '&deg;' + weather.units.temp;
        $("#weatherHead").html(html);
        html = 'Feel like ' + eval(weather.wind.chill + weather.temp) + '&deg;' + '&nbsp;&nbsp;' + weather.currently + '&nbsp;&nbsp;' +             weather.wind.direction + '&nbsp;&nbsp;' + weather.wind.speed + '&nbsp;&nbsp;' + weather.units.speed;
        $("#weatherBody").html(html);
    },
    error: function (error) {
        $(".weather").html('<p>' + error + '</p>');
    }
  });

$(function () {
    getWeather();
});

The above code snippet uses jquery simpleweather plugin to display weather information for a given location. Currently, I'm displaying photos from flicker, however, Google photos, Calendar or flicker API can be integrated, which i will cover in next article. Also, i'm using weather location 'Burlington,CA', which can be pulled using HTML5 Geolocation API. Here is our html output.

Setup Raspberry Pi

The Raspberry Pi setup has been covered in my previous article here. Next, we will install the NGINX web server in Raspberry Pi. First install the nginx package by typing the following command in to the Terminal:

sudo apt-get install nginx

Next, we will replace nginx default page with our code either using ftp or in terminal.

sudo nano /var/www/html/index.nginx-debian.html

and start the server with:

sudo /etc/init.d/nginx start

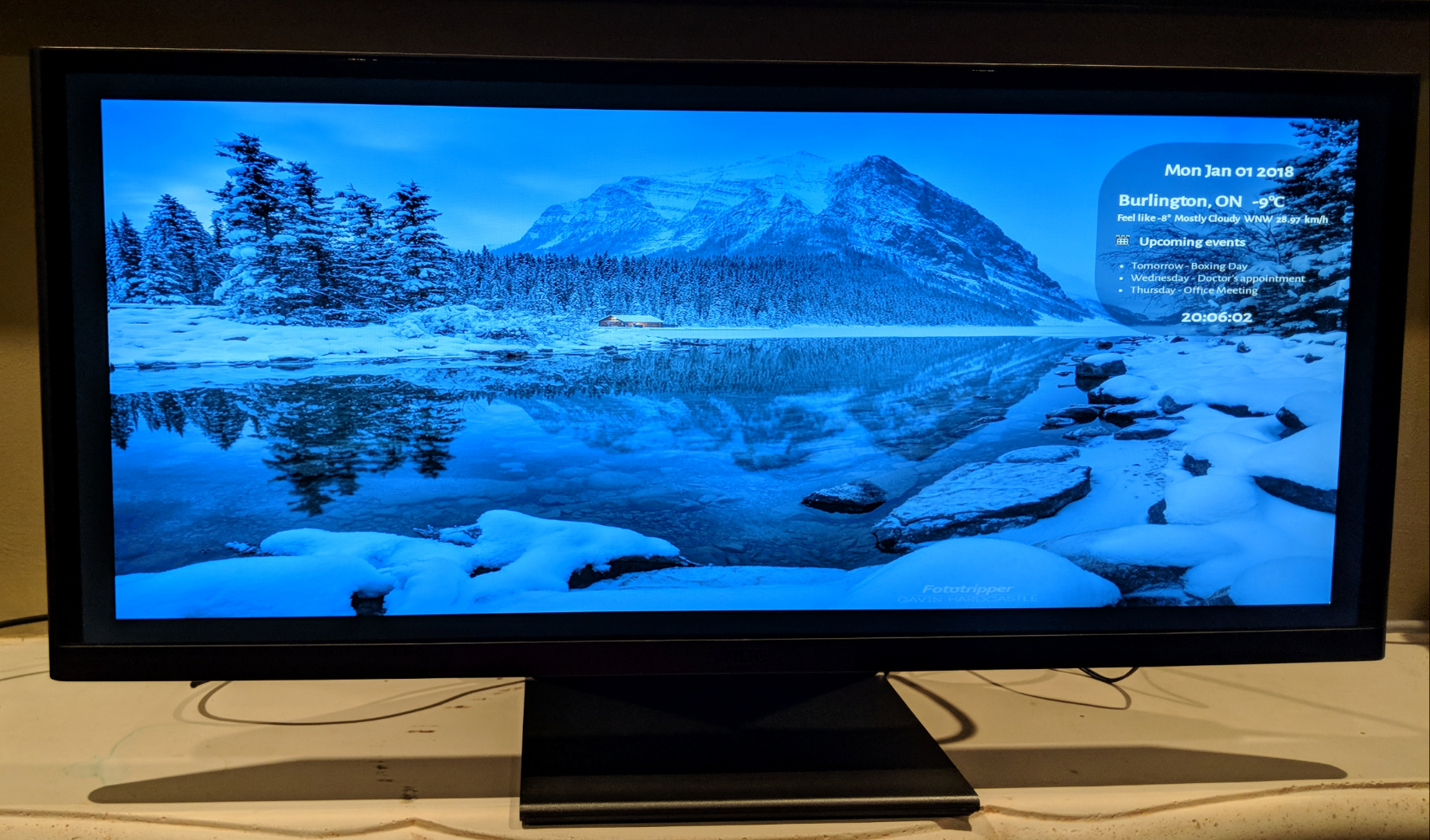

Now, launch the page in raspberry pi chromium by typing http://localhost, in a browser you can enter Fullscreen mode by pressing the F11 key on the keyboard. Here is my demo below.



Points of Interest

 I will be covering integration with Google photos, Calendar or flicker API in next article.
