A nice and simple button in C#.

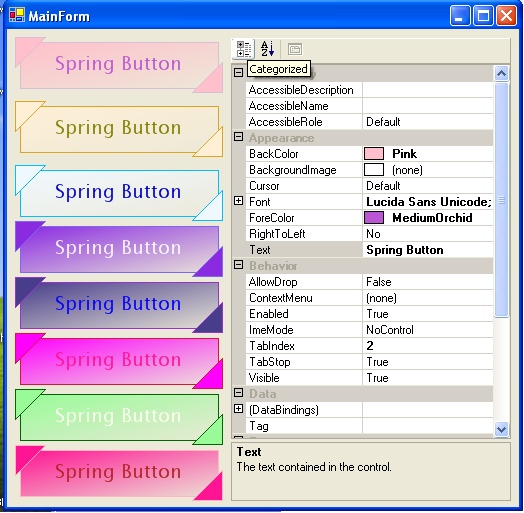

Sample Image - springbutton.jpg


This sample shows how to build a simple button with a nice graphic interface. This control is an example of using the drawings classes and the essential keywords. I decided to draw an unusual button like this picture below:

Sample Image - abutton.jpg

First step

First of all, I declare my new class:

public class SpringButton : Control

How to expose the proprieties

After that, I expose some essential proprieties like the size in pixel of the triangles and the second color of the button. All the other proprieties that I need are available in the System.Windows.Form.Control class.

//this variable say if the
//mouse is over the contol
private bool Sel = false;
private Color BackColor2= Color.Gray;

public Color BackColorEnd
    get{return BackColor2; }
        this.Invalidate();  }

int _triangle =25;
//I add a proprety
//that's the lenght of
//a triangle rectangle (45°)

public int Triangle
    get{return _triangle;}
        //if lenght change I update
        //the control

Mouse "lighting"

Another important step is to set the control as 'selected' when the mouse is over it. So if the mouse is over the control, the back color and the border color are inverted (see the code in the OnPaint override).

//set the button as "selected" on mouse entering
//and as not selected on mouse leaving
protected override void OnMouseEnter(EventArgs e)
    Sel = true;
protected override void OnMouseLeave(EventArgs e)
    Sel = false;

The core

The main step is this override of the OnPaint procedure. In this method, I draw directly on the control. First the central rectangle, and then the two triangles in the opposite corners. Here is the code:

protected void PaintBut(PaintEventArgs e)
    //I select the rights color
    //To paint the button...
    Color FColor = this.BackColorEnd;
    Color BColor = this.BackColor;
    if (Sel == true)
      FColor = this.BackColor;
      BColor = this.BackColorEnd;
    //and draw(see All the code...)

The delegate

I will now explain how to use the delegate. I declared this class that I use as EventArgs. When the user clicks on the control, if the click has been on a triangle and I delegate with the TriangleEventArgs that says the triangle has been clicked.

protected override void OnMouseDown(MouseEventArgs e)
    // if the user use this delegate...
    if (this.TriangleClick != null)
    //check if the user click on the left triangle
    //or in the right with some geometrics  rules...
    //(is't possible to click all triangle at the same time )
    int x= e.X;
    int y= e.Y;
       (y>=(this.ClientRectangle.Height-_triangle-x)) )
        //try with right...
        TriangleClickEventArgs te= new TriangleClickEventArgs(false);
        //if not...
            te= new TriangleClickEventArgs(true);


If you would like to see my other works, please visit my home page:
